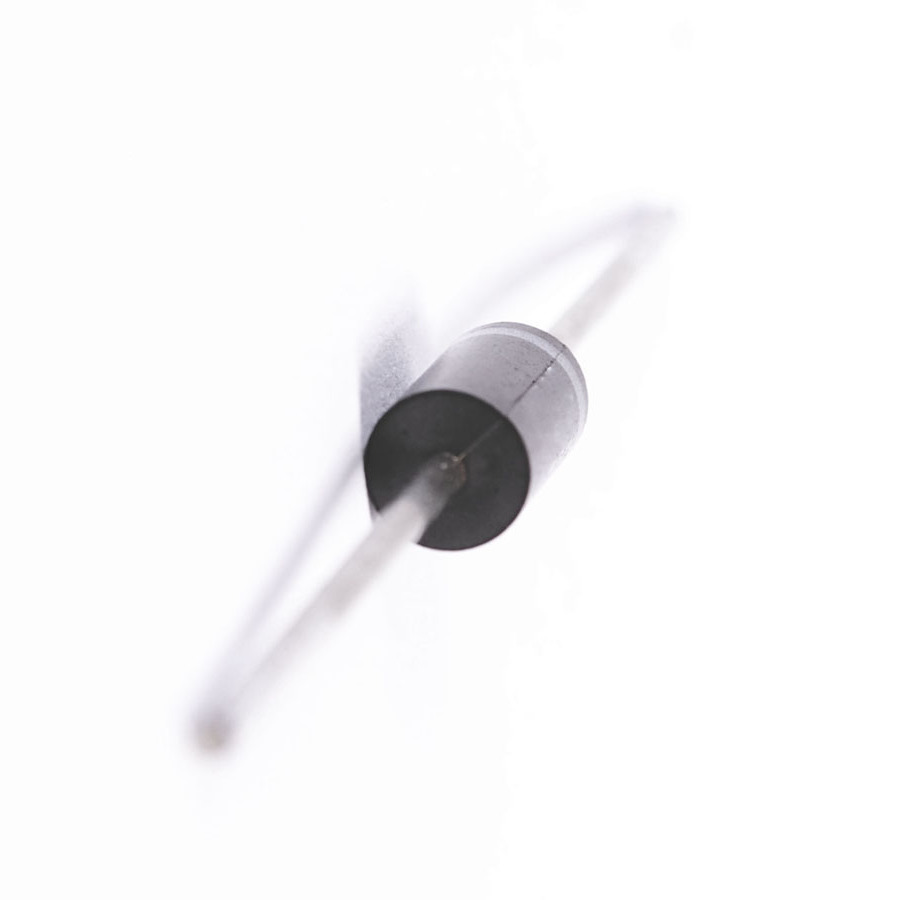

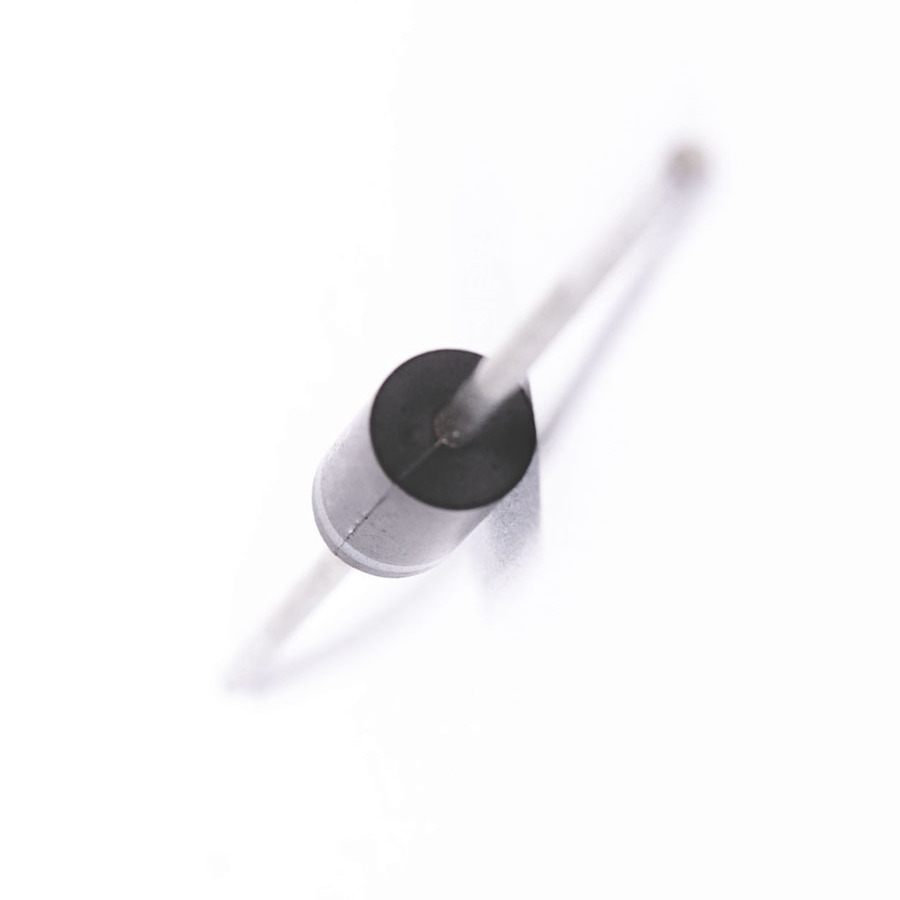

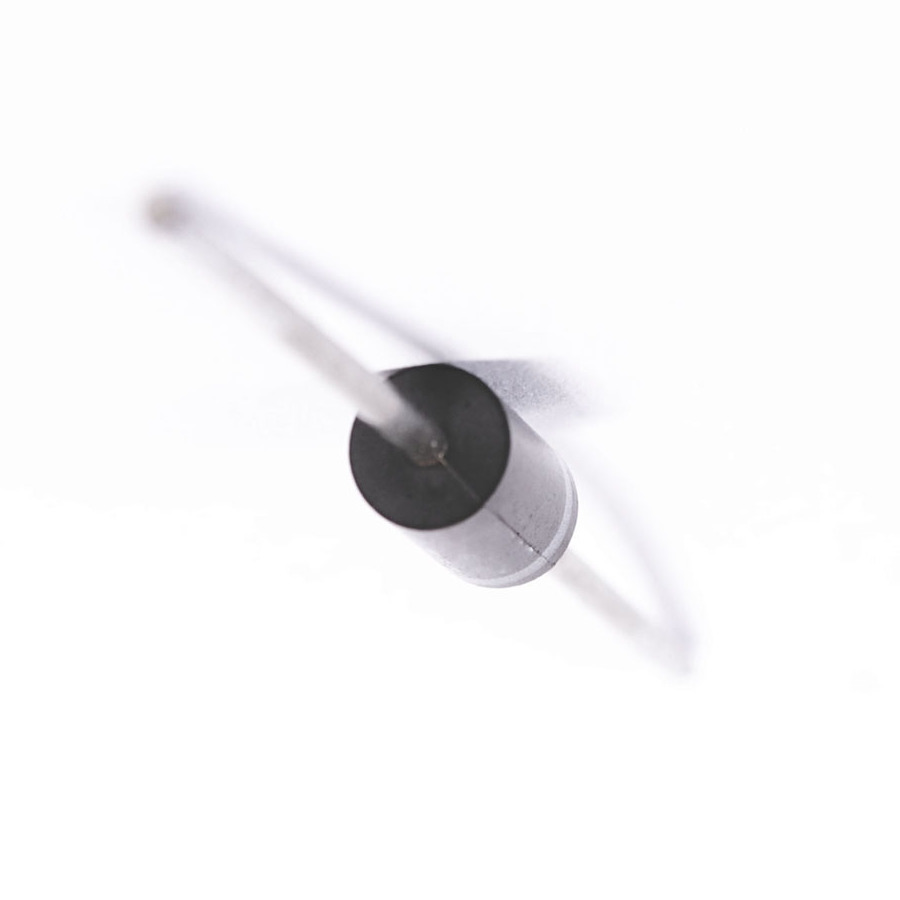

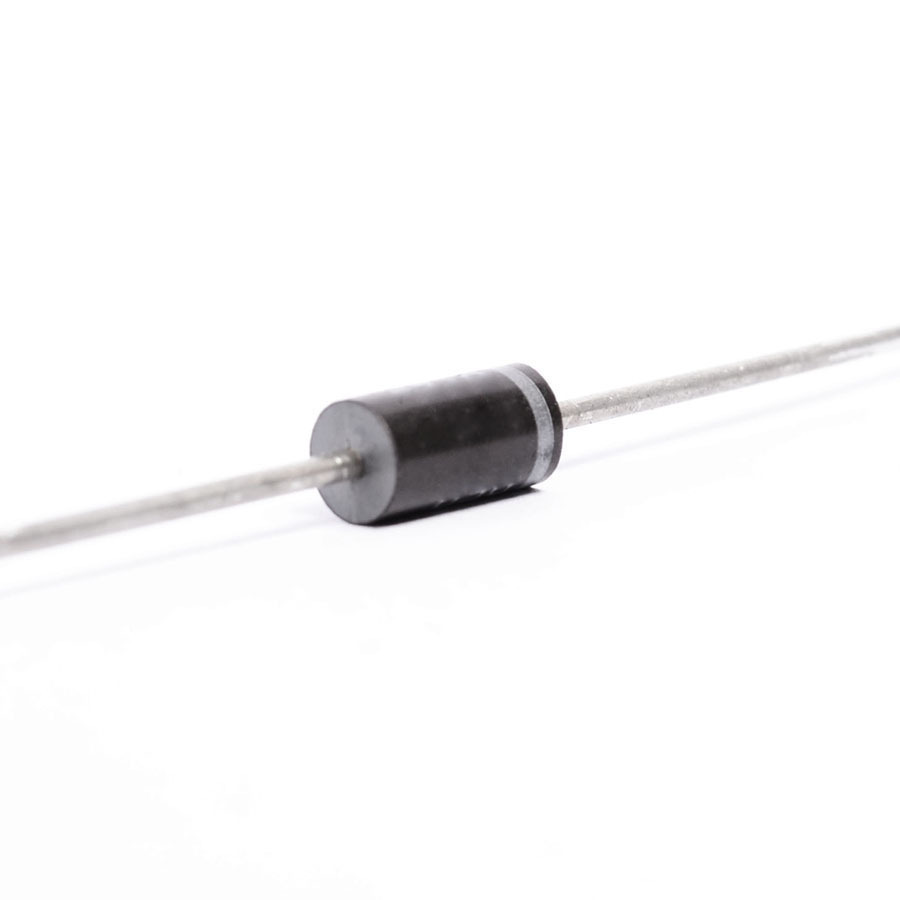

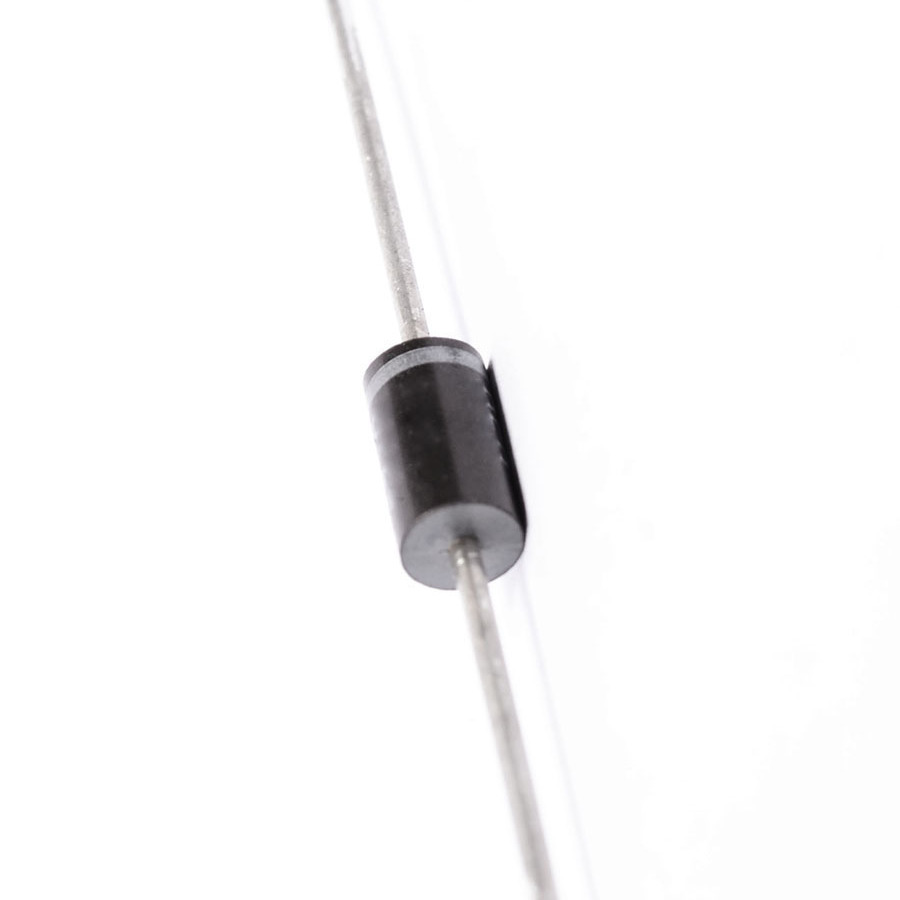

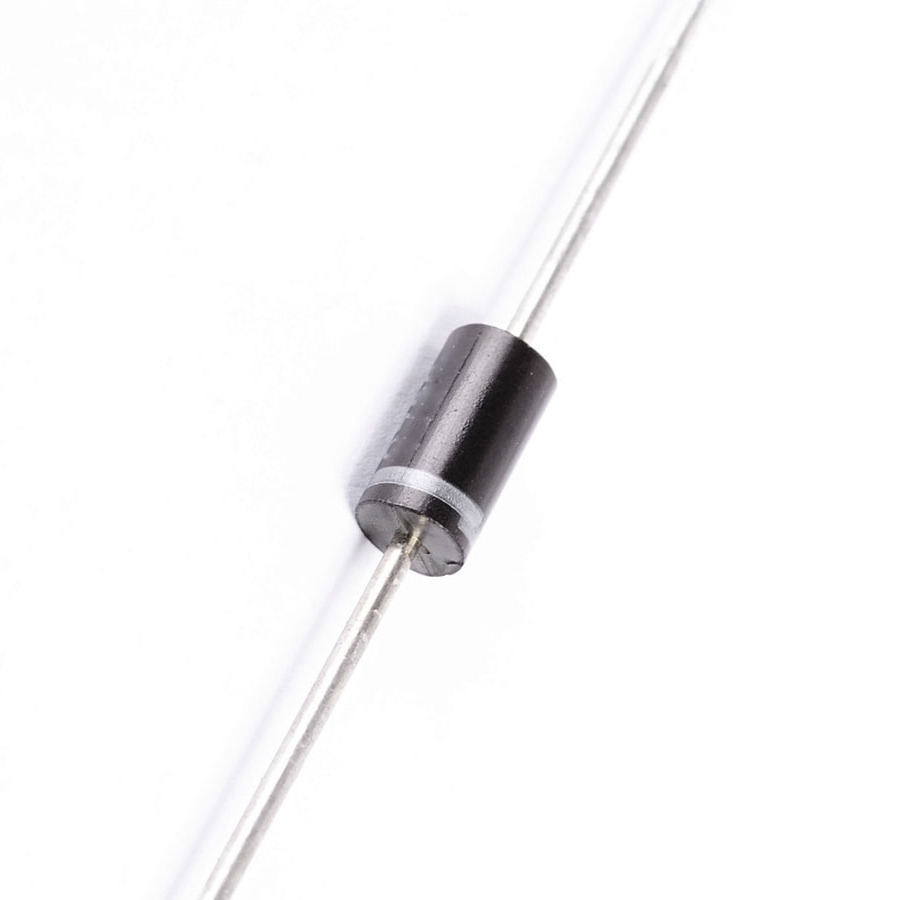

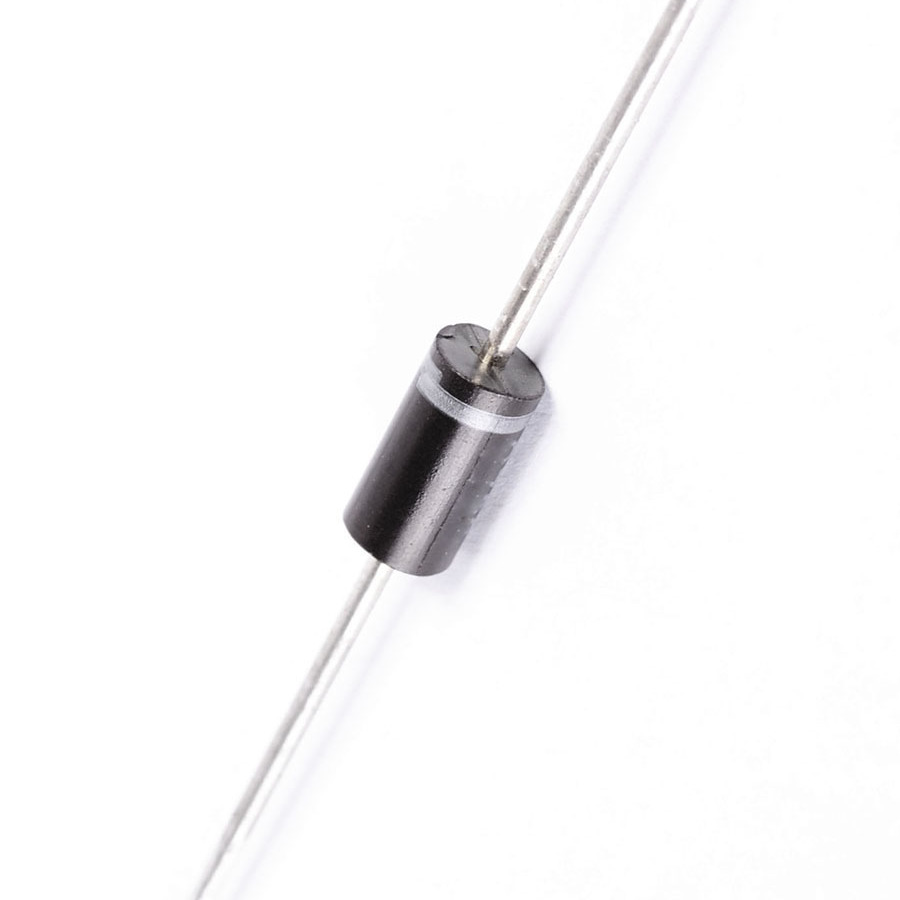

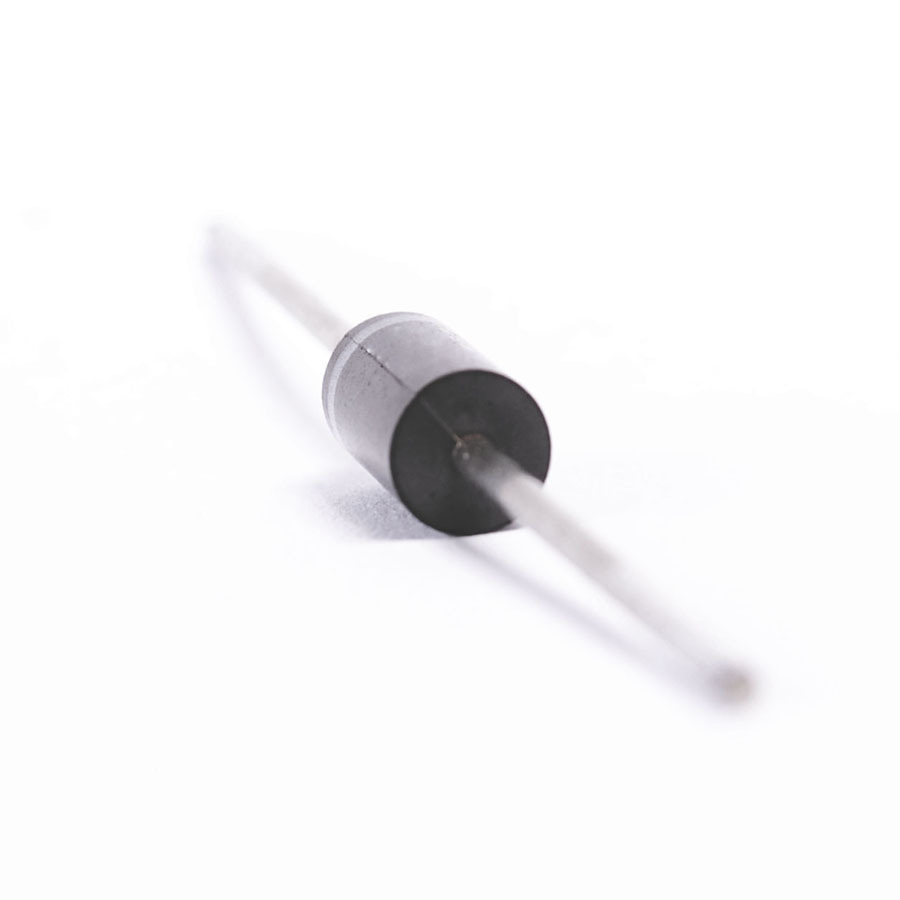

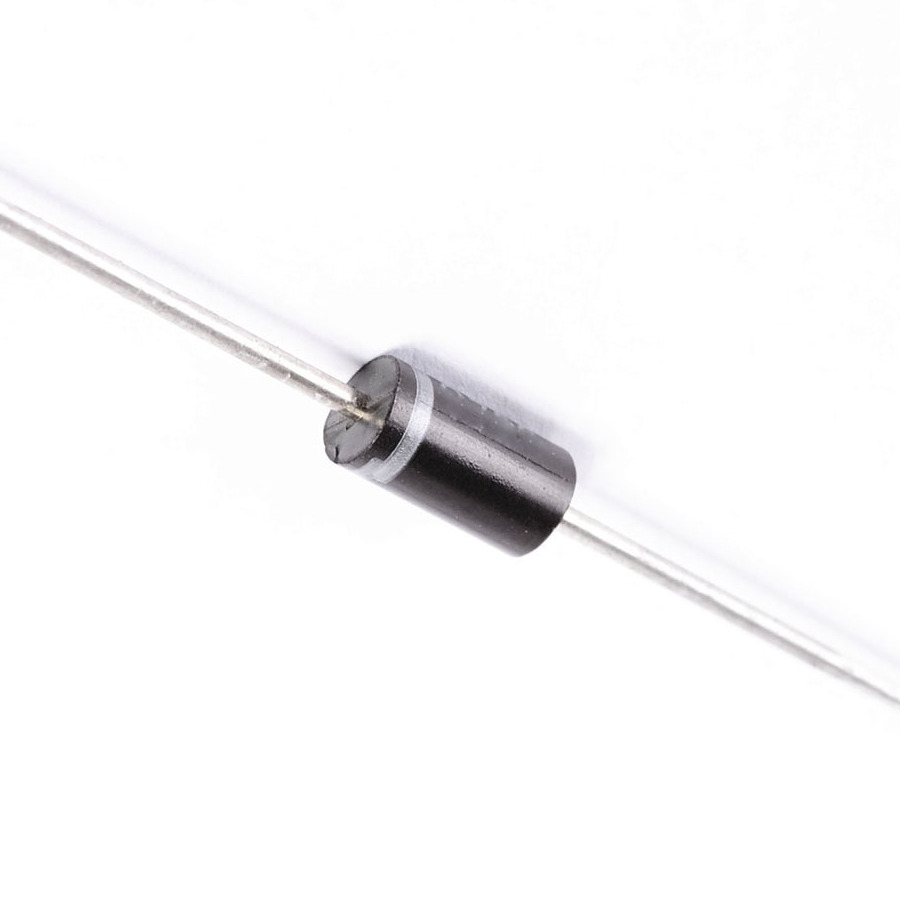

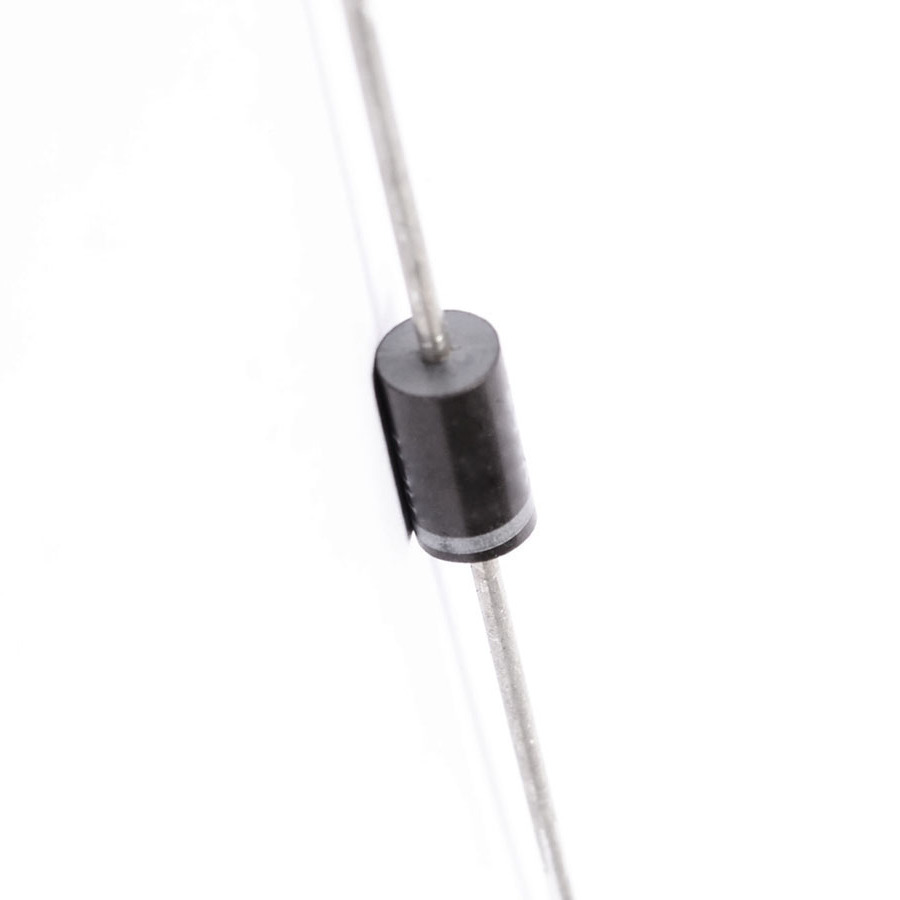

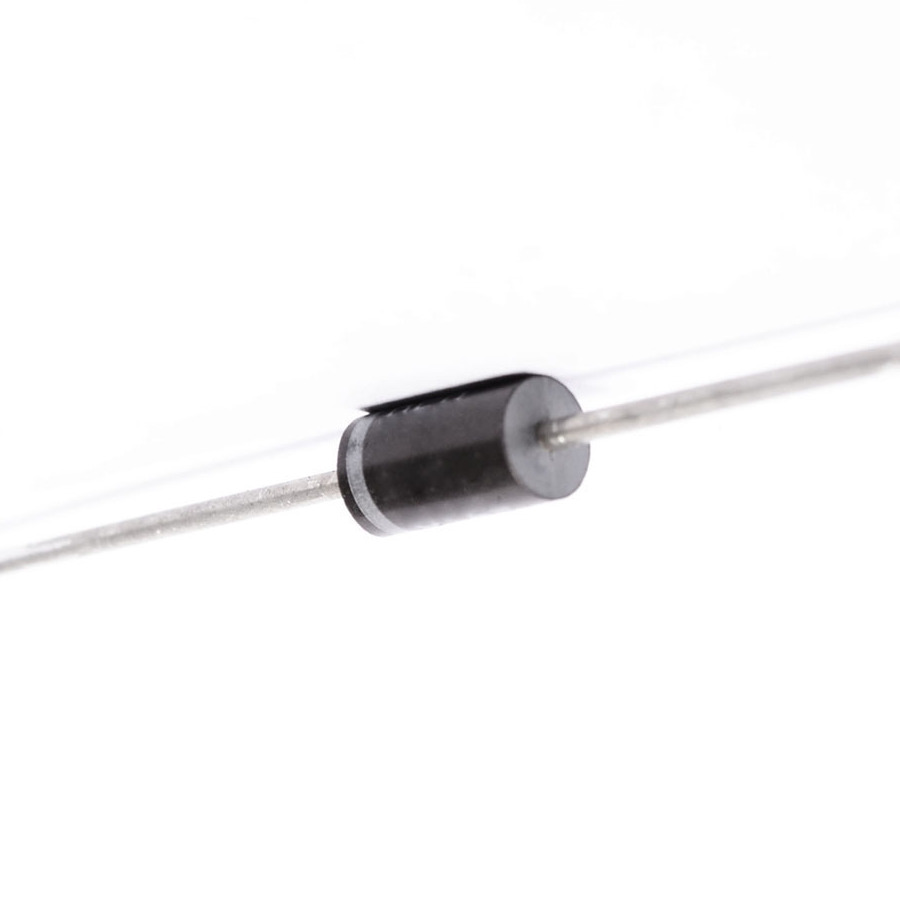

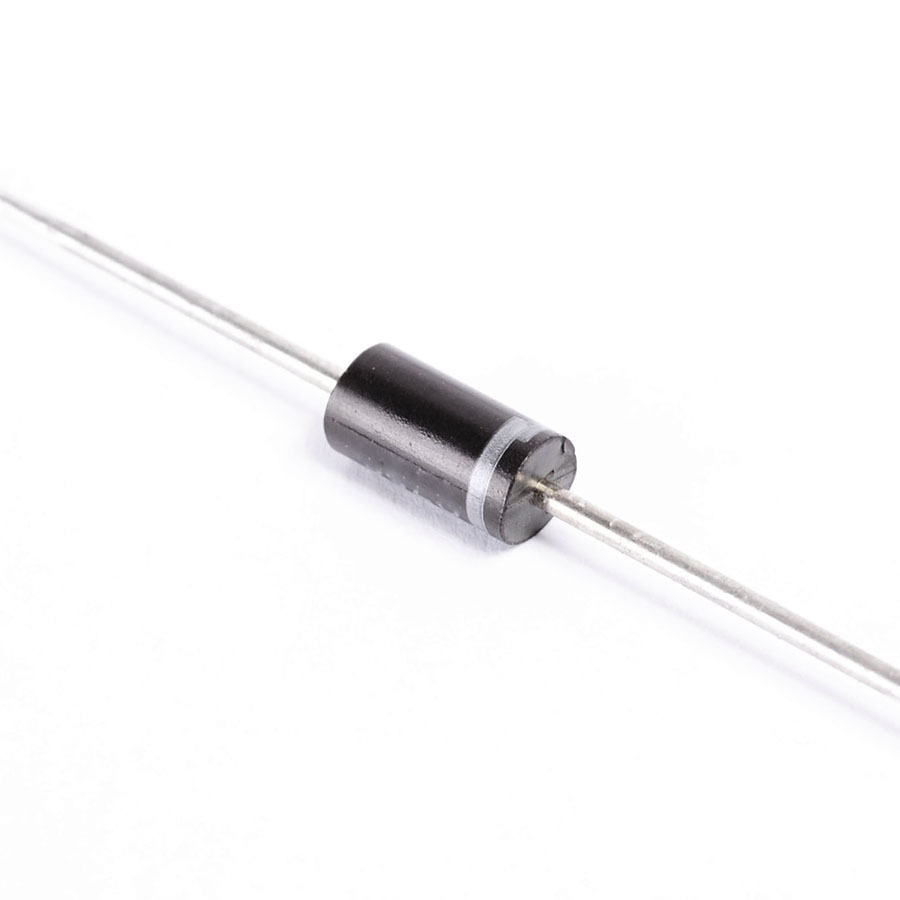

SF50-02
View detailed images (12)

SF50-02

SKU: SF50-02
SF50-02 Integrated Circuit CASE: DO201AD MAKE: Generic
Product specifications
Type Integrated Circuit
Case DO201AD
Manufacturer Generic
Mat. Silicon Logic
f(oper) Max. (Hz) 30M
Output Config Totem-Pole
VRRM 200
tPD Max. (S) 25n
Nom. Supp Volt 5.0
t(rr) (S) 35n
Tech. TTL Integrated Circuit
Vf Max. 1.0
Ir @25°C 5.0u
I(out) (If AVG) Max. 5.0
@Volts (test) (V) 200
@If (test) 0.5
@If (test) 5.0
Oper. Temp (°C) Min -55
Oper. Temp (°C) Max. 125
@Ir (A) 1.0
Clear (Y/N) Yes
Preset (Y/N) Yes
Pinout Equivalence Number 14-109
Surface Mounted Yes/No NO
SKU 842352
