SF61
View detailed images (12)

SF61

SKU: SF61

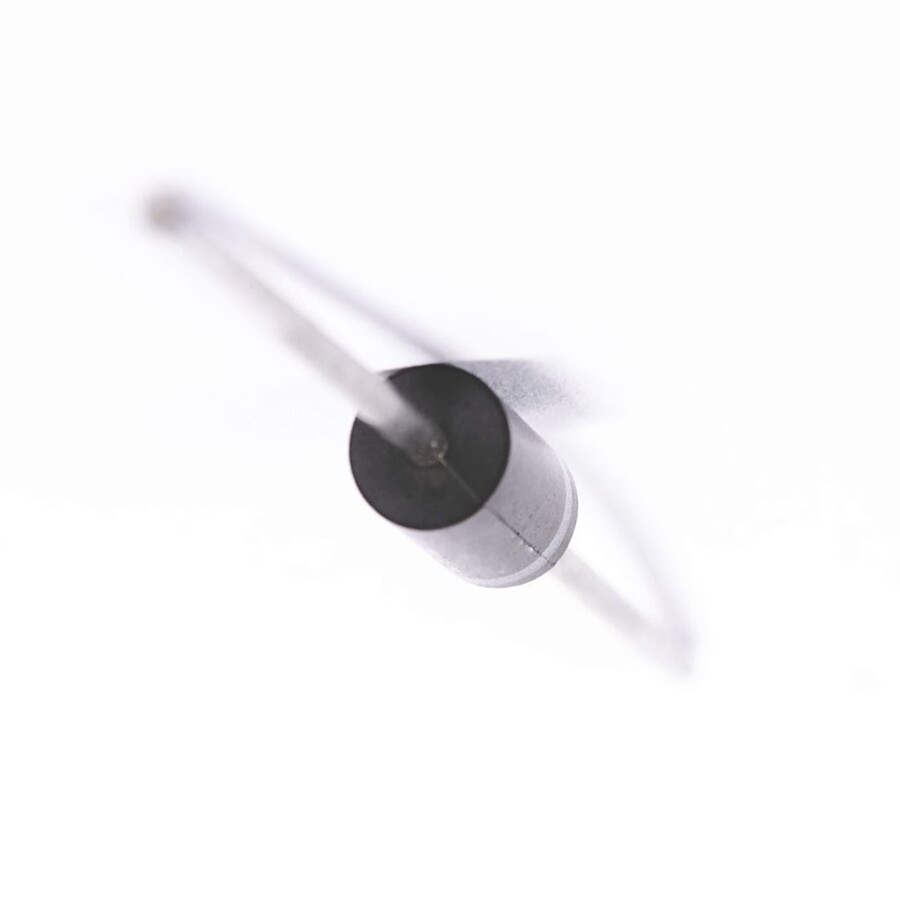

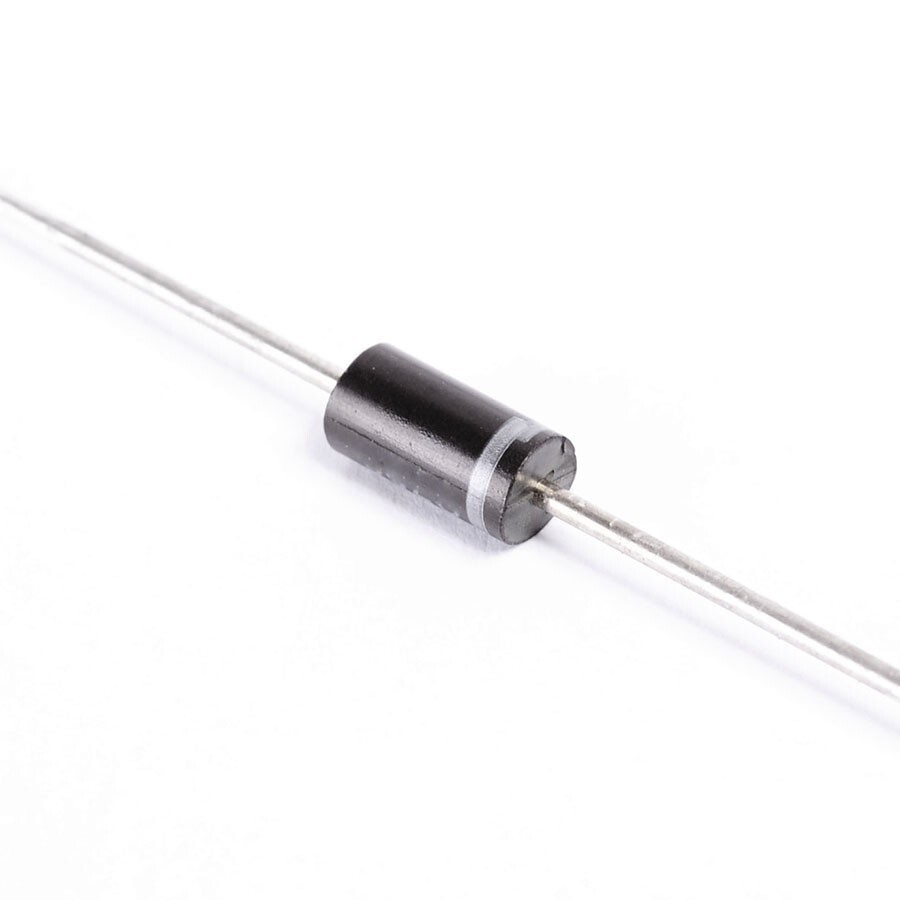

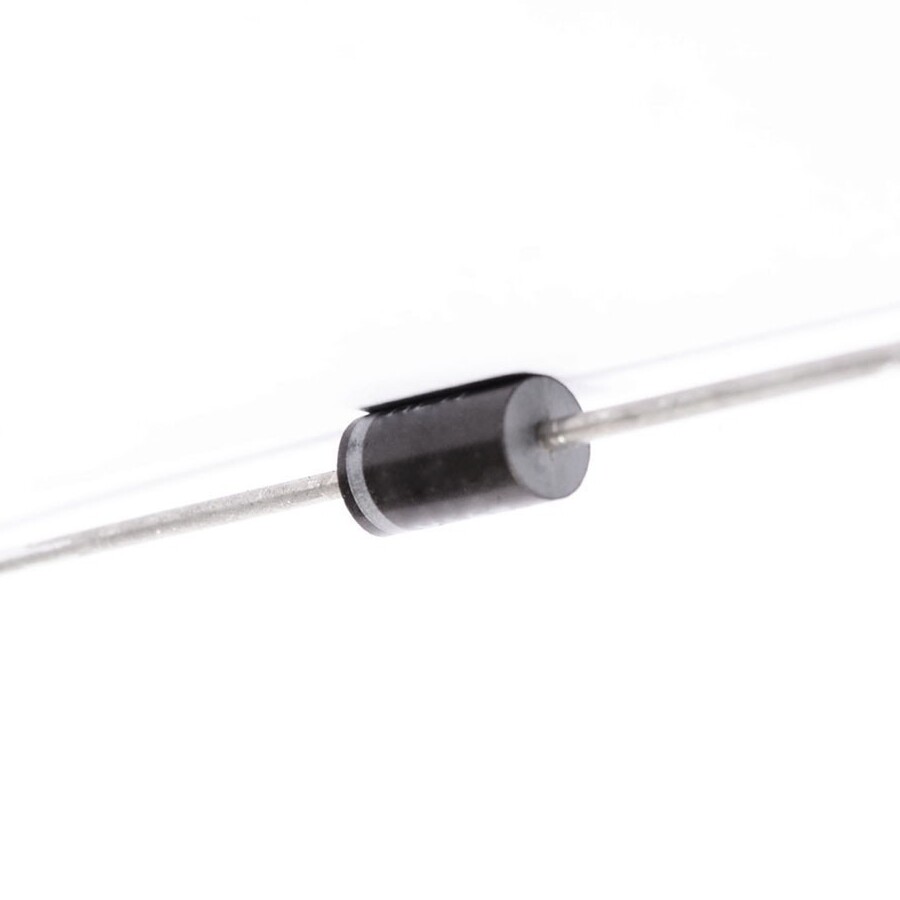

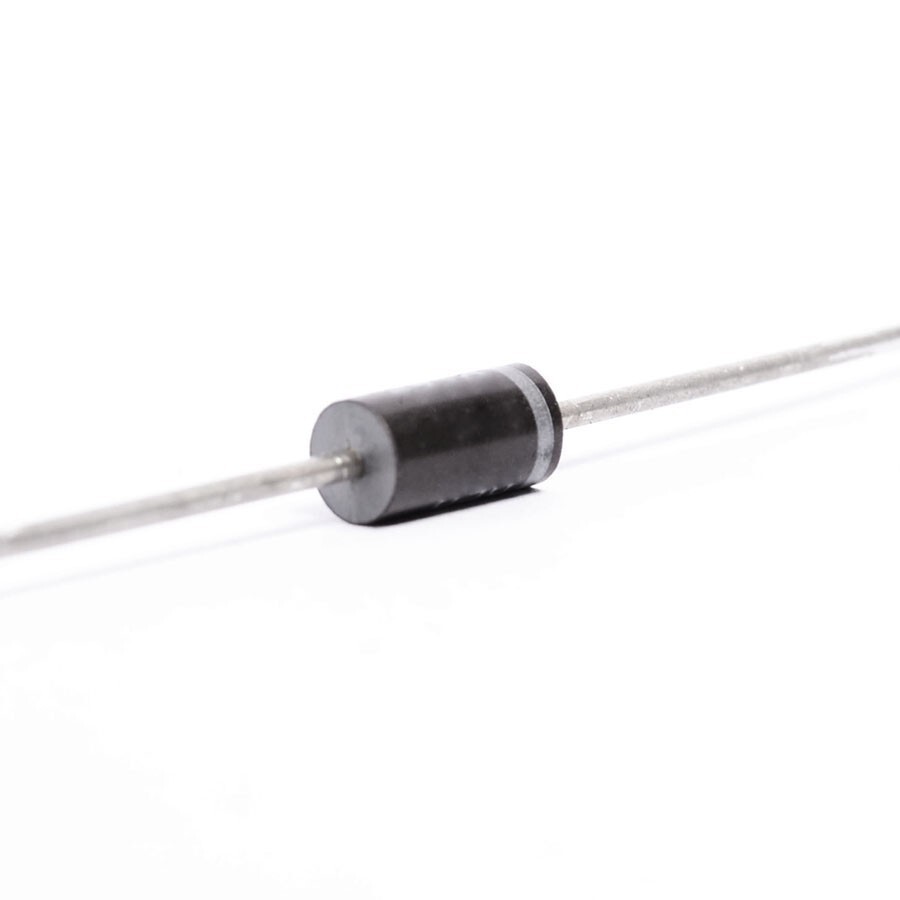

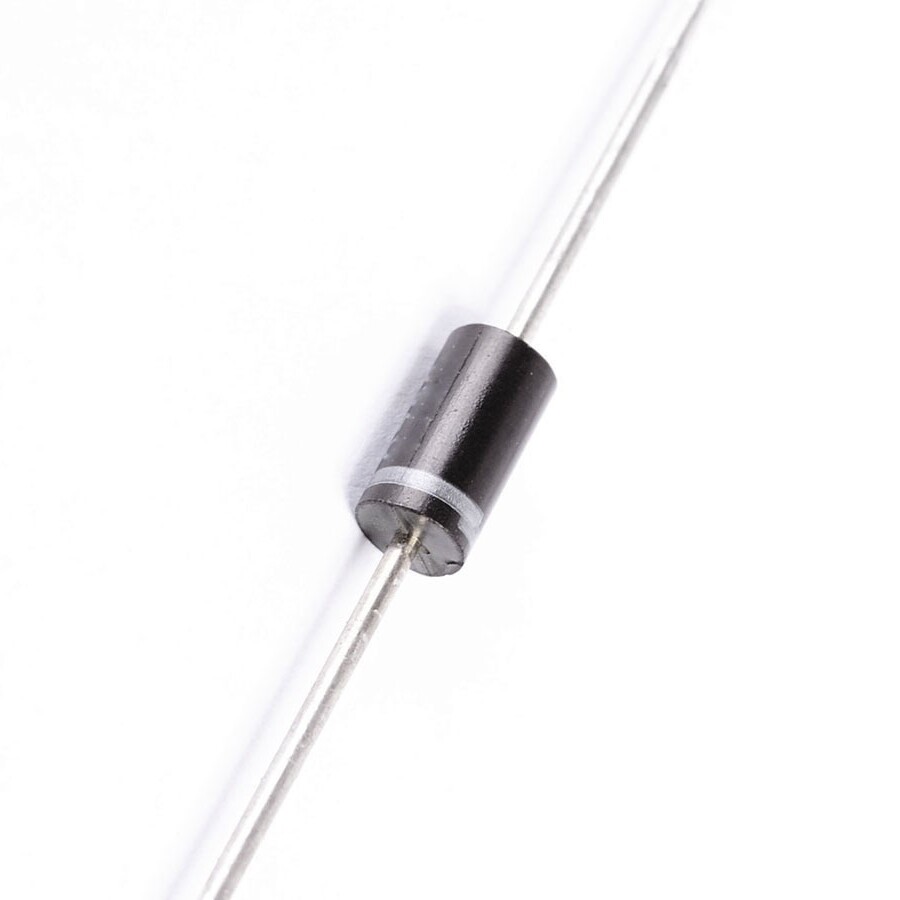

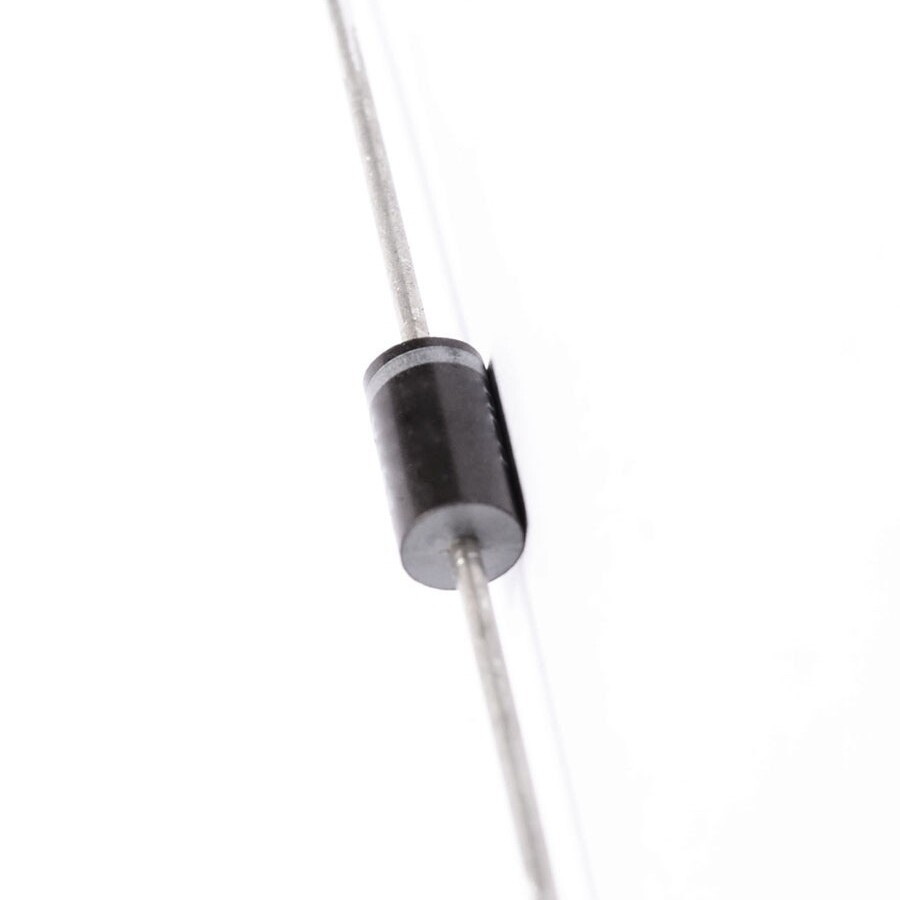

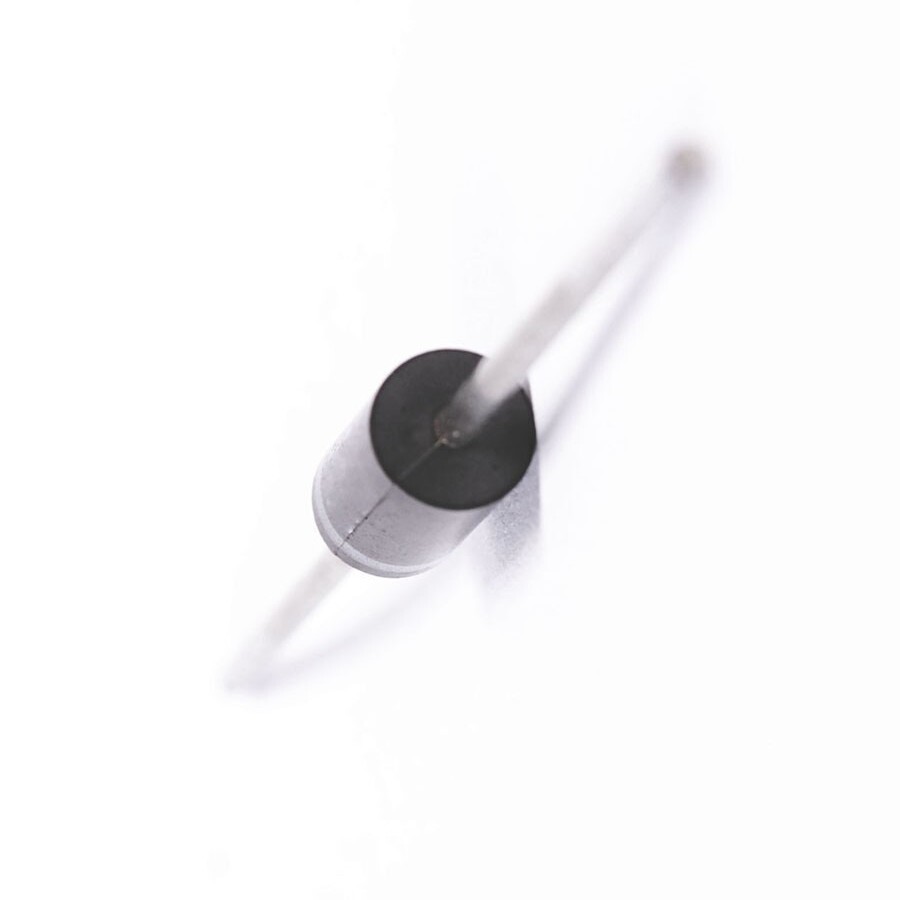

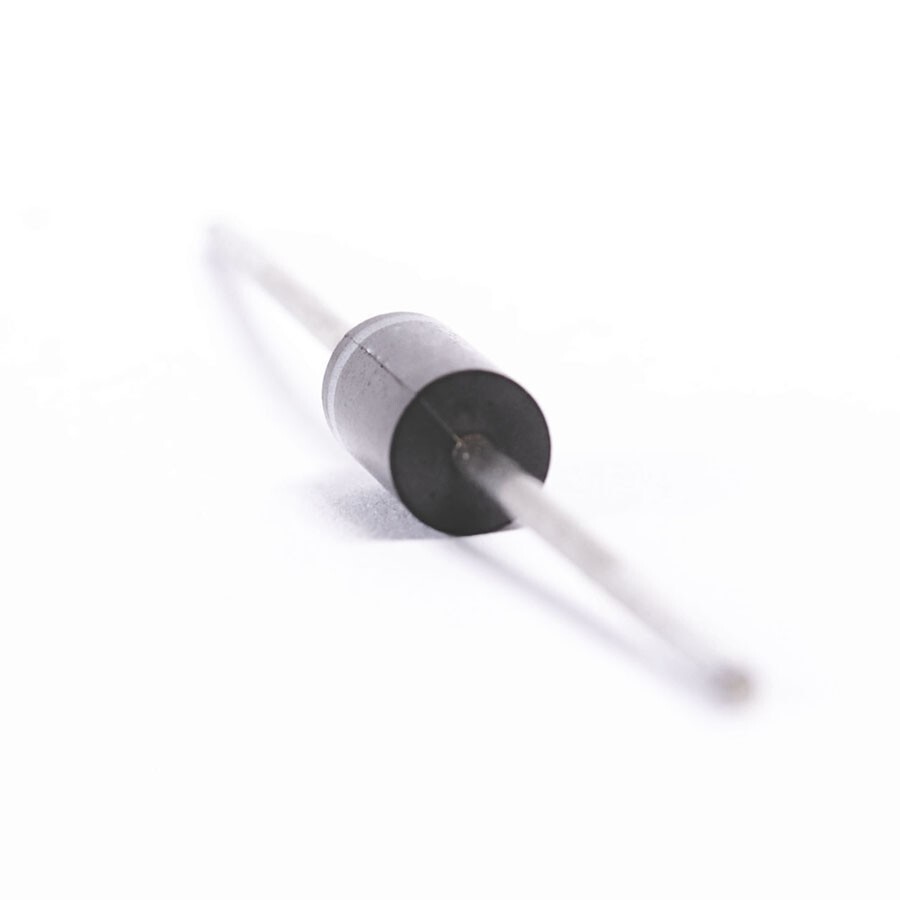

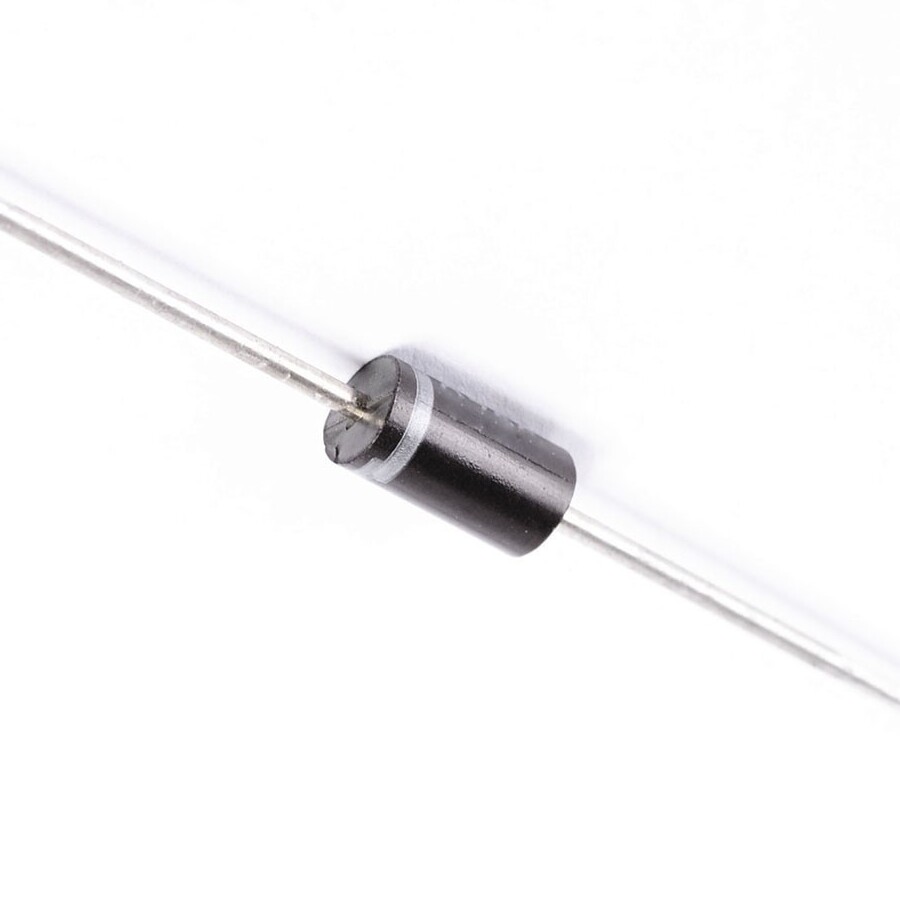

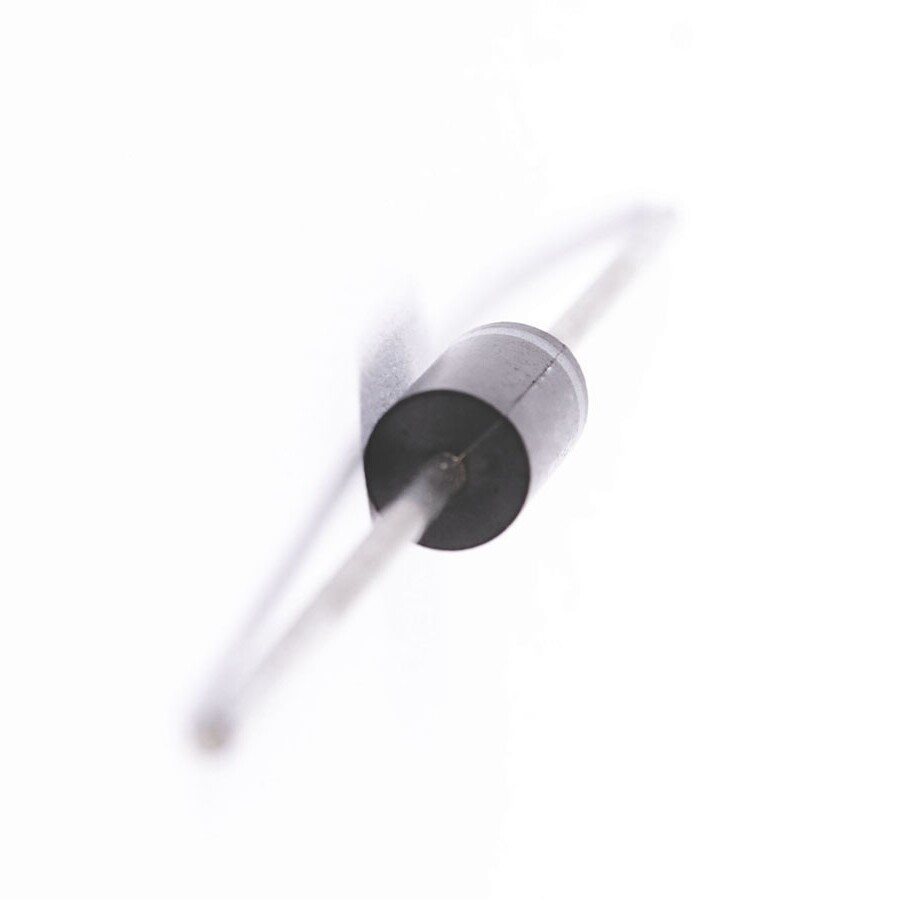

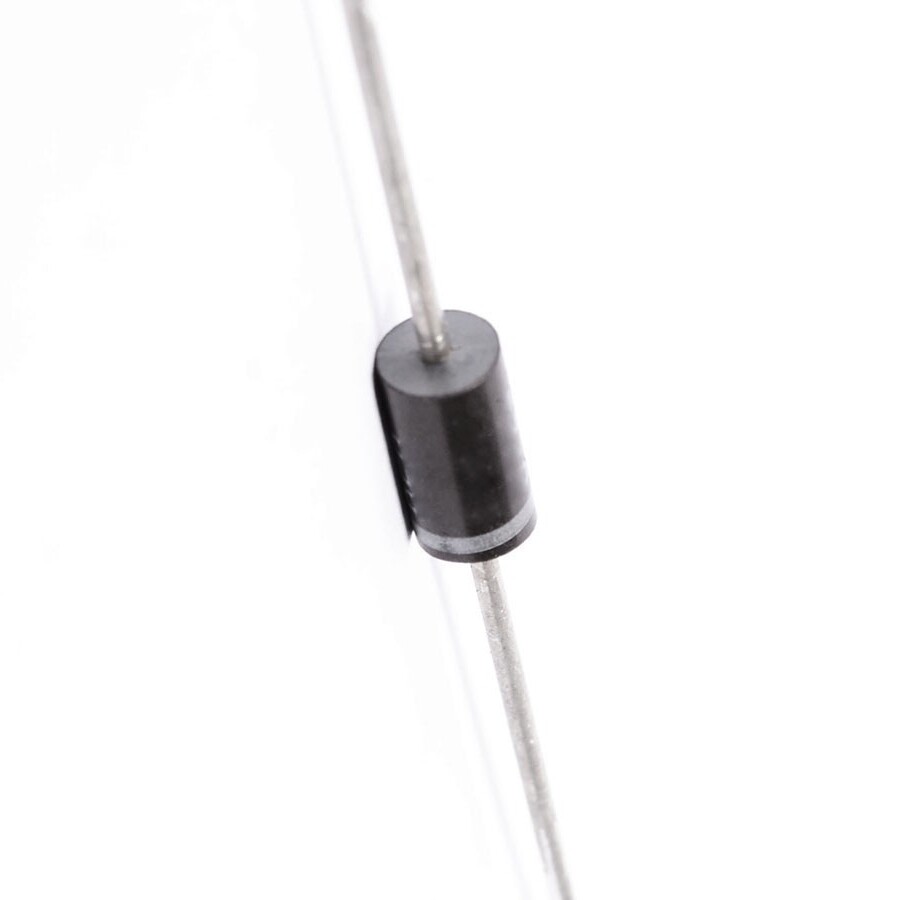

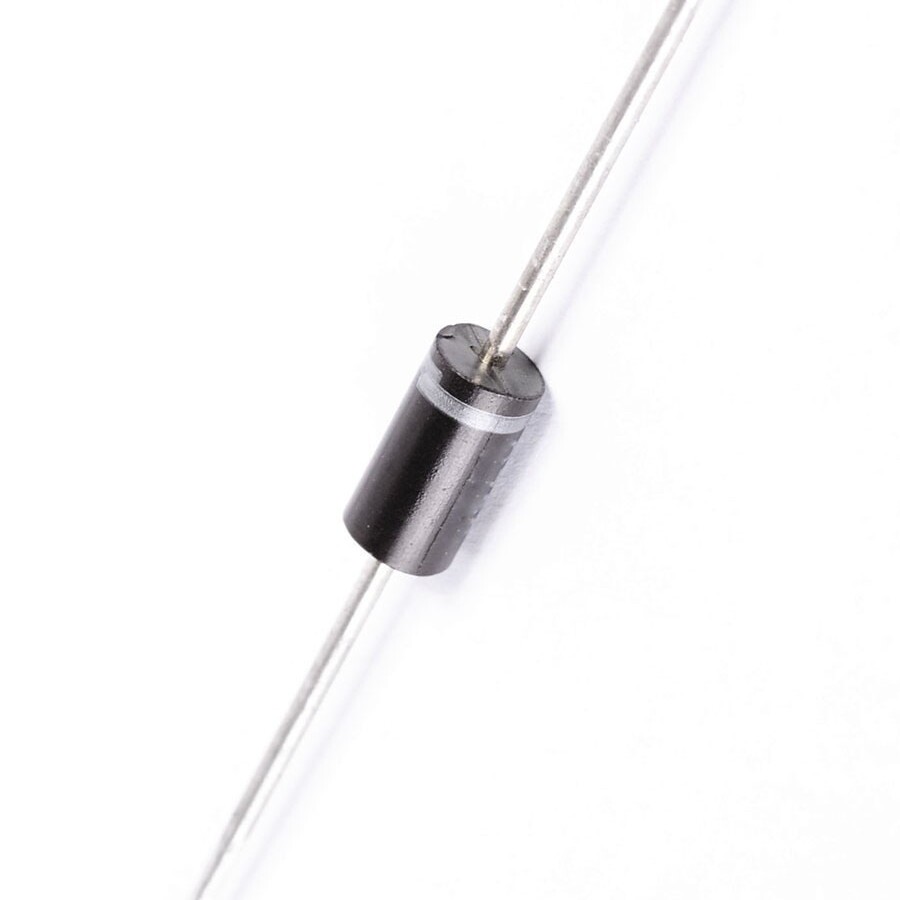

SF61 Integrated Circuit CASE: DO201 MAKE: Taiwan Semiconductor
Datasheet
SF61 Datasheet
Product specifications
Type Integrated Circuit
Case DO201
Manufacturer Taiwan Semiconductor
Ir @ Diff. Temp (A) 50u
Mat. Silicon Logic
f(oper) Max. (Hz) 20M
VRRM 50
tPD Max. (S) 25n
Nom. Supp Volt 5.0
t(rr) (S) 35n
Tech. TTL Integrated Circuit
@Temp (test) (°C) 100
Vf Max. .97
Ir @25°C 5.0u
I(out) (If AVG) Max. 6.0
@Volts (test) (V) 50
@If (test) 0.5
@If (test) 6.0
Oper. Temp (°C) Min -55
Oper. Temp (°C) Max. 125
@Ir (A) 1.0
Clear (Y/N) Yes
Preset (Y/N) Yes
Pinout Equivalence Number 14-490
Surface Mounted Yes/No NO
SKU 362561
