SFT122

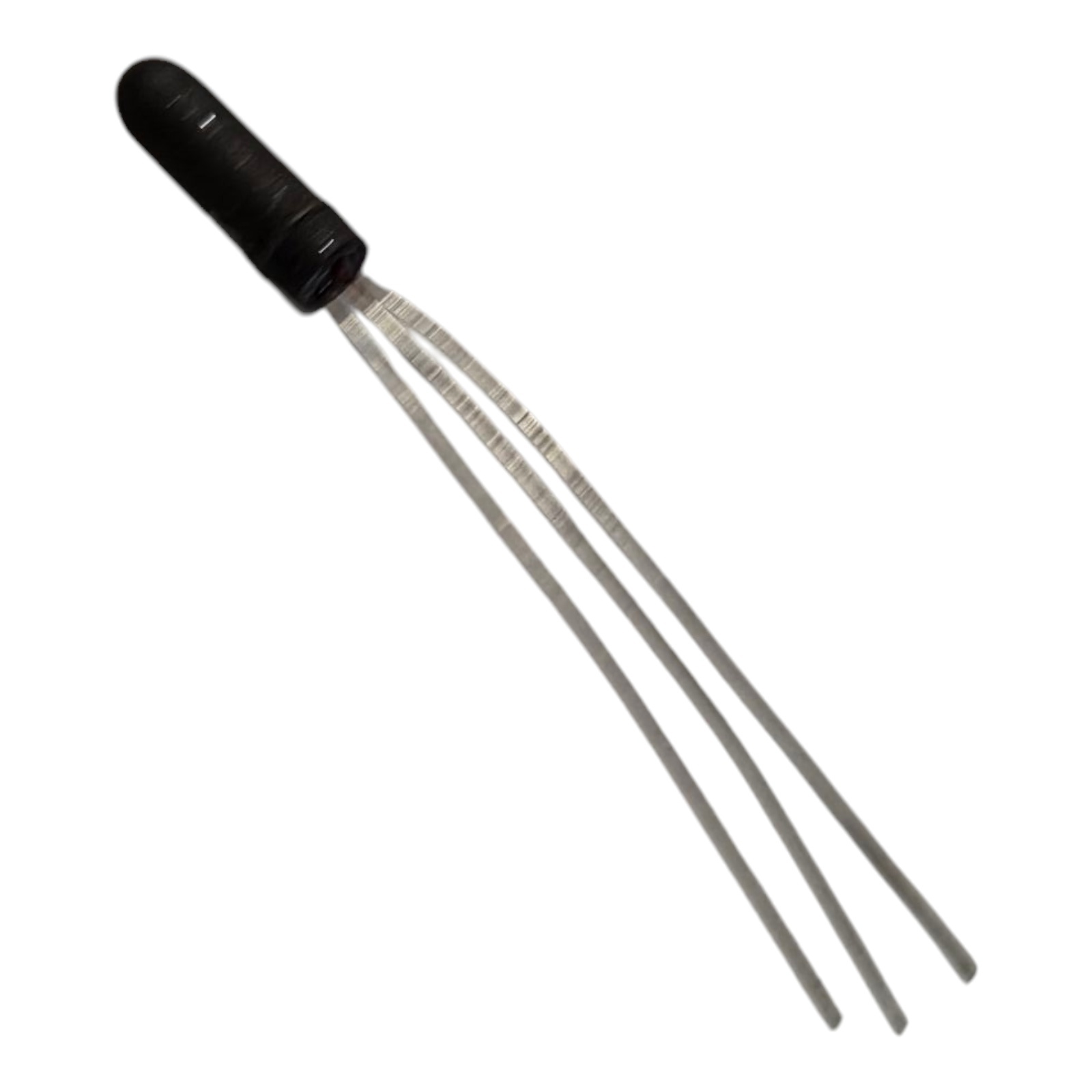

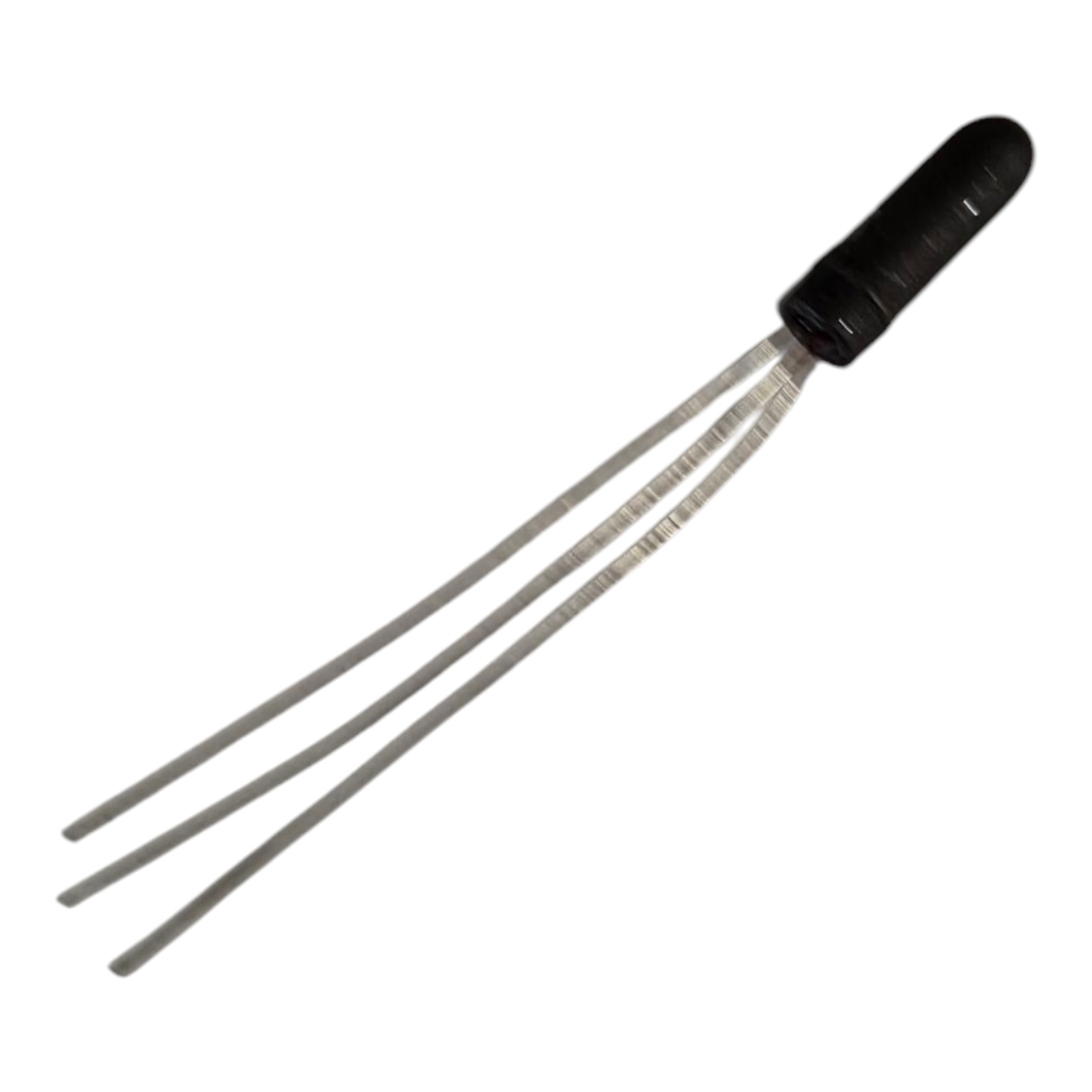

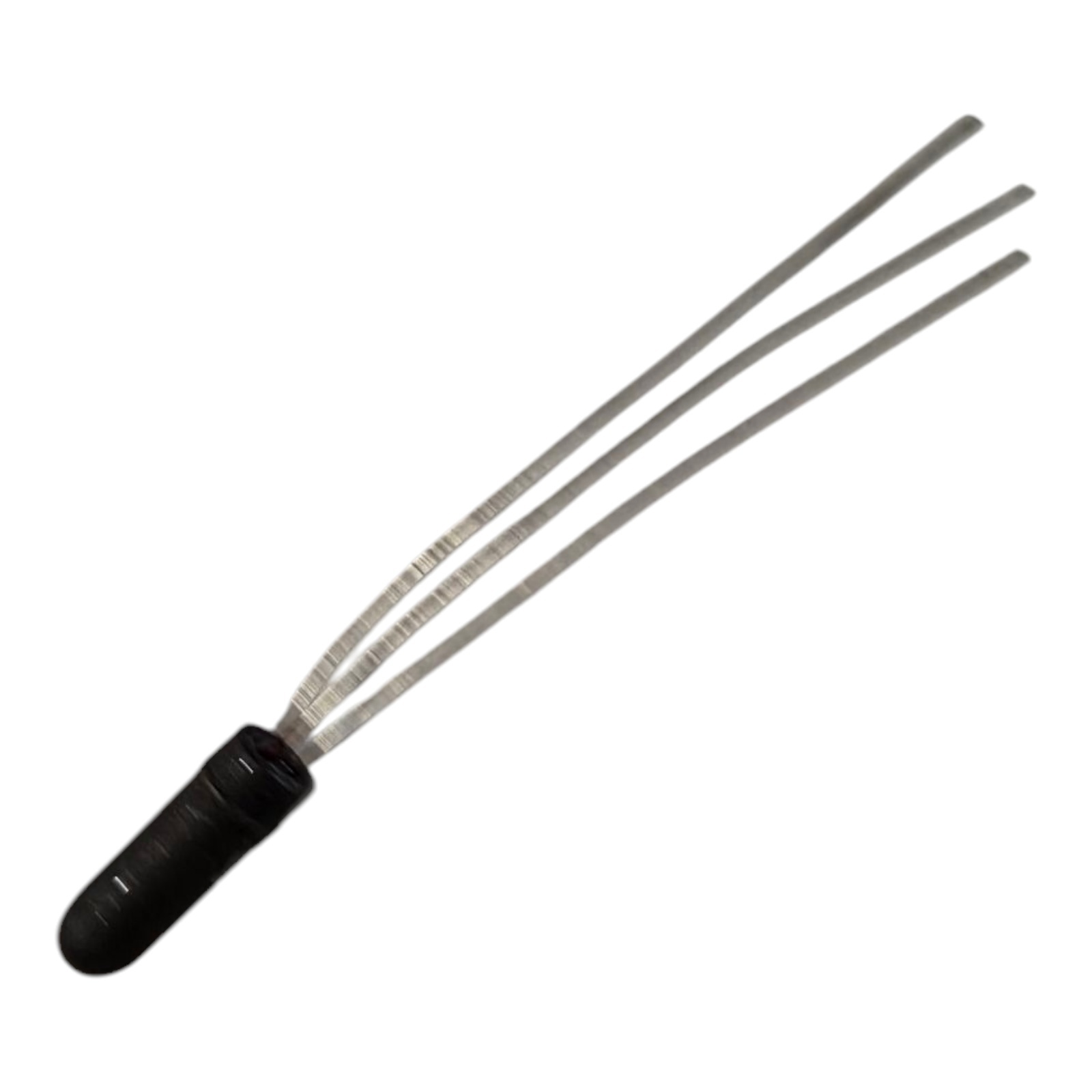

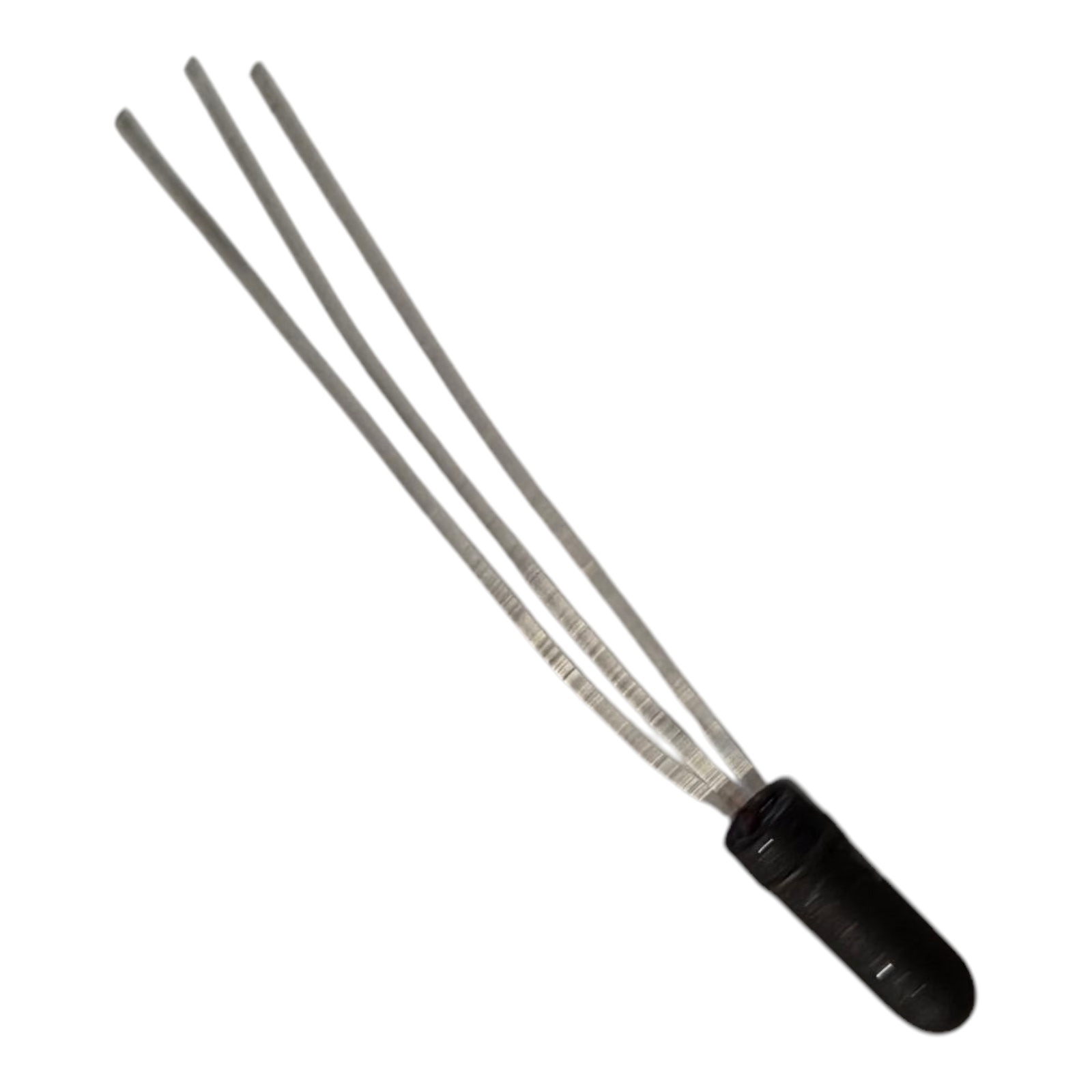

View detailed images (4)

SFT122

SKU: SFT122
SFT122 Transistor Germanium PNP CASE: X01 MAKE: SGS Thomson
Product specifications
Type Transistor Germanium PNP
Case X01
Manufacturer SGS Thomson
Vbr CBO 24
Max. PD (W) 200m
C(ob) (F) 32p
Derate (Amb) (W/°C) 3.3m
hfe 50
Ic Max. (A) 250m
Icbo Max. @Vcb Max. (A) 15u
Polarity PNP
Trans. Freq (Hz) Min. 1.6M
@VCE (test) (V) 1.0
Oper. Temp (°C) Max. 100
@Ic (A) 100m
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.15 W
Maximum Collector-Base Voltage |Vcb| 24 V
Maximum Collector-Emitter Voltage |Vce| 12 V
Maximum Emitter-Base Voltage |Veb| 12 V
Maximum Collector Current |Ic max| 0.25 A
Max. Operating Junction Temperature (Tj) 75 °C
Transition Frequency (ft): 0.2 MHz
Forward Current Transfer Ratio (hFE), MIN 50
SKU 83823
