SFT153

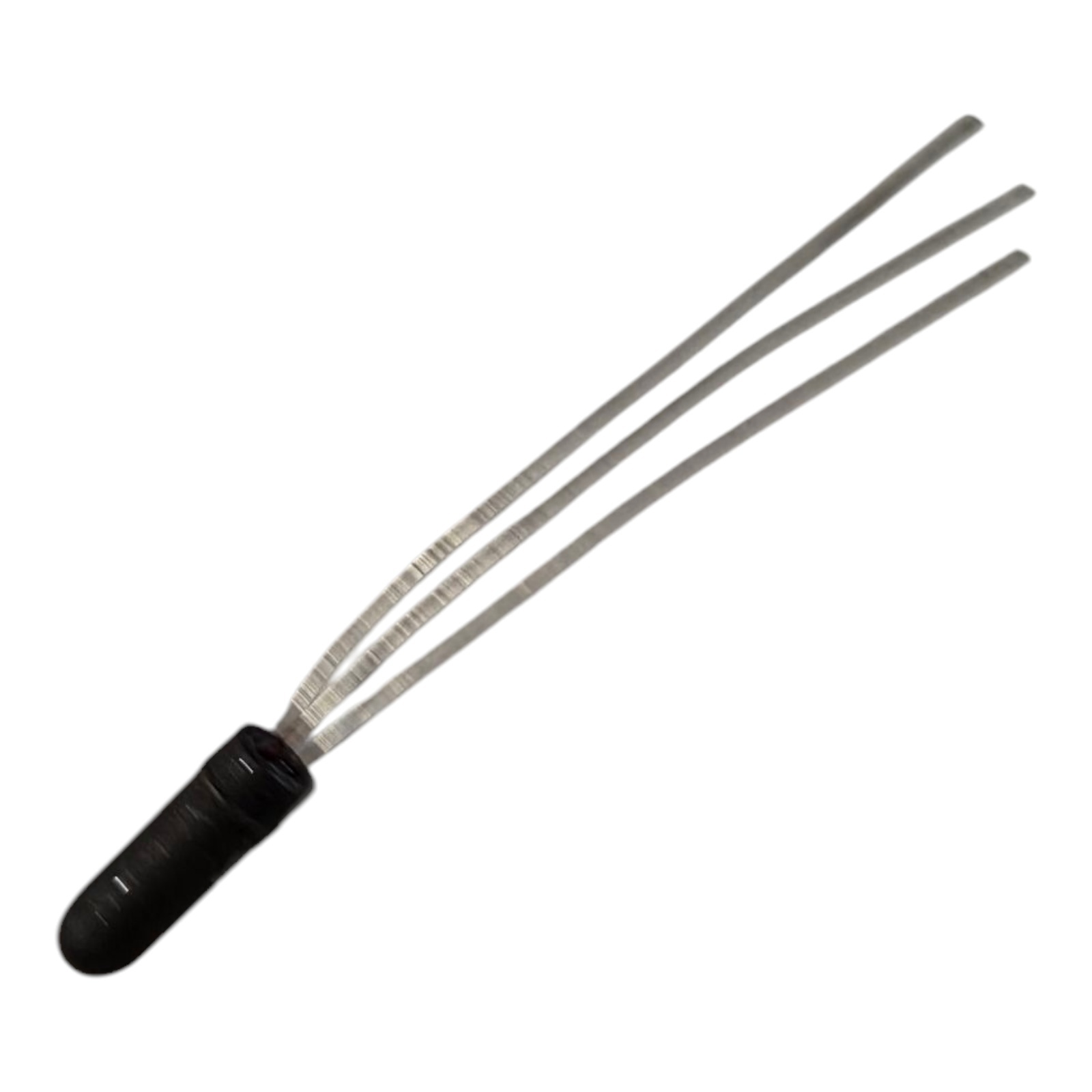

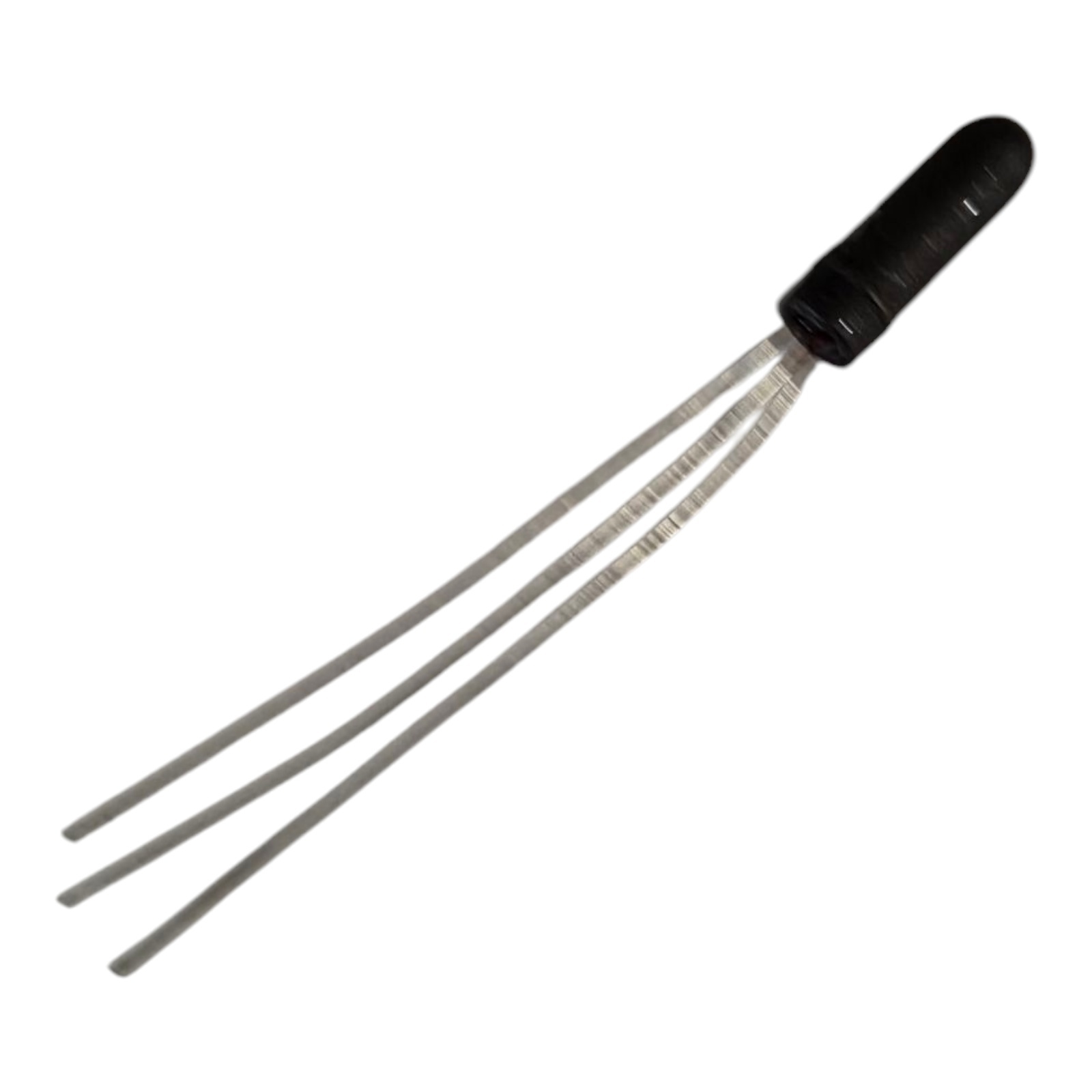

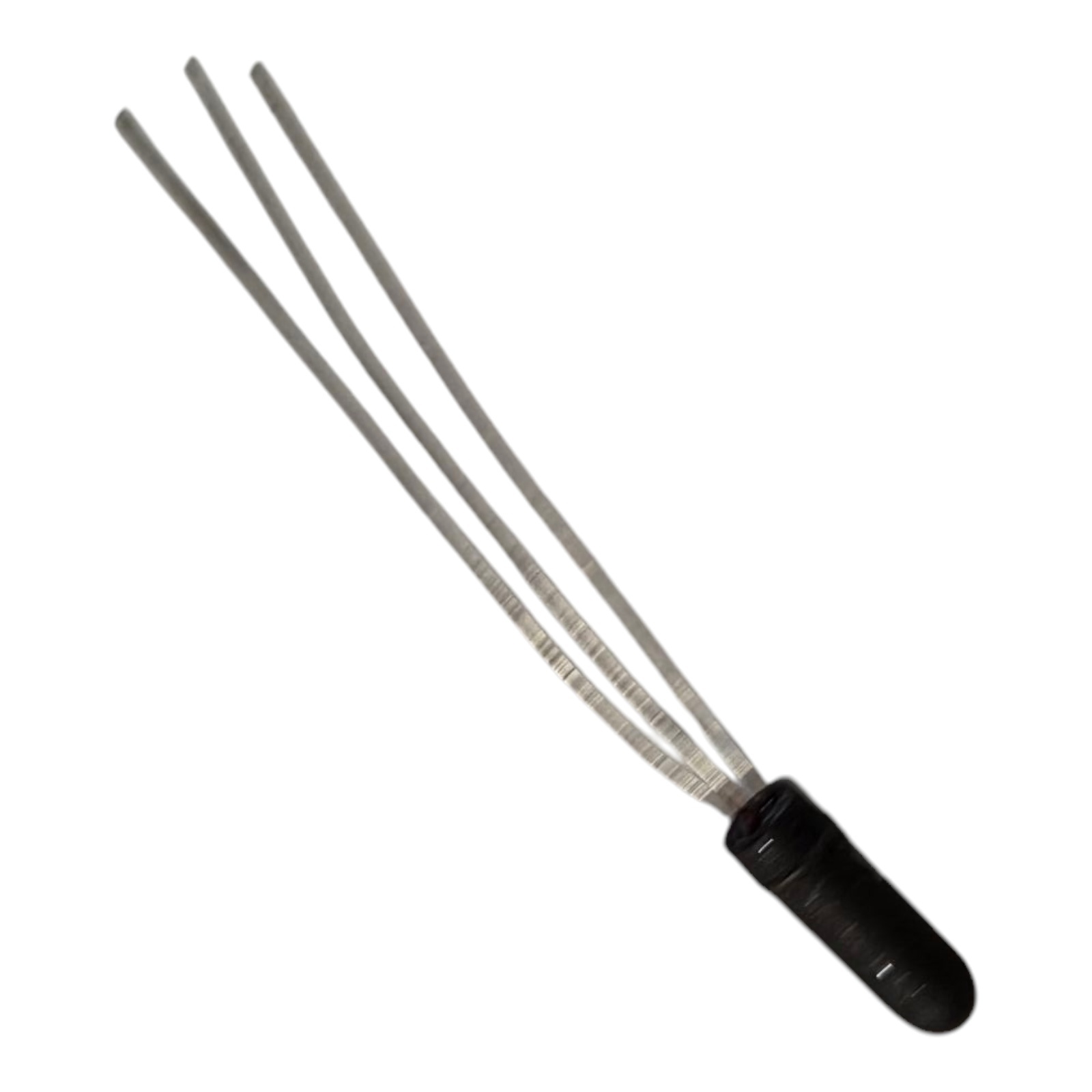

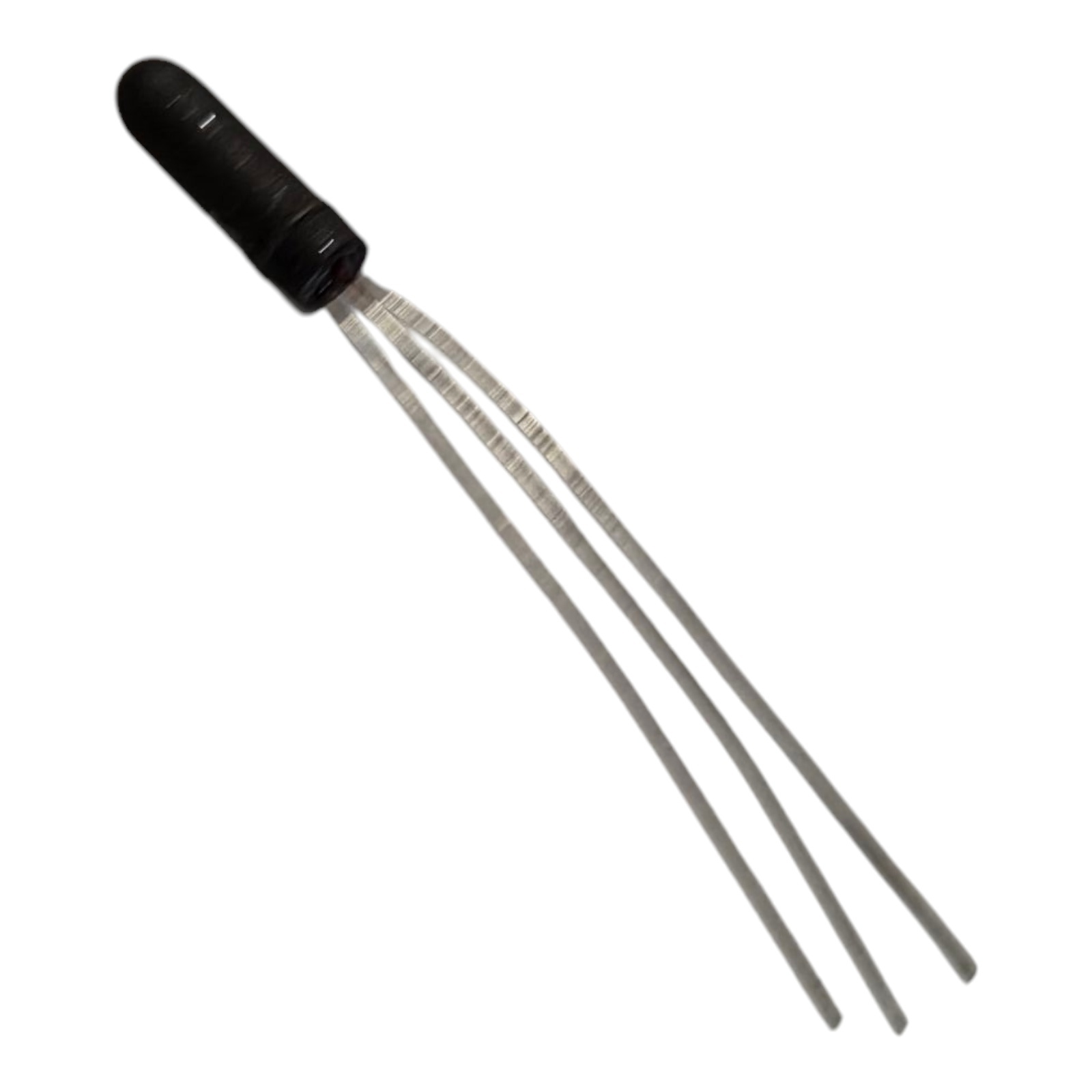

View detailed images (4)

SFT153

SKU: SFT153
SFT153 Transistor Germanium PNP CASE: X01 MAKE: ST Microelectronics - STM
Price:
£4.79 Inc. VAT (£3.99 Ex. VAT)
£4.79 Inc. VAT (£3.99 Ex. VAT)
Qty
  • 7 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Germanium PNP
Case X01
Manufacturer ST Microelectronics - STM
Vbr CBO 24
Max. PD (W) 200m
C(ob) (F) 32p
Derate (Amb) (W/°C) 3.3m
hfe 80
Ic Max. (A) 150m
Icbo Max. @Vcb Max. (A) 15u
Polarity PNP
Trans. Freq (Hz) Min. 2.4M
@VCE (test) (V) 6.0
Oper. Temp (°C) Max. 100
@Ic (A) 1.0m
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.15 W
Maximum Collector-Base Voltage |Vcb| 24 V
Maximum Collector-Emitter Voltage |Vce| 12 V
Maximum Emitter-Base Voltage |Veb| 12 V
Maximum Collector Current |Ic max| 0.15 A
Max. Operating Junction Temperature (Tj) 75 °C
Transition Frequency (ft): 0.3 MHz
Forward Current Transfer Ratio (hFE), MIN 80
SKU 86135
