SFT6287
View detailed images (4)

SFT6287

SKU: SFT6287

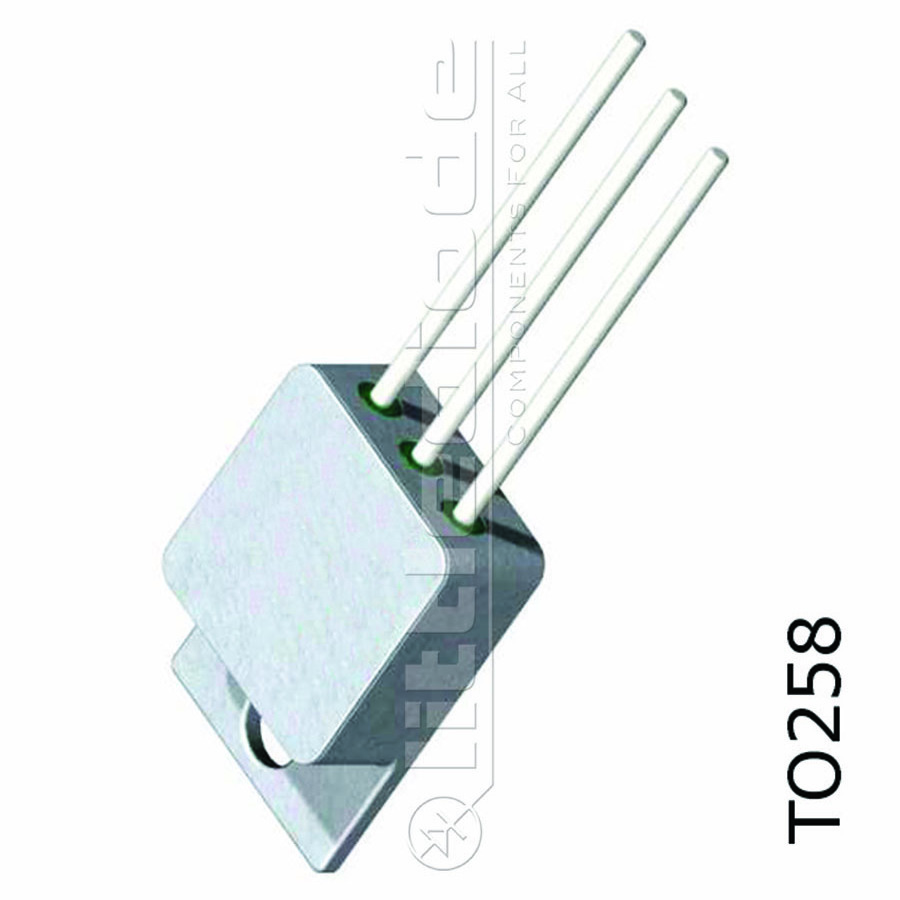

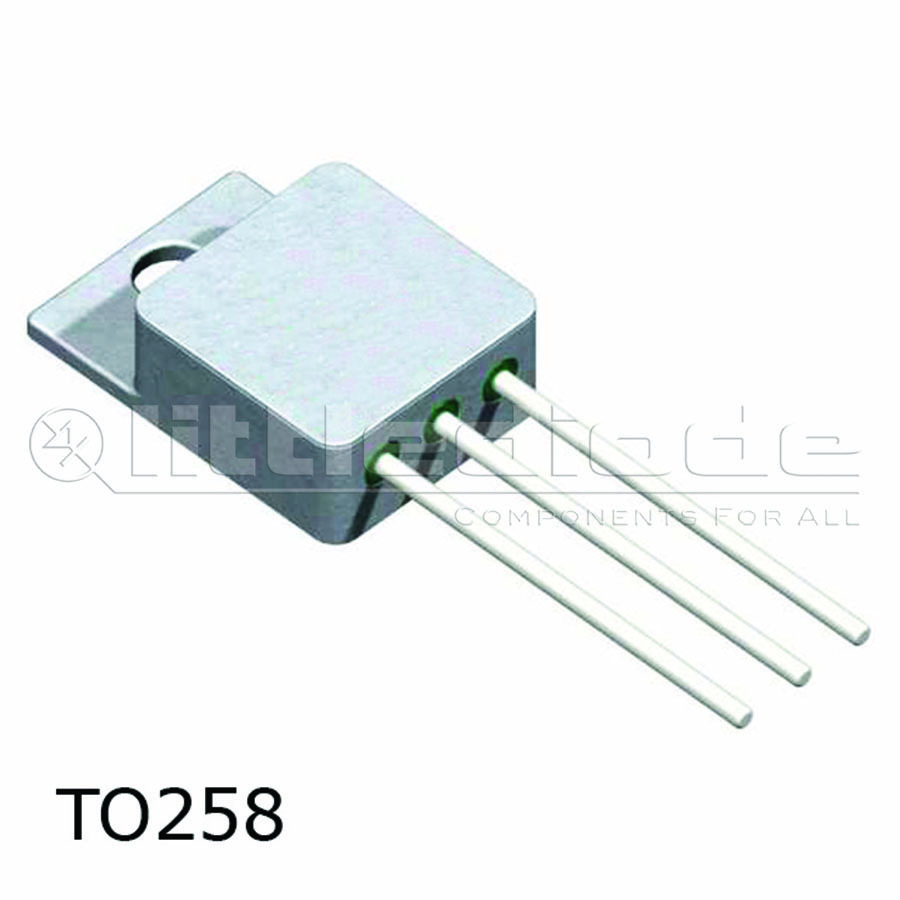

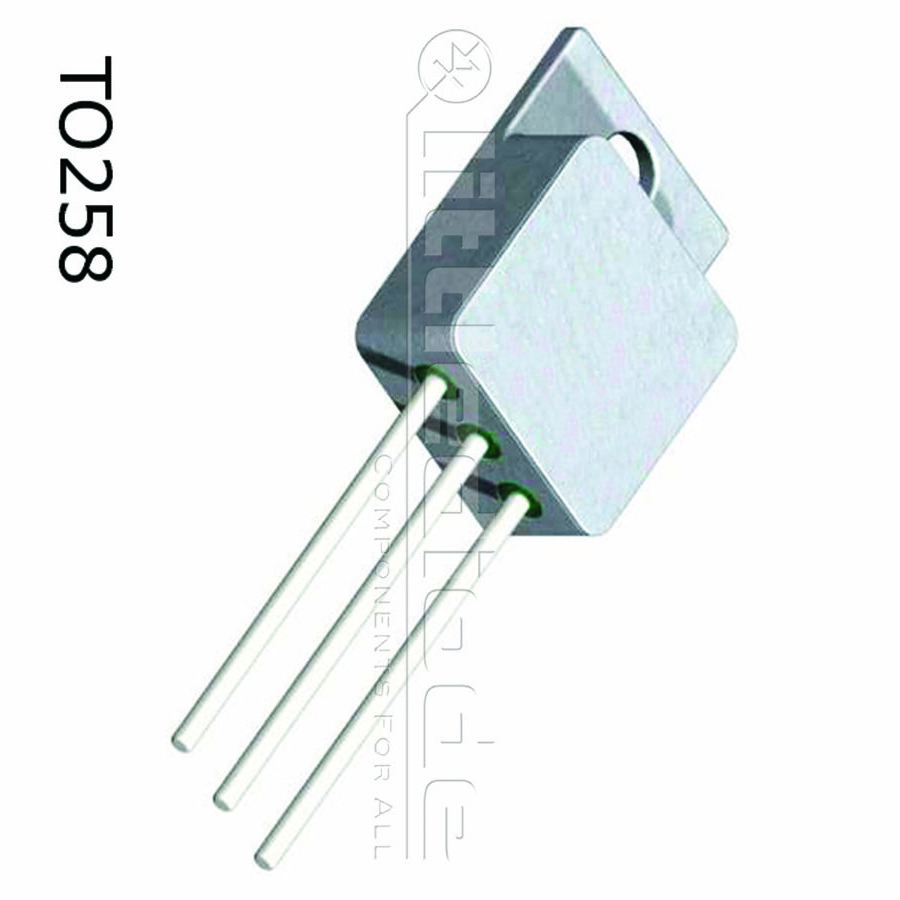

SFT6287 Transistor Silicon PNP CASE: TO258 MAKE: Generic
Product specifications
Type Transistor Silicon PNP
Case TO258
Manufacturer Generic
Polarity PNP
Maximum Collector Power Dissipation (Pc) 350 W
Maximum Collector-Base Voltage |Vcb| 120 V
Maximum Collector-Emitter Voltage |Vce| 120 V
Maximum Emitter-Base Voltage |Veb| 8 V
Maximum Collector Current |Ic max| 50 A
Max. Operating Junction Temperature (Tj) 200 °C
Collector Capacitance (Cc) 650 pF
Transition Frequency (ft): 1.5 MHz
Forward Current Transfer Ratio (hFE), MIN 500
SKU 1440980
