Home / Semiconductors / SG16AA20
SG16AA20

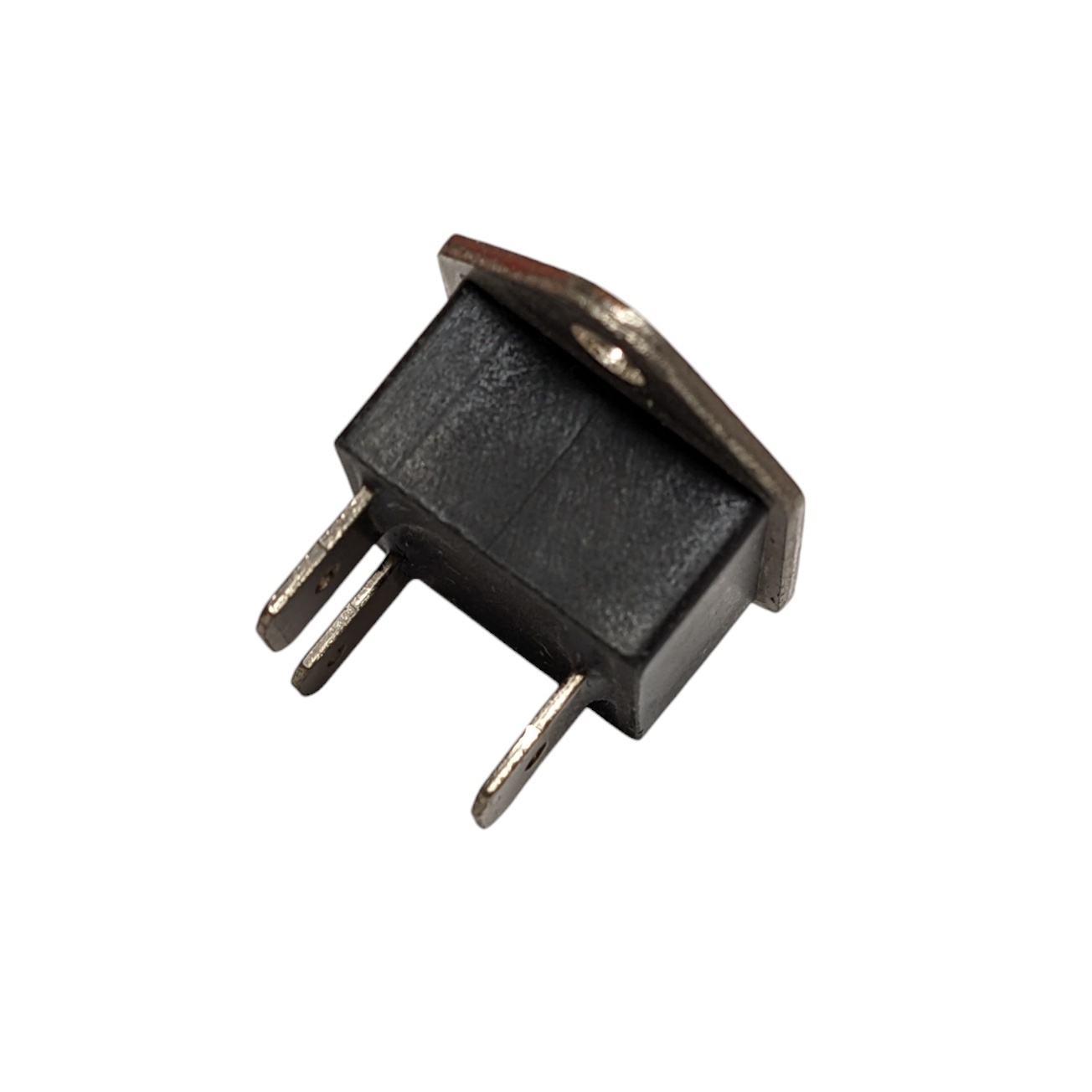

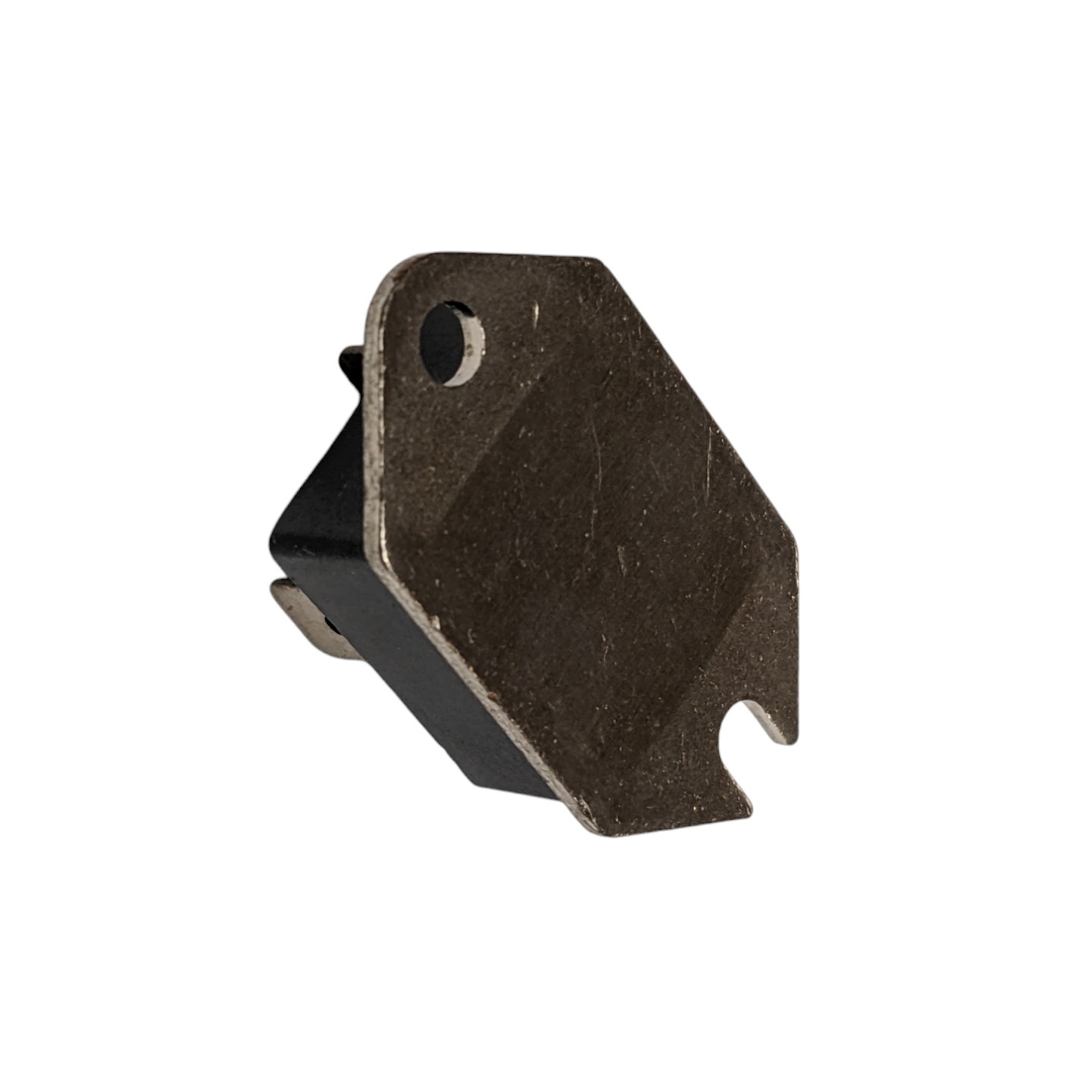

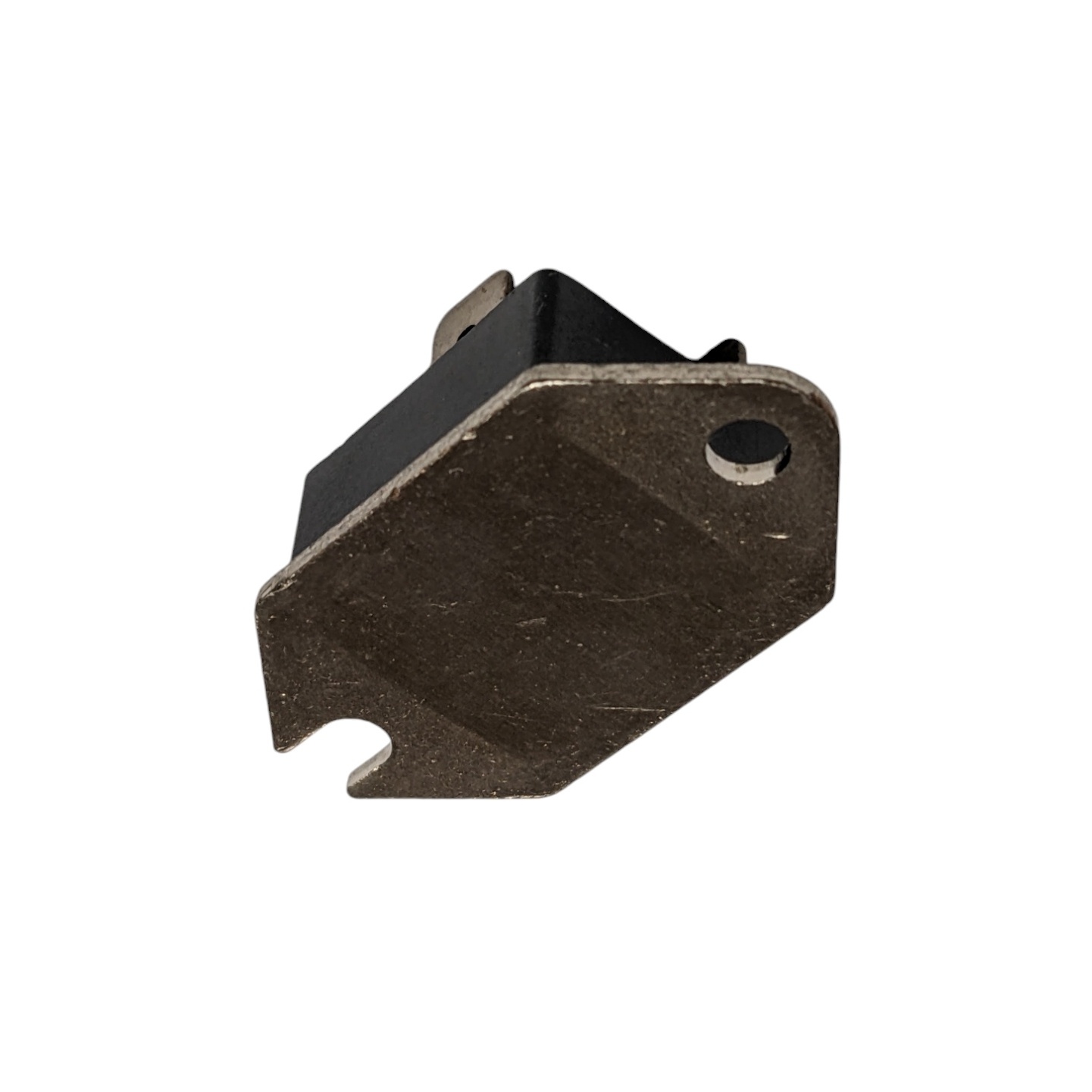

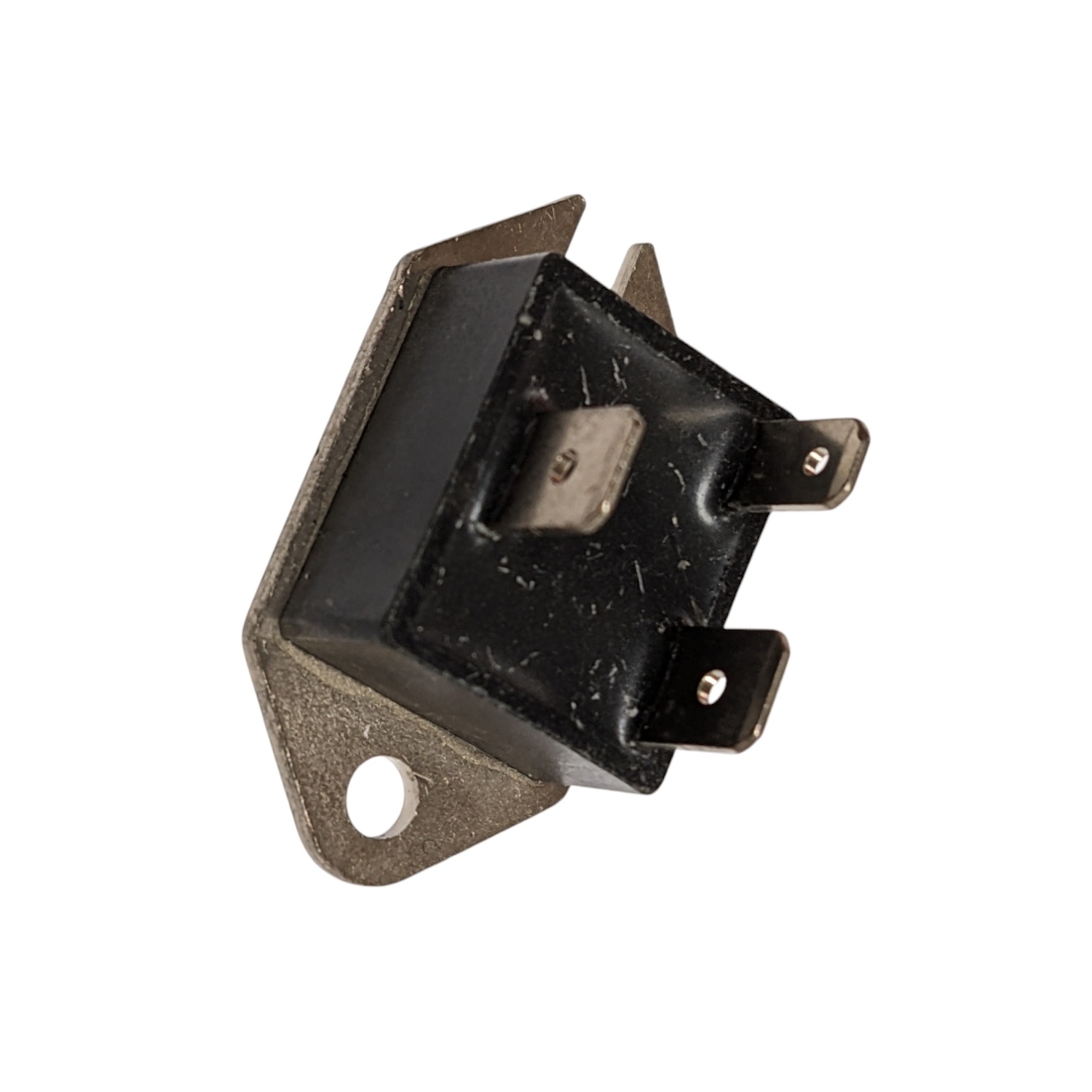

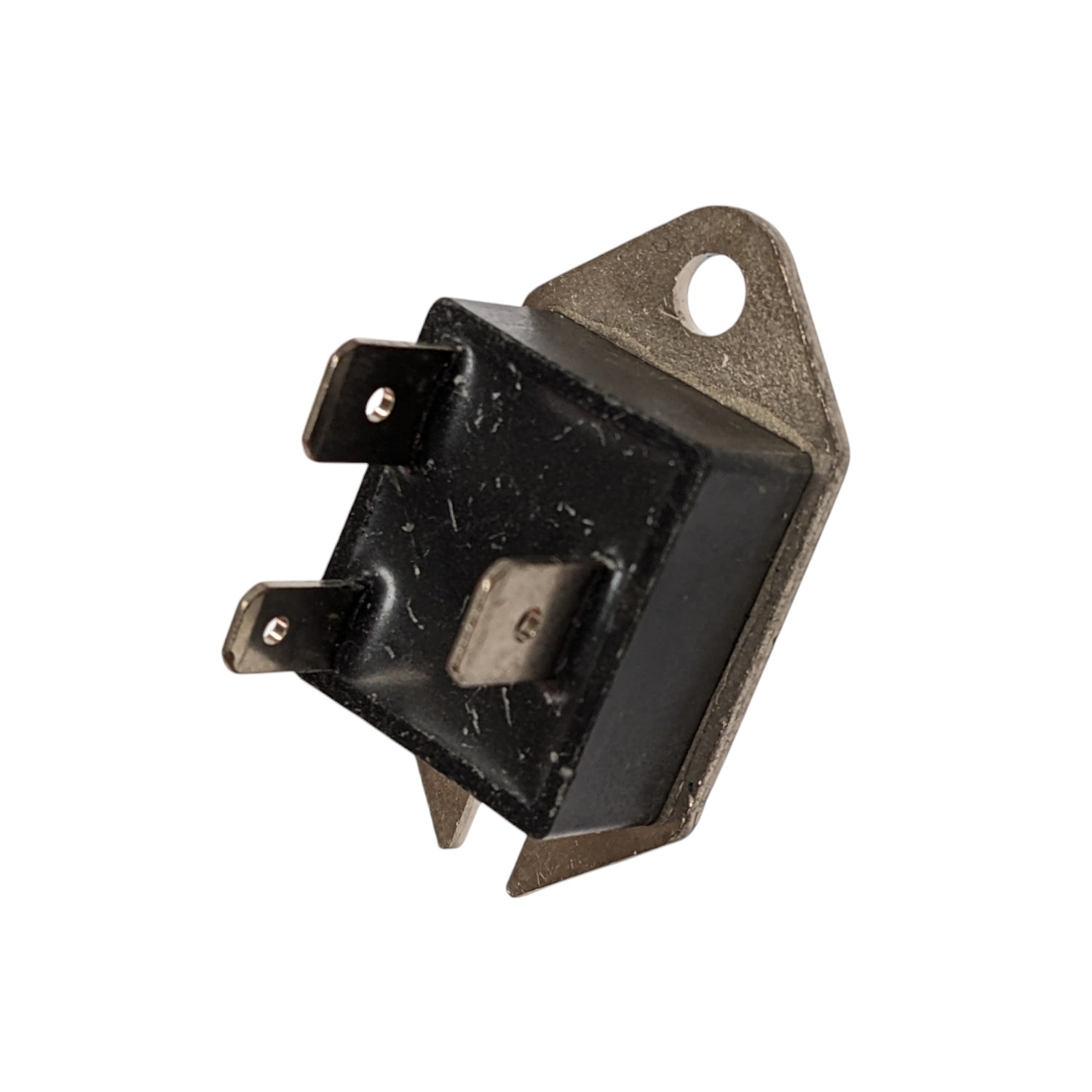

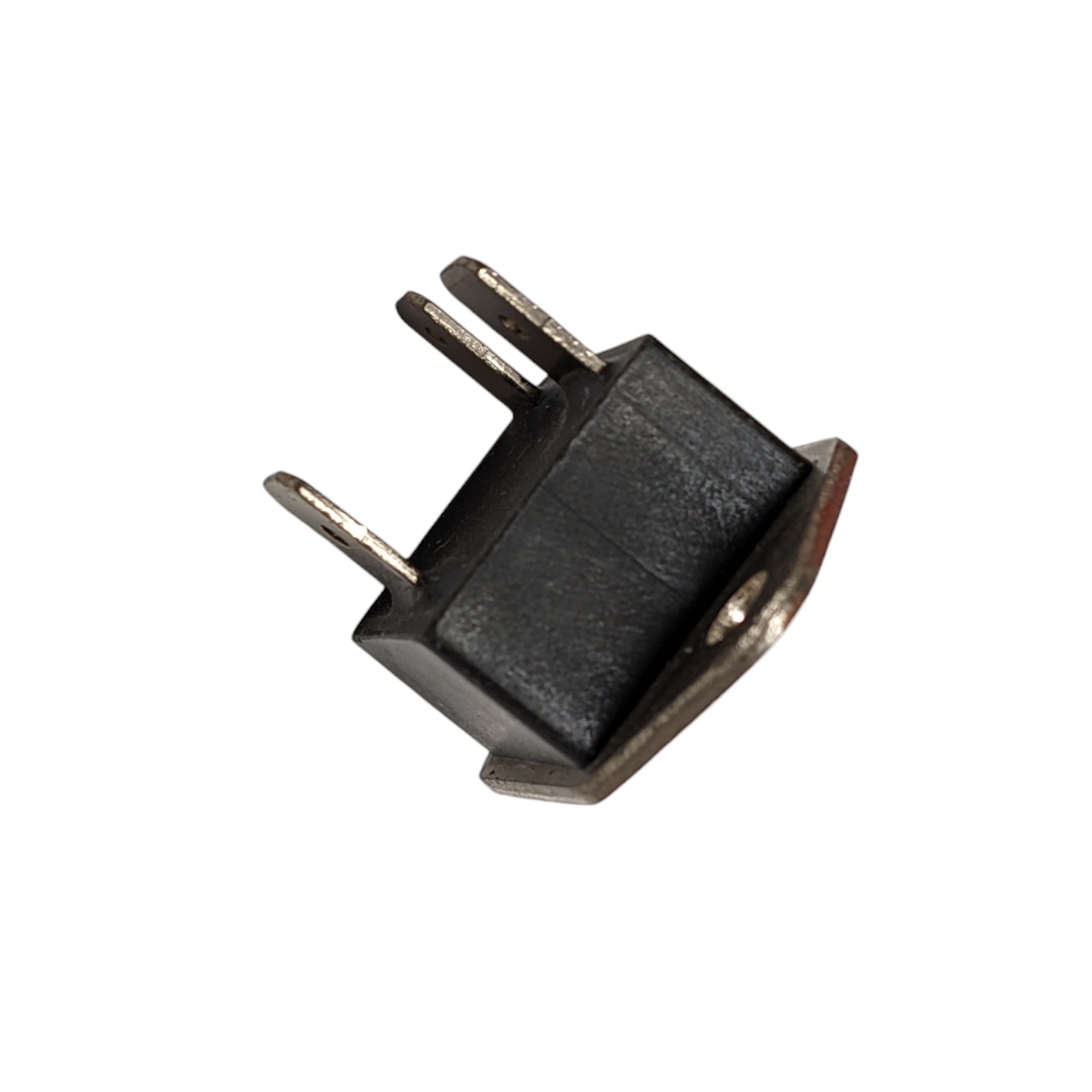

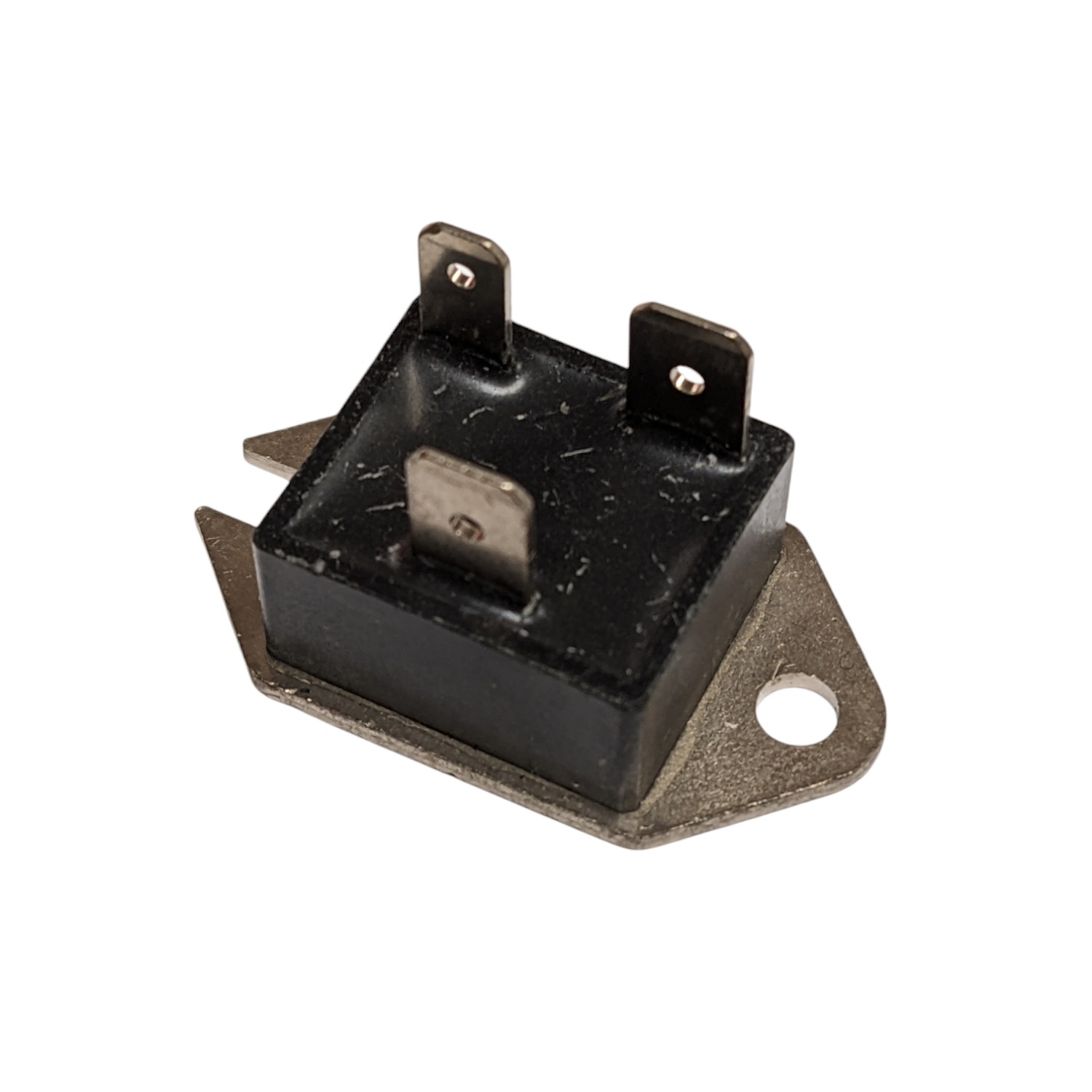

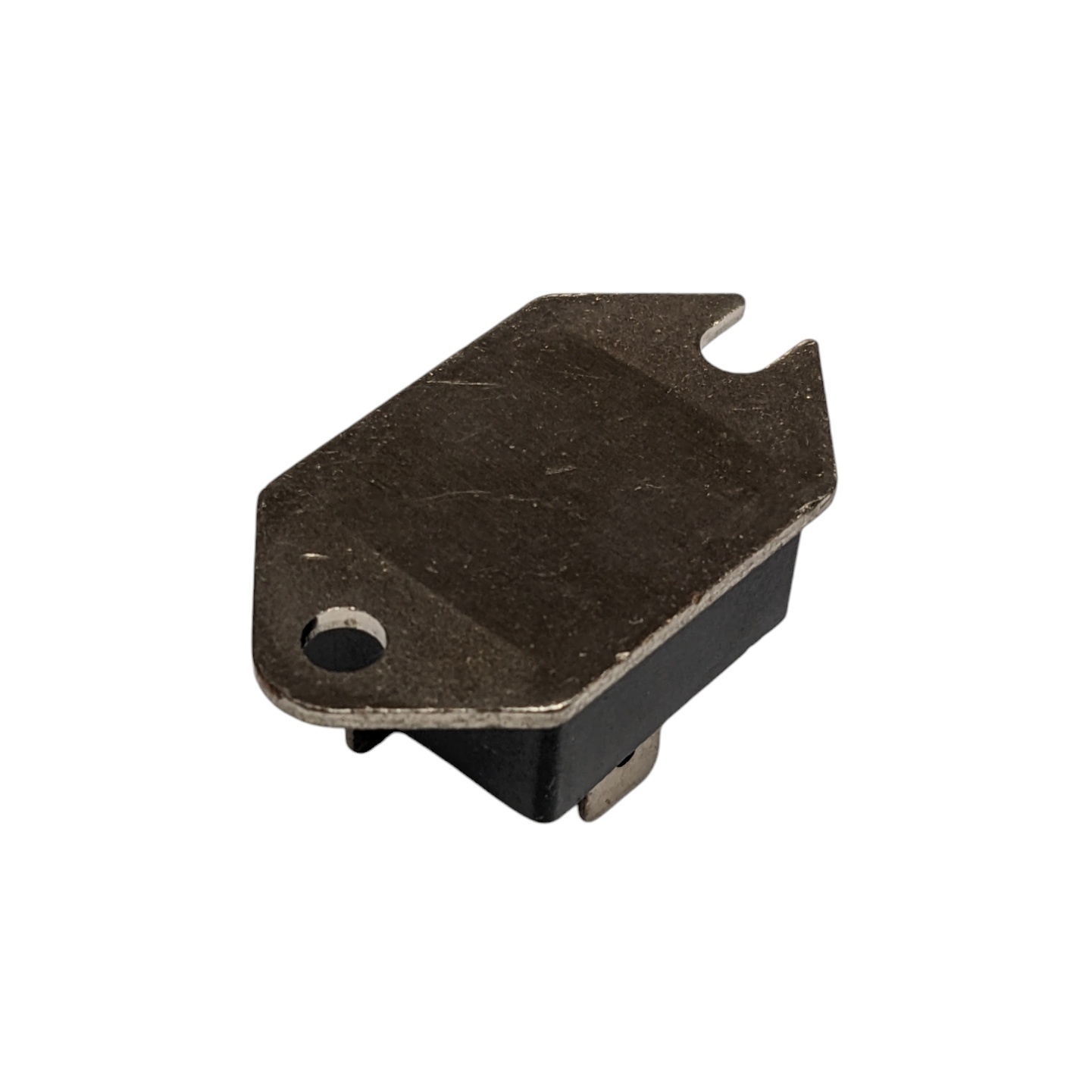

View detailed images (13)

SG16AA20

SKU: SG16AA20

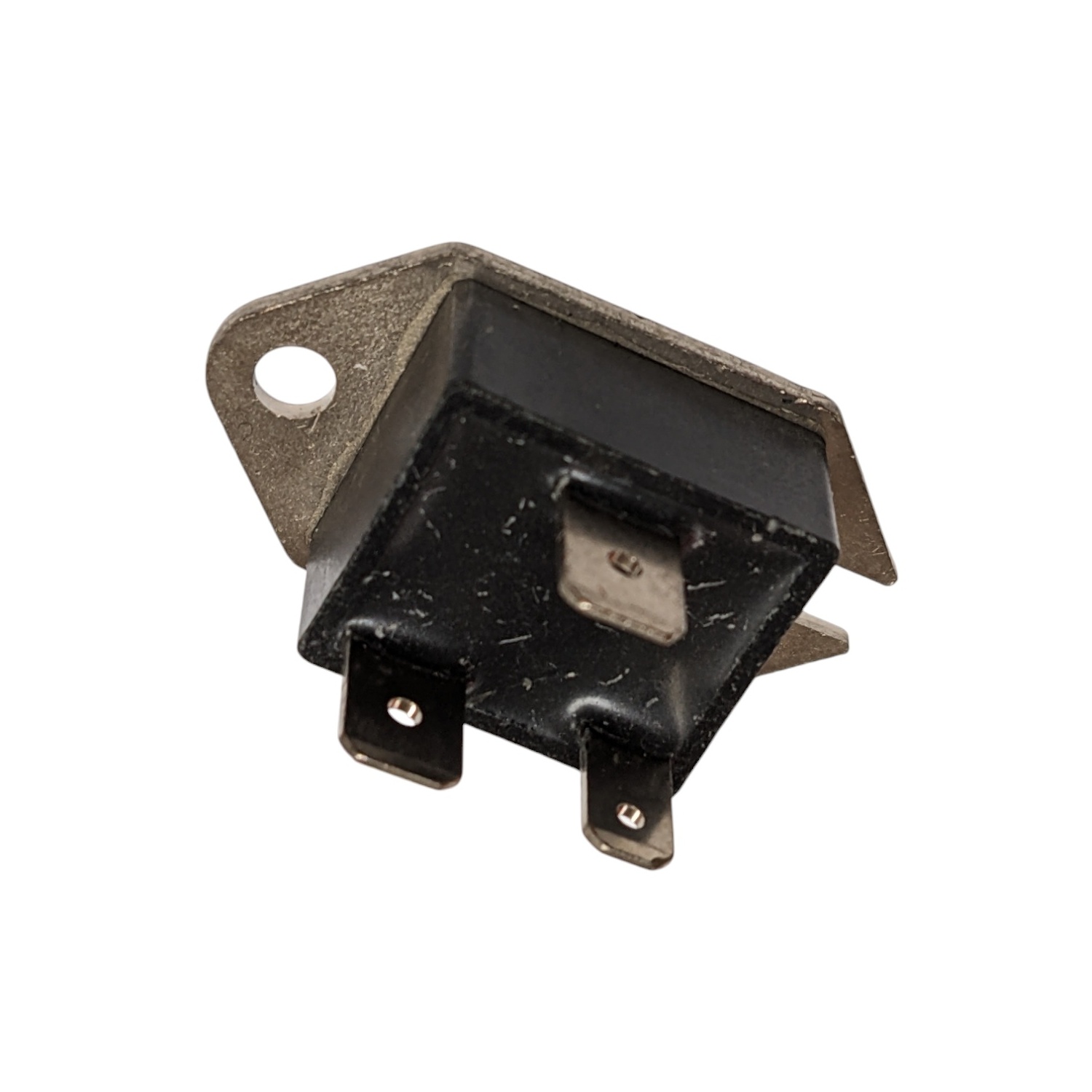

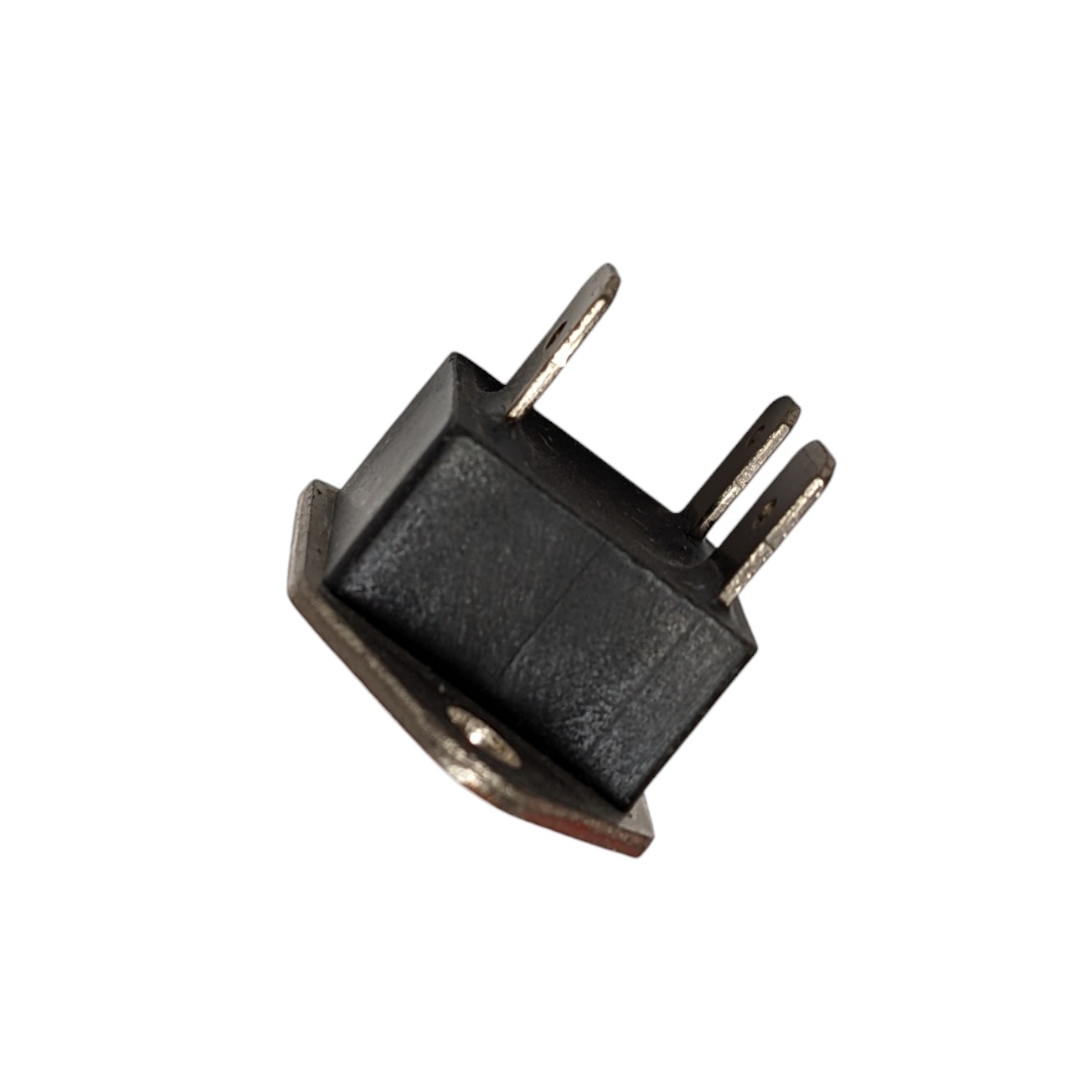

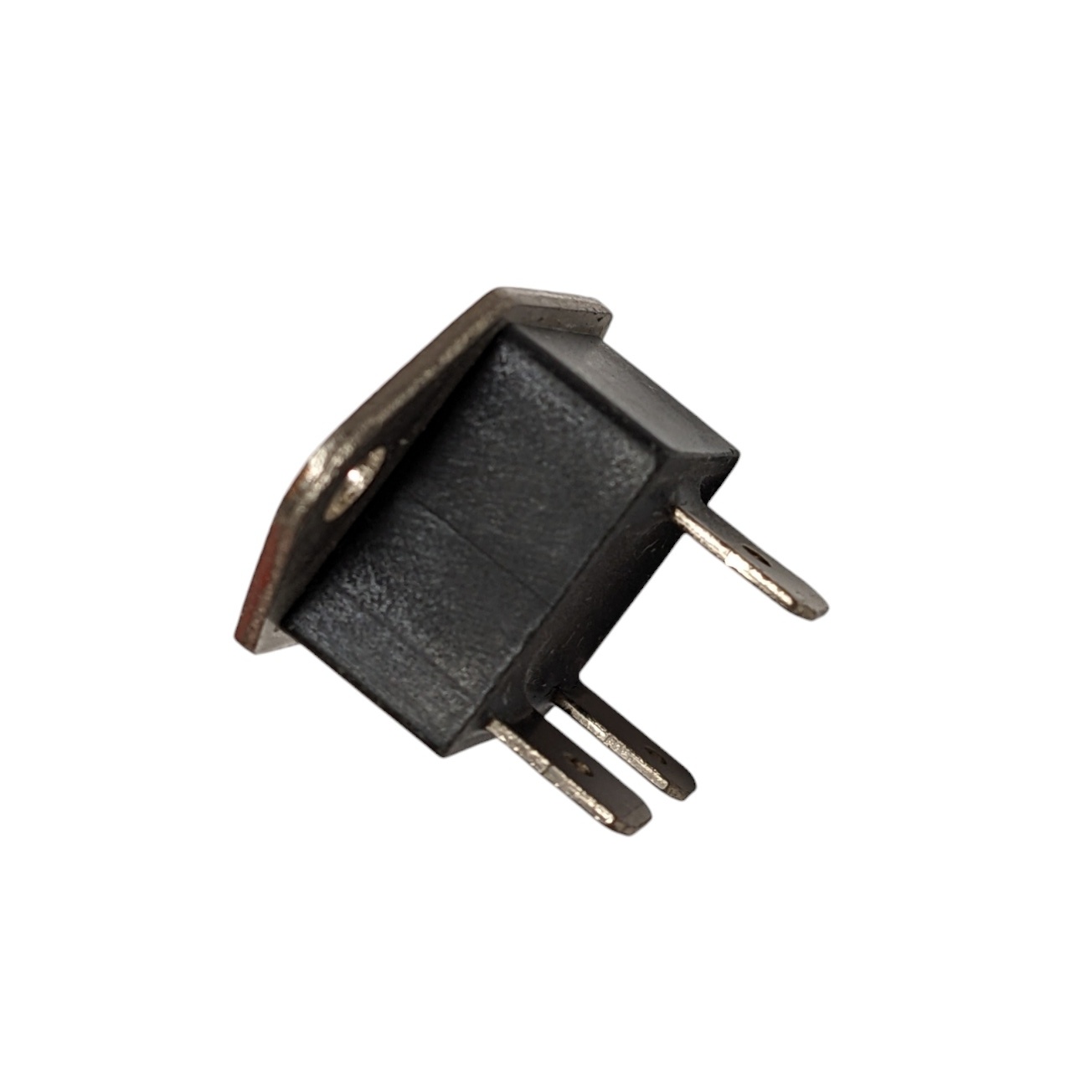

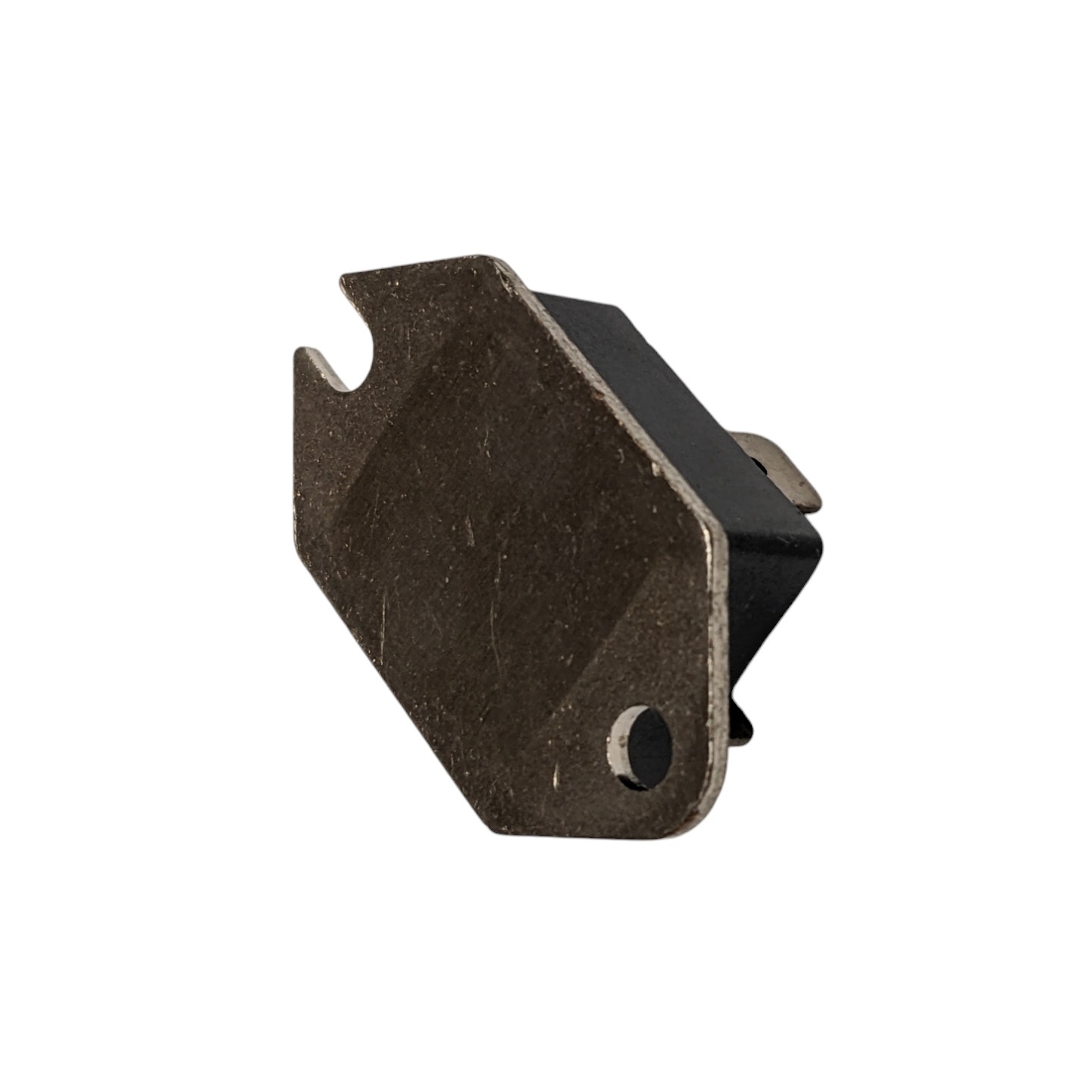

SG16AA20 SemiConductor CASE: TO238 MAKE: Sanrex
Datasheet
SG16AA20 Datasheet
Product specifications
Type SemiConductor
Case TO238
Manufacturer Sanrex
Dv/Dt Worst Case 100
Firing Char-Igt Max. 40m
Firing Char-Vgt Max. 3.0
I(h) Max. (A) 30m
Id(off) Max. (A) 3.0m
@It (test) (A) 10
It(stat) Max. (A) 16
Supp Curr. I(TSM) 220
t(switch) Off Typ. Time (S) 10u
V(drm) Max. 200
V(T) Max. 1.5
@Temp. (test) (°C) 80#
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 125
@It (A) 50
Surface Mounted Yes/No NO
SKU 362587
