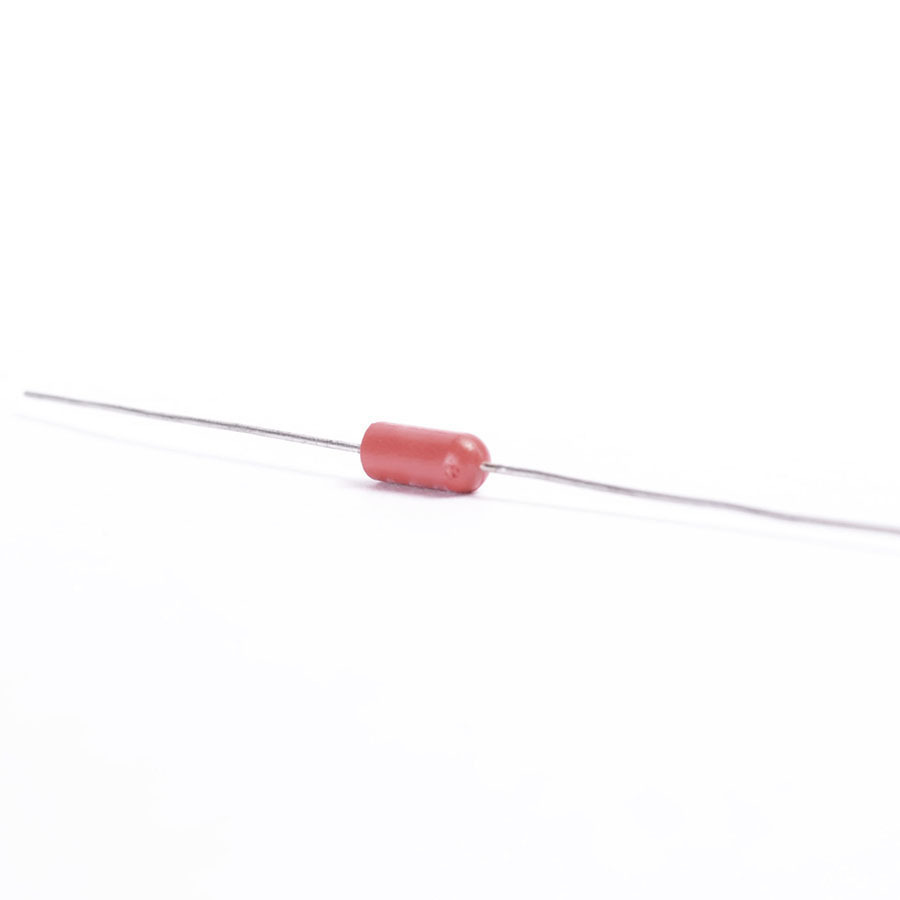

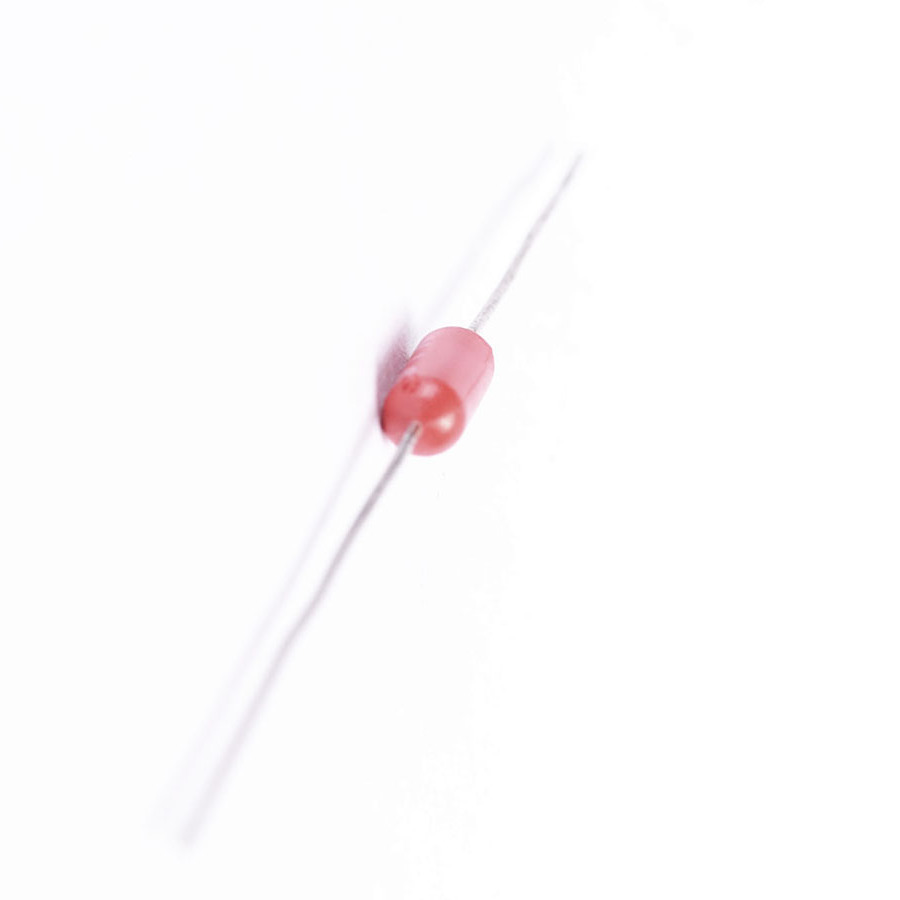

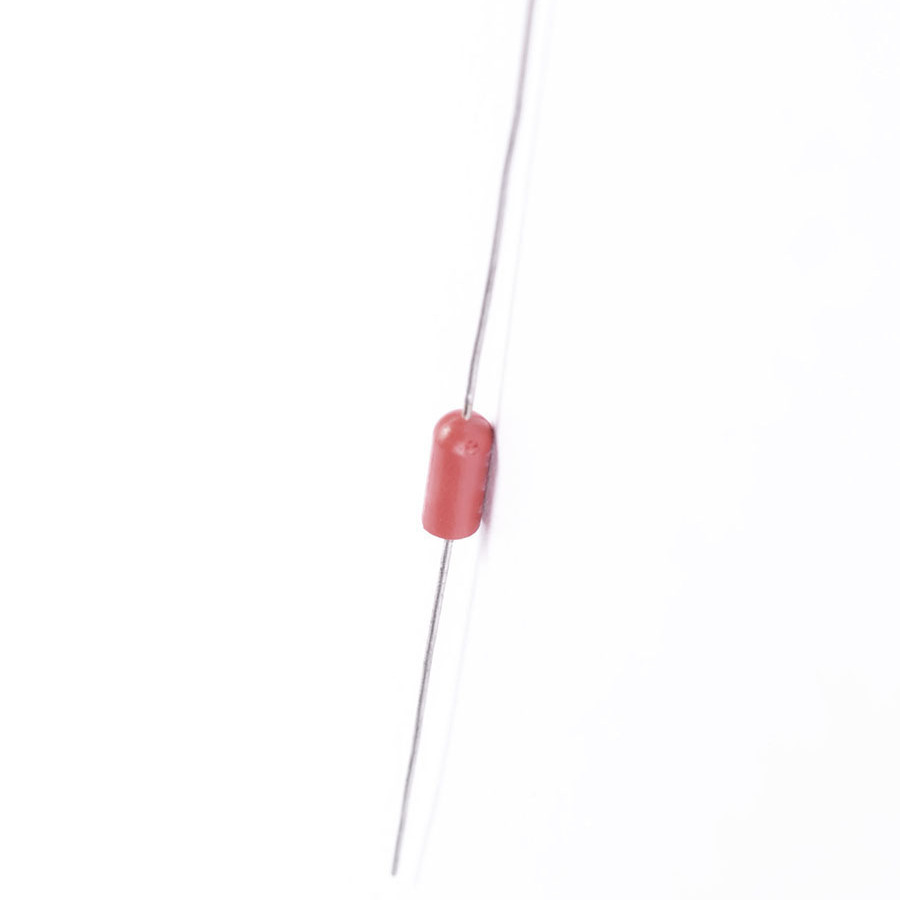

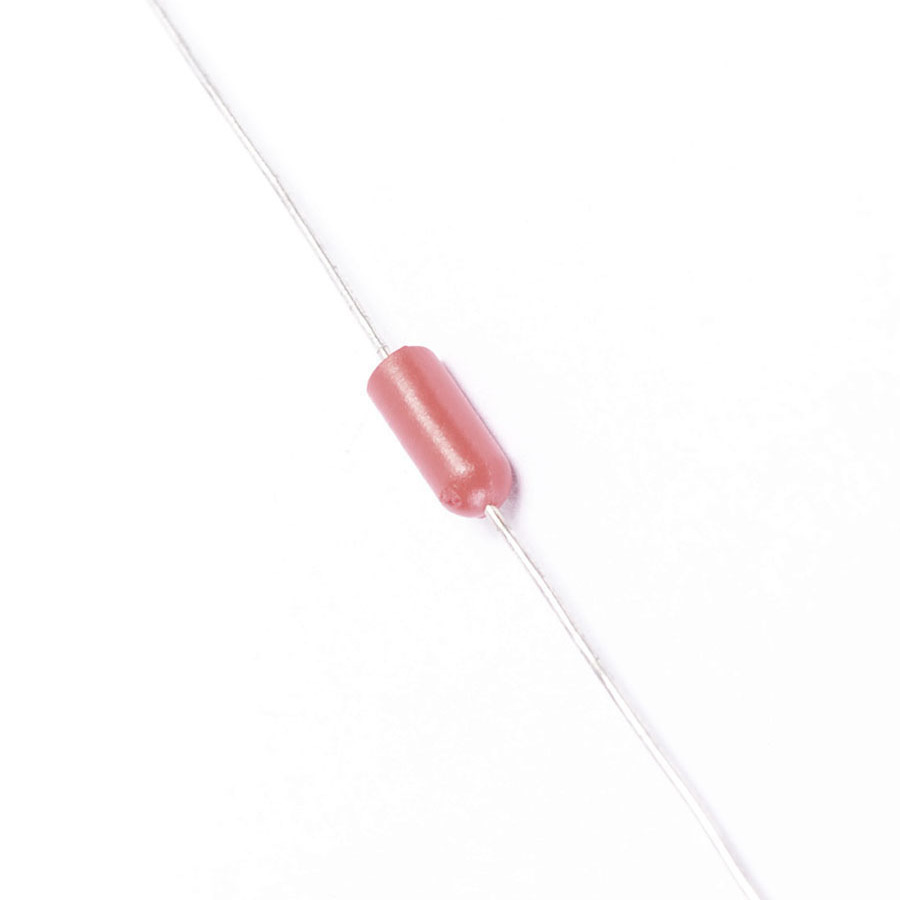

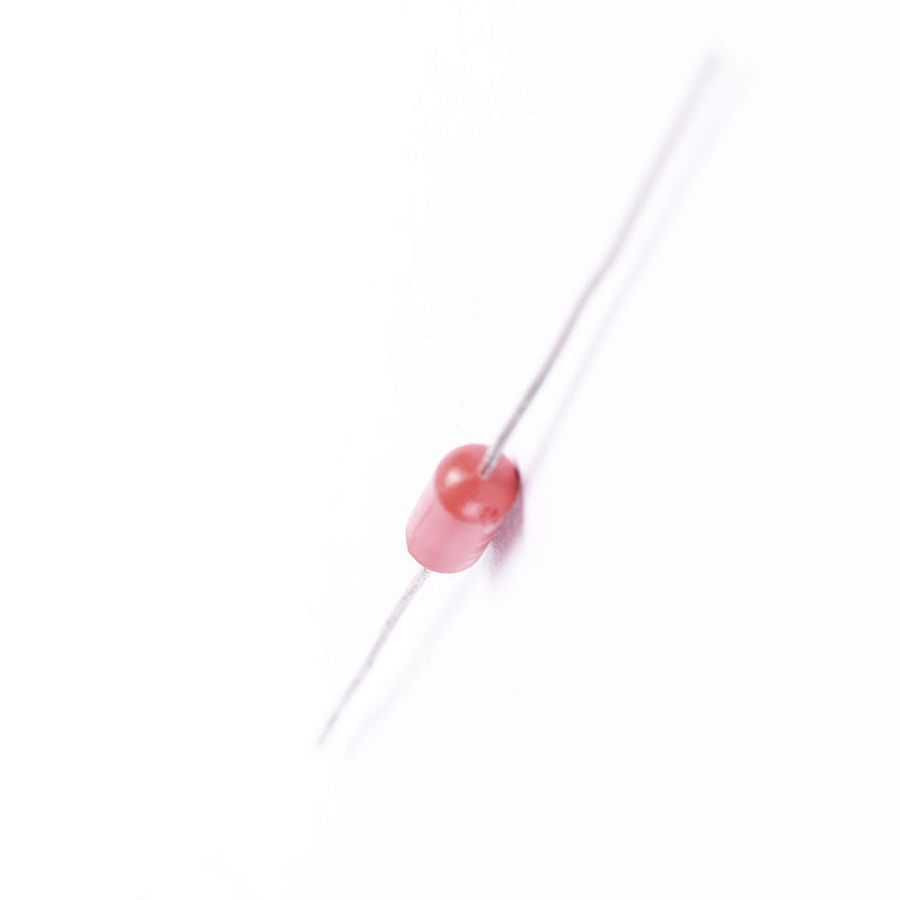

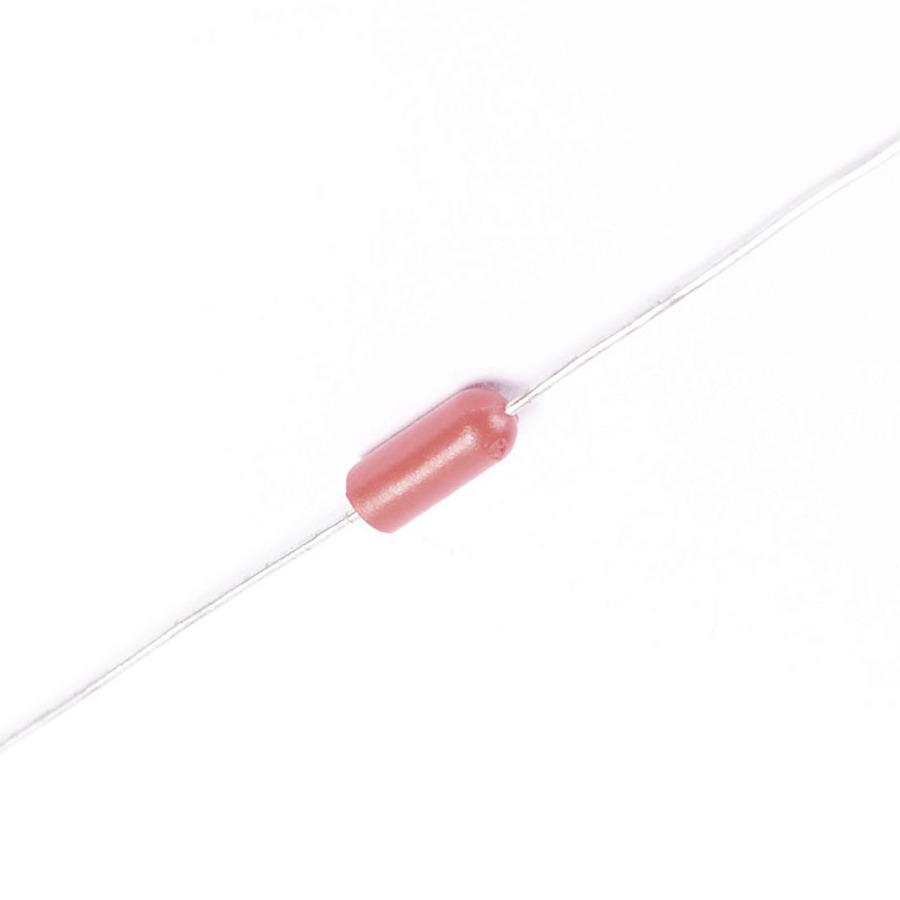

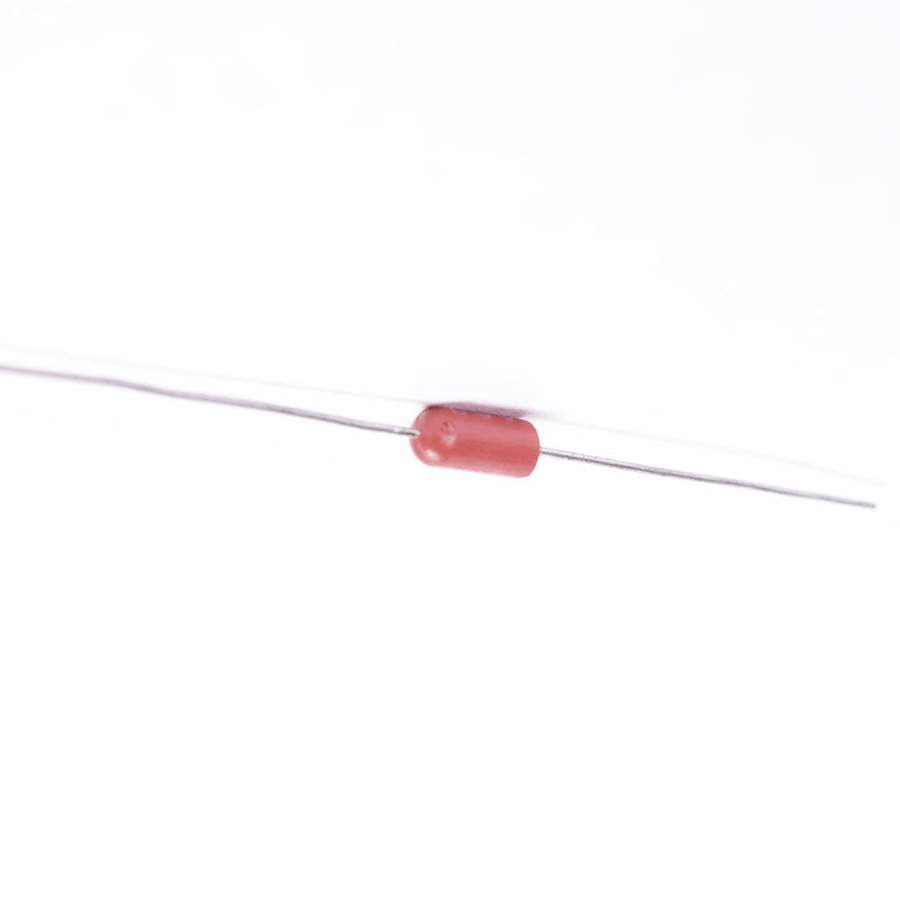

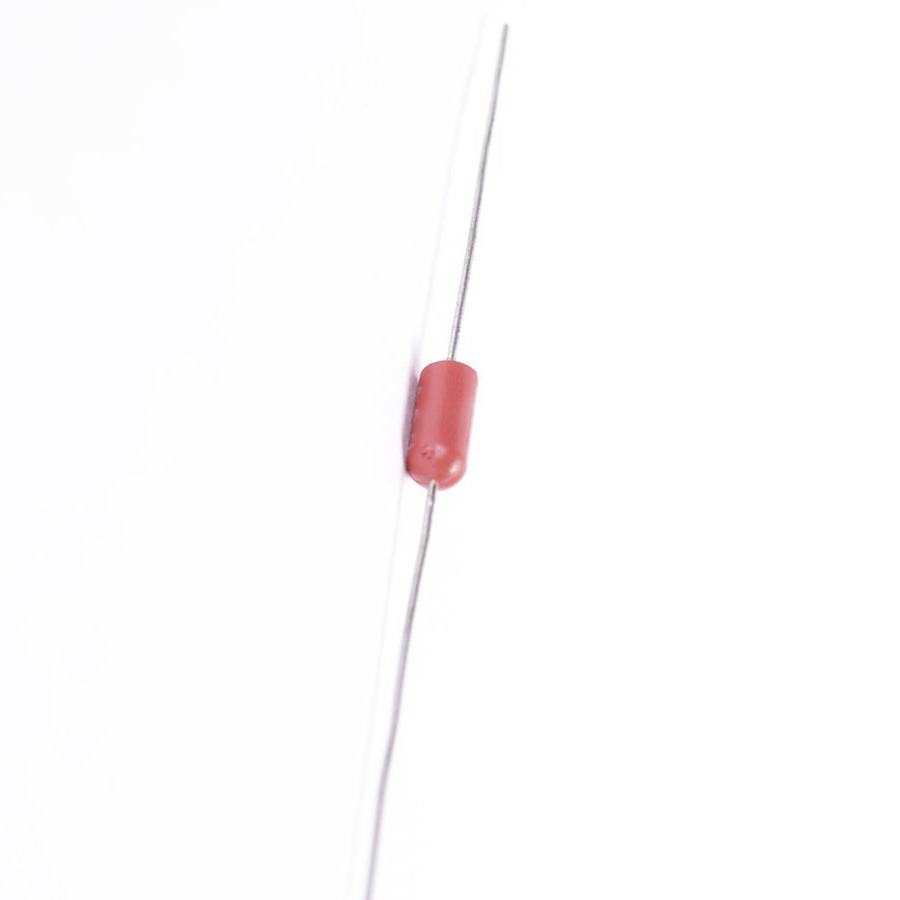

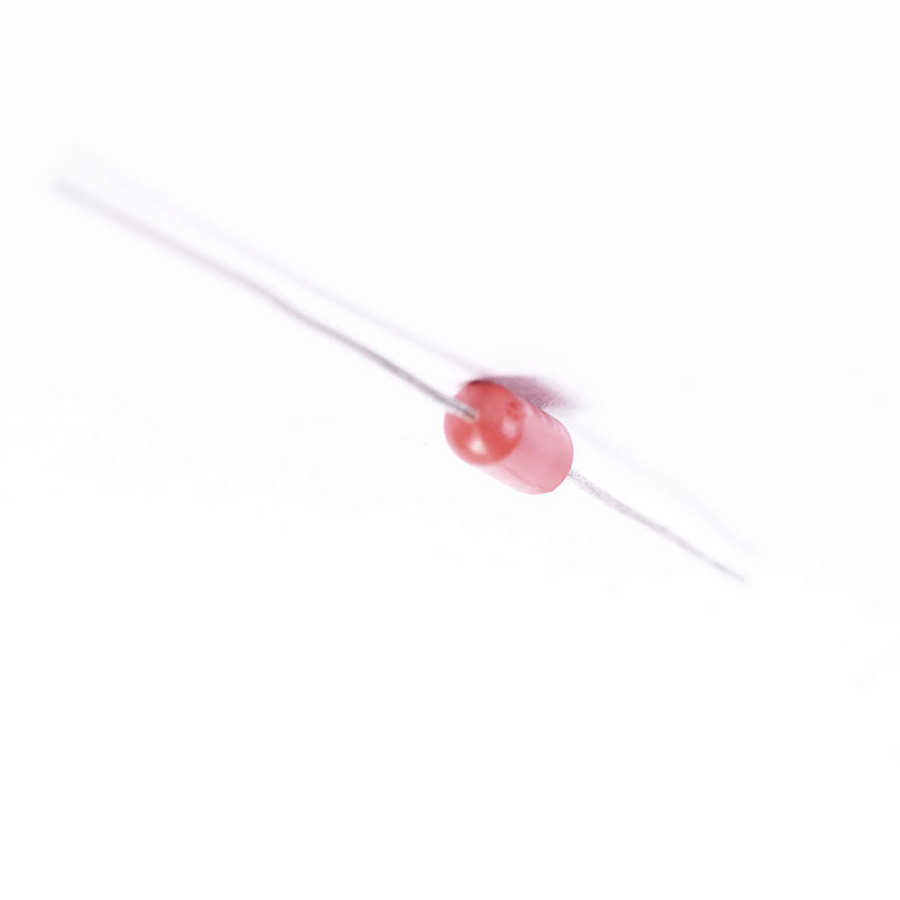

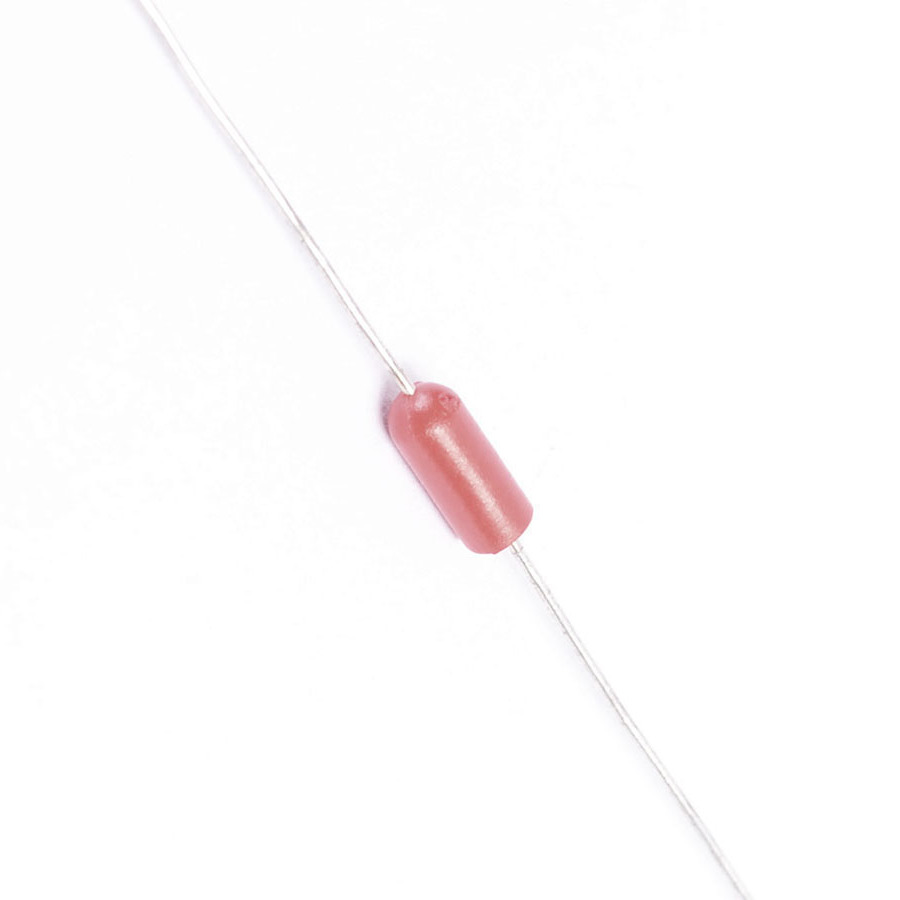

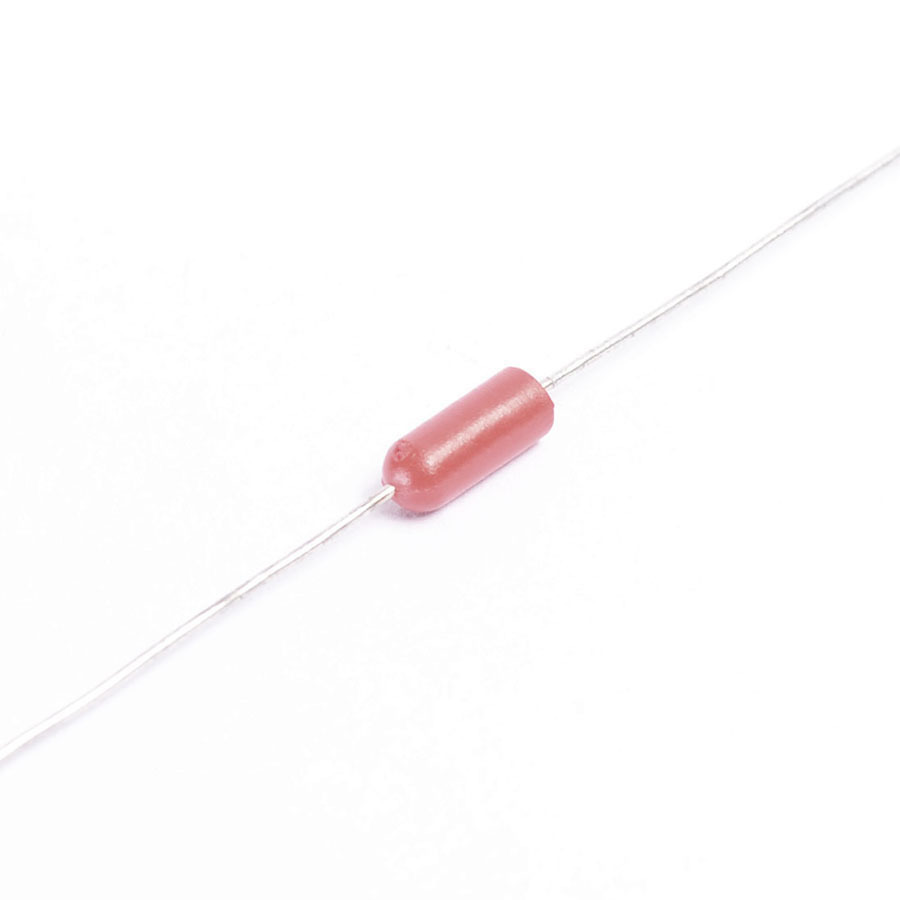

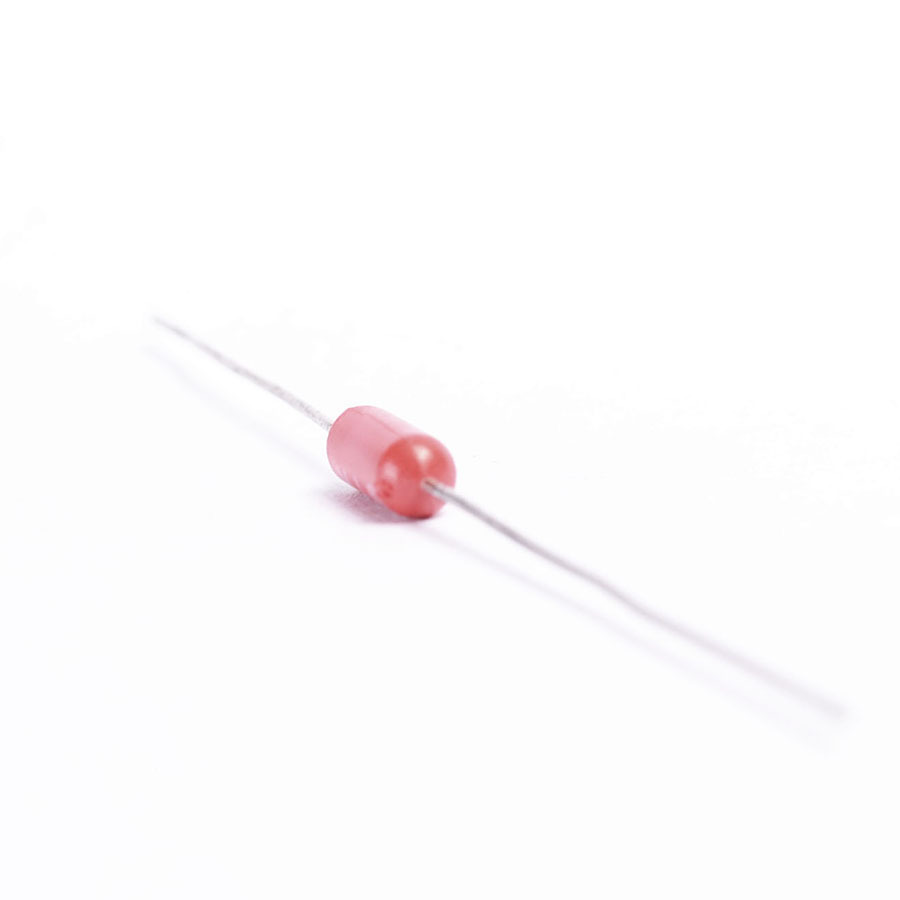

SG211

SKU: SG211
SG211 Semiconductor CASE: DO14 MAKE: Generic
Product specifications
Type Semiconductor
Case DO14
Manufacturer Generic
Vbr CBO 20
Vbr CEO 20
Max. PD (W) 200m
C(ob) (F) 4.0p
Gap Size (mm) 2.0m
hfe 50
Ic Max. (A) 200m
Icbo Max. @Vcb Max. (A) 100n-
If Max. (A) 50m
I(out) Max. (A) 20m
Ir @ Diff. Temp (A) .02m
Mat. Silicon Logic
VRRM 70
t(resp) (S) 50u
t(rr) (S) 300n
@Temp (test) (°C) 100
Outp Ckt Type Transistor
VCE Max. 30
VCE(sat) Max. 0.4
Vf Max. 1.5
Ir @25°C .25u
I(out) (If AVG) Max. 30m
Trans. Freq (Hz) Min. 200M
@VCE (test) (V) 4.0
@Volts (test) (V) 60
@If (test) 5.0m
@If (test) 5.0m
Oper. Temp (°C) Min -25
Oper. Temp (°C) Max. 150
@If (A) 10m
@Ic (A) 10m
Number of Chan. 1
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
SKU 837789
