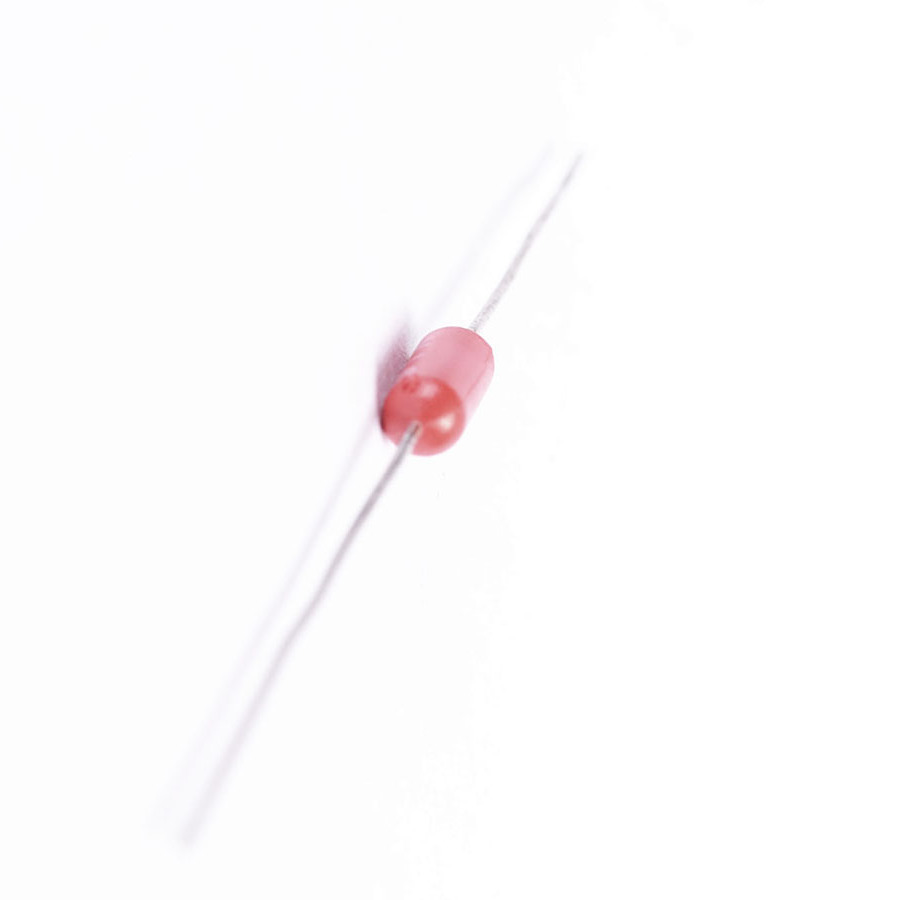

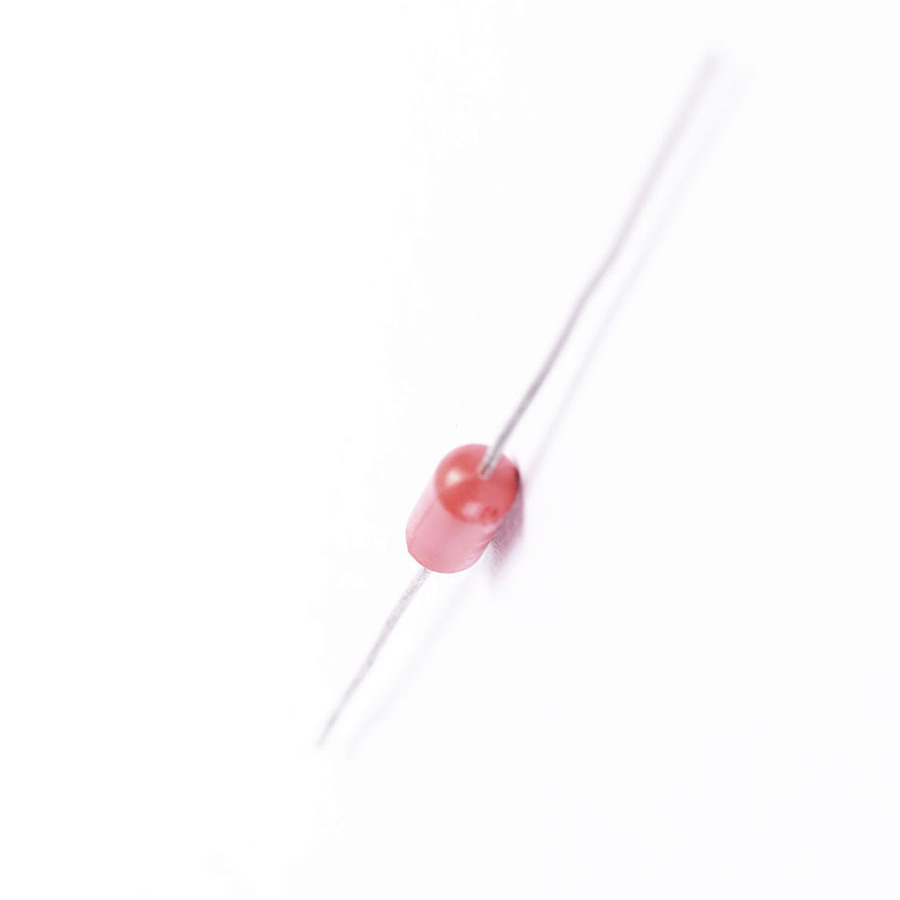

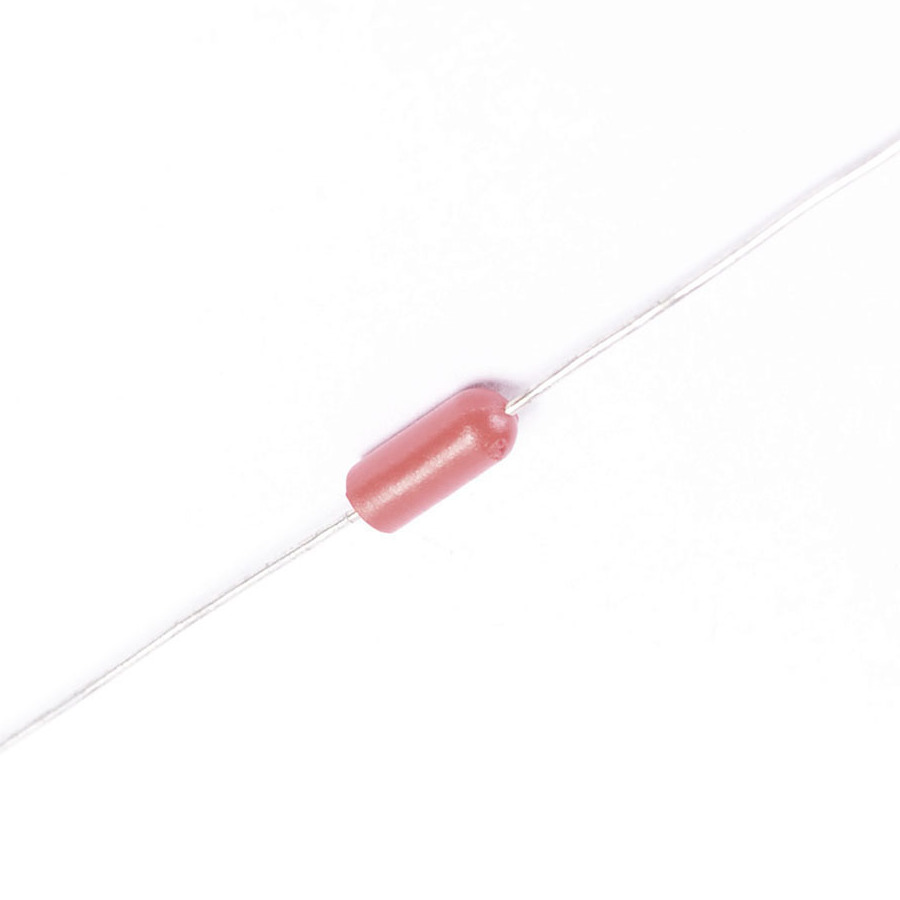

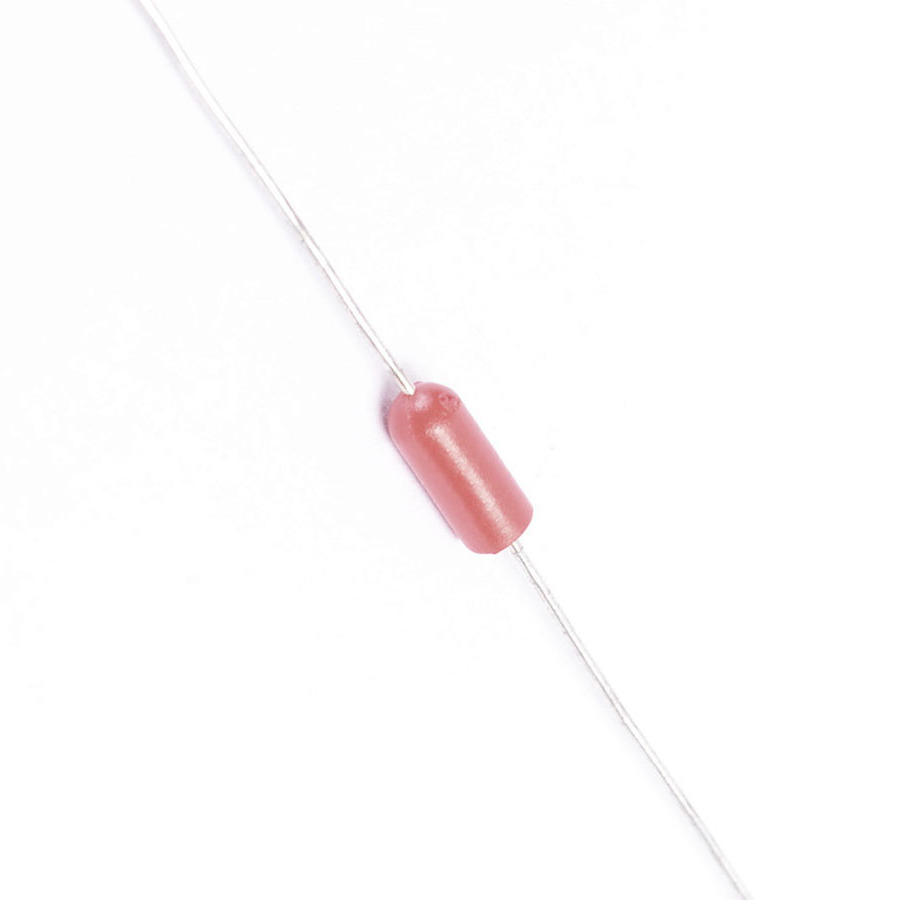

SG213
View detailed images (12)

SG213

SKU: SG213

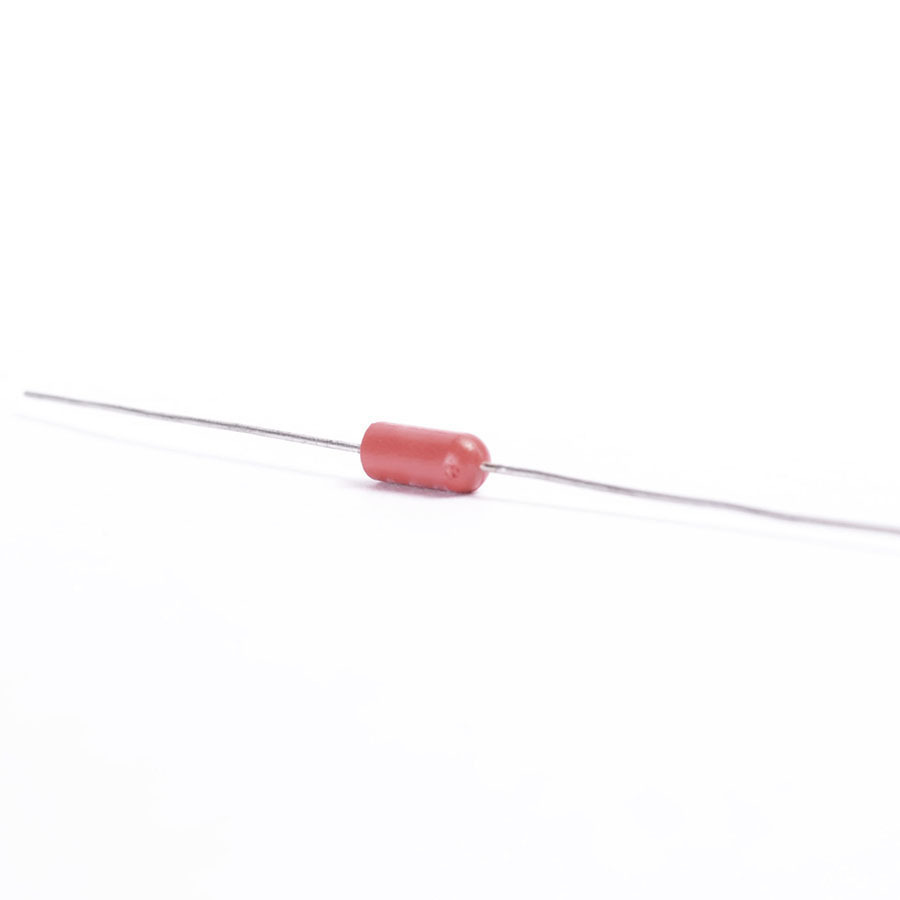

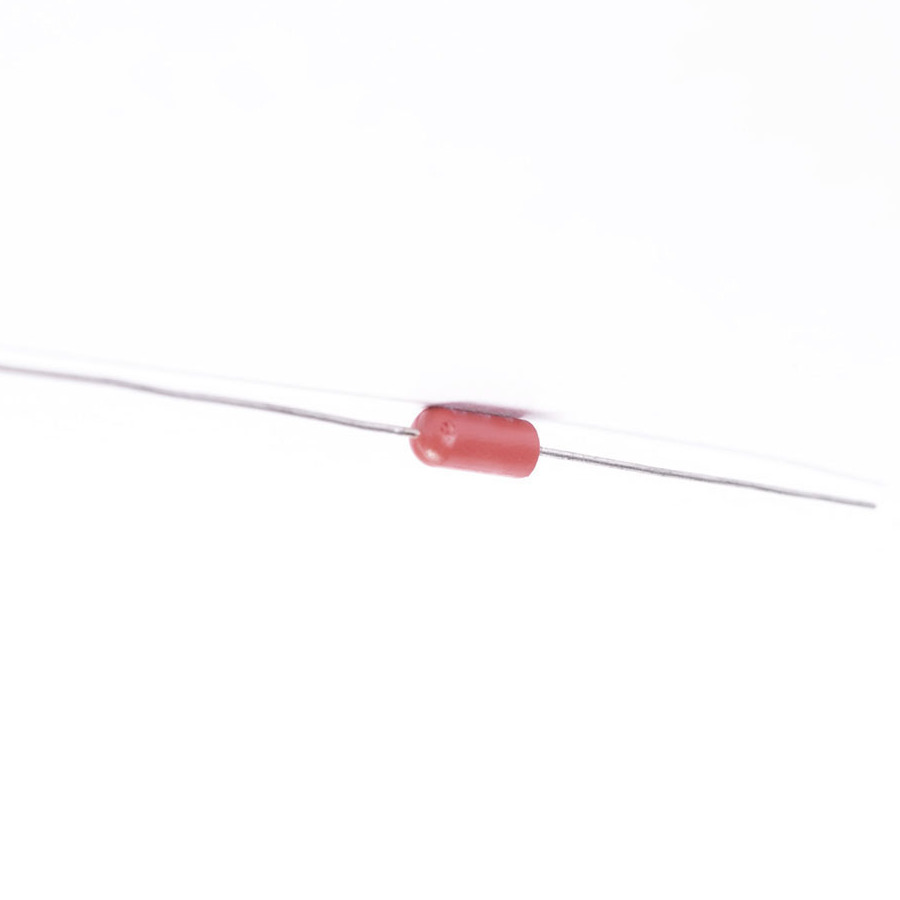

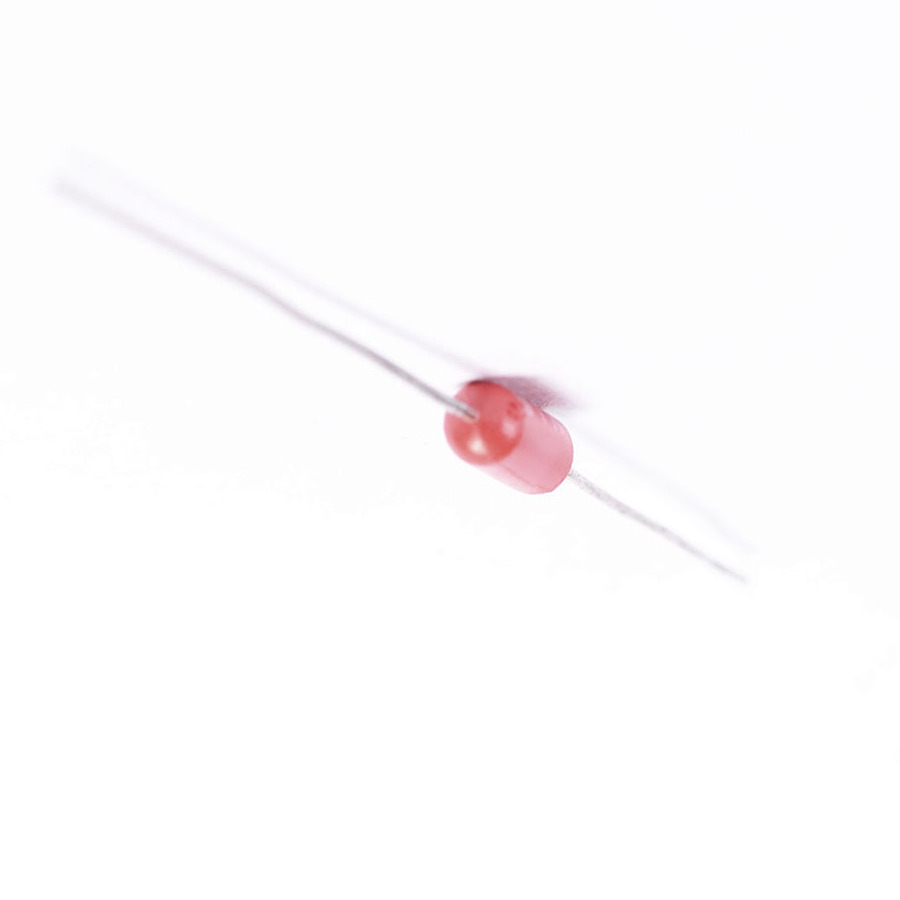

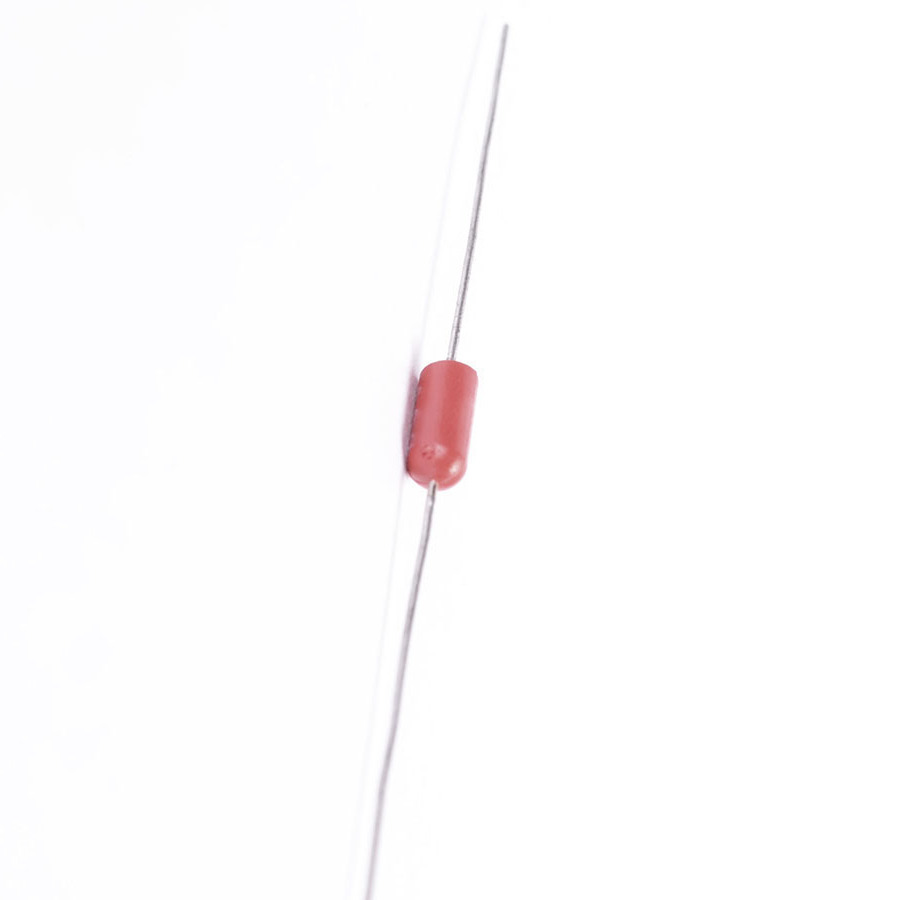

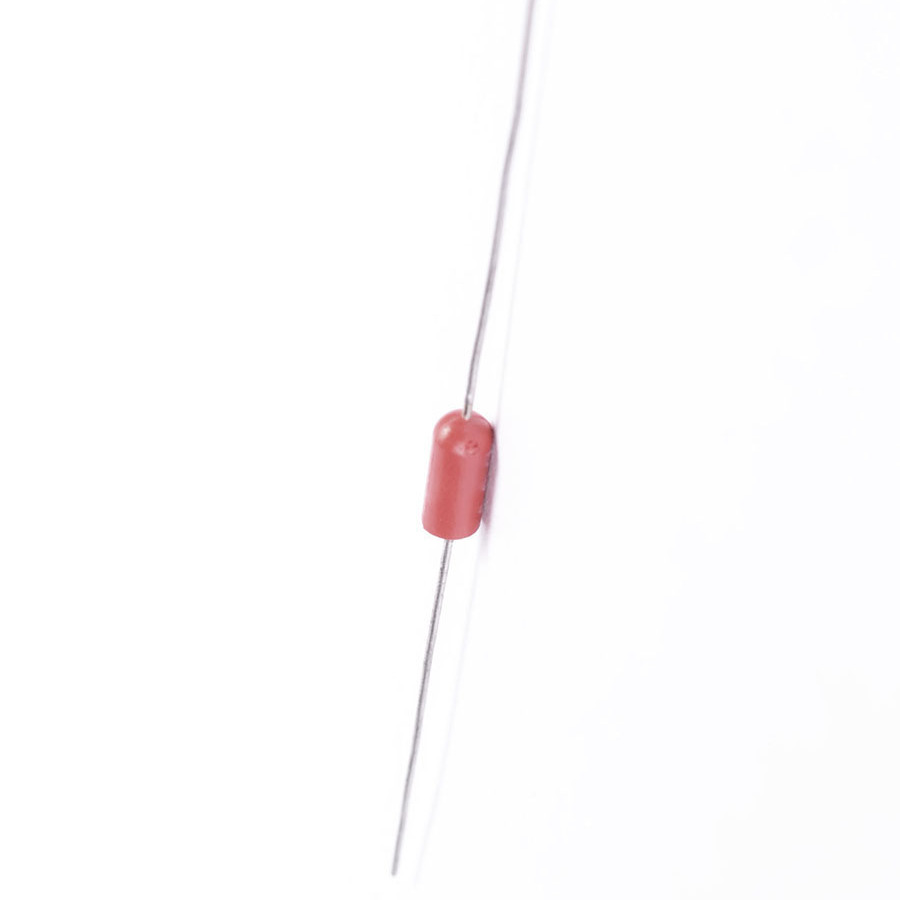

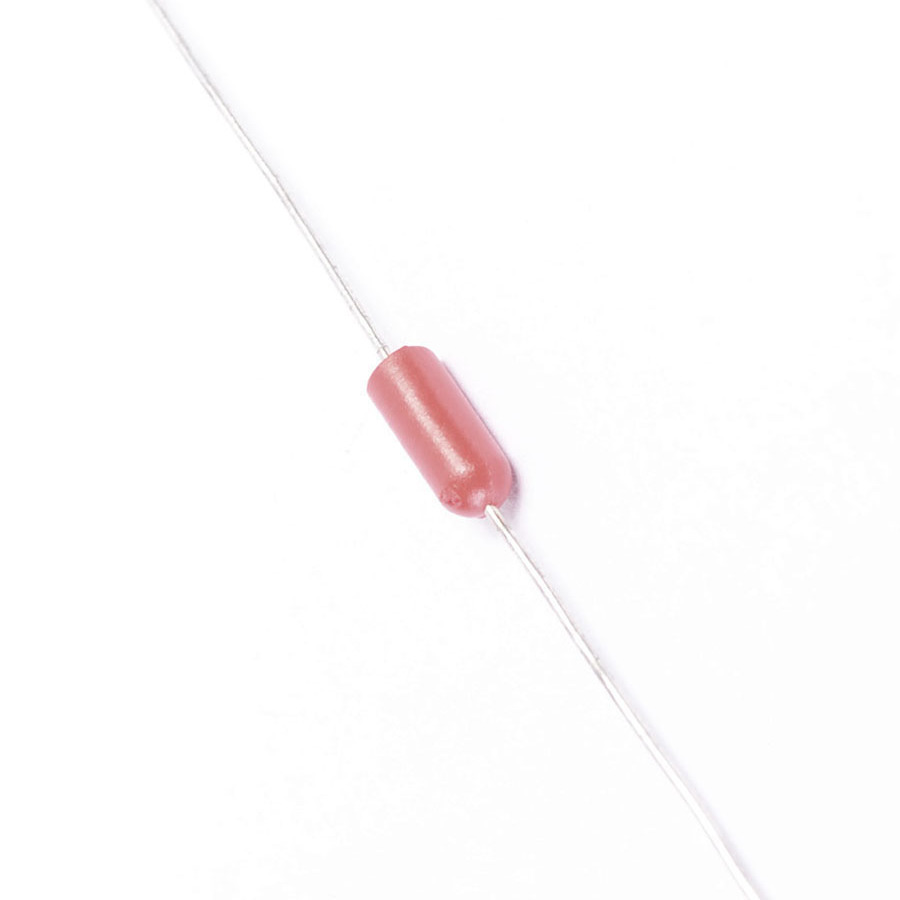

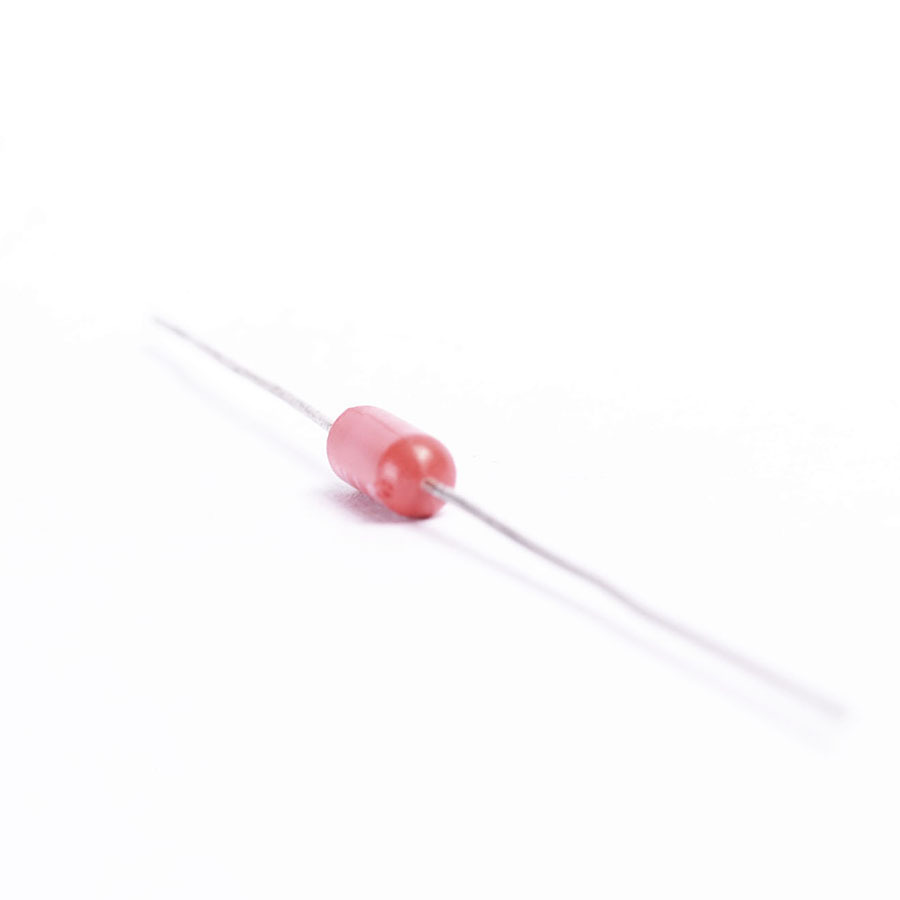

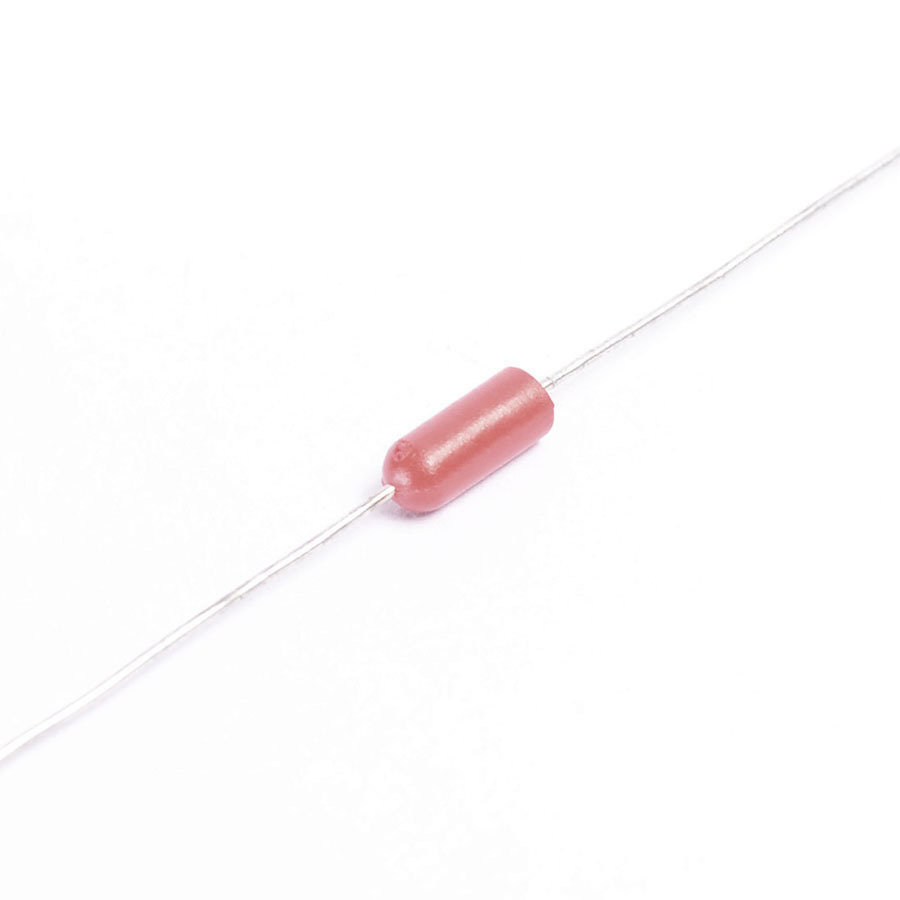

SG213 Semiconductor CASE: DO14 MAKE: Generic
Product specifications
Type Semiconductor
Case DO14
Manufacturer Generic
Vbr CBO 20
Vbr CEO 20
Max. PD (W) 200m
C(ob) (F) 4.0p
hfe 200
Ic Max. (A) 200m
Icbo Max. @Vcb Max. (A) 100n-
Ir @ Diff. Temp (A) .05m
Mat. Silicon Logic
VRRM 180
t(rr) (S) 300n
@Temp (test) (°C) 100
Vf Max. 1.5
Ir @25°C .25u
I(out) (If AVG) Max. 30m
Trans. Freq (Hz) Min. 200M
@VCE (test) (V) 4.0
@Volts (test) (V) 175
@If (test) 5.0m
@If (test) 5.0m
Oper. Temp (°C) Max. 150
@Ic (A) 10m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
SKU 837800
