SG55453BY

SG55453BY

SKU: SG55453BY

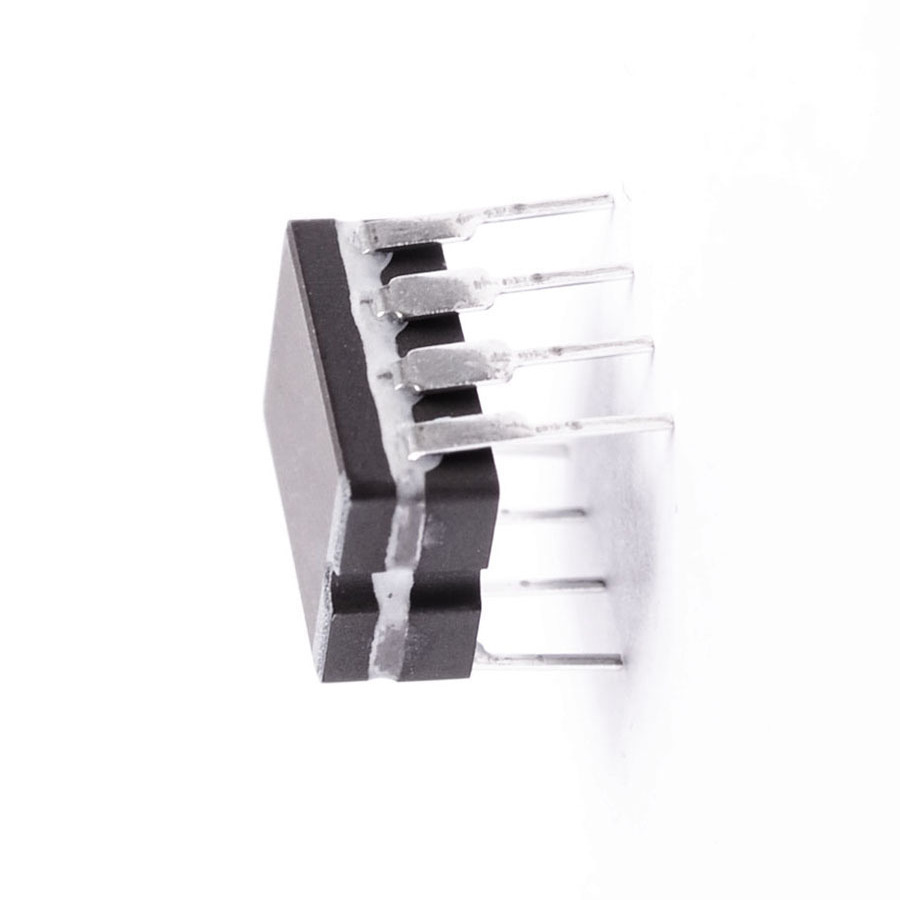

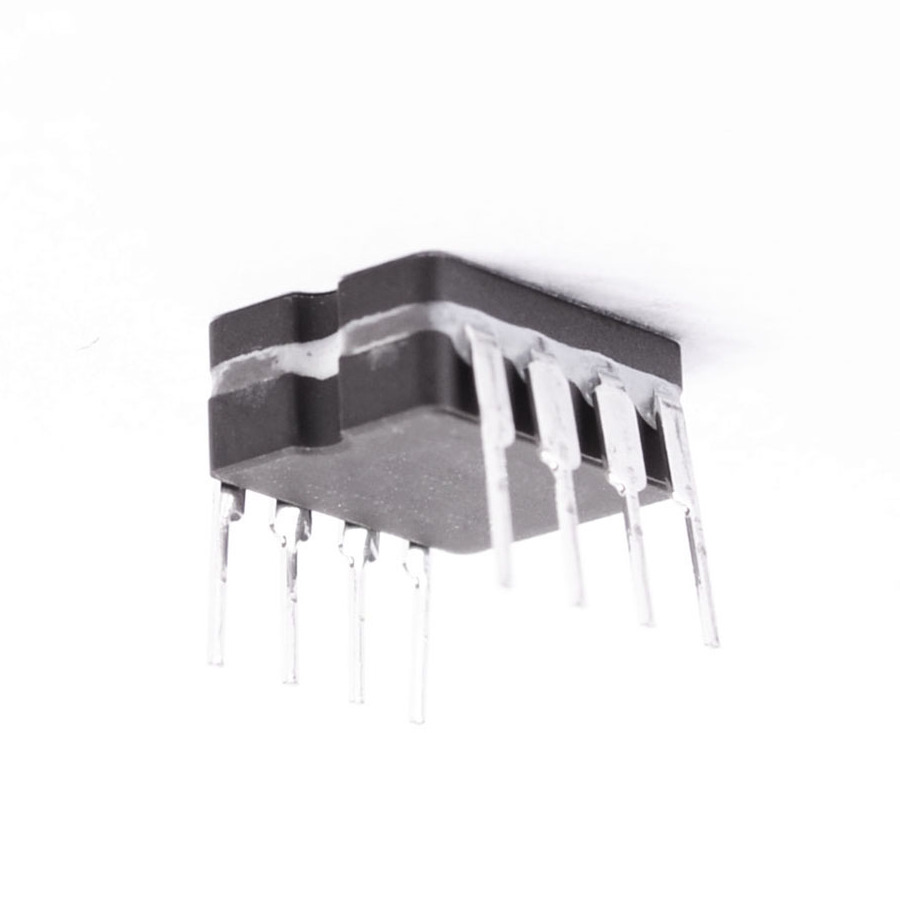

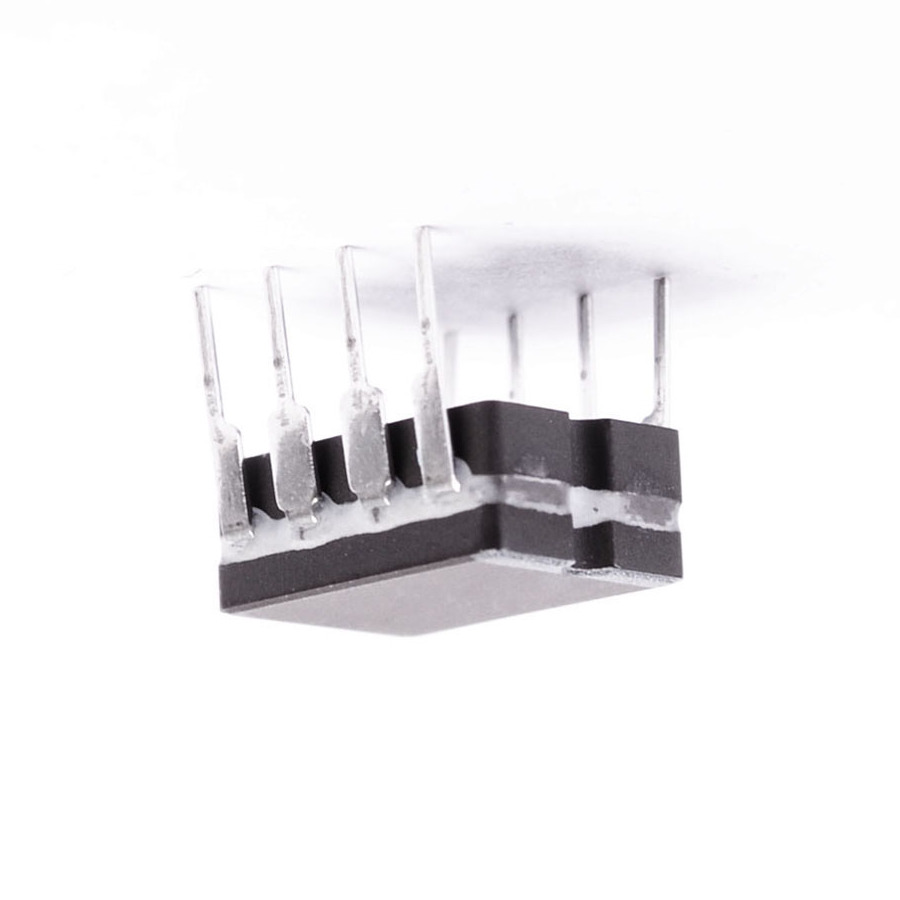

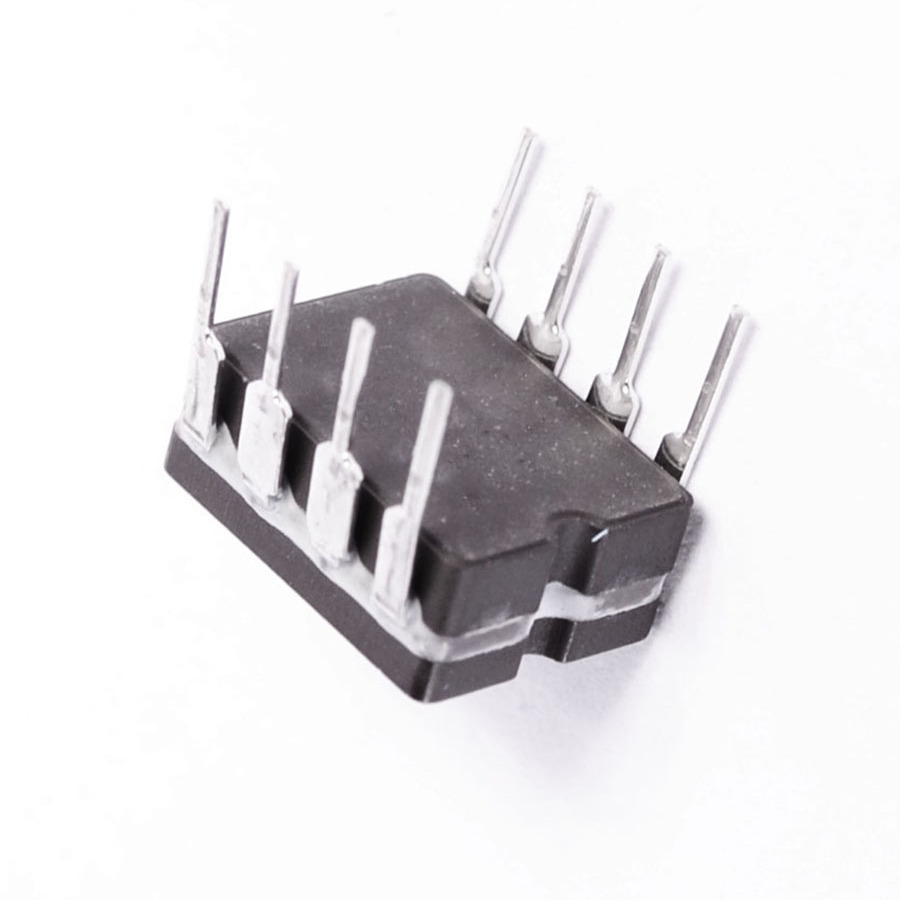

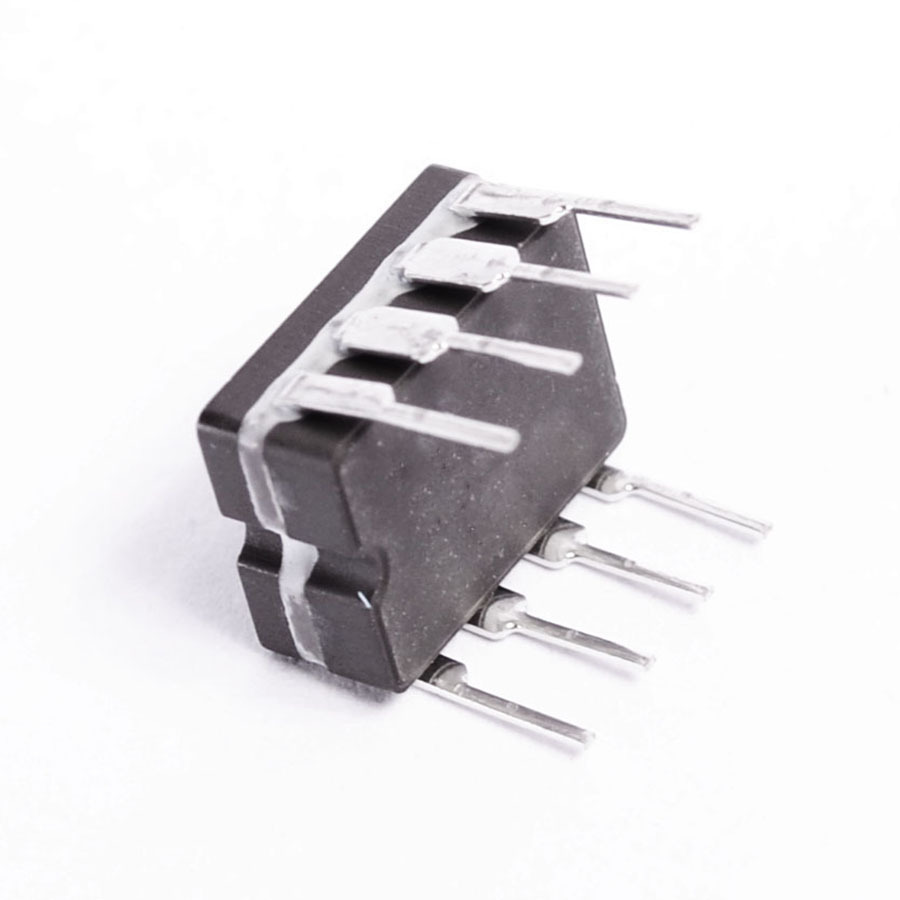

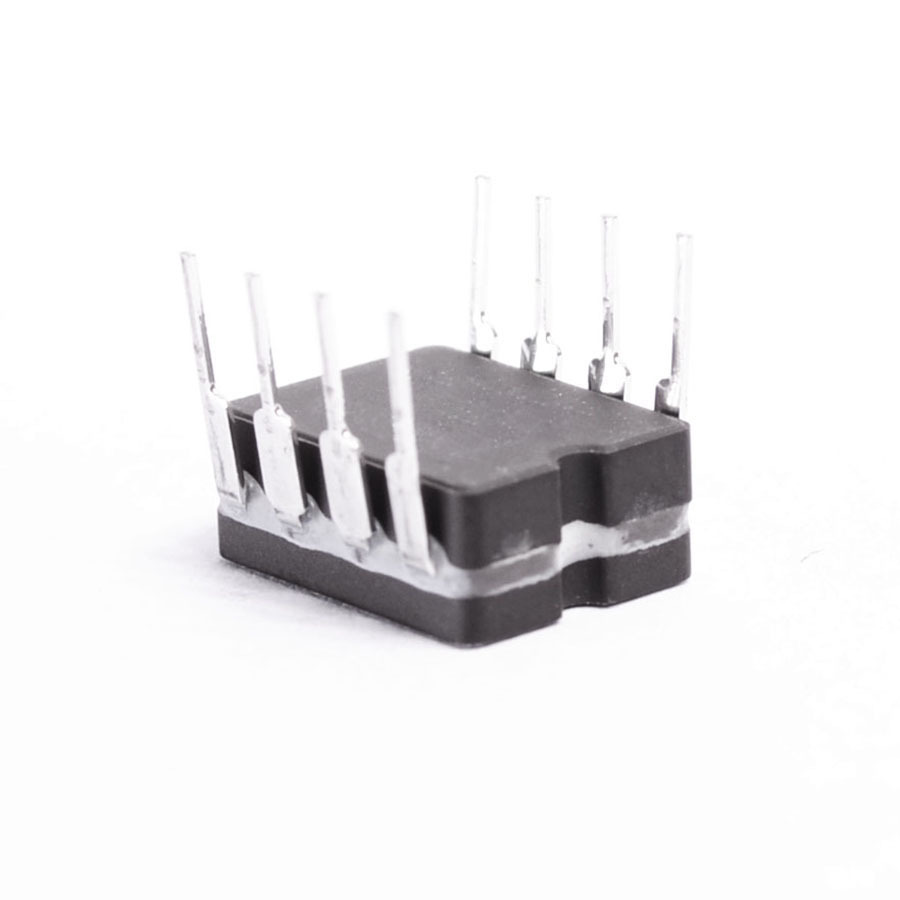

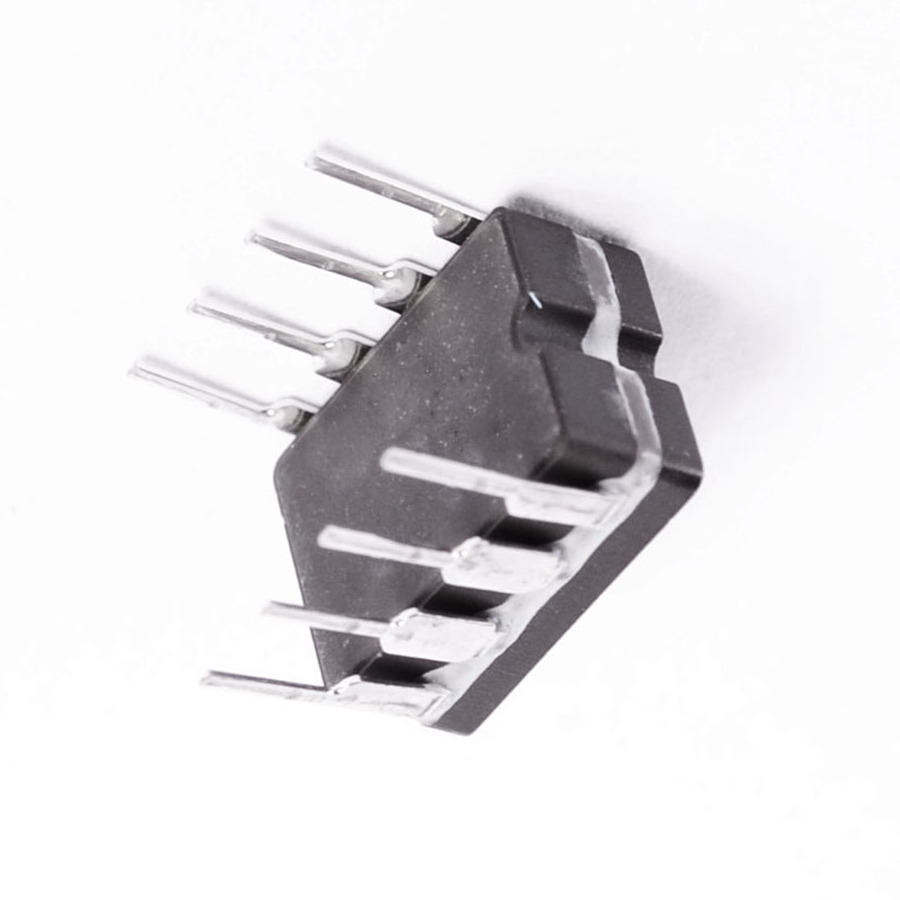

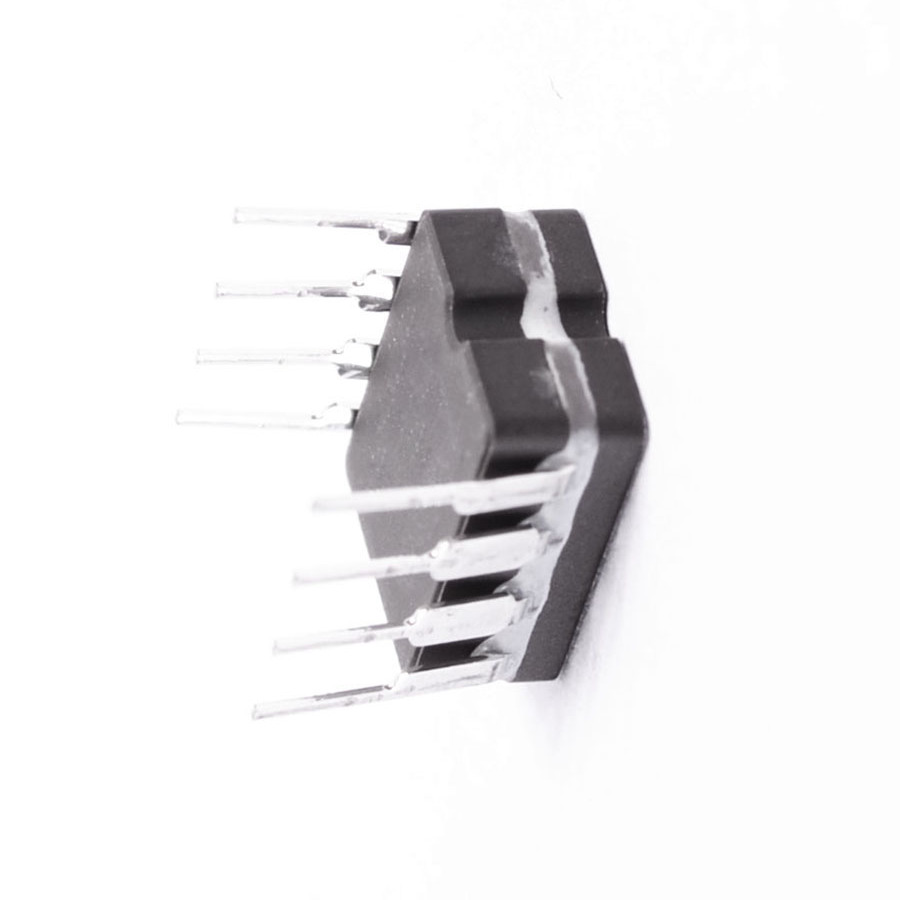

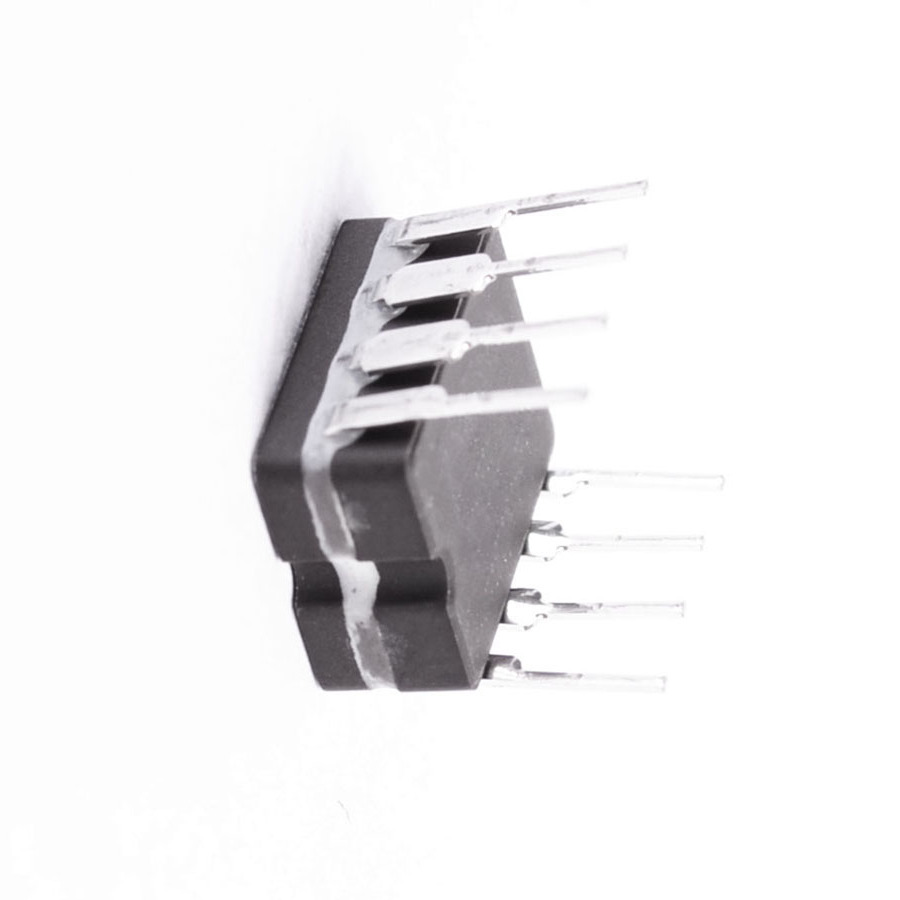

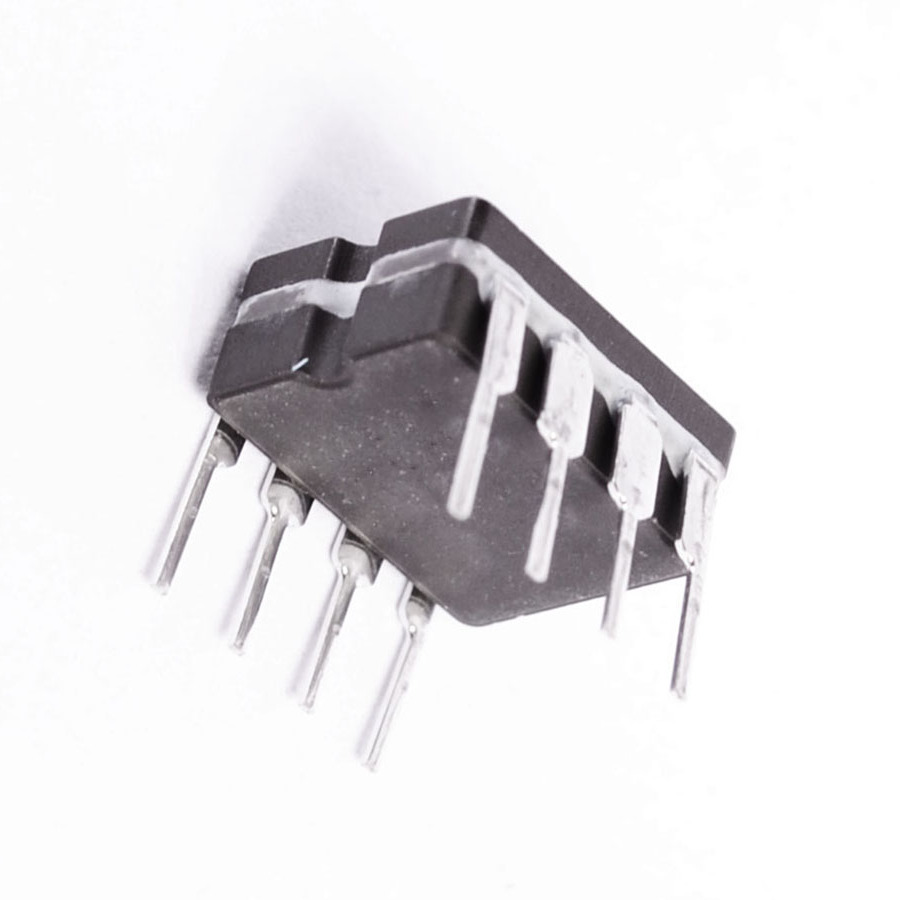

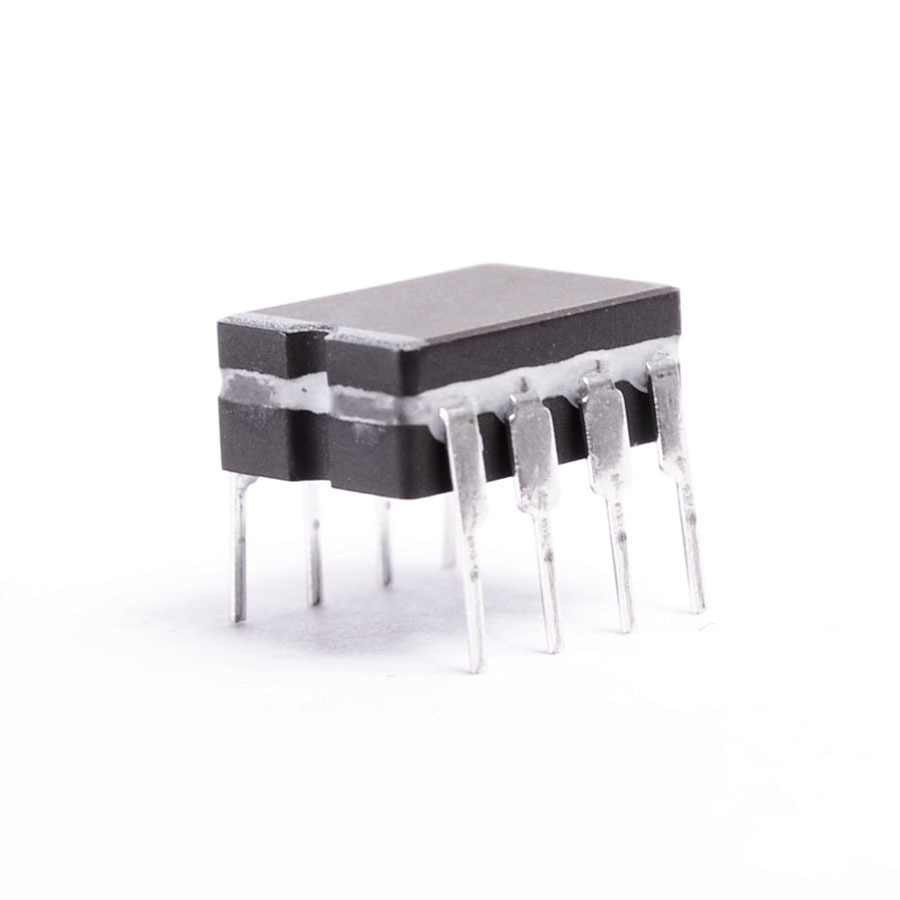

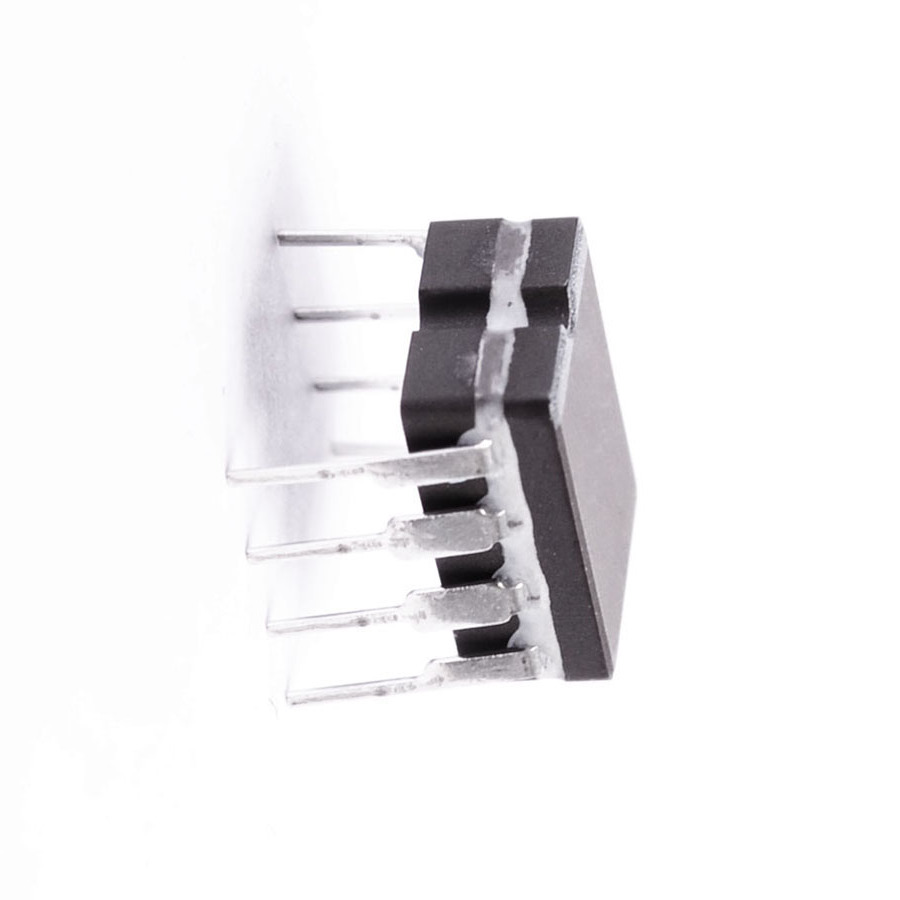

SG55453BY Integrated Circuit CASE: DIC8 MAKE: SGL
Product specifications
Type Integrated Circuit
Case DIC8
Manufacturer SGL
Vih Min (V) 2.0
Vil Max. (V) 0.8
Inp Logic Family TTL
Output Config Open-Coll.
VOL Max. 0.8
Outp Transis. Ion Max. 300m
PD Max. (W) 0.8
tPD Max. (S) 25n
Nom. Supp (V) 5.0
Tech. TTL Integrated Circuit
Logic Funct. OR
Oper. Temp (°C) Min -55
Oper. Temp (°C) Max. 125
VOH Max. 30
@Iol (A) 300m
Pinout Equivalence Number 8-51
No. of Pins 8
Surface Mounted Yes/No NO
SKU 927620
