SGS125
View detailed images (12)

SGS125

SKU: SGS125

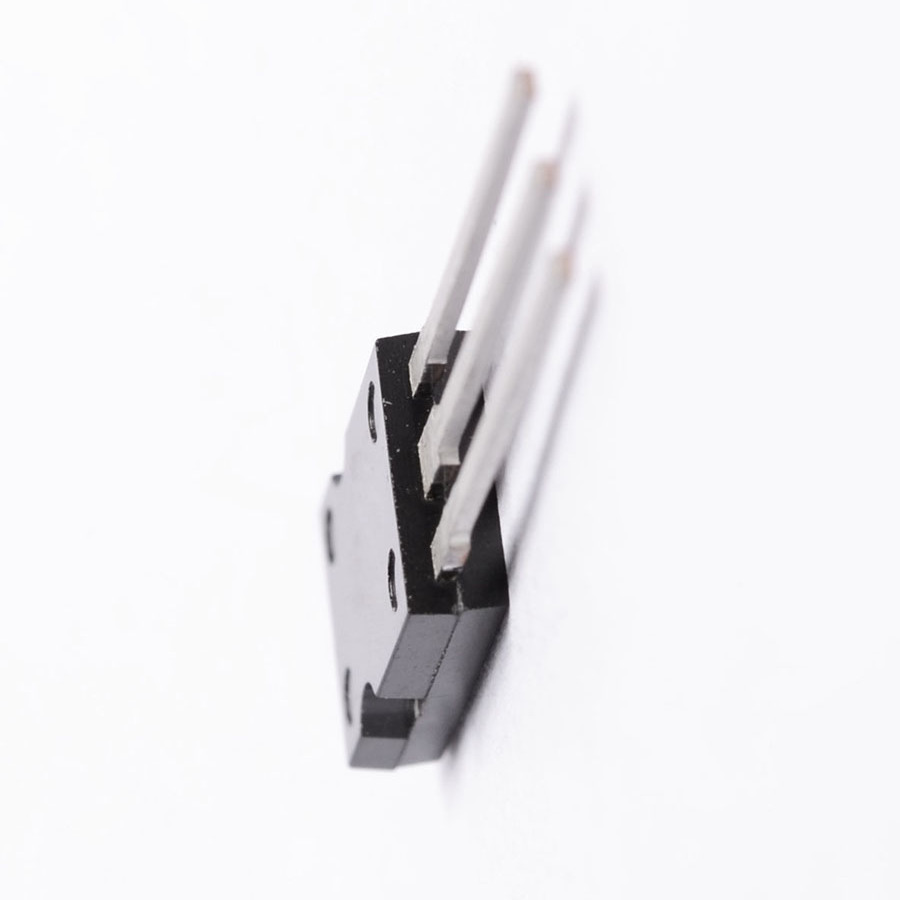

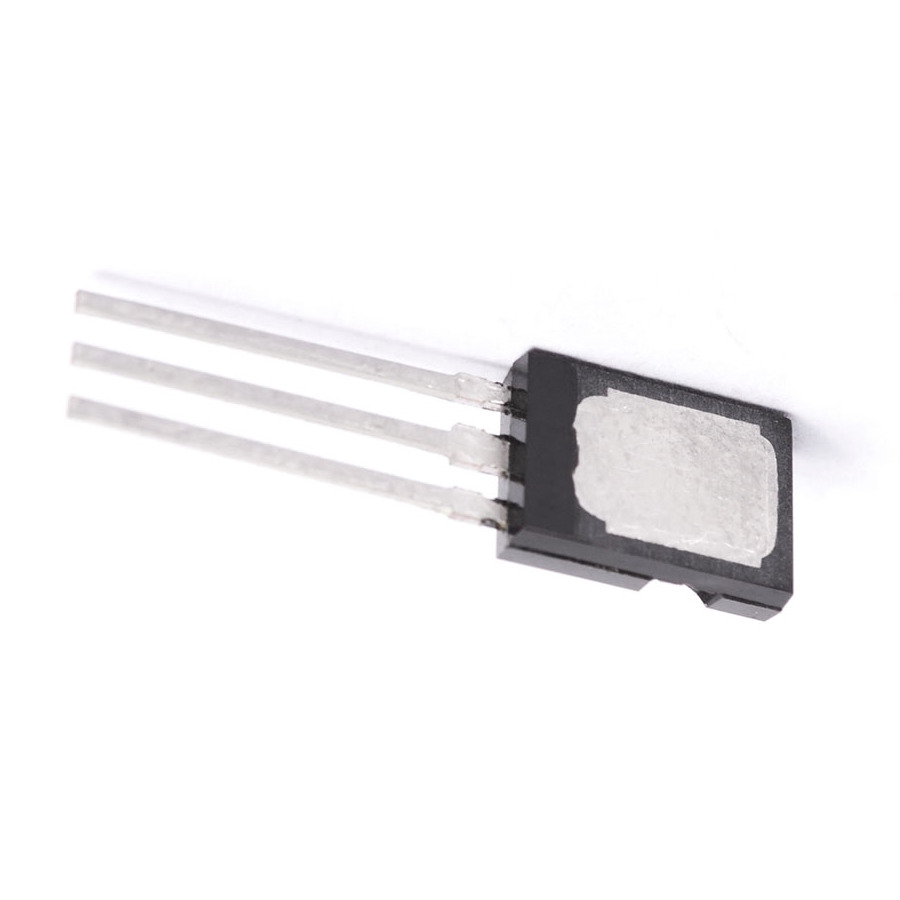

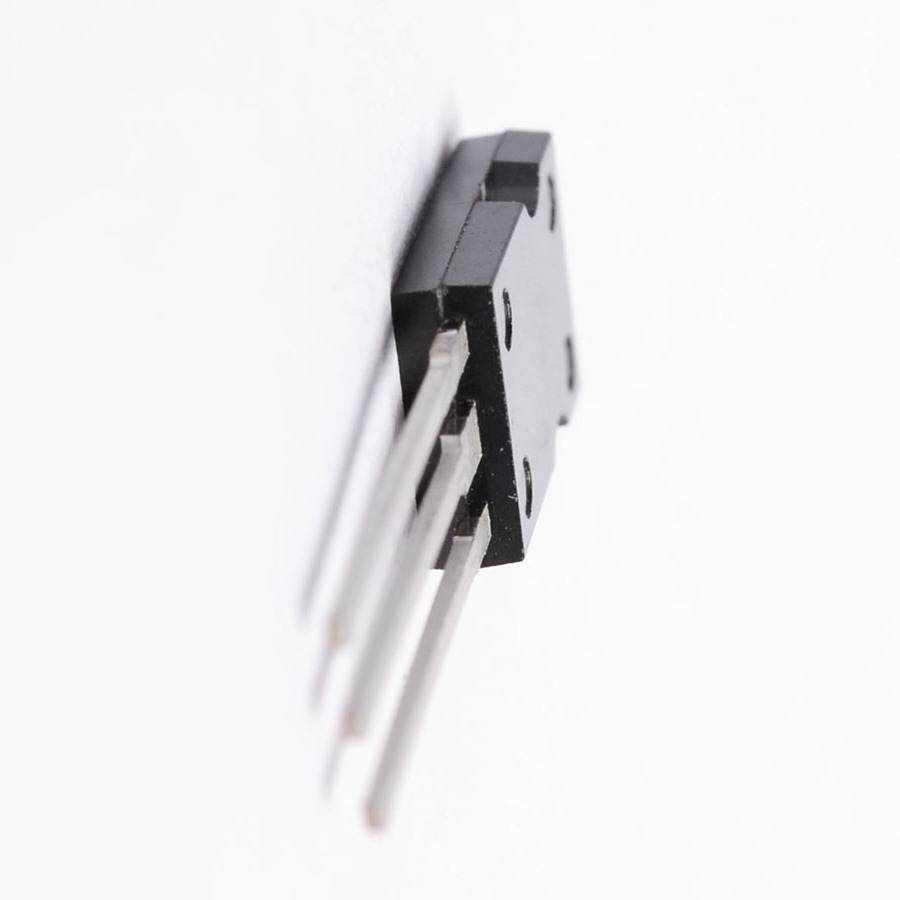

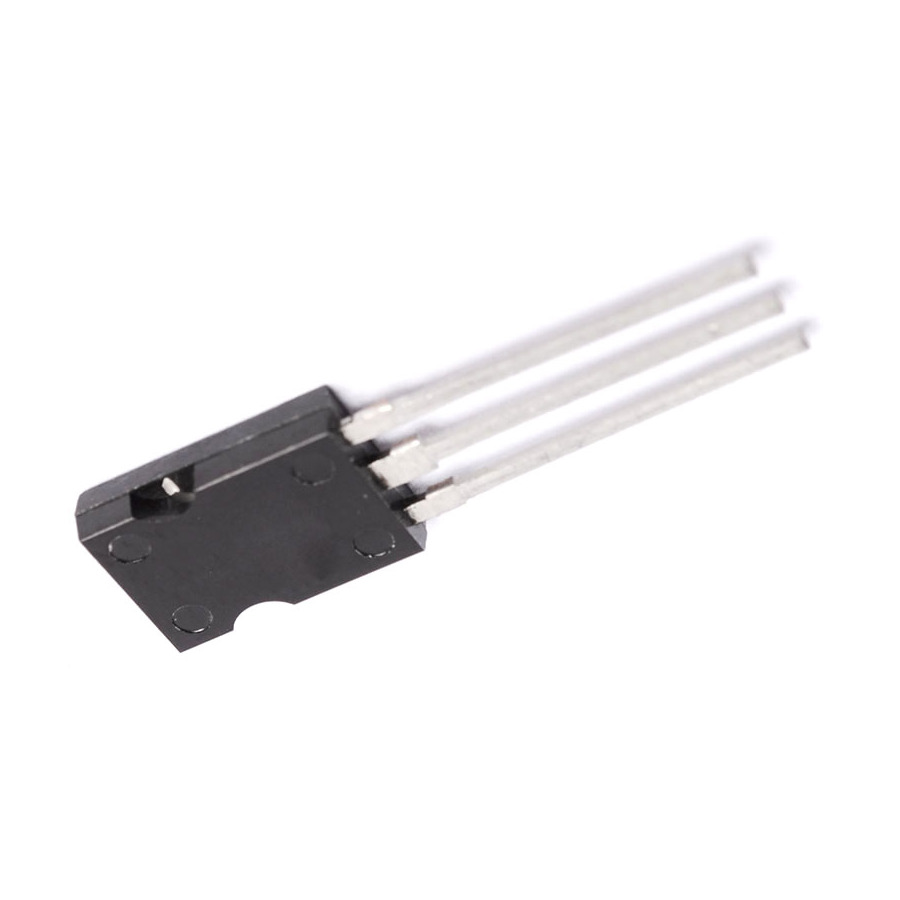

SGS125 Transistor Silicon PNP CASE: SOT82 MAKE: Thomas
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 2 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon PNP
Case SOT82
Manufacturer Thomas
Vbr CEO 60
Max. PD (W) 65
Min hFE 1.0k
Ic Max. (A) 5.0
@Ic (test) (A) 3.0
Mat. Silicon Logic
Polarity PNP
Pinout Equivalence Number 3-15
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 65 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 60 V
Maximum Collector Current |Ic max| 5 A
Max. Operating Junction Temperature (Tj) 175 °C
Forward Current Transfer Ratio (hFE), MIN 1000
SKU 314078
