Home / Semiconductors / SGSP239

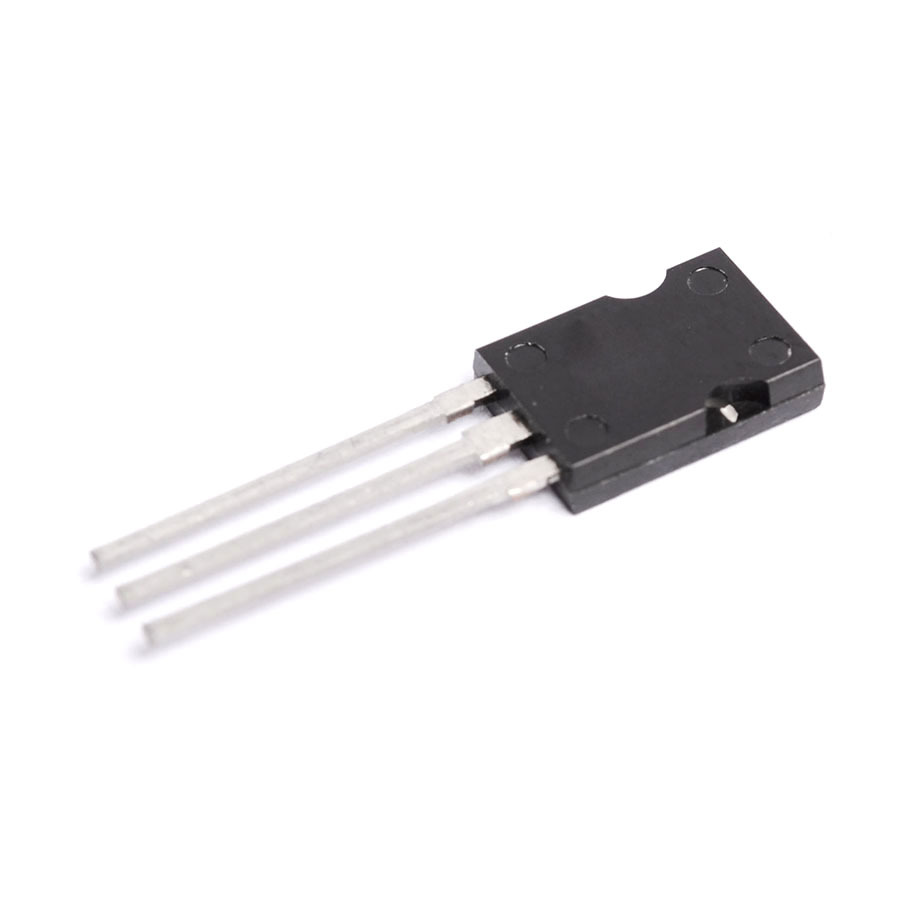

SGSP239

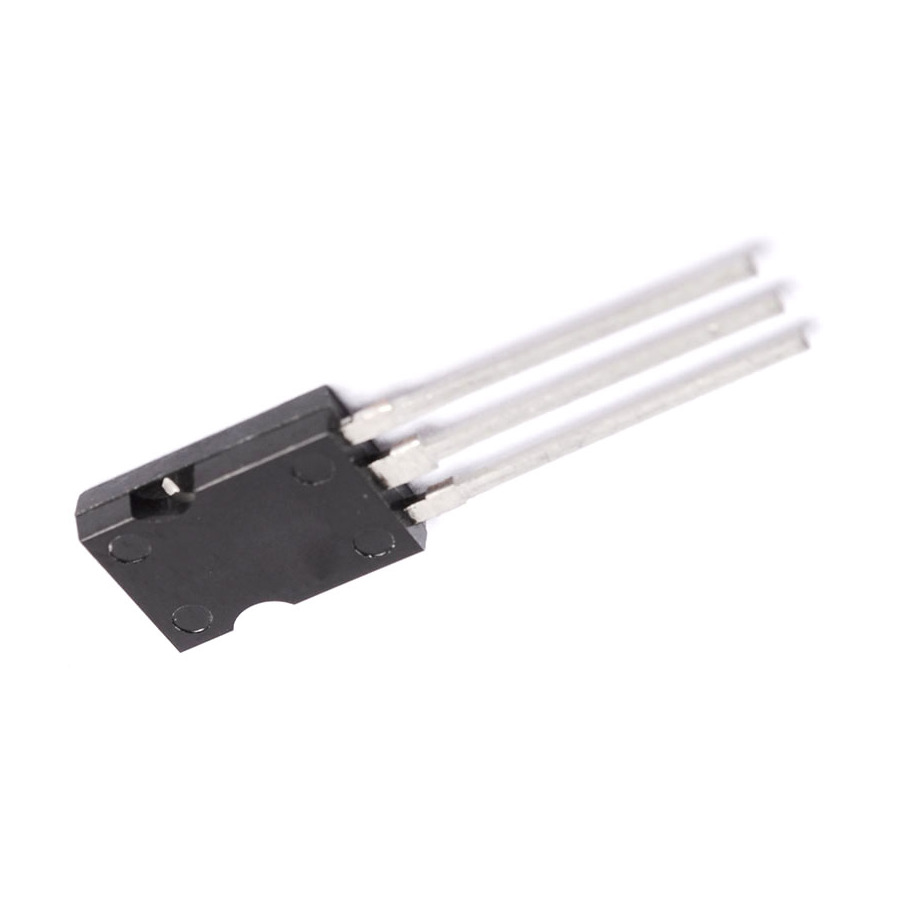

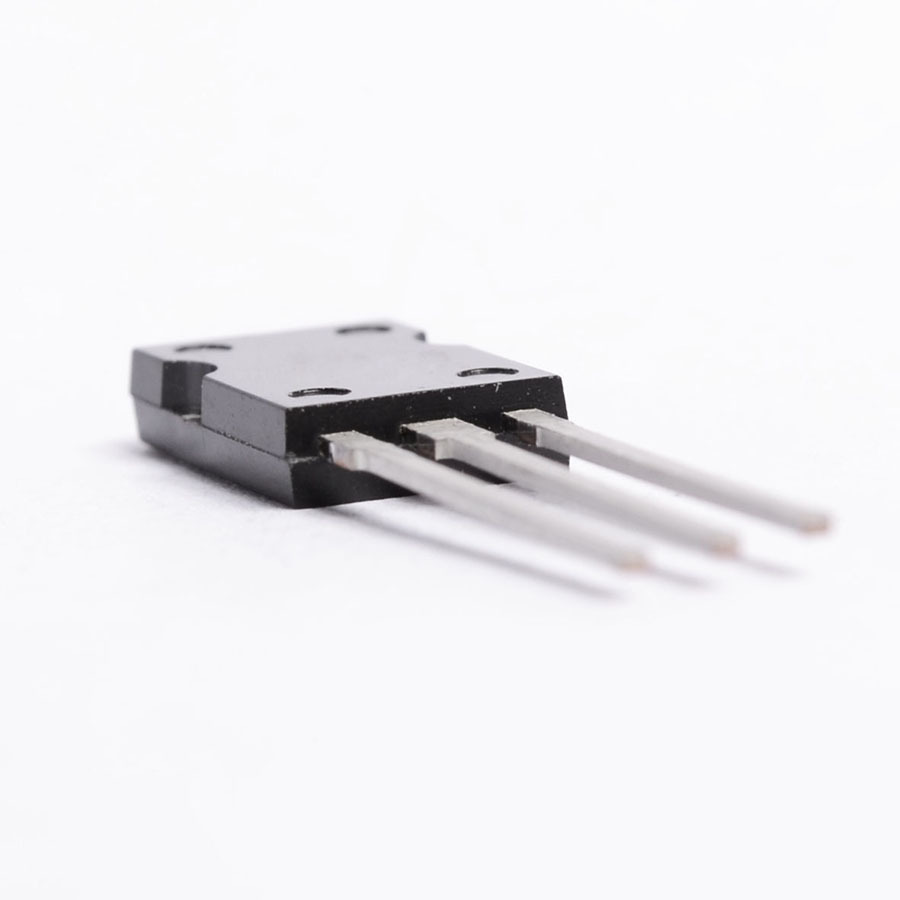

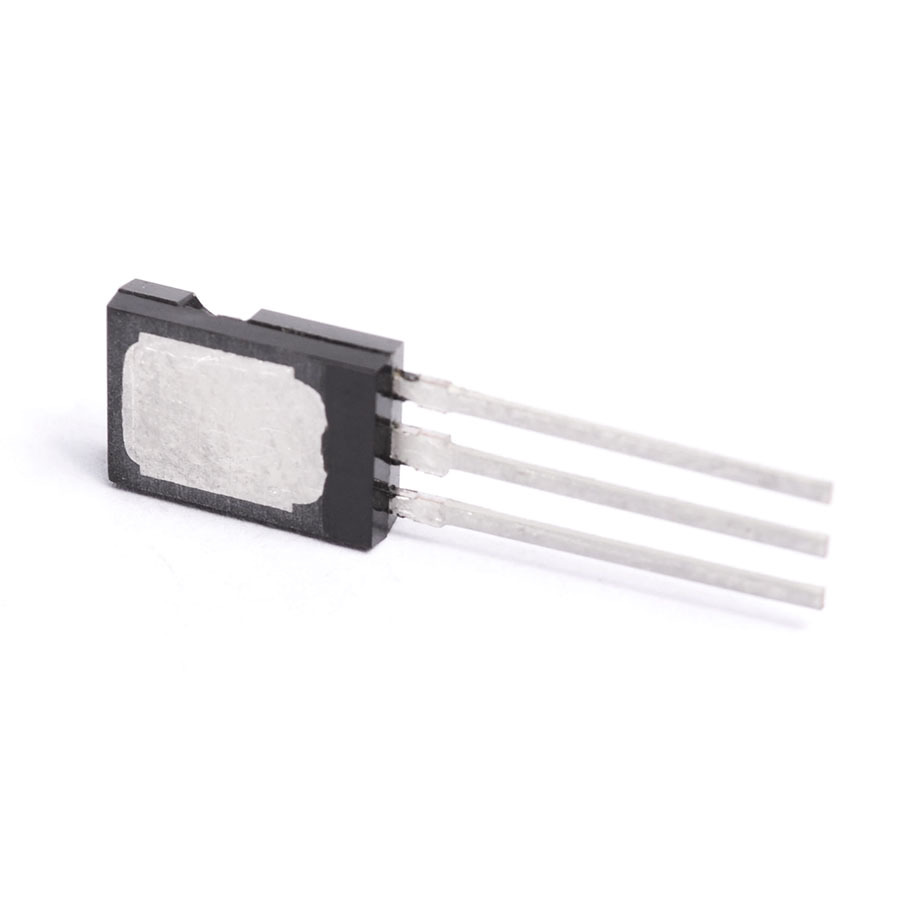

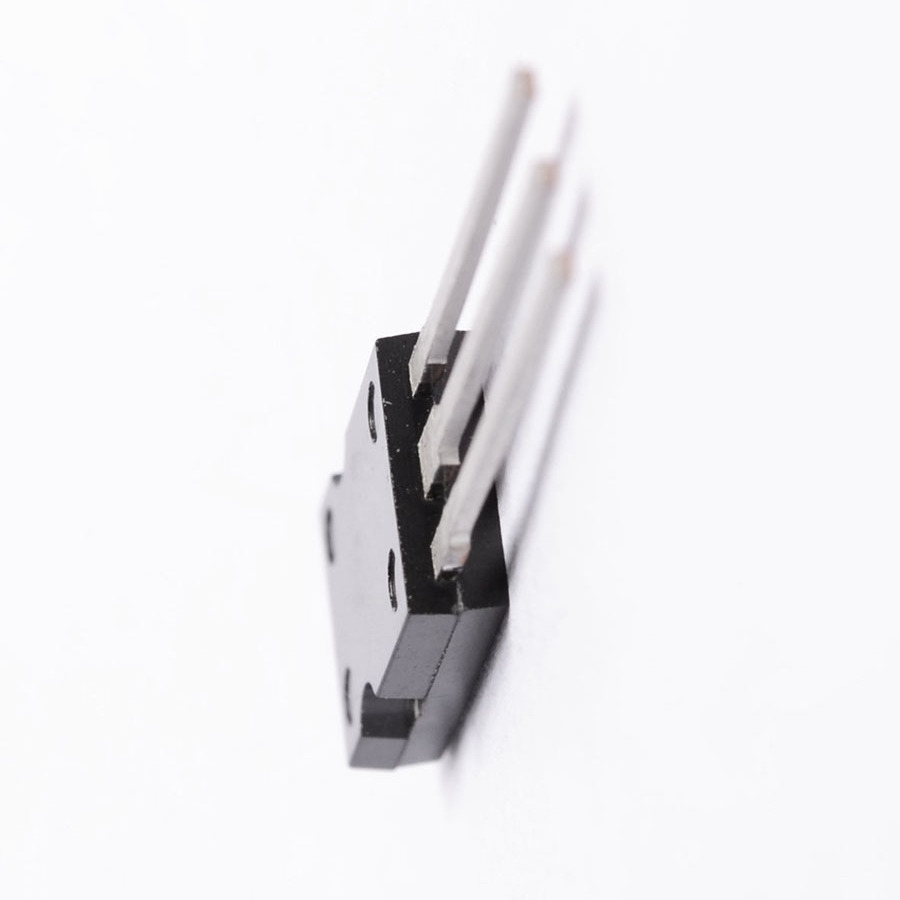

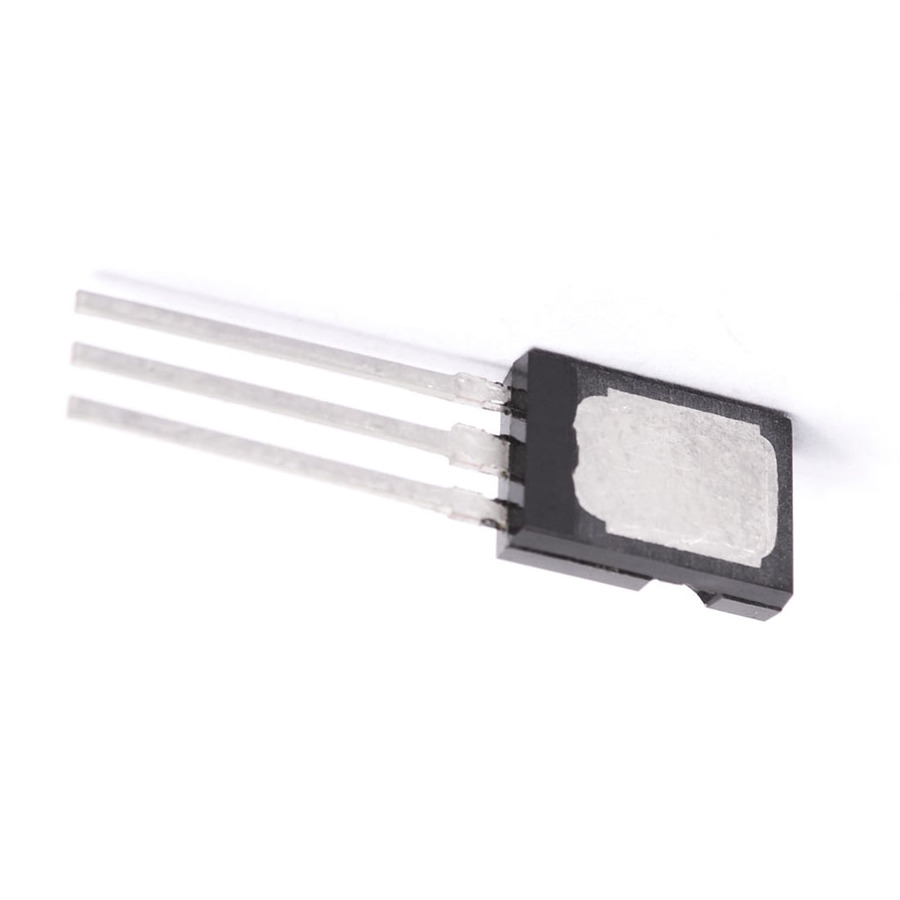

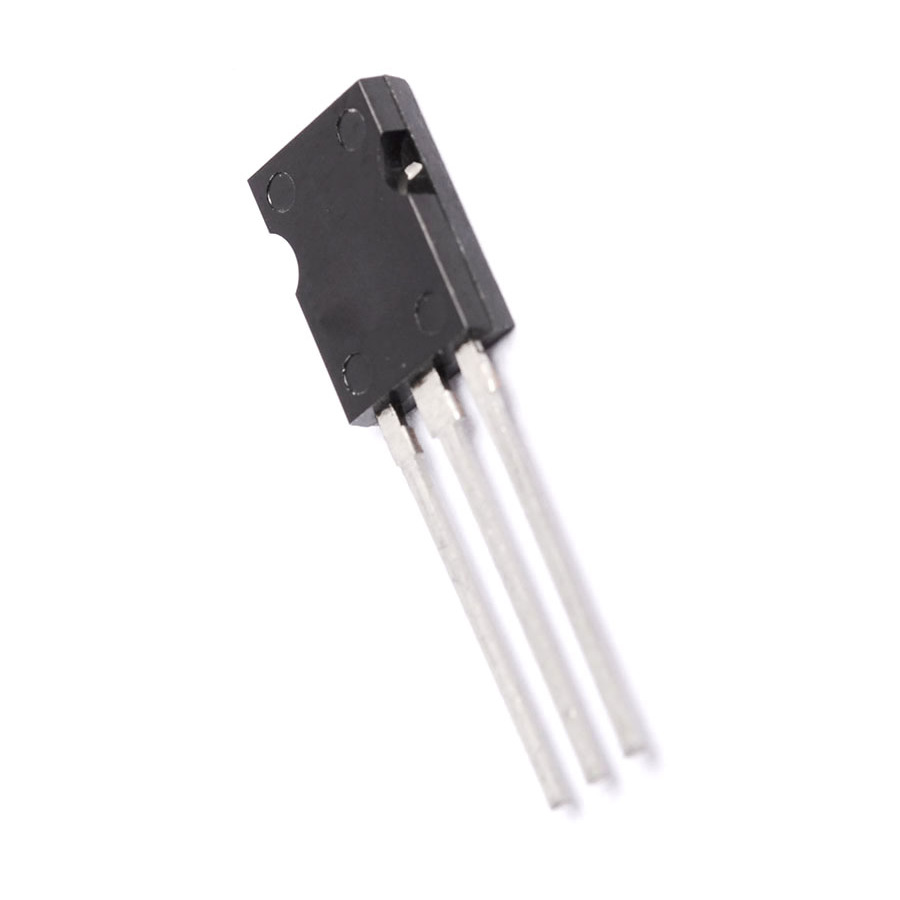

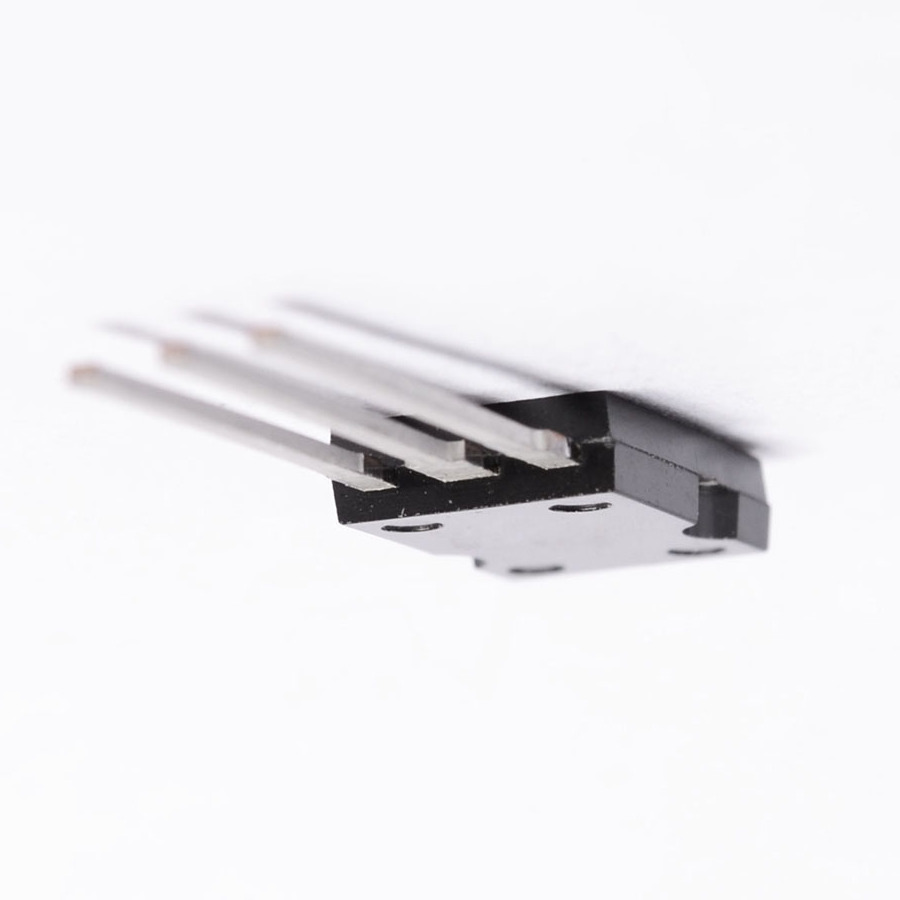

View detailed images (12)

SGSP239

SKU: SGSP239

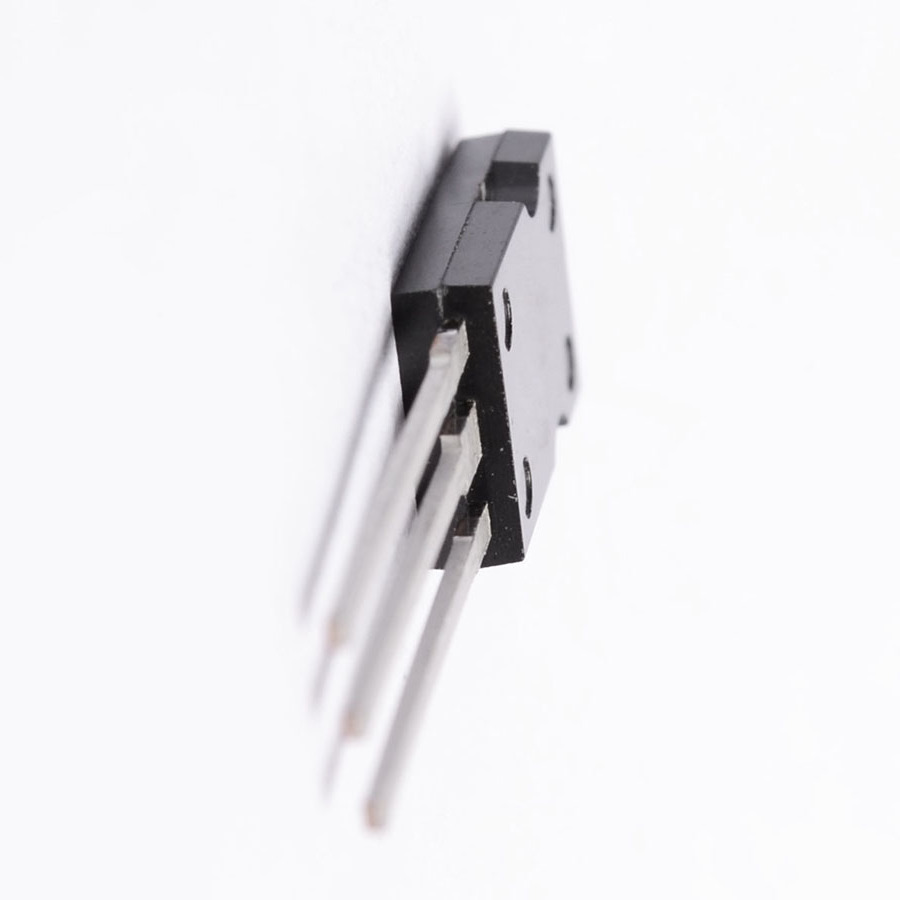

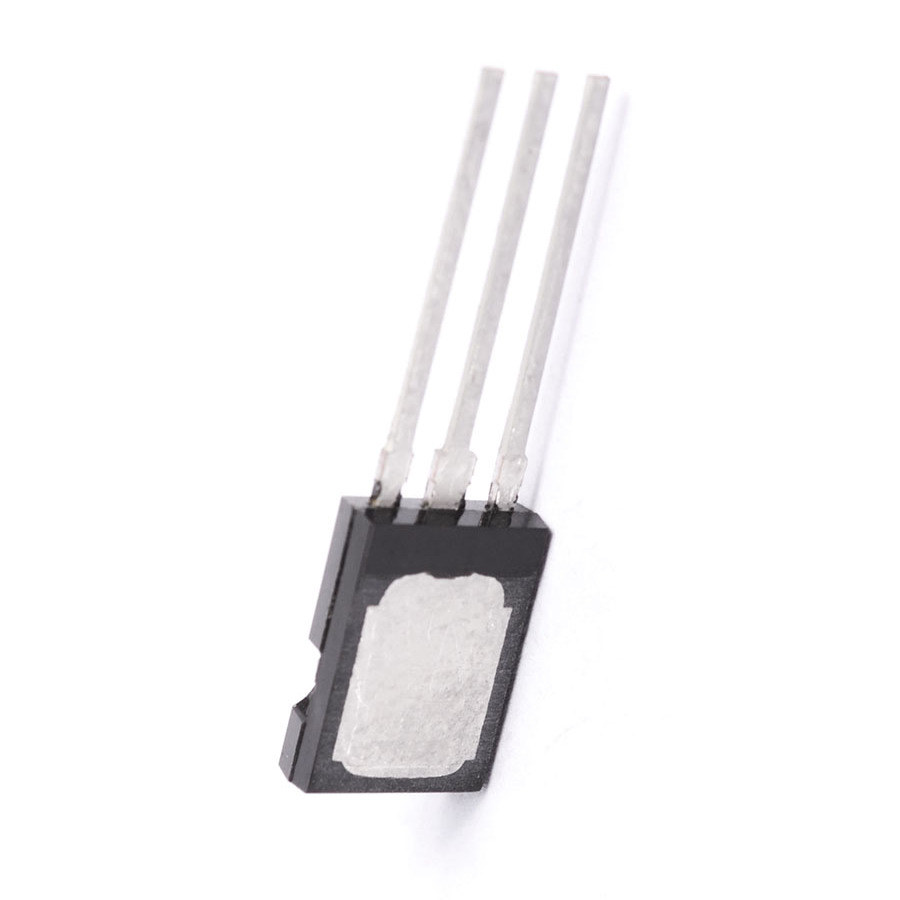

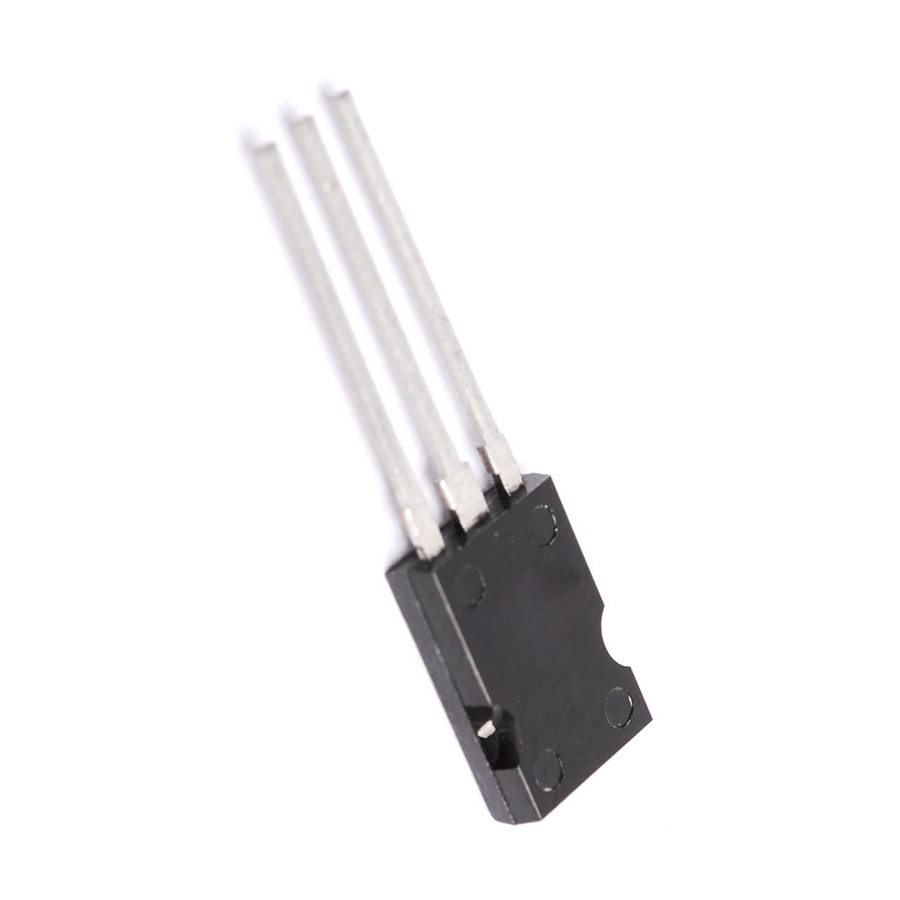

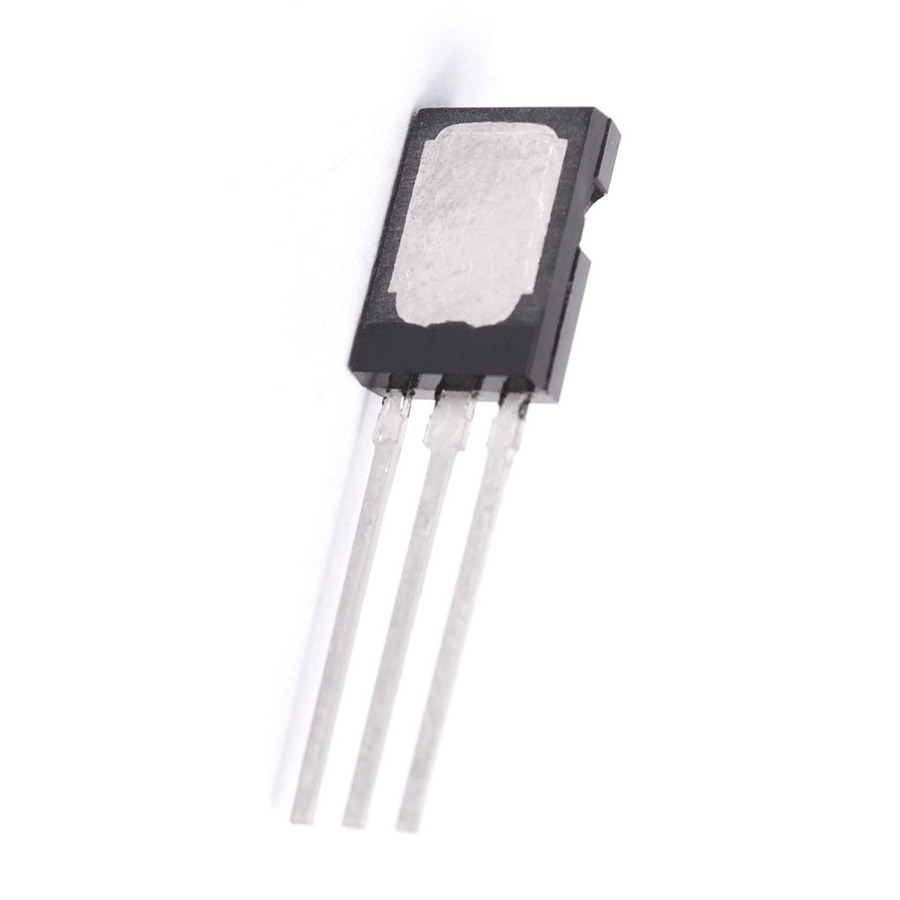

SGSP239 SemiConductor CASE: SOT82 MAKE: SGS Thomson
Product specifications
Type SemiConductor
Case SOT82
Manufacturer SGS Thomson
Vbr DSS 500
Vbr GSS 20
Max. PD (W) 40
Ciss Max. (F) 300p
Derate (Amb) (W/°C) 320m
t(f) Max. (S) 45n
gfs Min 0.65m
Id Max. (A) 1.2
Idss Max. (A) 1.0m
I(d) for G(fs) 0.6
Tr Max. (s) 30n
R(ds) On (Û) 17.0
Vp Max. 4.0
Oper. Temp (°C) Max. 150
Pinout Equivalence Number 3-54
Surface Mounted Yes/No NO
SKU 573828
