SH2001HM

SH2001HM

SKU: SH2001HM

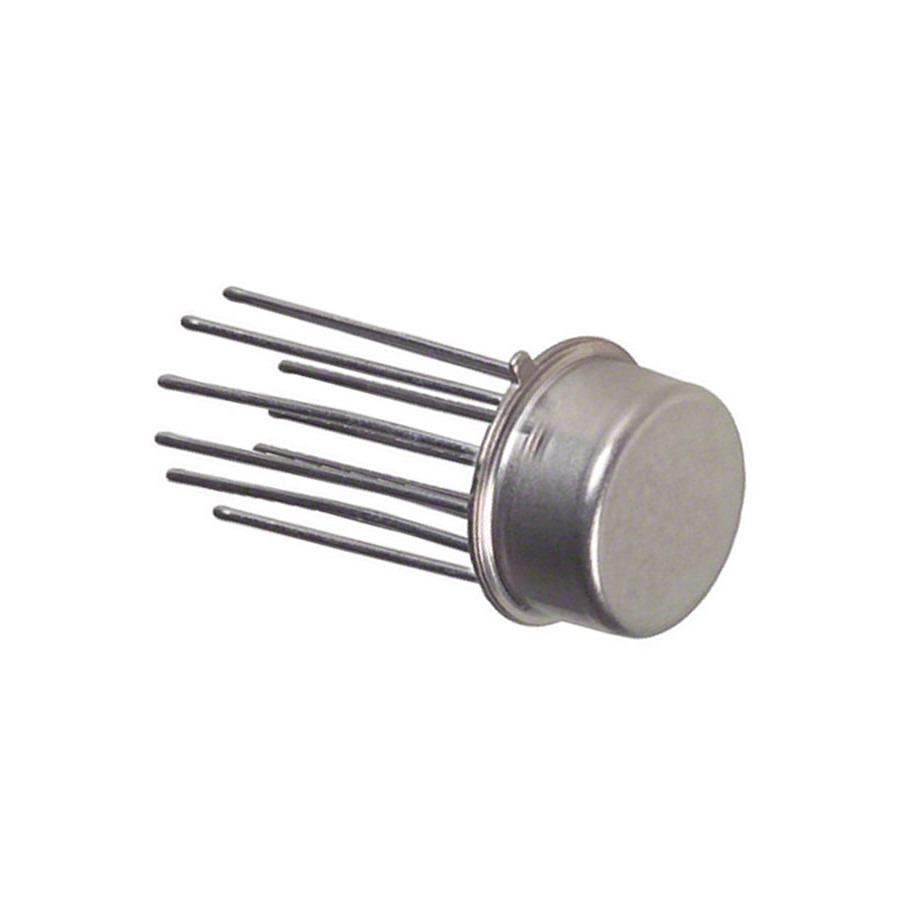

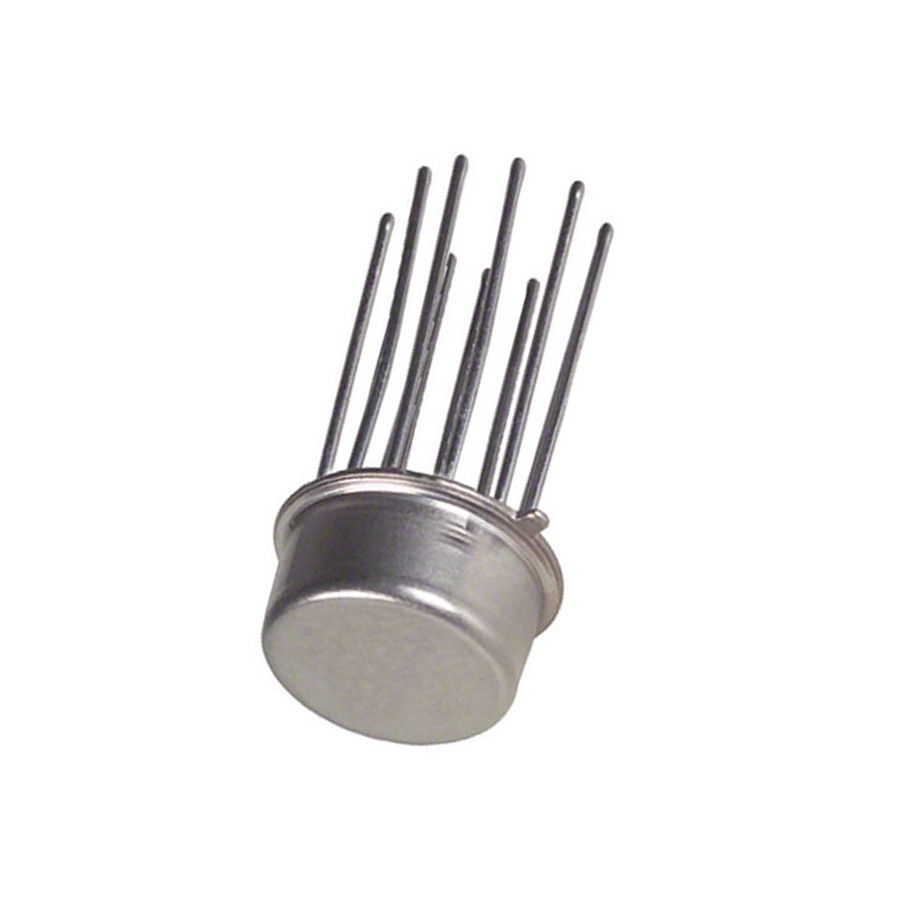

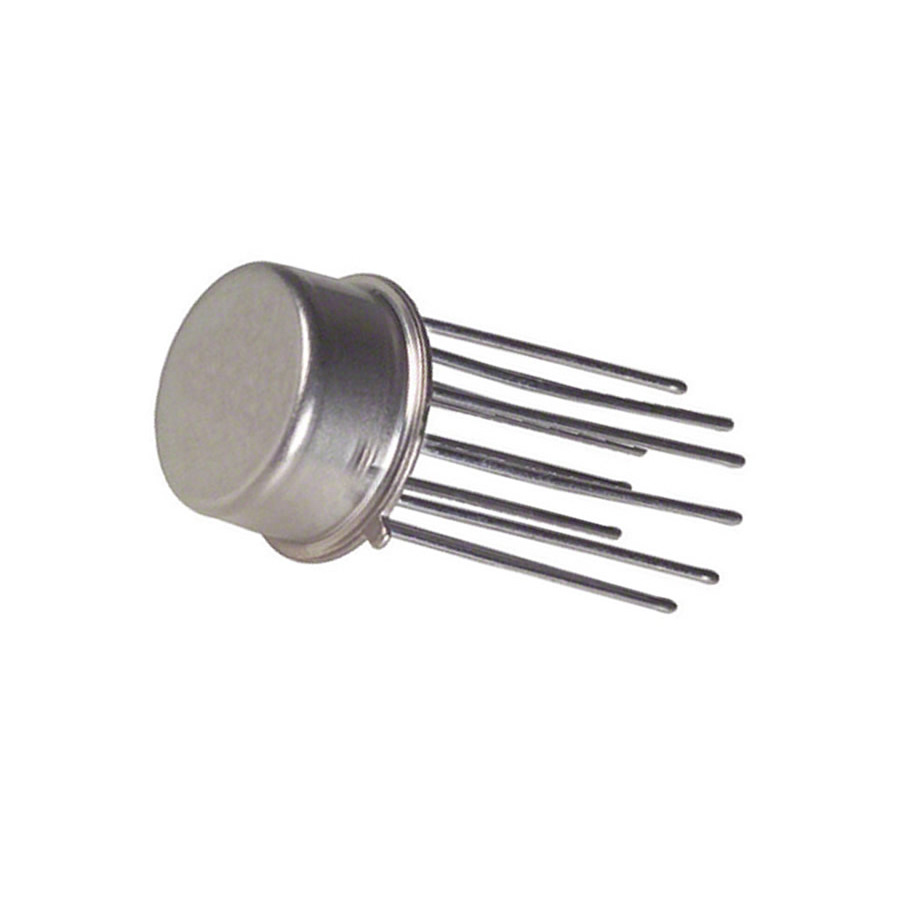

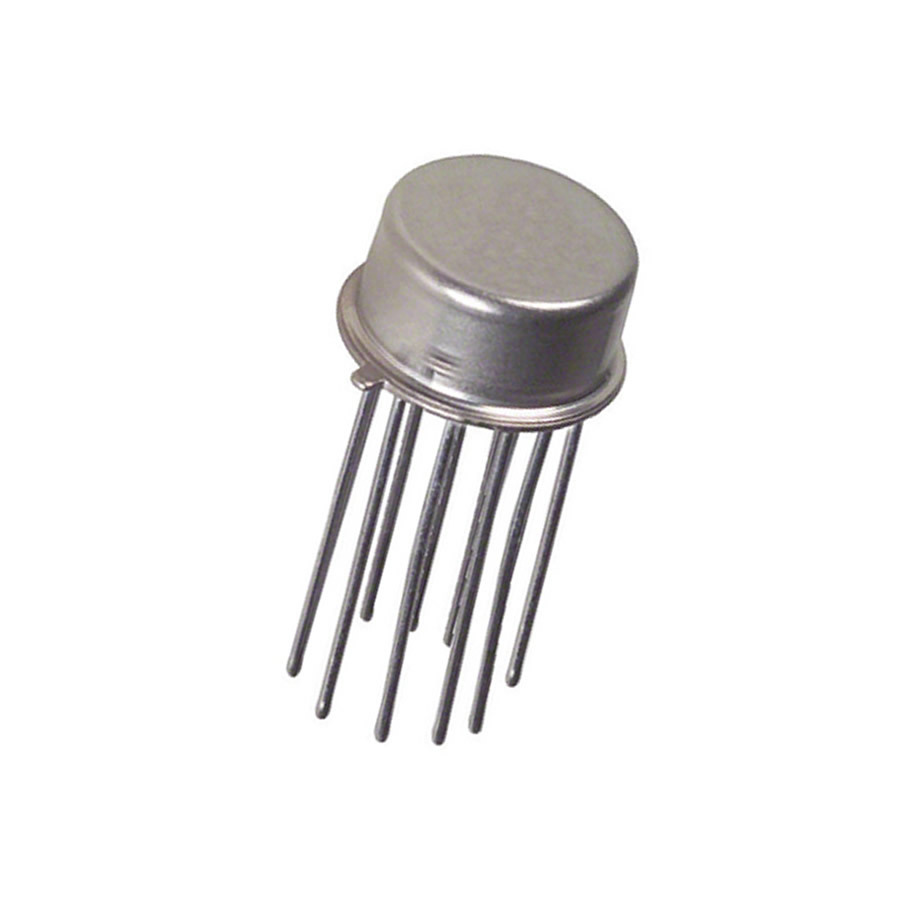

SH2001HM Integrated Circuit CASE: TO100 MAKE: Fairchild Semiconductor
Product specifications
Type Integrated Circuit
Case TO100
Manufacturer Fairchild Semiconductor
Vih Min (V) 1.9
Vil Max. (V) 1.1
Inp Logic Family DTL,TTL
Output Config Open-Coll.
VOL Max. 0.4
Outp Transis. Ion Max. 500m
PD Max. (W) 153m
tPD Max. (S) 160n
Nom. Supp (V) 5.0
Tech. TTL Integrated Circuit
Logic Funct. NAND
Oper. Temp (°C) Min -55
Oper. Temp (°C) Max. 100
VOH Max. 40
@Iol (A) 250m
Pinout Equivalence Number 10-46
Surface Mounted Yes/No NO
SKU 926460
