SH2002HC

SH2002HC

SKU: SH2002HC

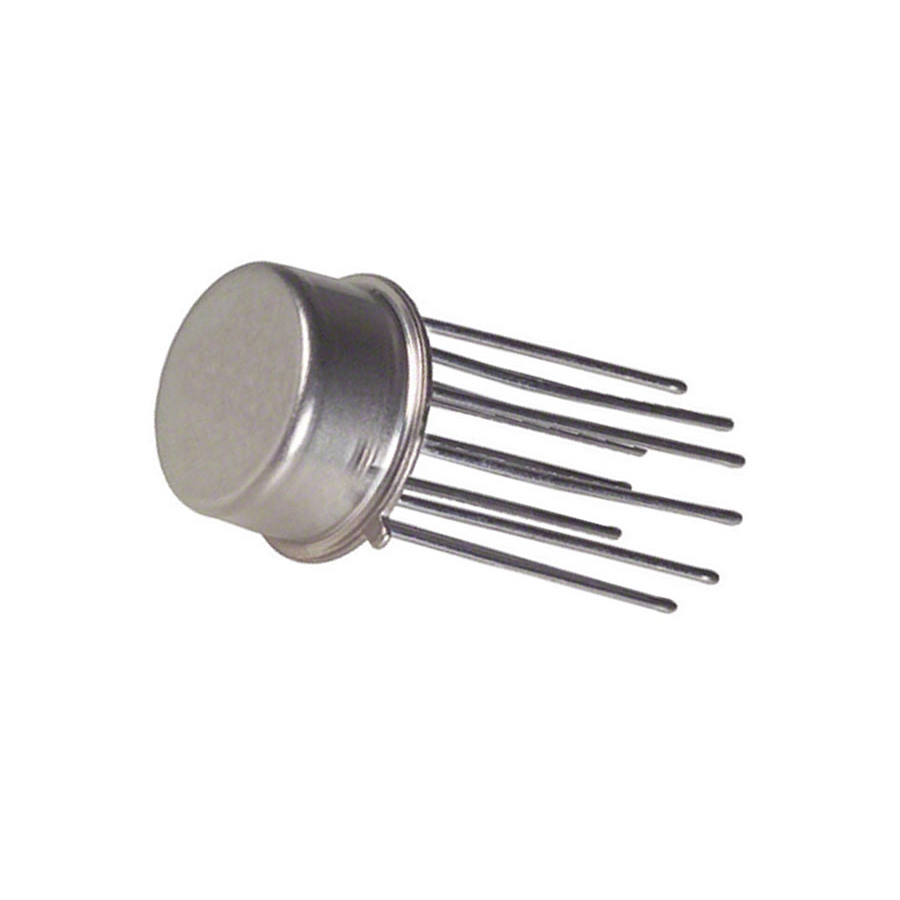

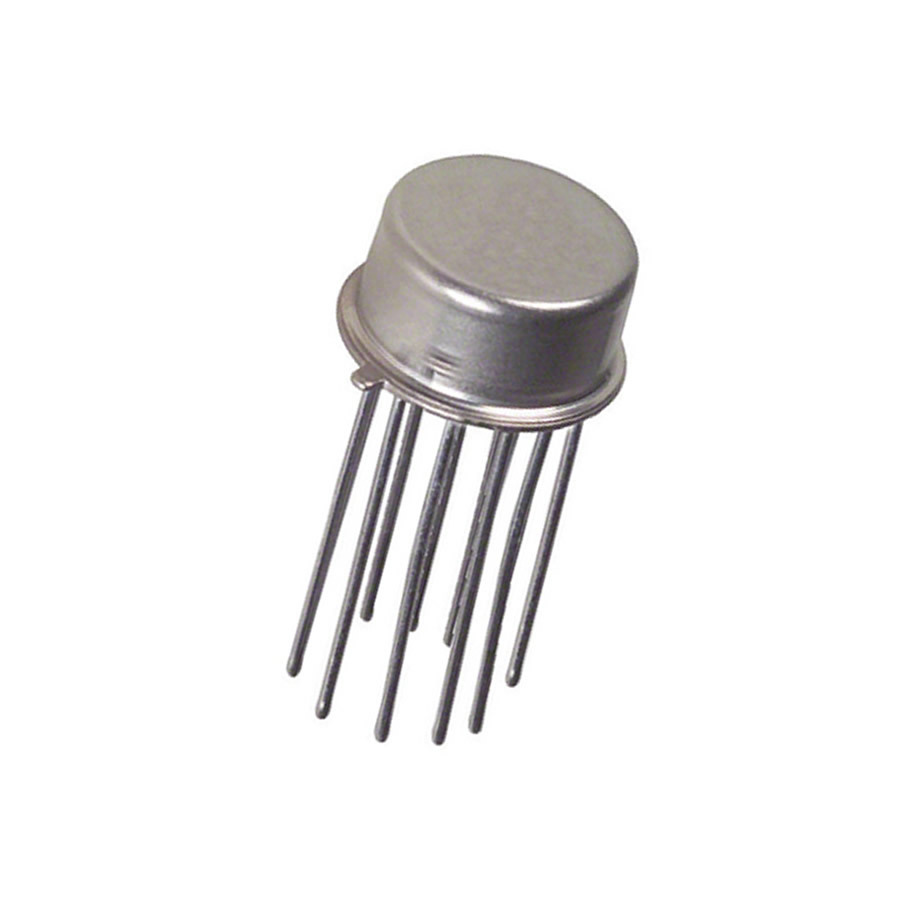

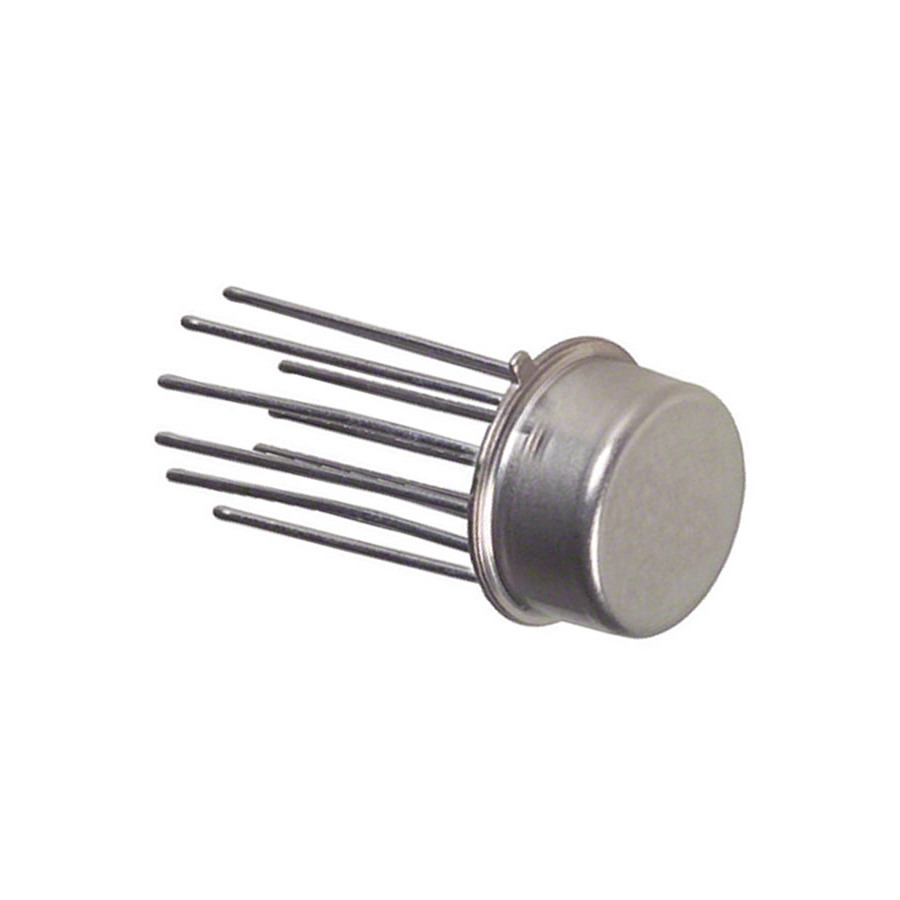

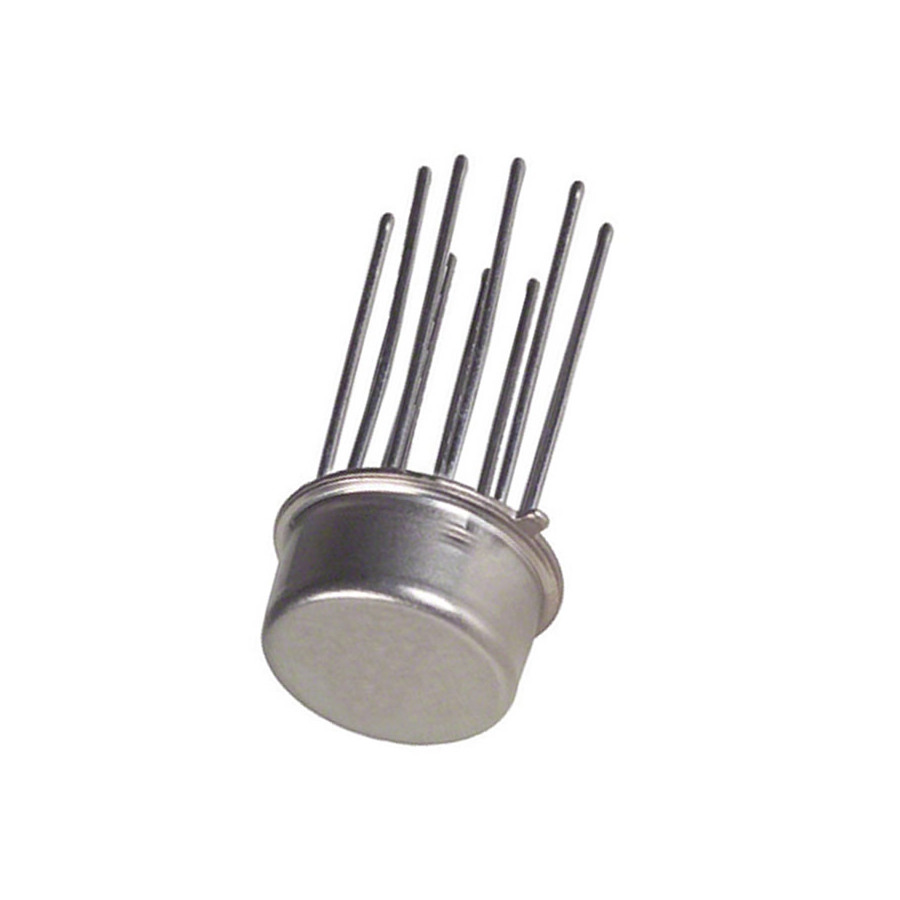

SH2002HC Integrated Circuit CASE: TO100 MAKE: Fairchild Semiconductor
Product specifications
Type Integrated Circuit
Case TO100
Manufacturer Fairchild Semiconductor
Vih Min (V) 1.9
Vil Max. (V) 1.1
Inp Logic Family DTL,TTL
Output Config Open-Coll.
VOL Max. .45
Outp Transis. Ion Max. 250m
PD Max. (W) 153m
Nom. Supp (V) 5.0
Tech. TTL Integrated Circuit
Logic Funct. NAND
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
VOH Max. 40
@Iol (A) 150m
Pinout Equivalence Number 10-46
Surface Mounted Yes/No NO
SKU 926458
