SH2200HC

SH2200HC

SKU: SH2200HC

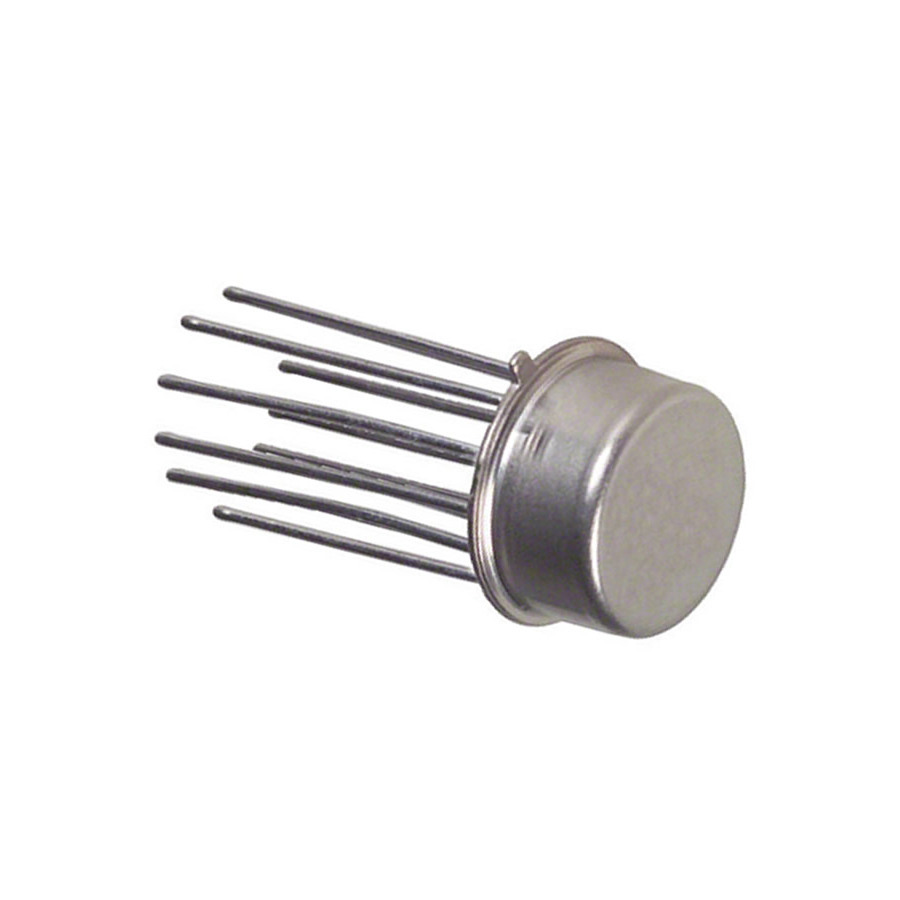

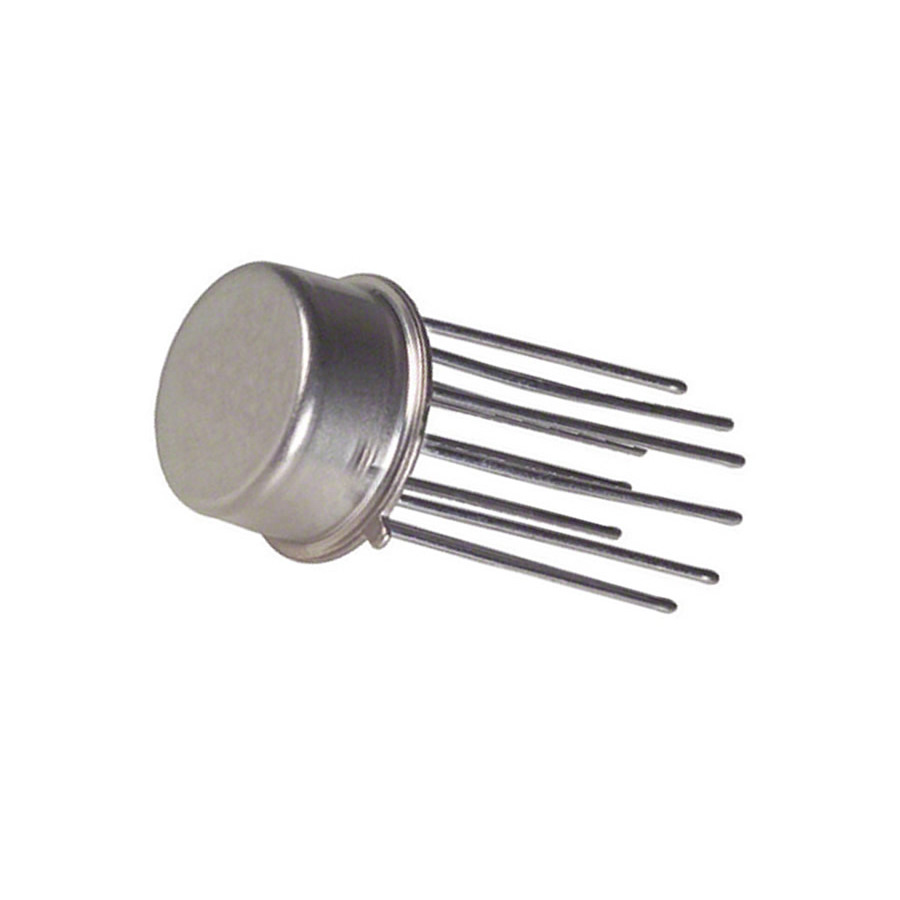

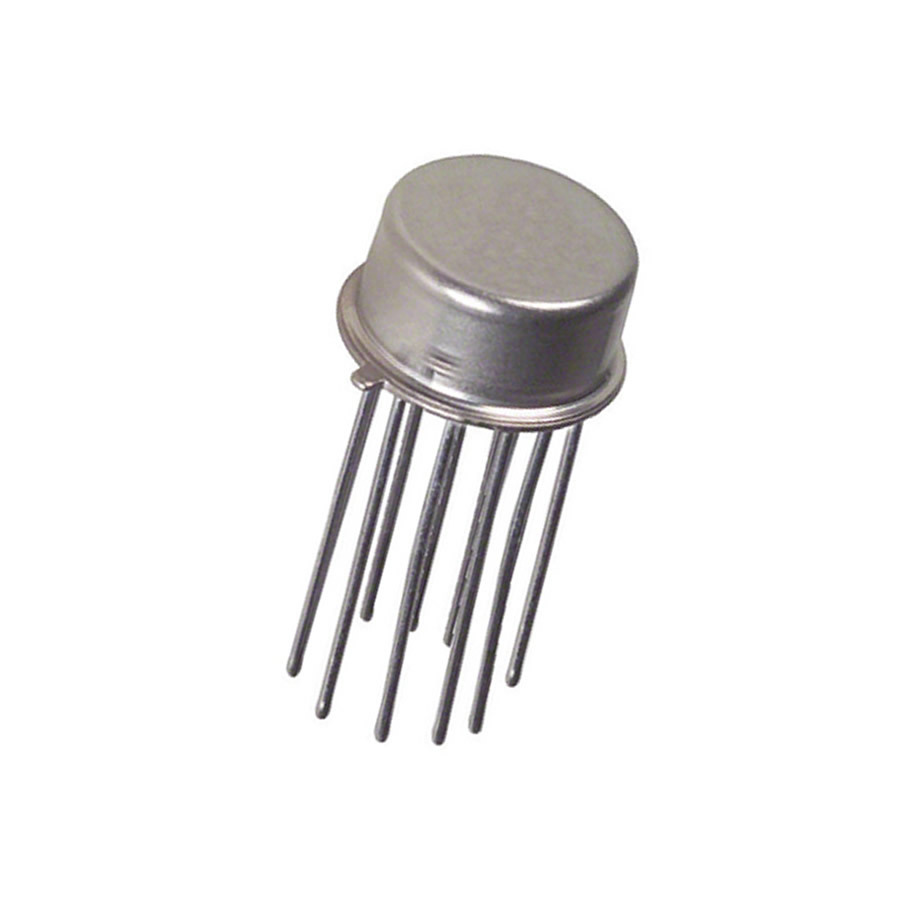

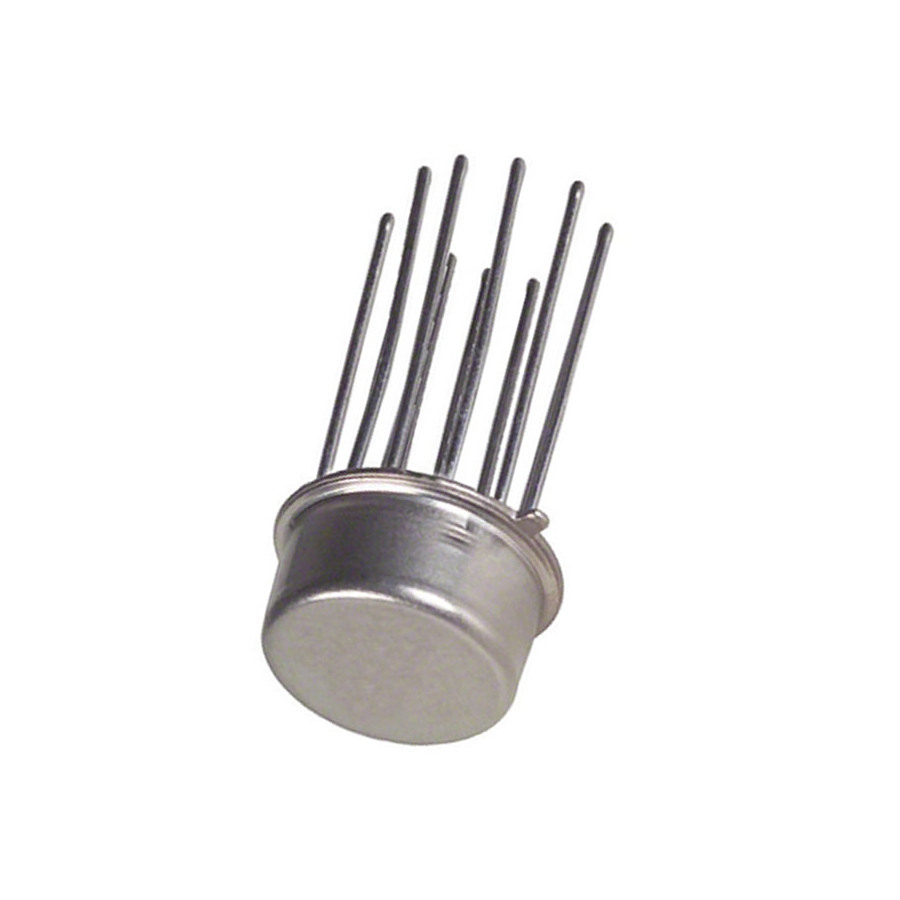

SH2200HC Integrated Circuit CASE: TO100 MAKE: Fairchild Semiconductor
Product specifications
Type Integrated Circuit
Case TO100
Manufacturer Fairchild Semiconductor
Vih Min (V) 1.8
Vil Max. (V) .85
Inp Logic Family DTL,TTL
Output Config Open-Coll.
VOL Max. 0.6
Outp Transis. Ion Max. 500m
PD Max. (W) 62m
Nom. Supp (V) 5.0
Tech. TTL Integrated Circuit
Logic Funct. NAND
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
VOH Max. 50
@Iol (A) 500m
Pinout Equivalence Number 10-46
Surface Mounted Yes/No NO
SKU 926468
