SI9910DY

SI9910DY

SKU: SI9910DY

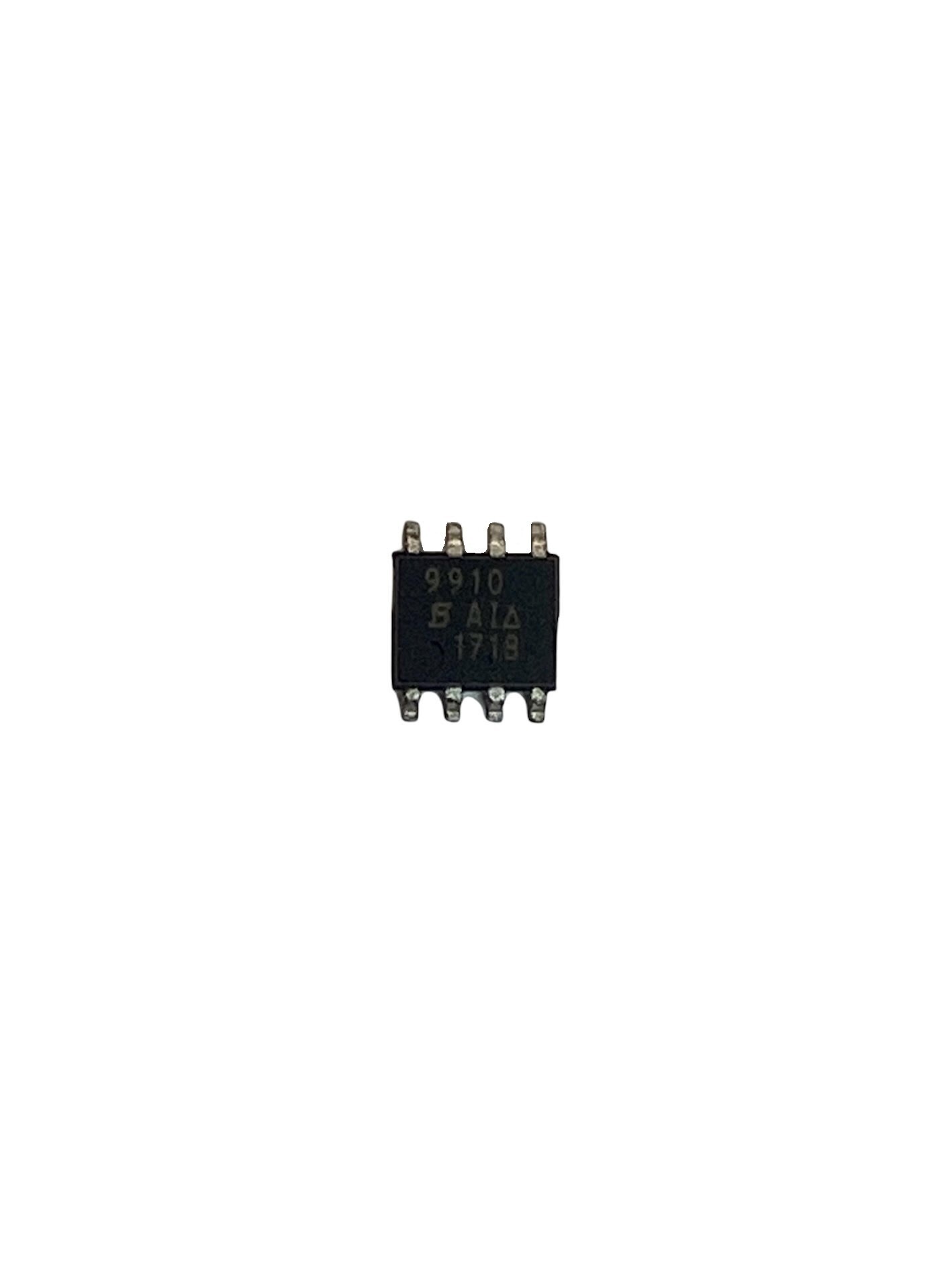

SI9910DY Integrated Circuit CASE: SO8 MAKE: Siliconix
Price:
£227.99 Inc. VAT (£189.99 Ex. VAT)
£227.99 Inc. VAT (£189.99 Ex. VAT)
Qty
Product specifications
Equivalent SI9910DY-SMD
Type Integrated Circuit
Case SO8
Manufacturer Siliconix
Vih Min (V) 9.0
Vil Max. (V) 3.0
Inp Logic Family AC
Output Config Emit-Foll.
VOL Max. 3.0
Outp Transis. Ion Max. 1.0
PD Max. (W) 700m
tPD Max. (S) 100n
Tech. CMOS Integrated Circuit
Logic Funct. Noninvert.
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 85
VOH Max. 9.0
@Iol (A) 200m
Pinout Equivalence Number 8-196
No. of Pins 8
Surface Mounted Yes/No YES
SKU 295097
