SK307

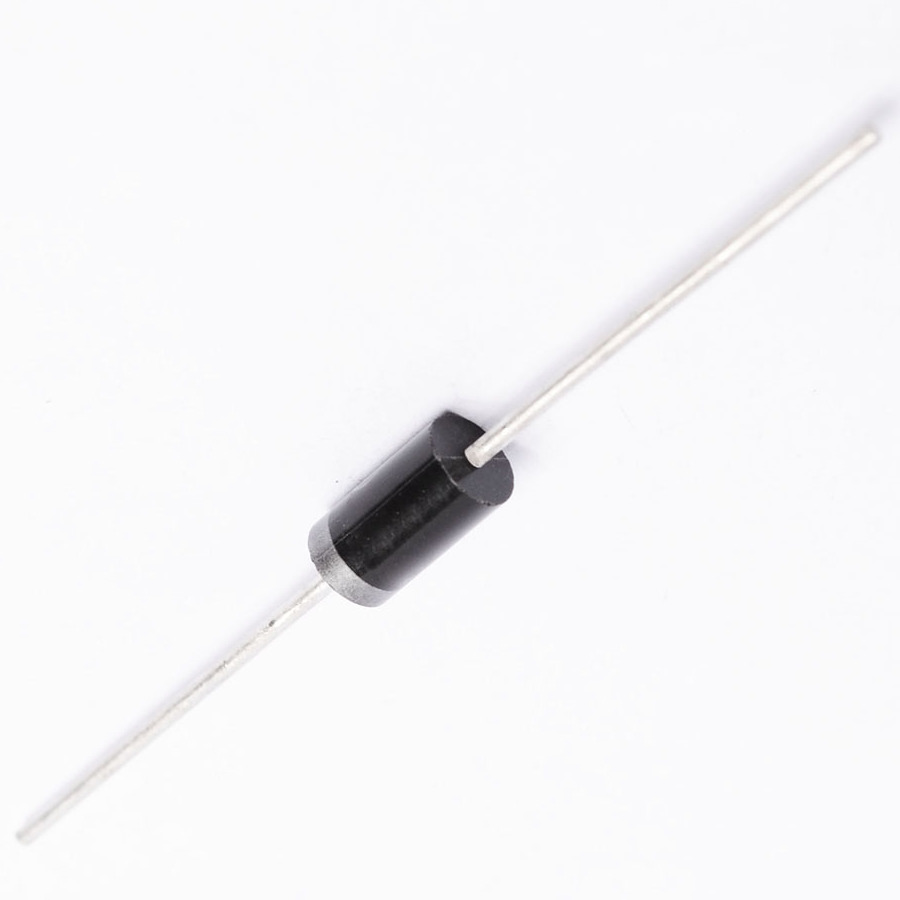

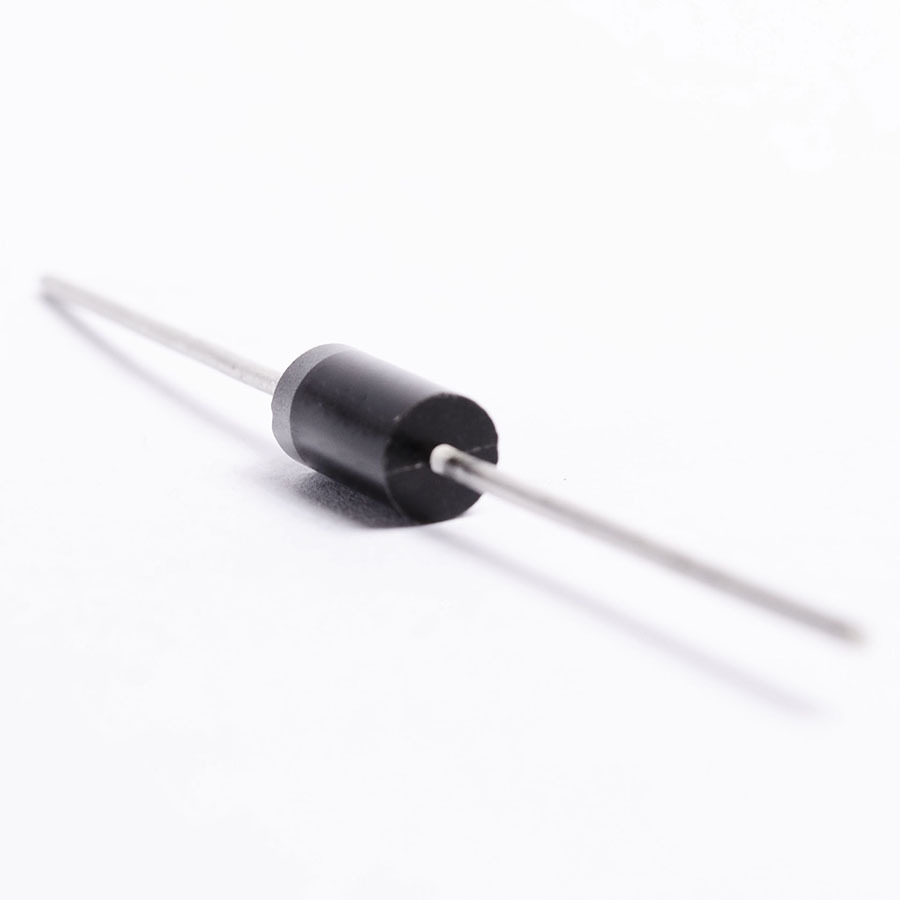

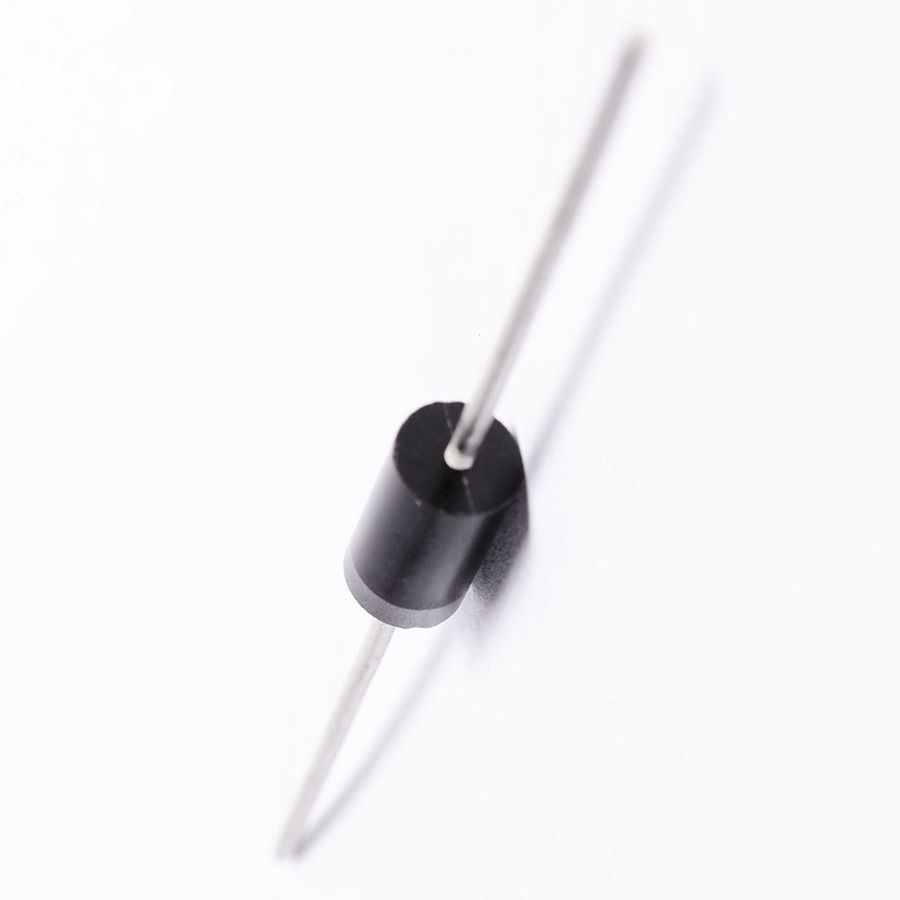

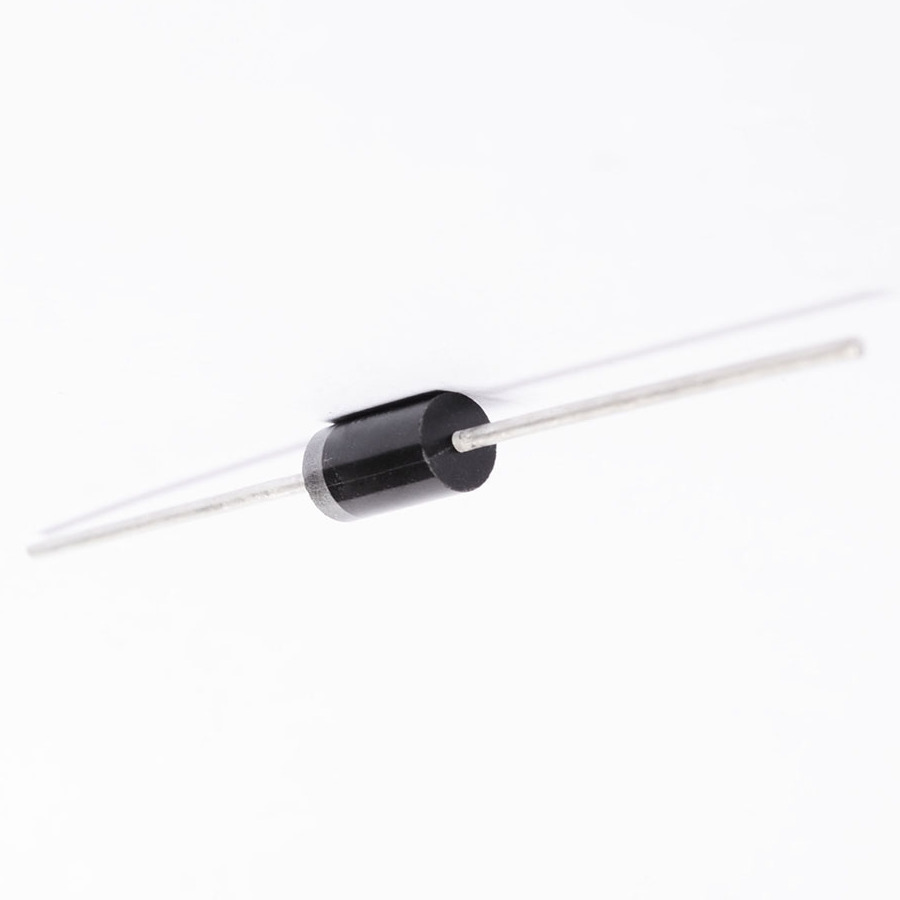

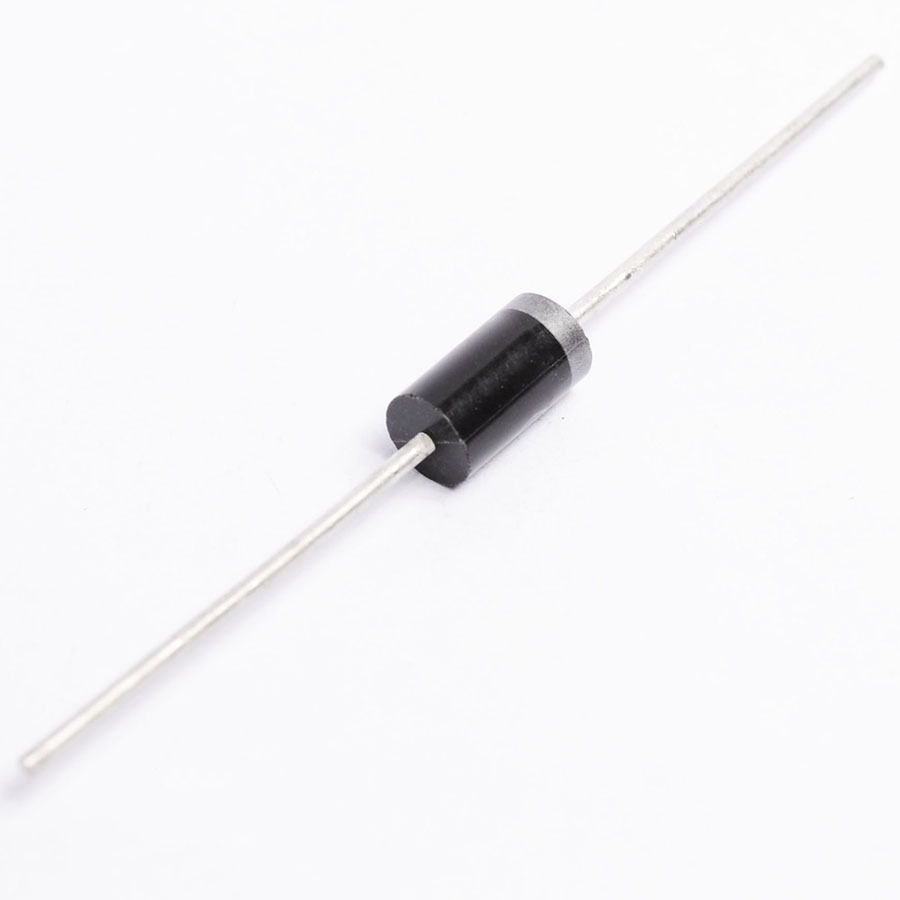

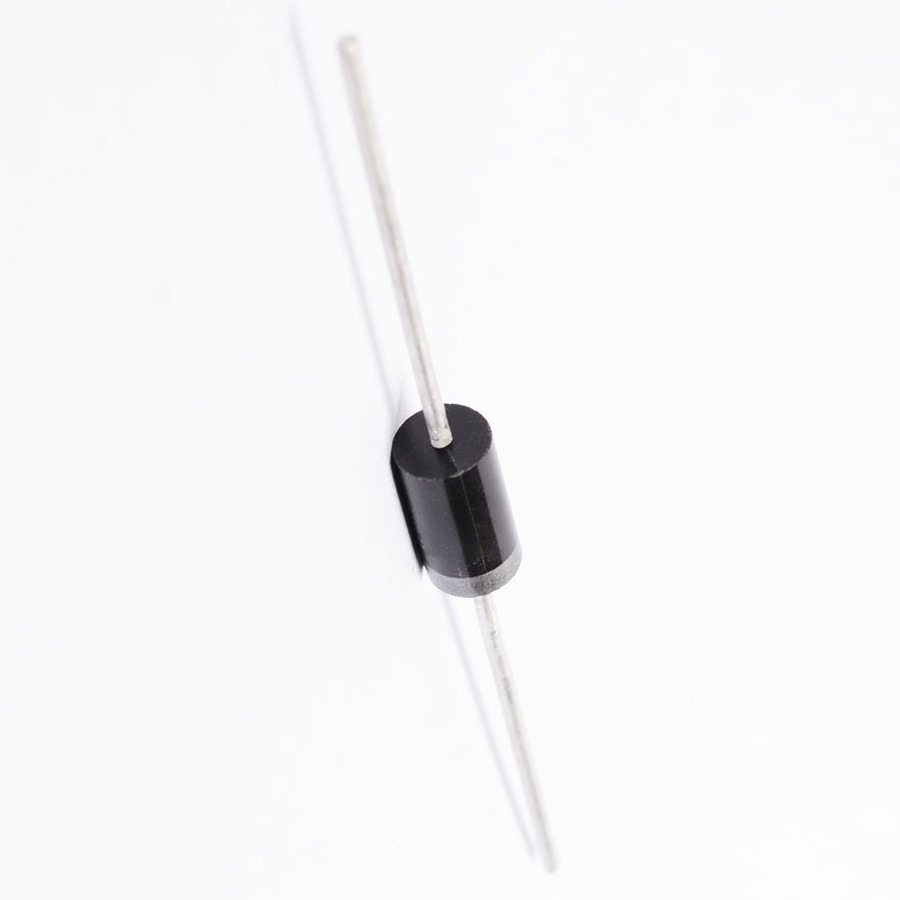

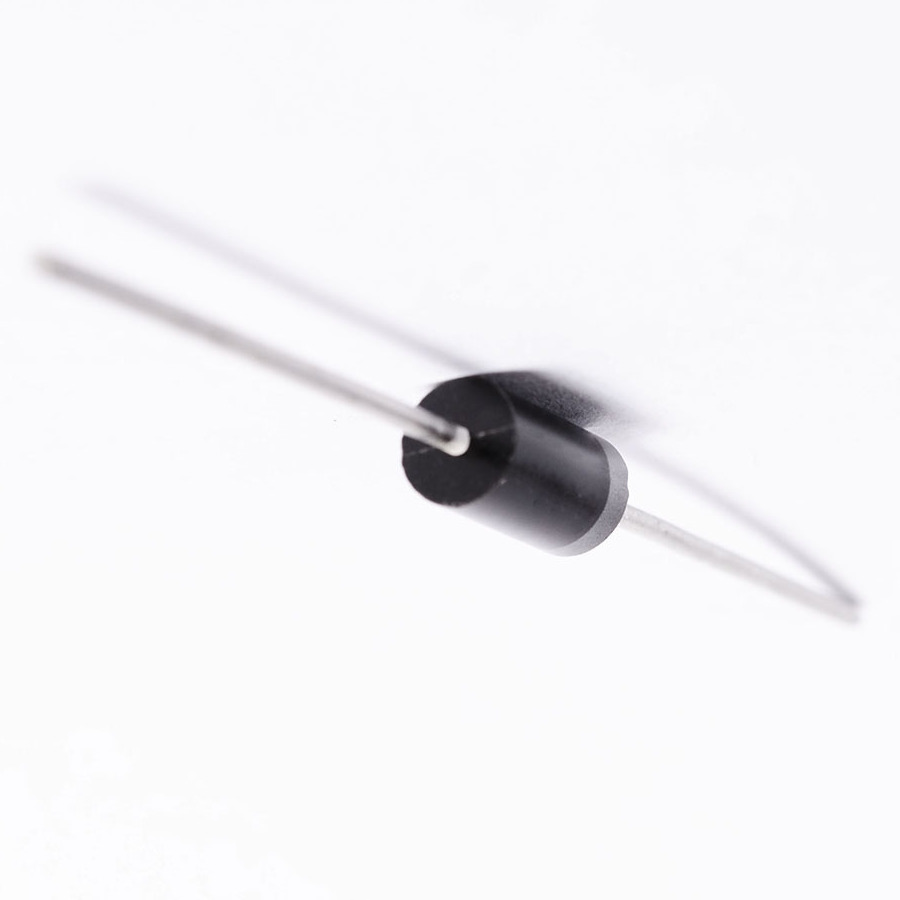

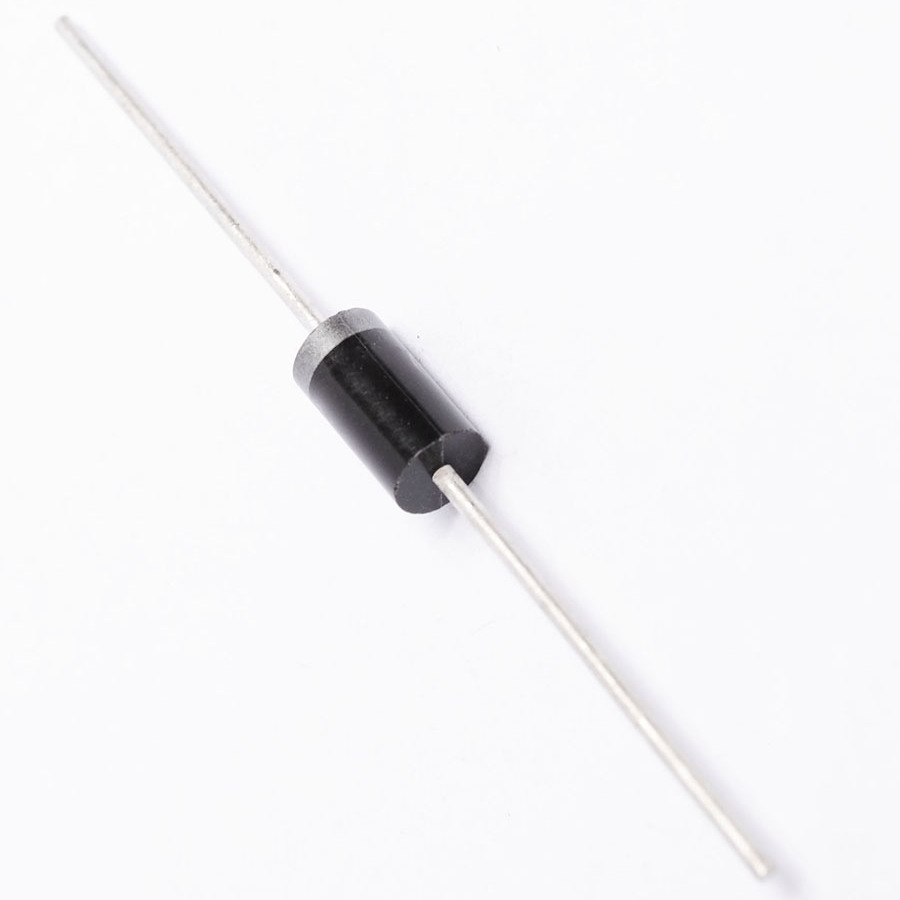

View detailed images (12)

SK307

SKU: SK307

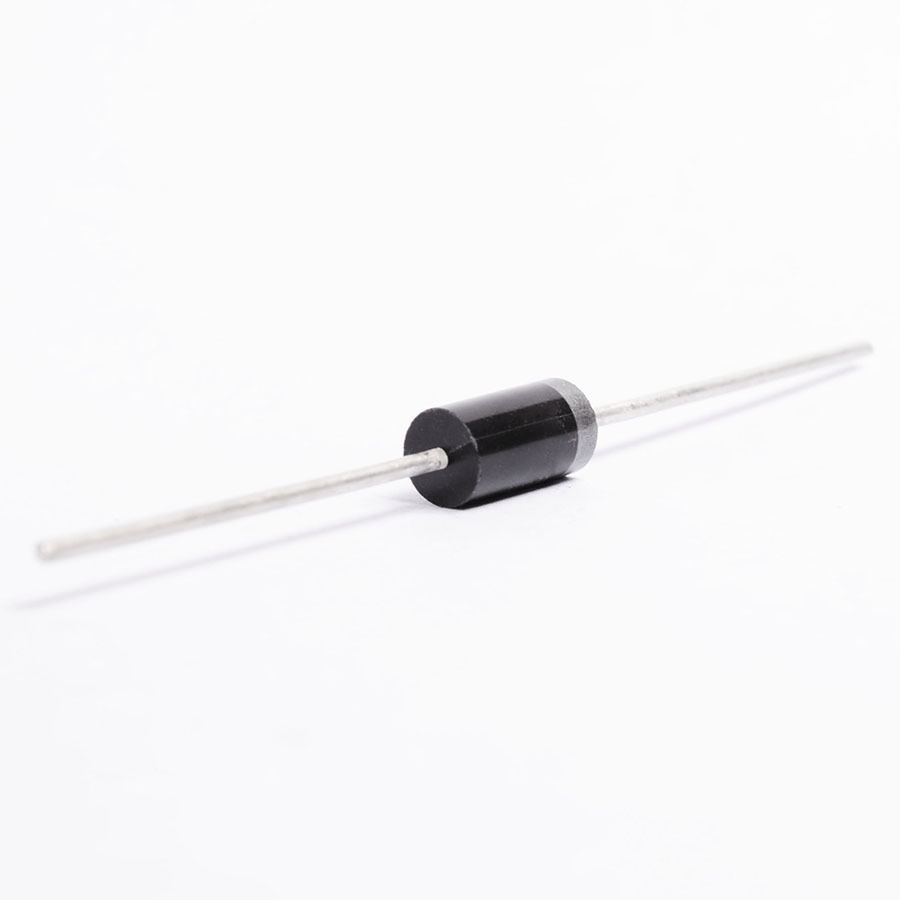

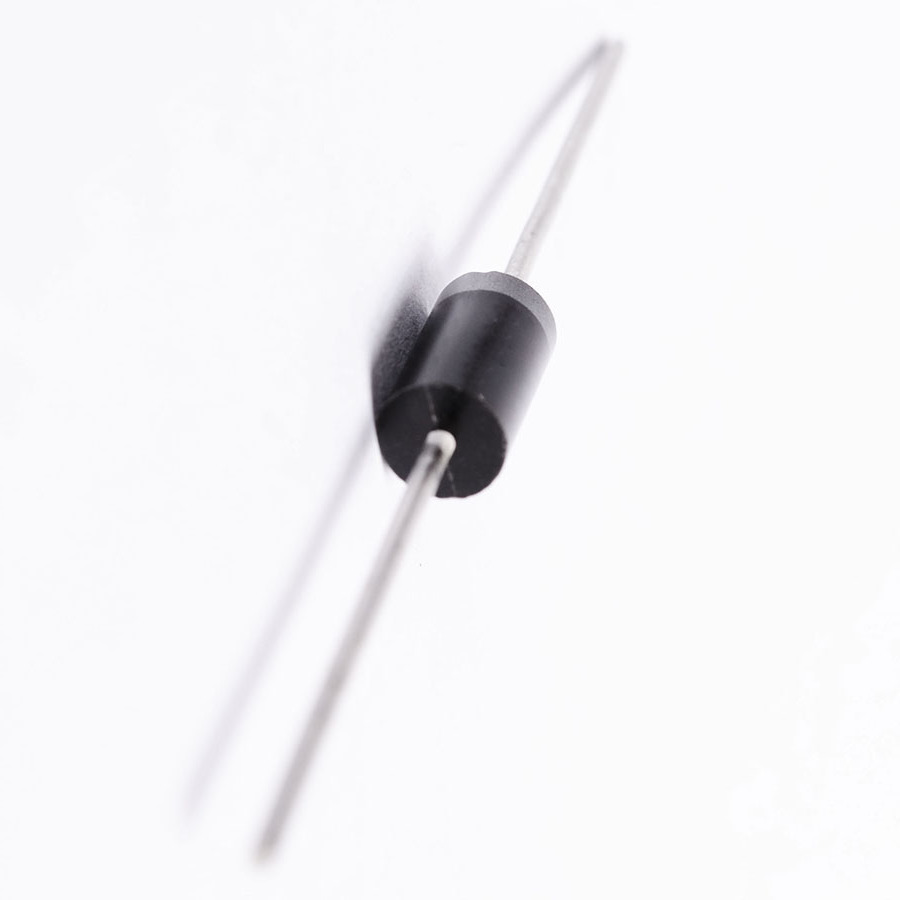

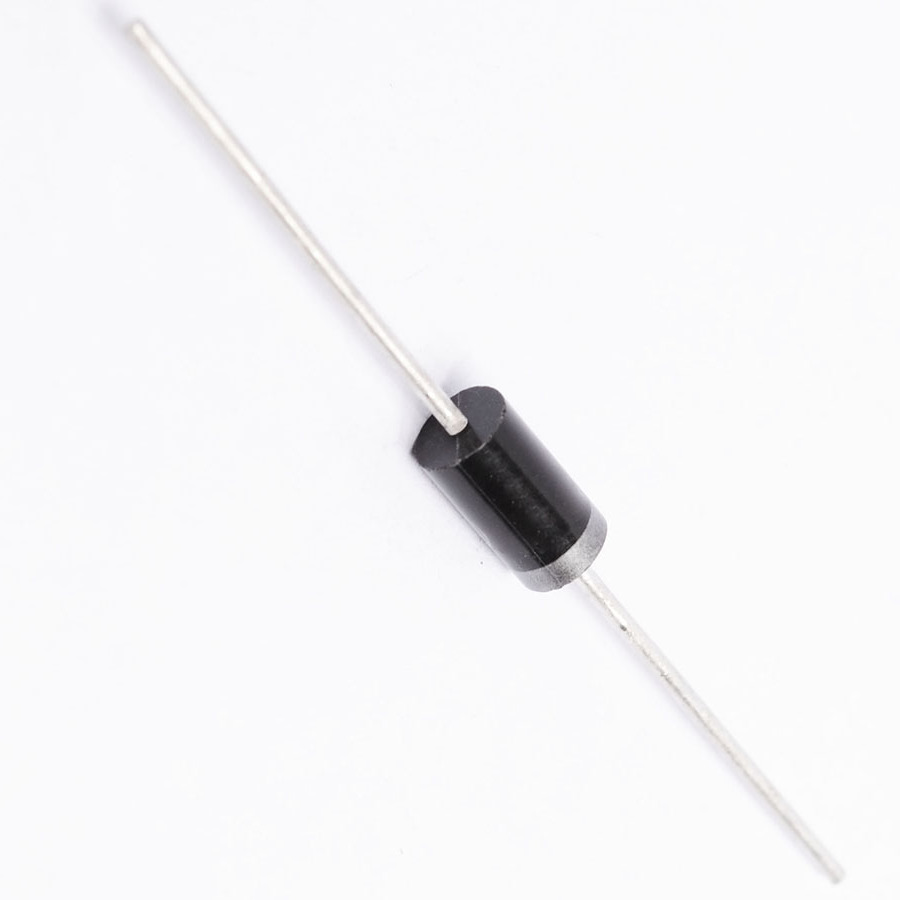

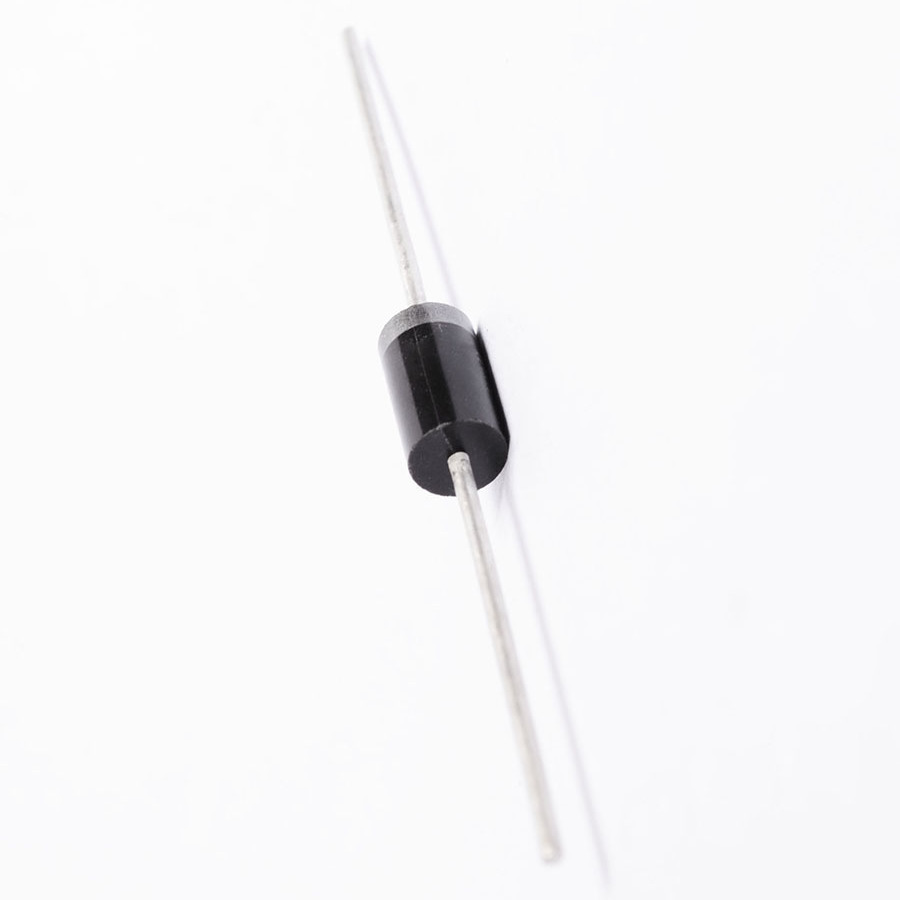

SK307 Semiconductor CASE: DO27 MAKE: DIX
Product specifications
Type Semiconductor
Case DO27
Manufacturer DIX
Vbr CBO 250
Vbr CEO 200
Max. PD (W) 800m
C(ob) (F) 15p
hfe 25
Ic Max. (A) 500m
Icbo Max. @Vcb Max. (A) 50u
@Temp. (test) (°C) 90
Ir @ Diff. Temp (A) 20m
VRRM 70
1-Cycle Surge Current (A) 120
@Temp (test) (°C) 100
@Temp. (test) for Vf) 25
Vf Max. 700m
Ir @25°C 0.5m
I(out) (If AVG) Max. 3.0
Trans. Freq (Hz) Min. 15M
@VCE (test) (V) 10
@Volts (test) (V) 70
@If (test) 3.0
Oper. Temp (°C) Max. 125
@Ic (A) 30m
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
SKU 903926
