SLA4030

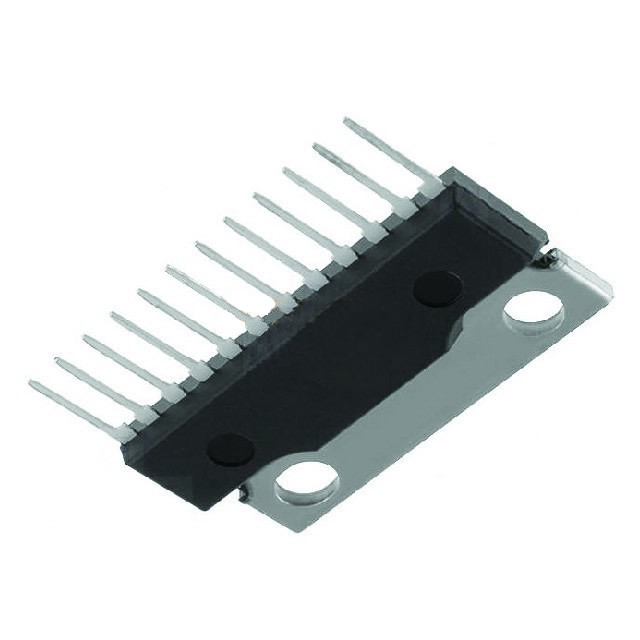

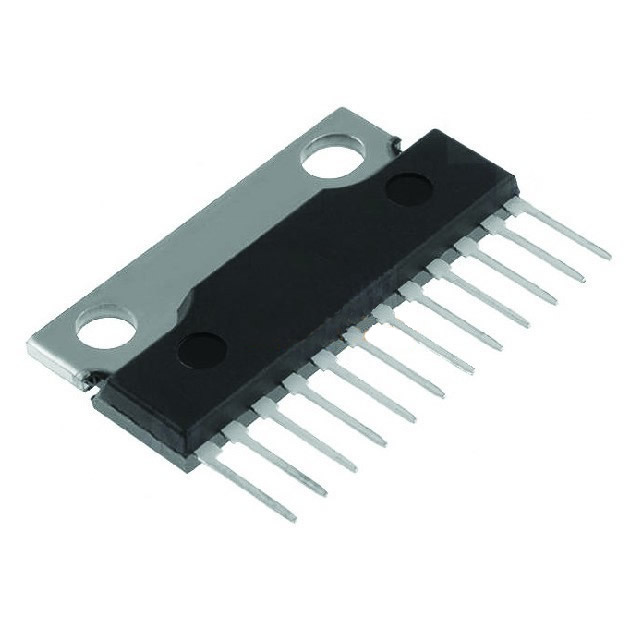

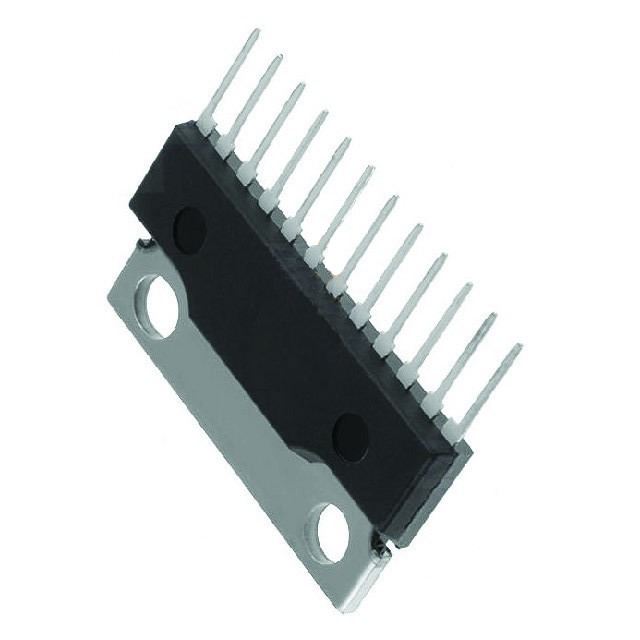

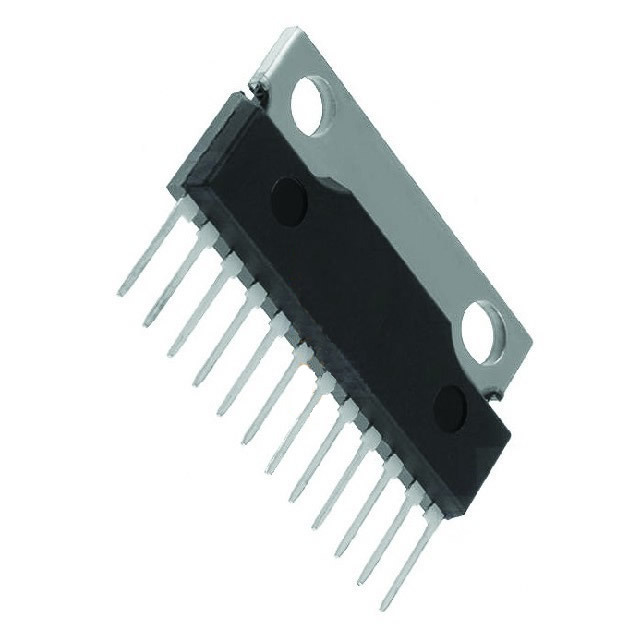

View detailed images (4)

SLA4030

SKU: SLA4030
SLA4030 Transistor Silicon NPN CASE: SIP12 MAKE: Sanken
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • 9 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
SLA4030 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SIP12
Manufacturer Sanken
Min hFE 2k
Mat. Silicon Logic
Polarity NPN
PD Max. (W) 5
@VCE (test) (V) 4
@Ic (test) 2
Ic Max. 4
Vceo Max. 100
Pinout Equivalence Number 12-20
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 25 W
Maximum Collector-Base Voltage |Vcb| 120 V
Maximum Collector-Emitter Voltage |Vce| 100 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 4 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 2000
SKU 295996
