SLA4031
View detailed images (4)

SLA4031

SKU: SLA4031

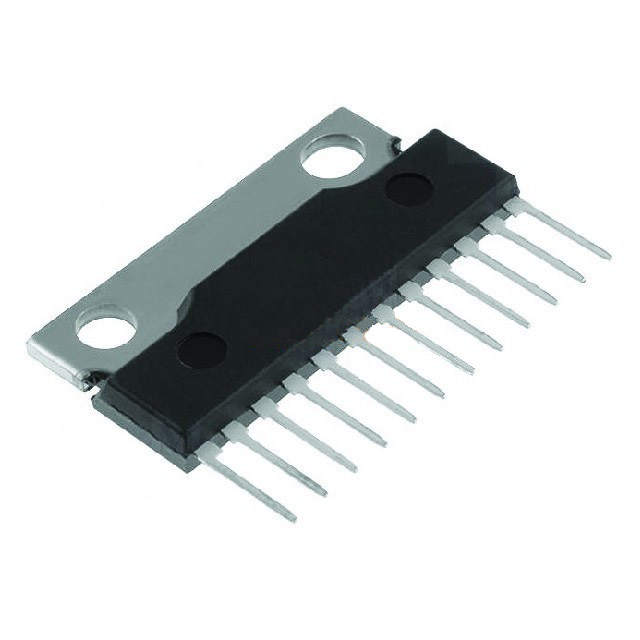

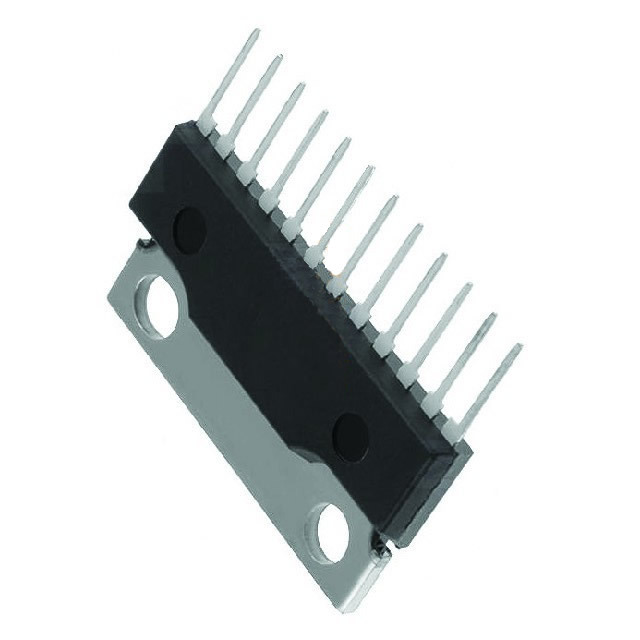

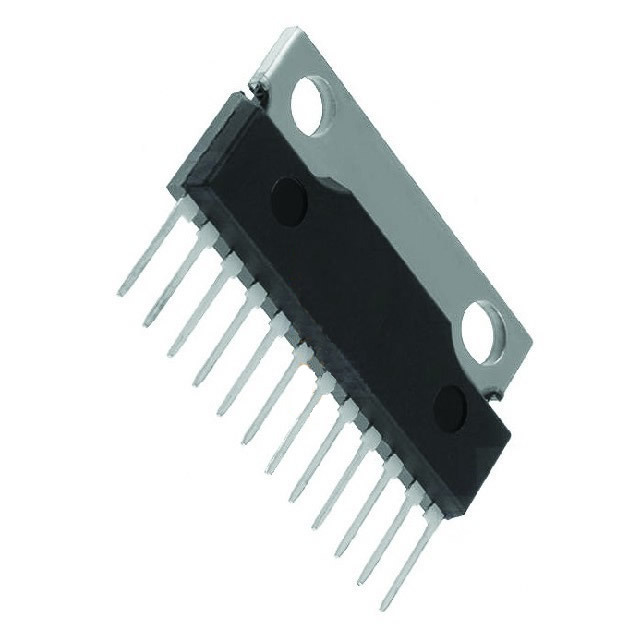

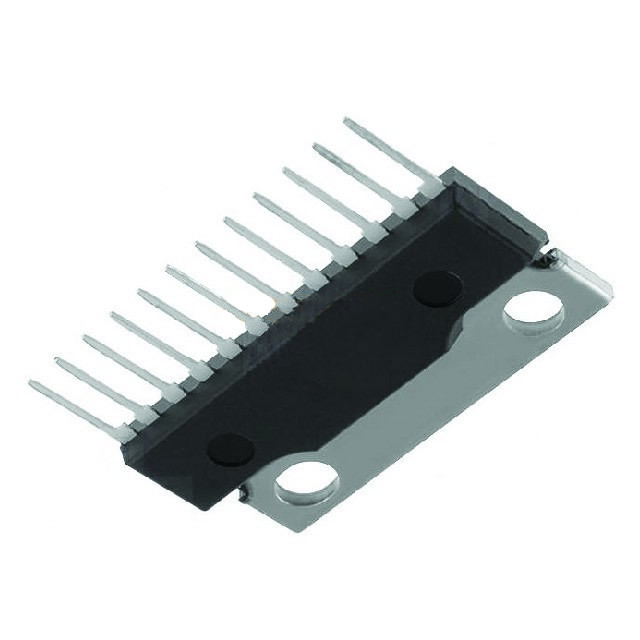

SLA4031 Transistor Silicon NPN CASE: SIP12 MAKE: Sanken
Price:
£14.39 Inc. VAT (£11.99 Ex. VAT)
£14.39 Inc. VAT (£11.99 Ex. VAT)
Qty
  • 3 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
SLA4031 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SIP12
Manufacturer Sanken
Vbr CBO 120
Vbr CEO 120
Ckts Per Dev. 4
Max. PD (W) 25
Min hFE 1.0k
Ic Max. (A) 4
Polarity NPN
VCE(sat) Max. 1.5
Oper. Temp (°C) Max. 150
Isolated Case (Y/N) No
Pinout Equivalence Number 12-25
Descript NPN;Darlington Pairs
Maximum Collector Power Dissipation (Pc) 25 W
Maximum Collector-Base Voltage |Vcb| 120 V
Maximum Collector-Emitter Voltage |Vce| 120 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 4 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 2000
SKU 103501
