SLA4041

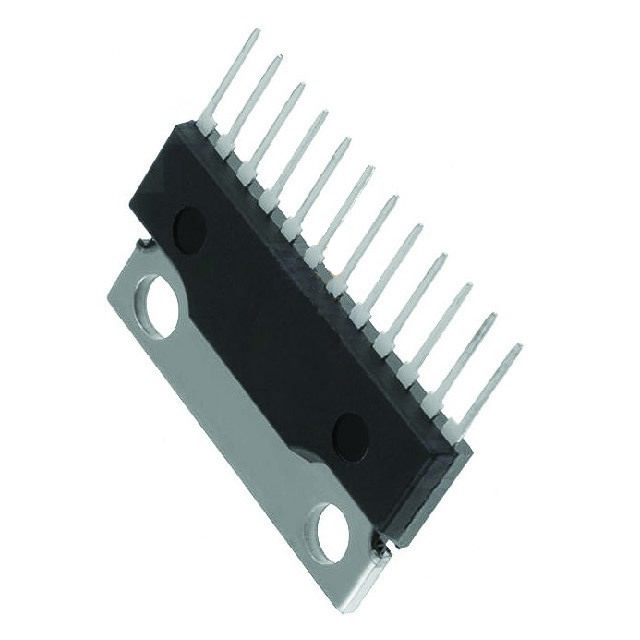

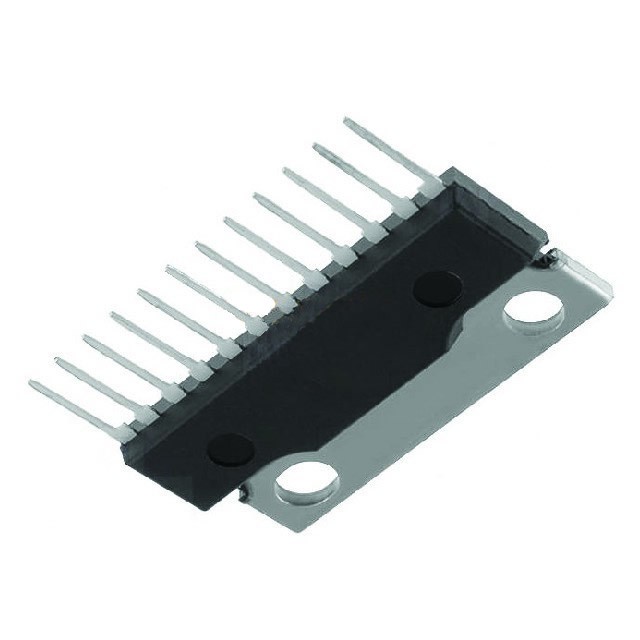

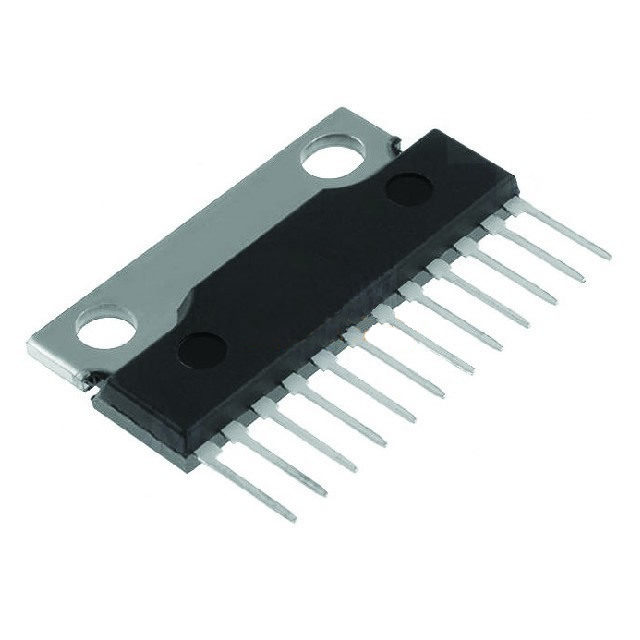

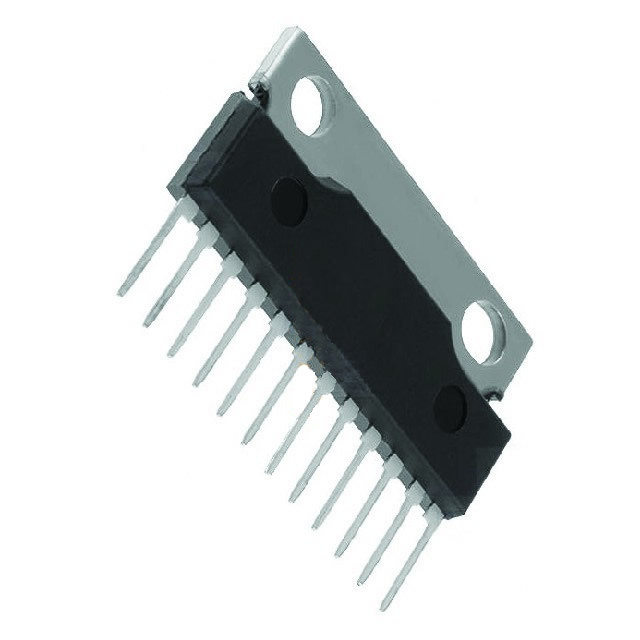

View detailed images (4)

SLA4041

SKU: SLA4041
SLA4041 Transistor Silicon NPN CASE: SIP12 MAKE: Sanken
Product specifications
Type Transistor Silicon NPN
Case SIP12
Manufacturer Sanken
Vbr CBO 200
Vbr CEO 200
Ckts Per Dev. 4
Max. PD (W) 5
Min hFE 1k
Ic Max. (A) 3
@Ic (test) (A) 1.5
Polarity NPN
VCE(sat) Max. 1.5
Oper. Temp (°C) Max. 150
Isolated Case (Y/N) No
Pinout Equivalence Number 12-25
Descript NPN;Darlington Pairs
Maximum Collector Power Dissipation (Pc) 25 W
Maximum Collector-Base Voltage |Vcb| 200 V
Maximum Collector-Emitter Voltage |Vce| 200 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 3 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 1000
SKU 296001
