SLA4071

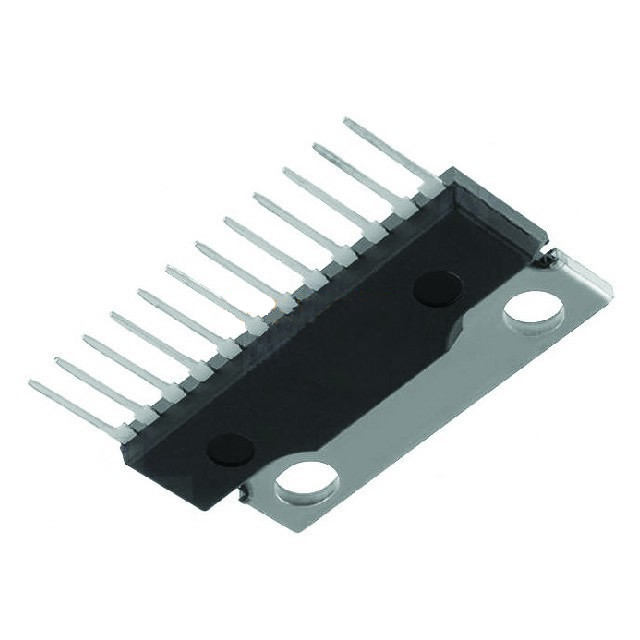

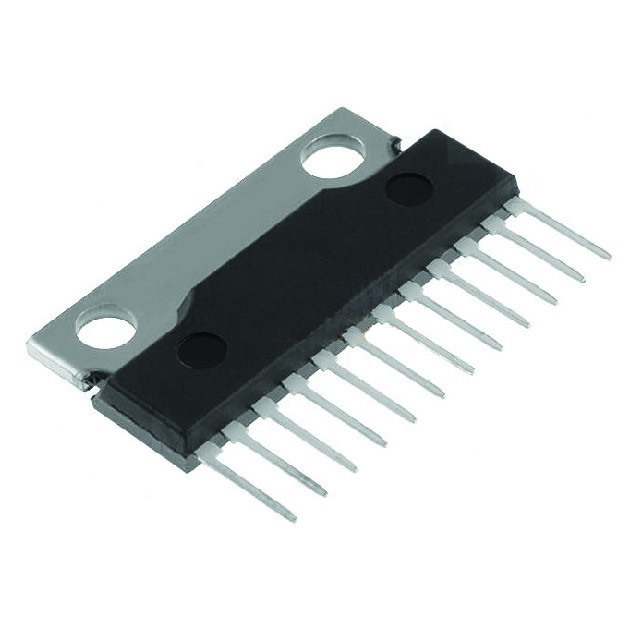

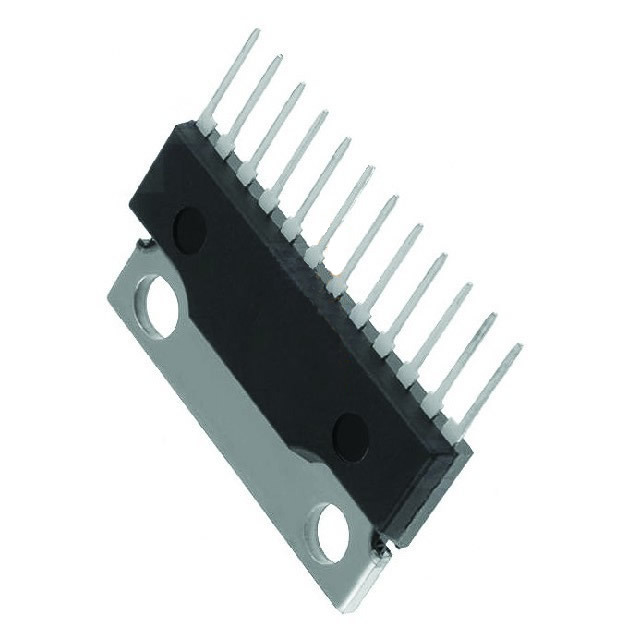

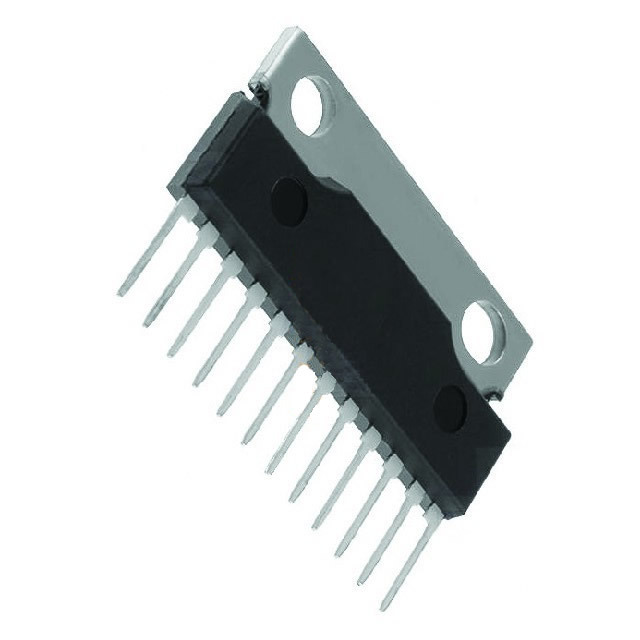

View detailed images (4)

SLA4071

SKU: SLA4071
SLA4071 Transistor Silicon PNP CASE: SIP12 MAKE: Sanken
Product specifications
Type Transistor Silicon PNP
Case SIP12
Manufacturer Sanken
Vbr CBO 100
Vbr CEO 100
Ckts Per Dev. 4
Max. PD (W) 25
Min hFE 1.0k
Ic Max. (A) 5
Polarity PNP
VCE(sat) Max. 1.5
Oper. Temp (°C) Max. 150
Isolated Case (Y/N) No
Pinout Equivalence Number 12-26
Maximum Collector Power Dissipation (Pc) 25 W
Maximum Collector-Base Voltage |Vcb| 100 V
Maximum Collector-Emitter Voltage |Vce| 100 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 5 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 2000
SKU 296004
