SLA6020

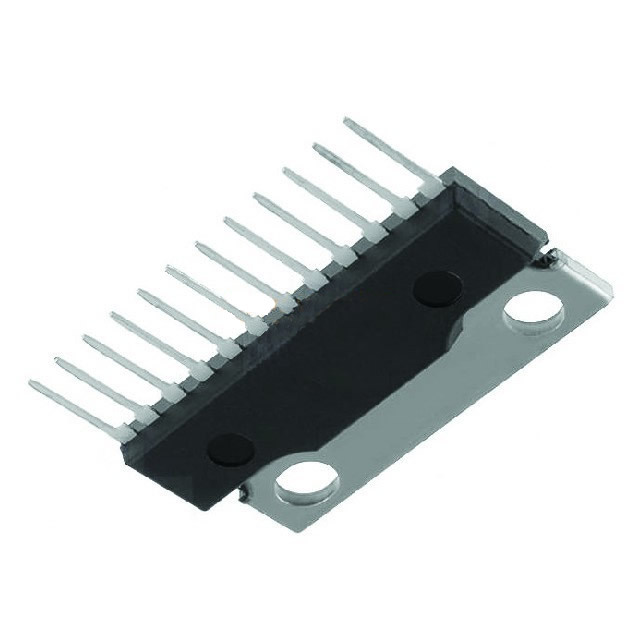

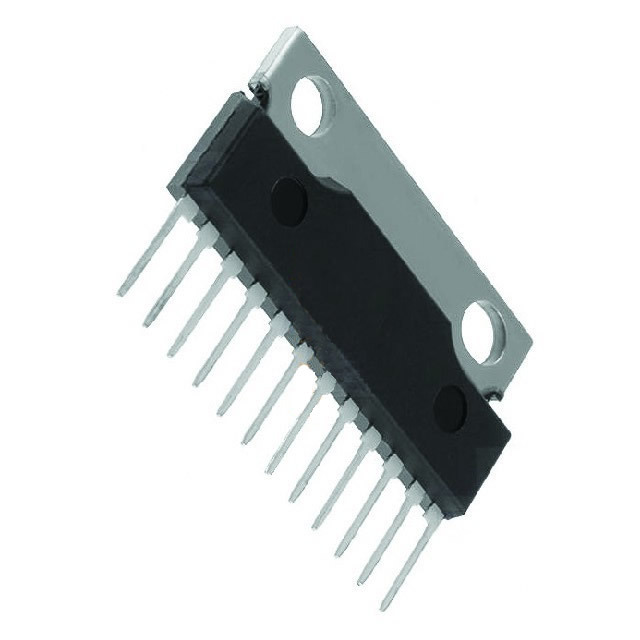

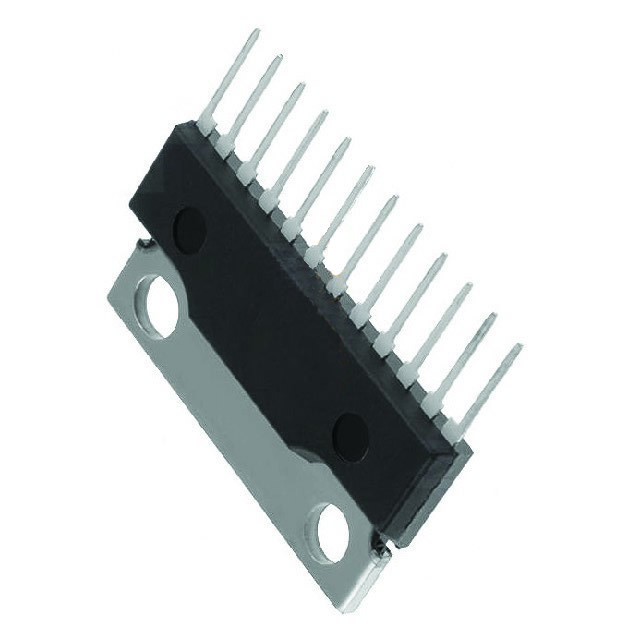

View detailed images (4)

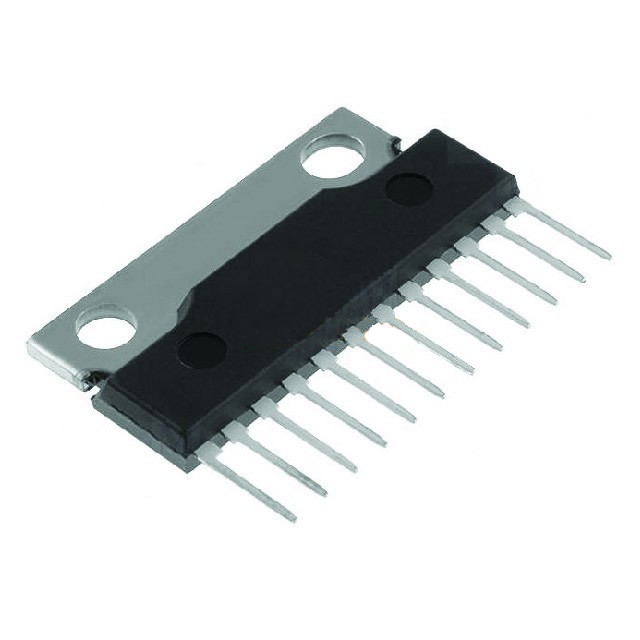

SLA6020

SKU: SLA6020
SLA6020 Transistor Silicon NPN - PNP CASE: SIP12 MAKE: Sanken
Datasheet
SLA6020 Datasheet
Product specifications
Type Transistor Silicon NPN - PNP
Case SIP12
Manufacturer Sanken
Min hFE 2k
Polarity NPN*PNP
@VCE (test) (V) 4
@Ic (test) 3
Ic Max. 5
Vceo Max. 100
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 25 W
Maximum Collector-Base Voltage |Vcb| 100 V
Maximum Collector-Emitter Voltage |Vce| 100 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 5 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 2000
SKU 296087
