SLA6022

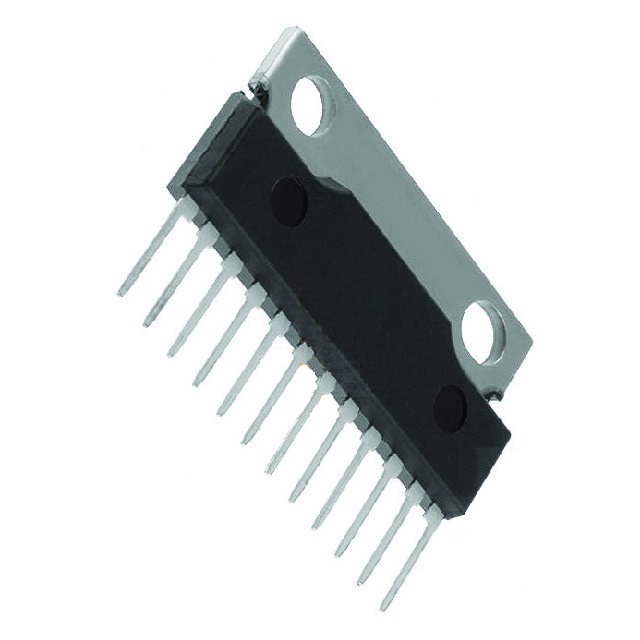

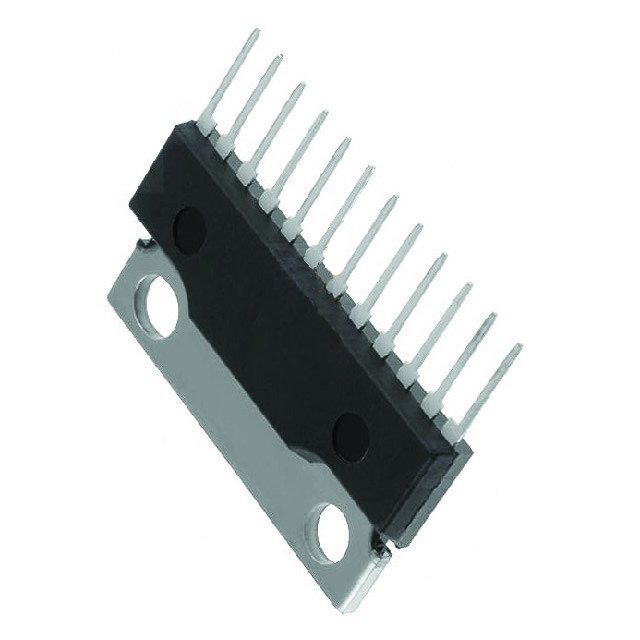

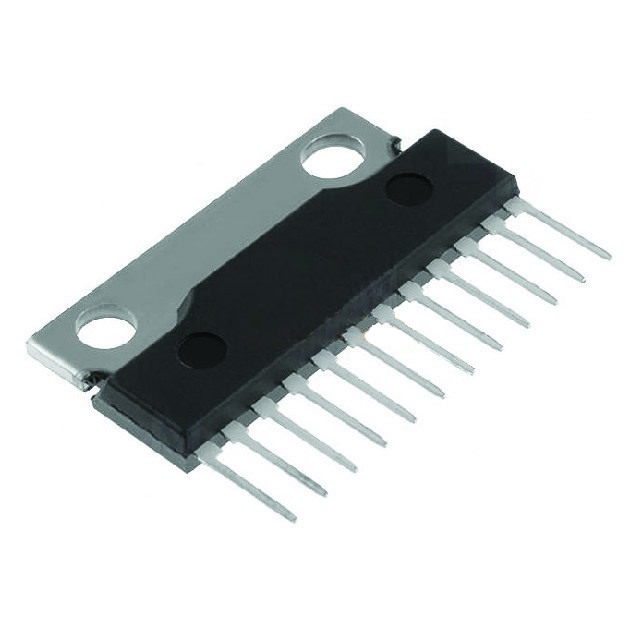

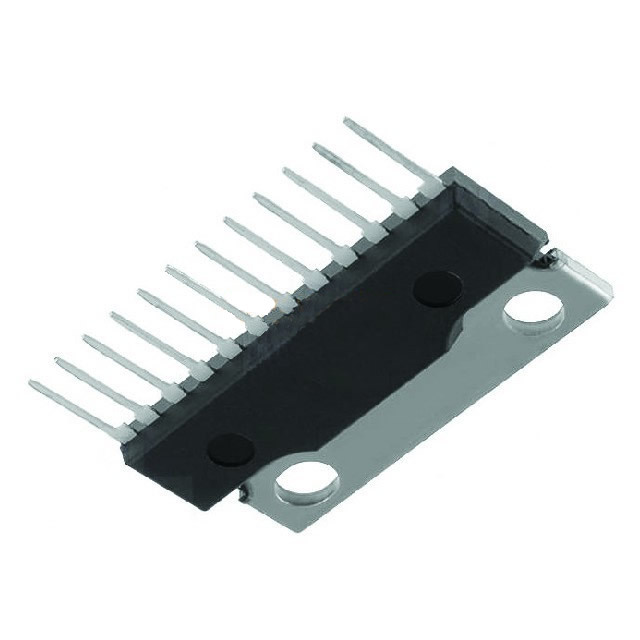

View detailed images (4)

SLA6022

SKU: SLA6022
SLA6022 Transistor Silicon NPN - PNP CASE: SIP12 MAKE: Sanken
Product specifications
Type Transistor Silicon NPN - PNP
Case SIP12
Manufacturer Sanken
Vbr CBO 100
Vbr CEO 80
Ckts Per Dev. 1
Max. PD (W) 5
Min hFE 2k
Ic Max. (A) 5
@Ic (test) (A) 3
Polarity NPN*PNP
Therm Res. (J-C) 5
VCE(sat) Max. 1.5
Oper. Temp (°C) Max. 150
Isolated Case (Y/N) Yes
Pinout Equivalence Number 12-61
Descript 1-1/2 Full Darlington Bridge, NPN/PNP
Maximum Collector Power Dissipation (Pc) 25 W
Maximum Collector-Base Voltage |Vcb| 100 V
Maximum Collector-Emitter Voltage |Vce| 80 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 5 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 2000
SKU 296088
