SLA6026
View detailed images (4)

SLA6026

SKU: SLA6026

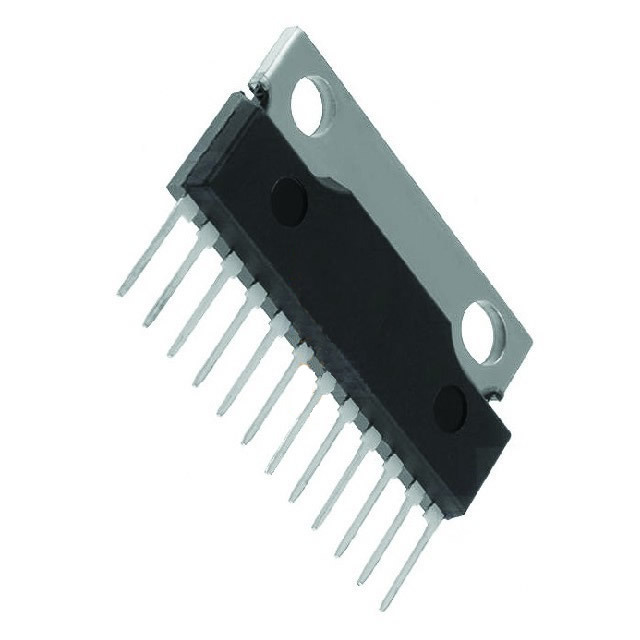

SLA6026 Transistor Silicon NPN - PNP CASE: SIP12 MAKE: Sanken
Datasheet
SLA6026 Datasheet
Product specifications
Type Transistor Silicon NPN - PNP
Case SIP12
Manufacturer Sanken
Polarity NPN*PNP
Maximum Collector Power Dissipation (Pc) 35 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 60 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 10 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 100 pF
Transition Frequency (ft): 50 MHz
Forward Current Transfer Ratio (hFE), MIN 2000
SKU 296091
