SM550
View detailed images (12)

SM550

SKU: SM550

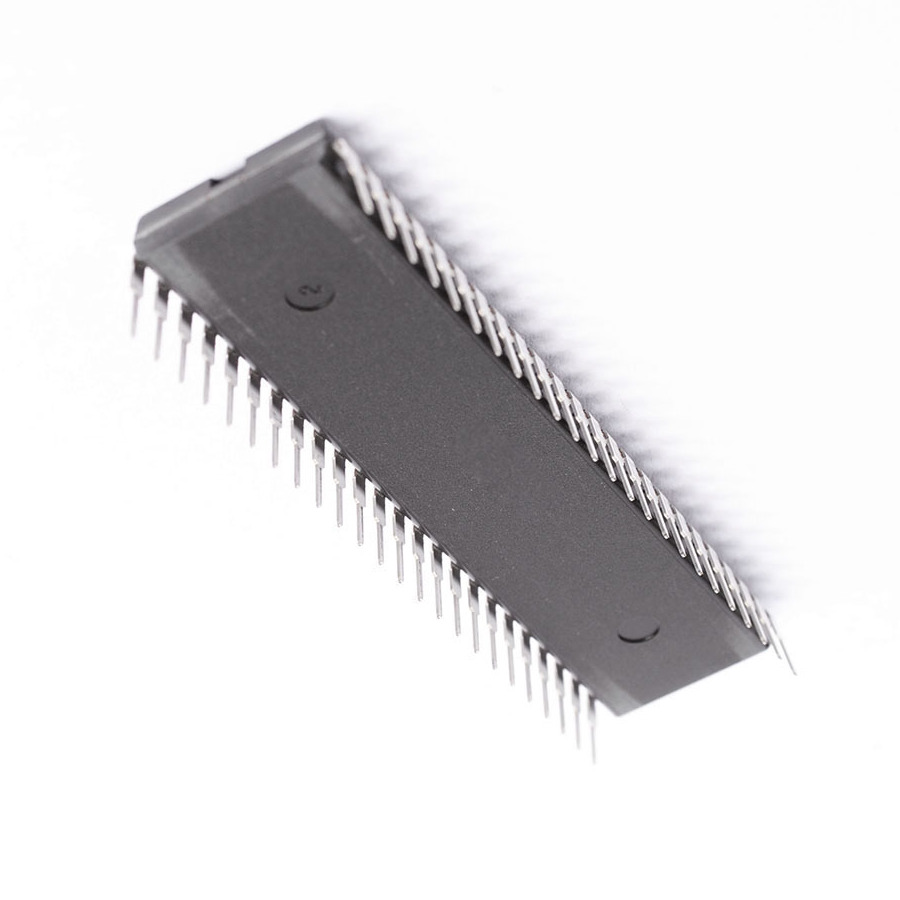

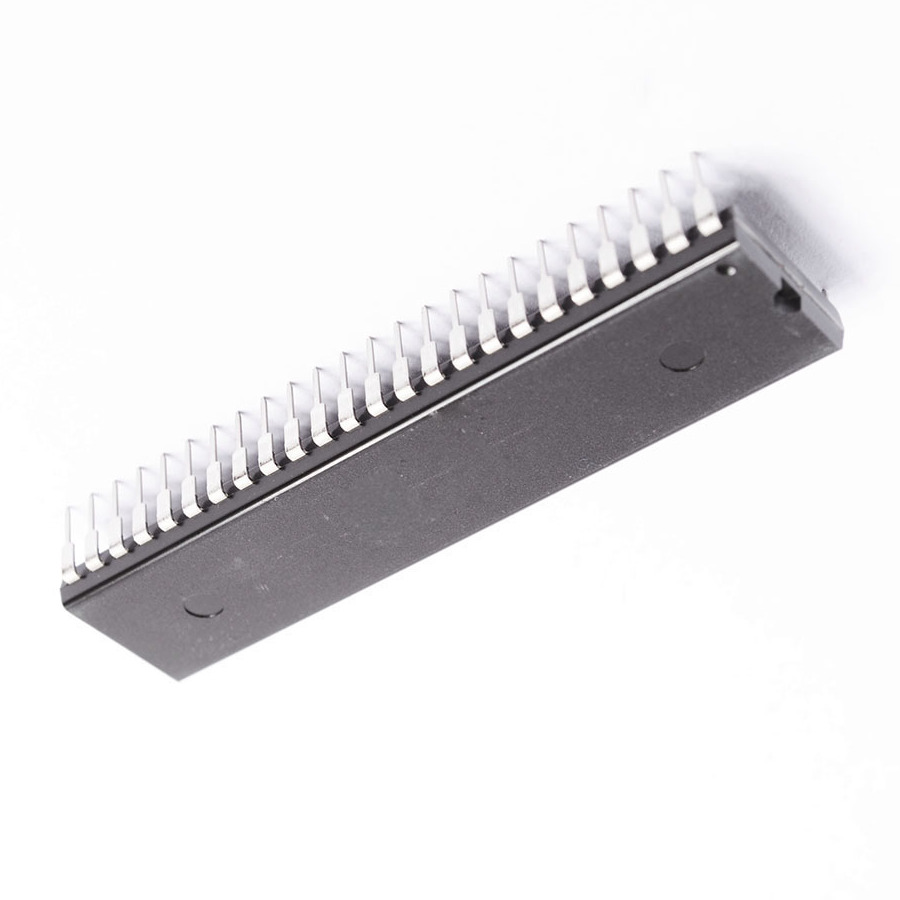

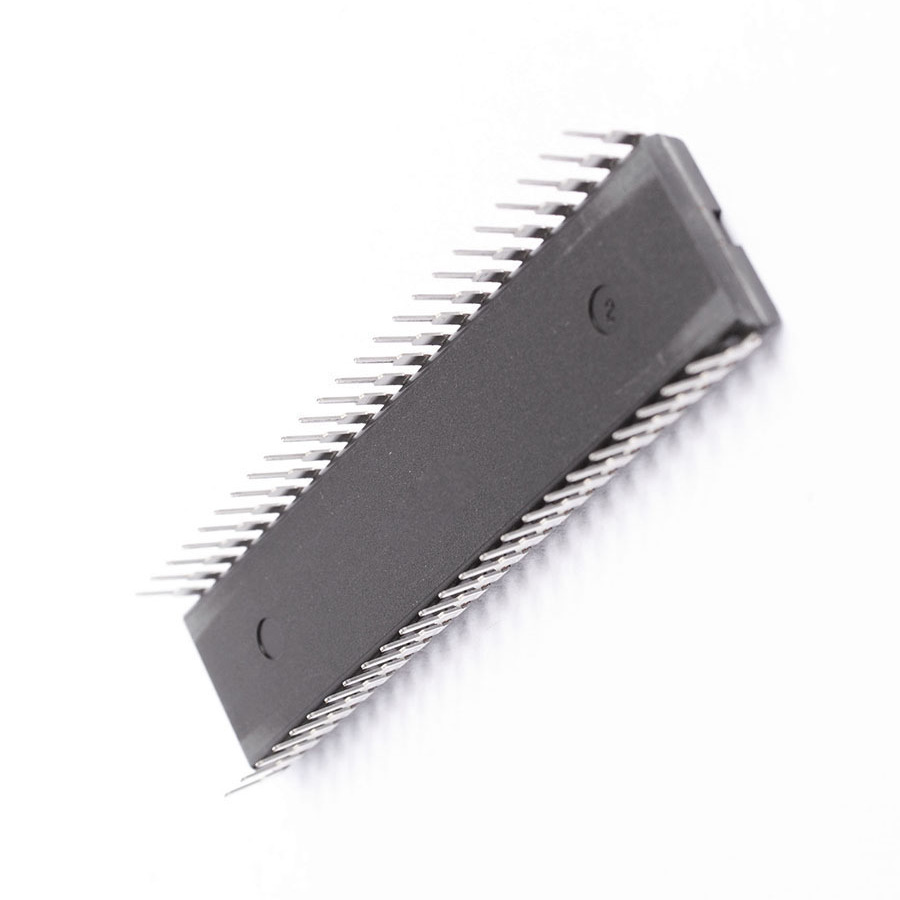

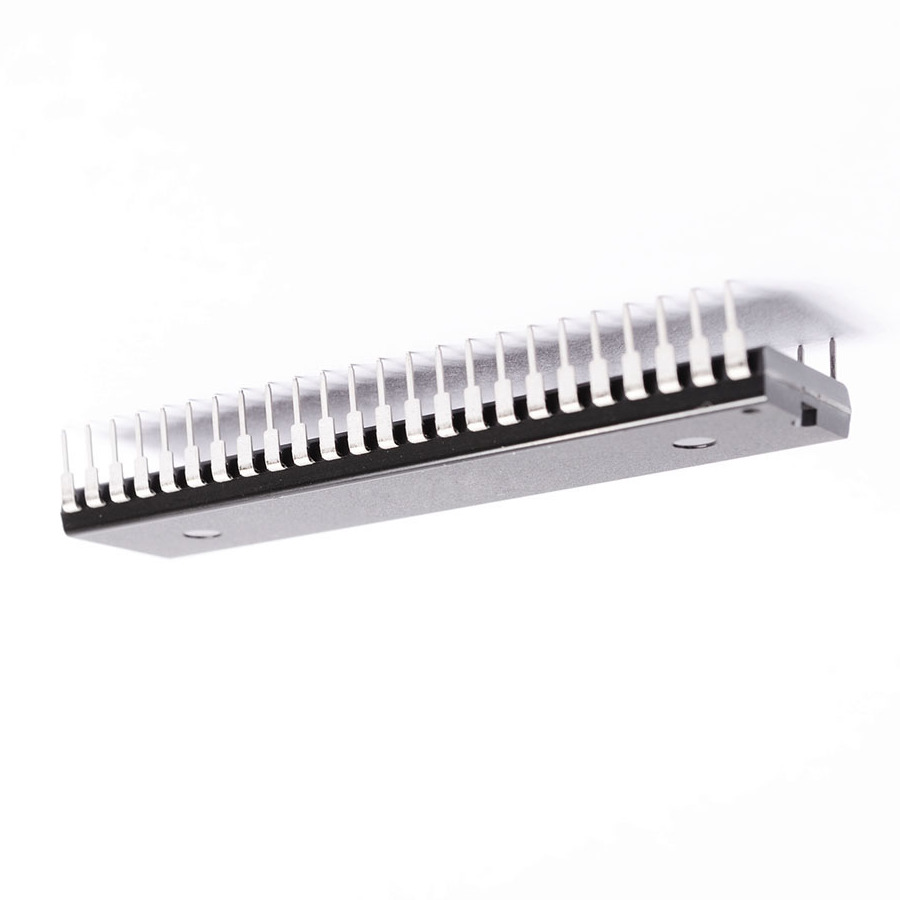

SM550 Integrated Circuit CASE: DIP48 MAKE: Nippon Precision Circuits
Product specifications
Type Integrated Circuit
Case DIP48
Manufacturer Nippon Precision Circuits
Mem. Addr Rnge 64k
No.of Addr. Modes 3
No. of I/O Lines 32
I/O Line Types ByteVarble
Max. Inst. Len (bits) 16
Min Inst. Len (bits) 8
No. of Intrpt Lines 2
No. of Intrpt (NMI) 0
Intrpt Types Int/Ex Vec
No. of Intrpt (mask) 2
fClk Max. (Hz) 2.5M
fClk Min (Hz) 250k
No. of I/O Ports 8
On-Chip ROM (bytes) 1k
Nom. Supp Volt 5.0
Tech. CMOS Integrated Circuit
On-Chip RAM (Bytes) 40
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Pinout Equivalence Number 48-70
No. of Pins 48
Surface Mounted Yes/No YES
SKU 1124657
