SM550M
View detailed images (4)

SM550M

SKU: SM550M

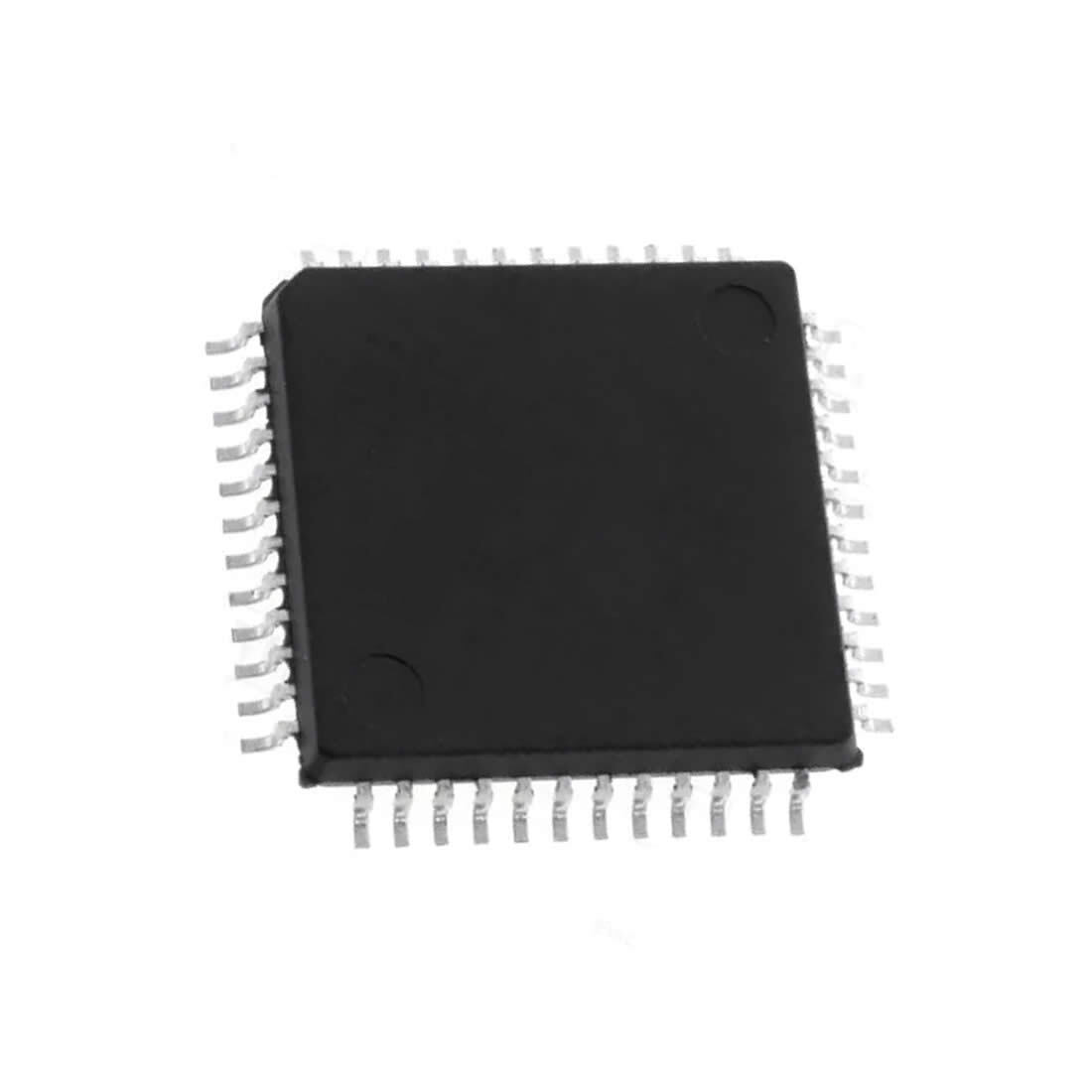

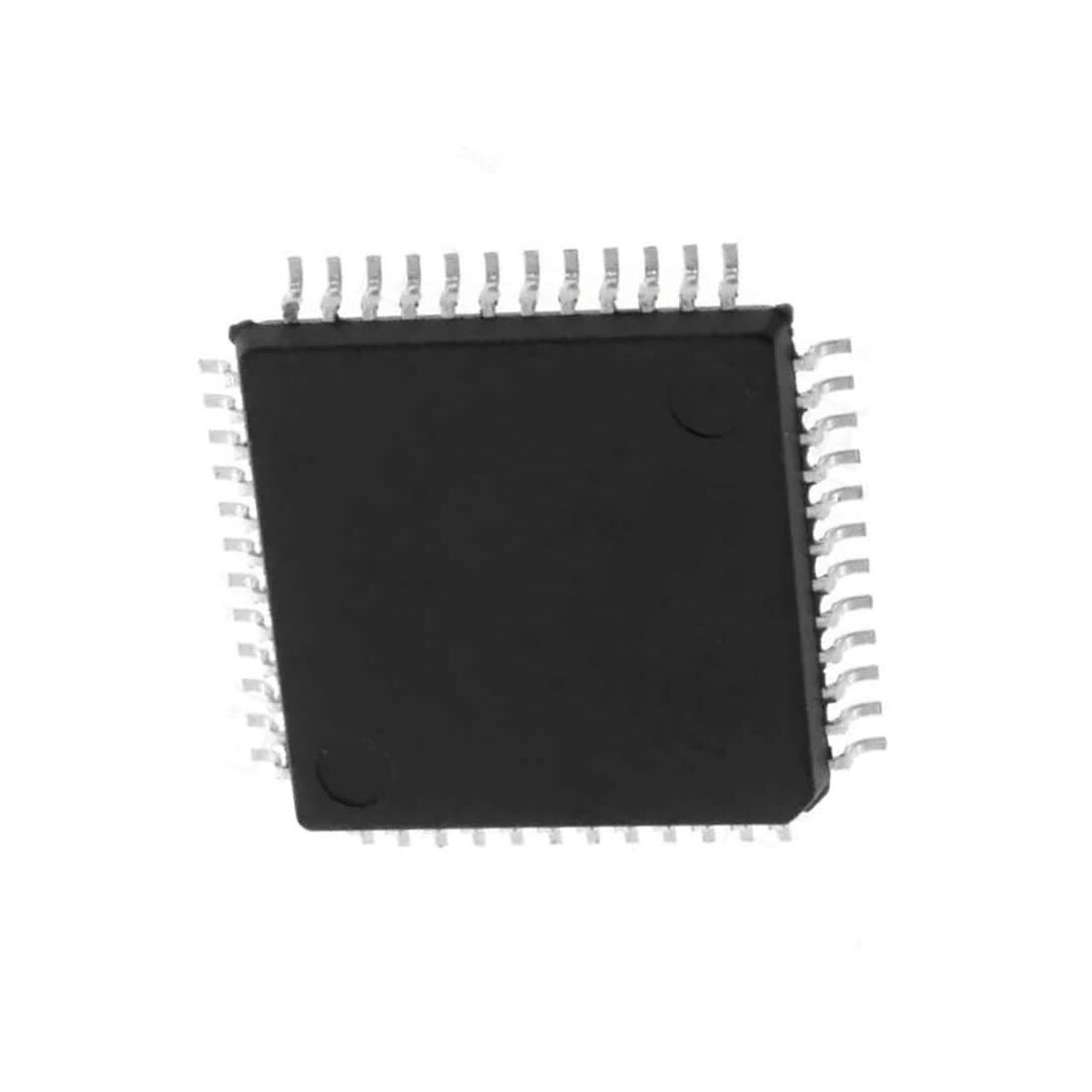

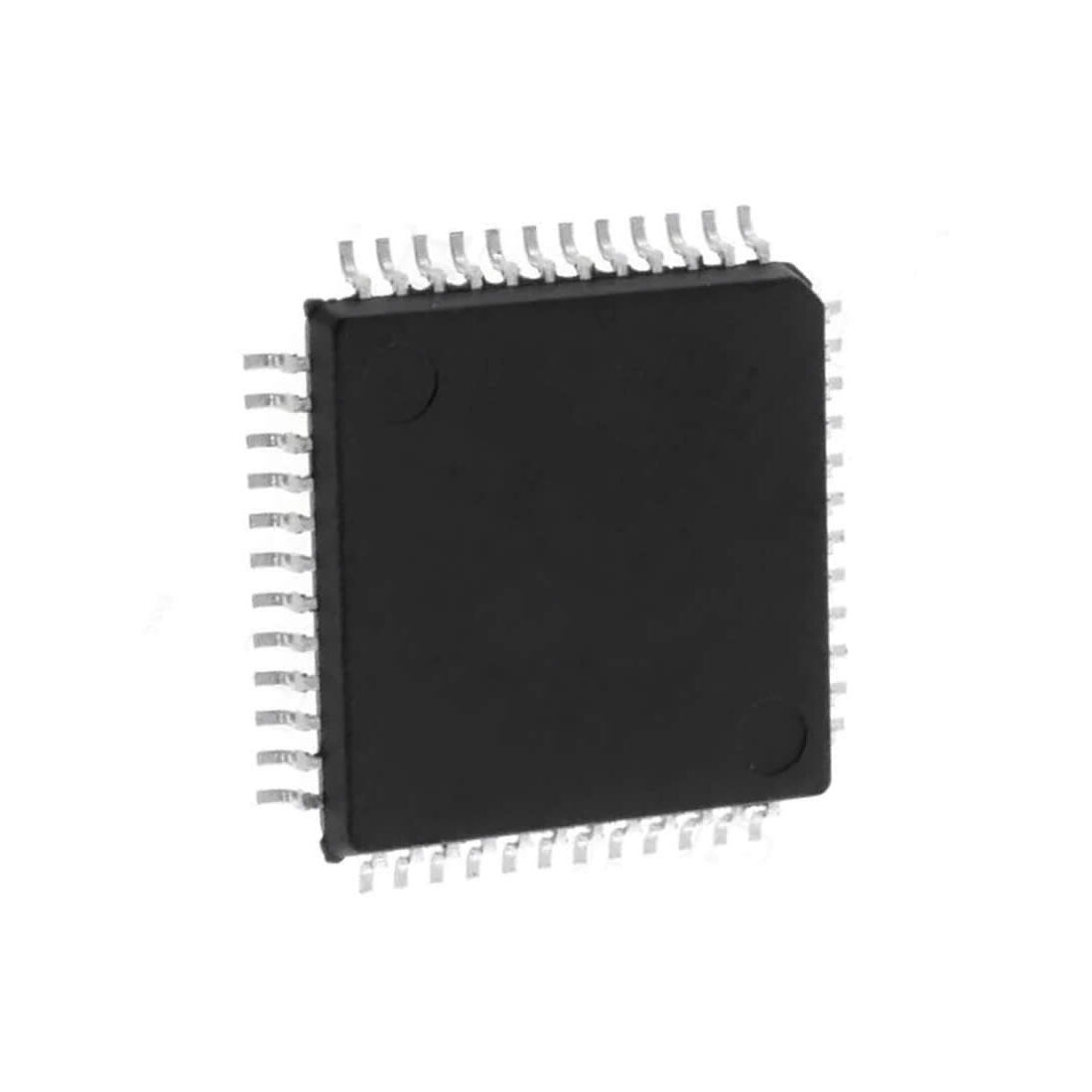

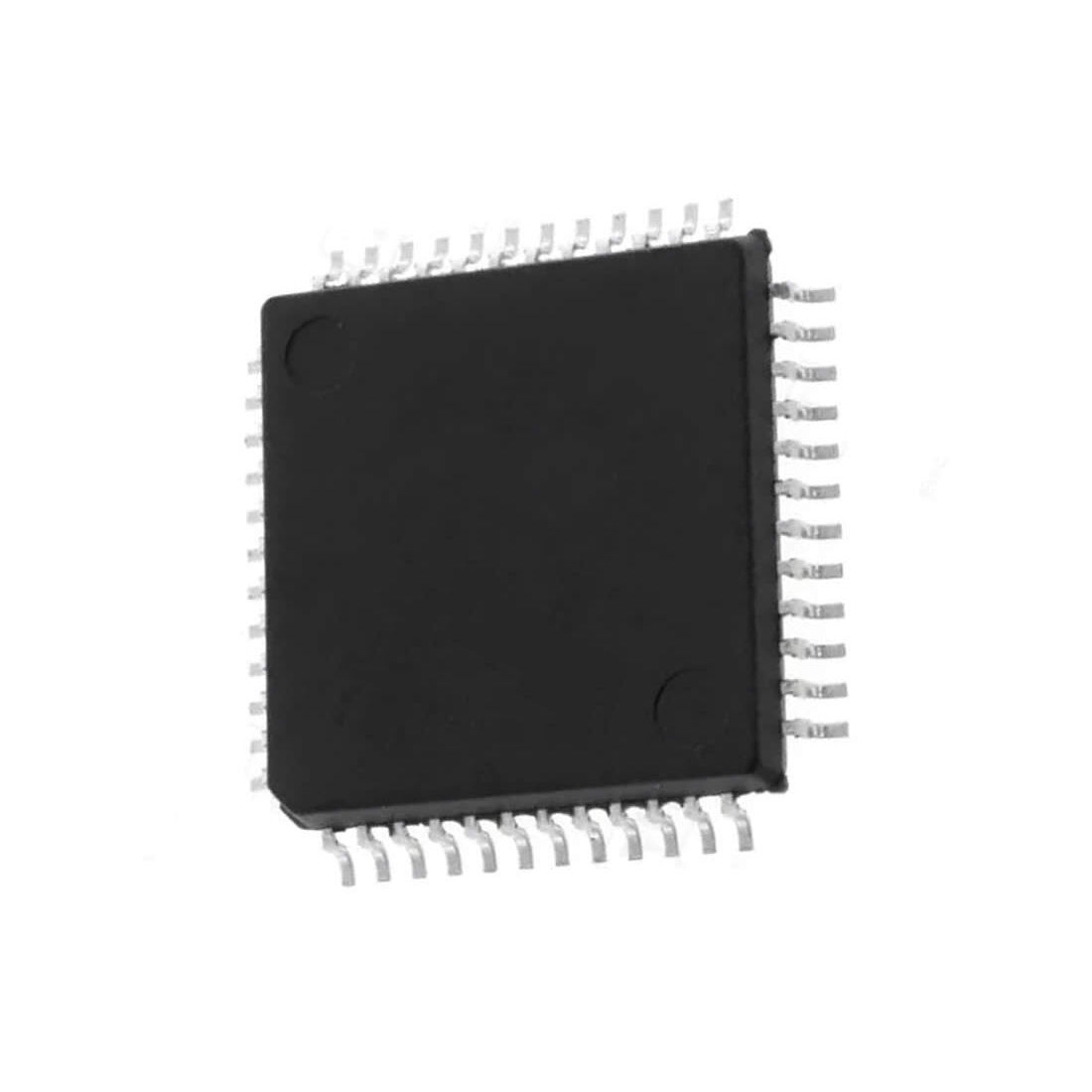

SM550M Integrated Circuit CASE: QFP48 MAKE: Nippon Precision Circuits
Product specifications
Type Integrated Circuit
Case QFP48
Manufacturer Nippon Precision Circuits
Mem. Addr Rnge 64k
No. of I/O Lines 36
I/O Line Types Gen. Purp.
Max. Inst. Len (bits) 16
Min Inst. Len (bits) 8
No. of Intrpt Lines 5
No. of Intrpt (NMI) 5
Intrpt Types Priority
No. of Intrpt (mask) 0
fClk Max. (Hz) 2.3M
fClk Min (Hz) 250k
No. of I/O Ports 9
On-Chip ROM (bytes) 8k
Nom. Supp Volt 5.0
Tech. CMOS Integrated Circuit
On-Chip RAM (Bytes) 320
Oper. Temp (°C) Min -20
Oper. Temp (°C) Max. 70
Pinout Equivalence Number 48-196
No. of Pins 48
Surface Mounted Yes/No YES
SKU 1124645
