SMA4020

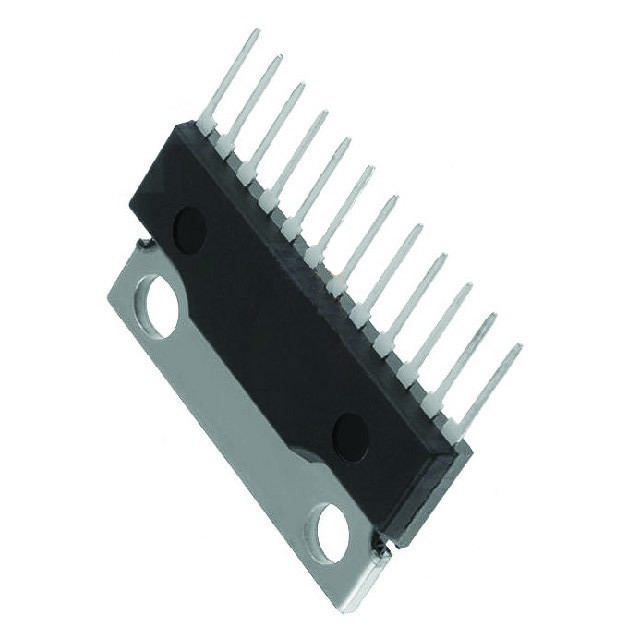

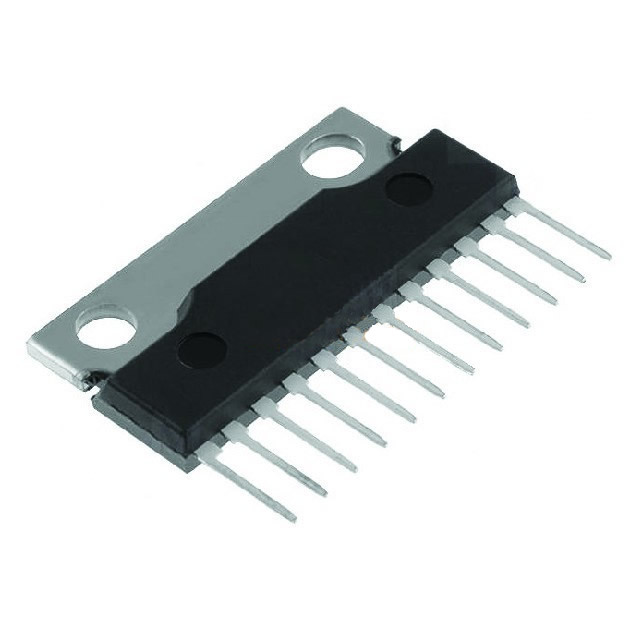

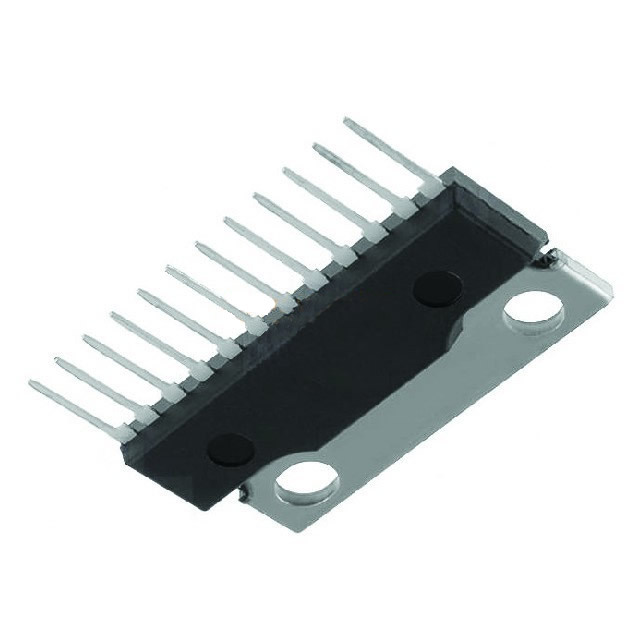

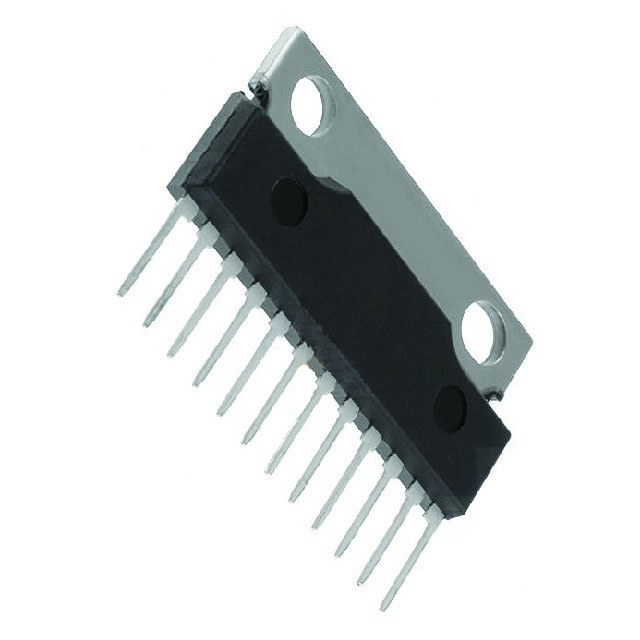

View detailed images (4)

SMA4020

SKU: SMA4020
SMA4020 Transistor Silicon PNP CASE: SIP12 MAKE: Sanken
Datasheet
SMA4020 Datasheet
Product specifications
Type Transistor Silicon PNP
Case SIP12
Manufacturer Sanken
Vbr CEO 60
Ckts Per Dev. 4
Min hFE 2k
Ic Max. (A) 4
Polarity PNP
Isolated Case (Y/N) No
Pinout Equivalence Number 12-20
Maximum Collector Power Dissipation (Pc) 20 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 60 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 4 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 2000
SKU 362967
