SMA4021

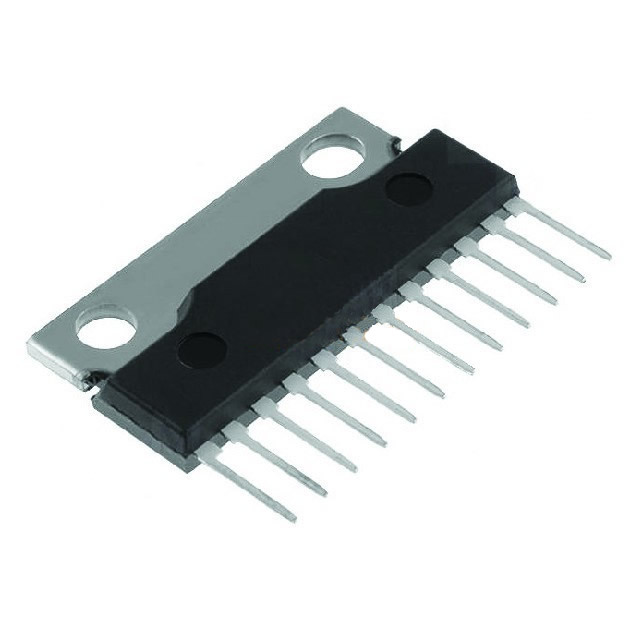

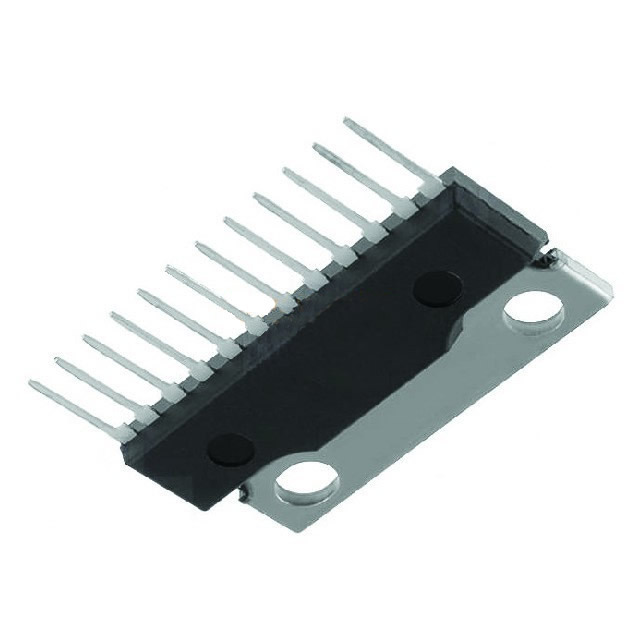

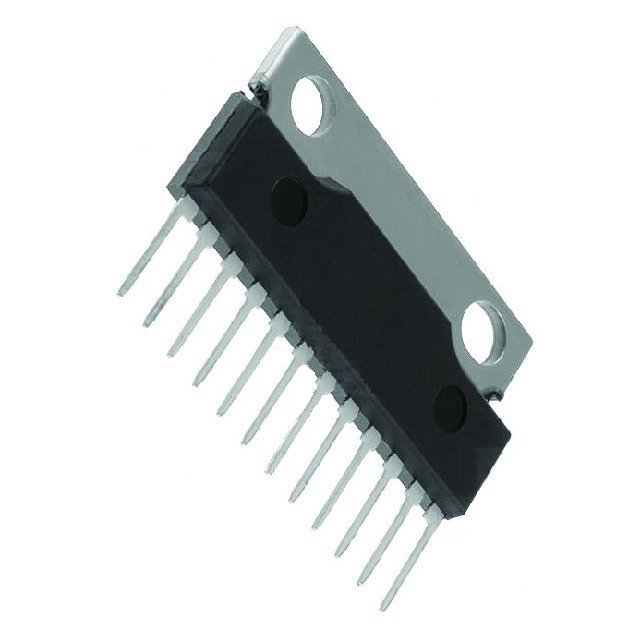

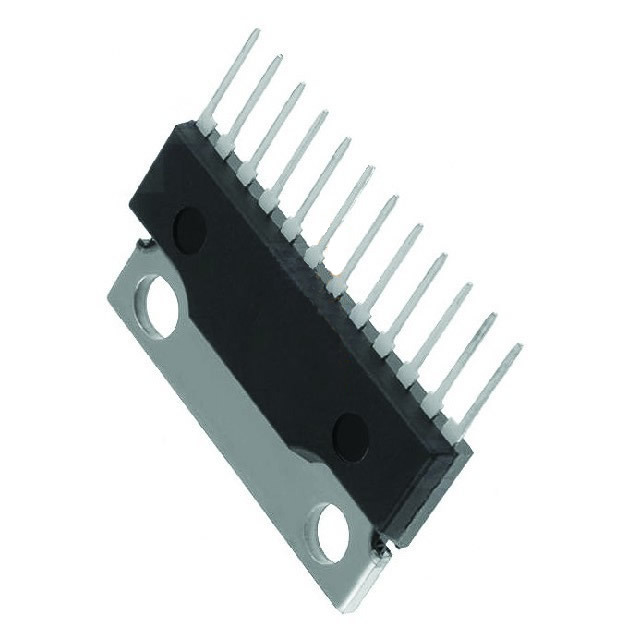

View detailed images (4)

SMA4021

SKU: SMA4021
SMA4021 Transistor Silicon PNP CASE: SIP12 MAKE: Sanken
Datasheet
SMA4021 Datasheet
Product specifications
Type Transistor Silicon PNP
Case SIP12
Manufacturer Sanken
Min hFE 2k
Mat. Silicon Logic
Polarity PNP
PD Max. (W) 4
@VCE (test) (V) 4
@Ic (test) 2
Ic Max. 3
Vceo Max. 60
Pinout Equivalence Number 12-26
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 20 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 60 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 3 A
Max. Operating Junction Temperature (Tj) 150 °C
Forward Current Transfer Ratio (hFE), MIN 2000
SKU 296814
