SMA4030

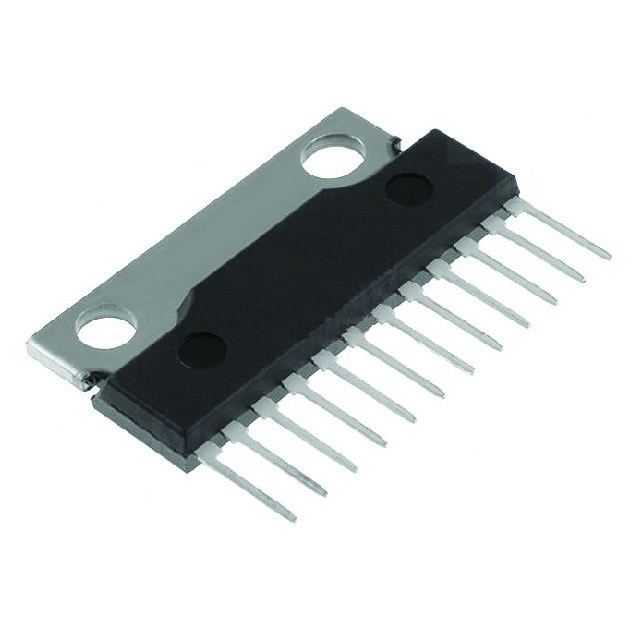

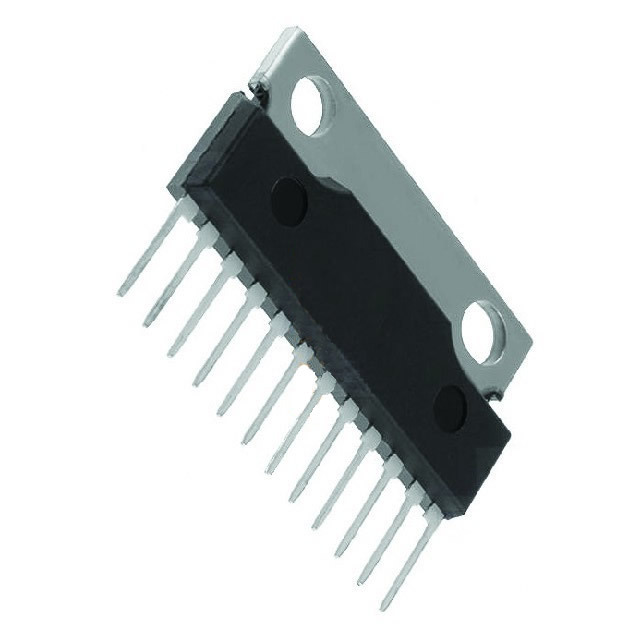

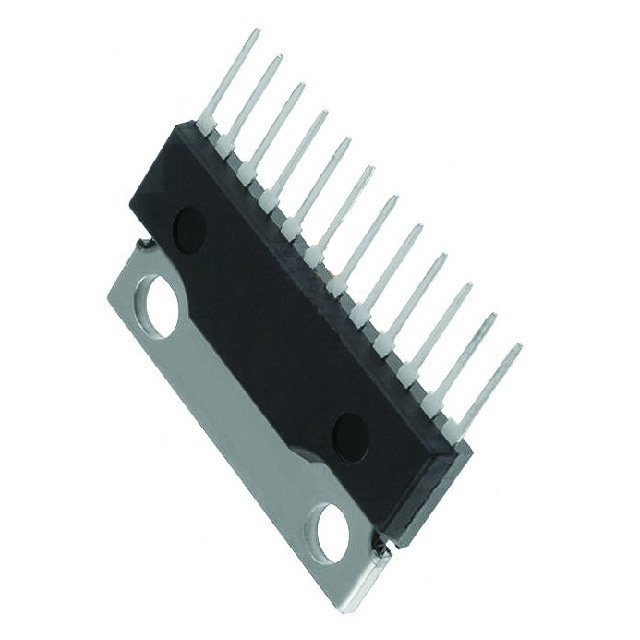

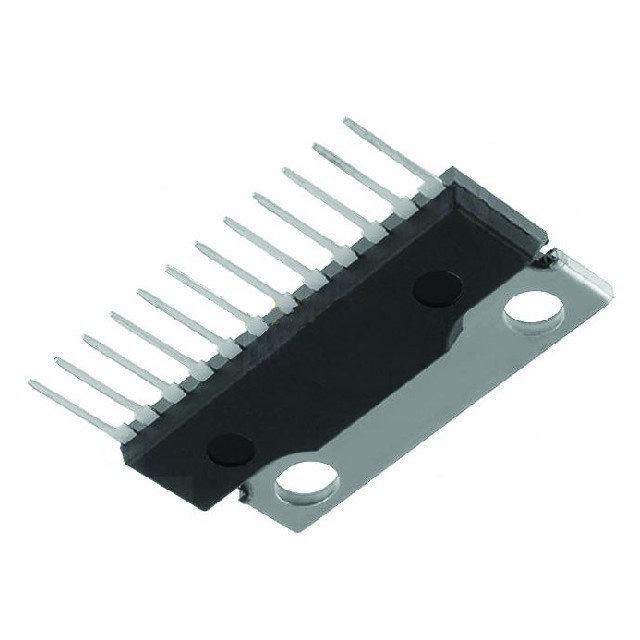

View detailed images (4)

SMA4030

SKU: SMA4030
SMA4030 Transistor Silicon NPN CASE: SIP12 MAKE: Sanken
Datasheet
SMA4030 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SIP12
Manufacturer Sanken
Vbr CEO 100
Ckts Per Dev. 4
Min hFE 2k
Ic Max. (A) 3
Polarity NPN
Isolated Case (Y/N) No
Pinout Equivalence Number 12-20
Descript NPN
Maximum Collector Power Dissipation (Pc) 20 W
Maximum Collector-Base Voltage |Vcb| 120 V
Maximum Collector-Emitter Voltage |Vce| 100 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 3 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 30 pF
Transition Frequency (ft): 40 MHz
Forward Current Transfer Ratio (hFE), MIN 2000
SKU 296815
