SMA4036

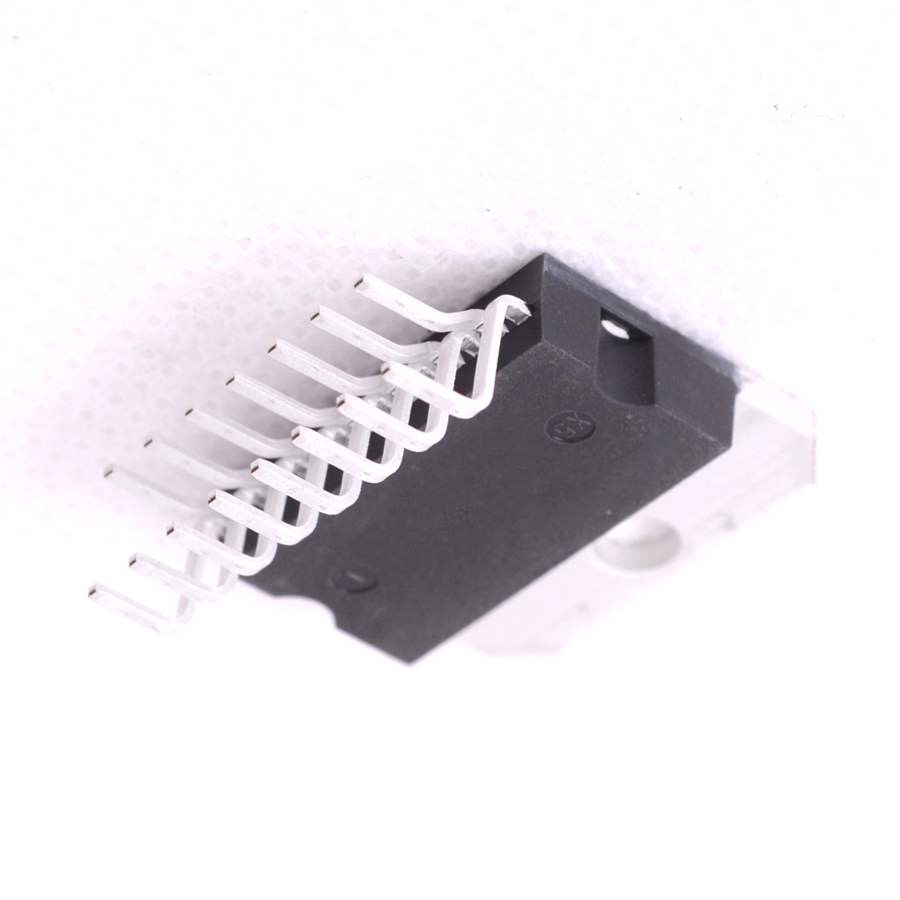

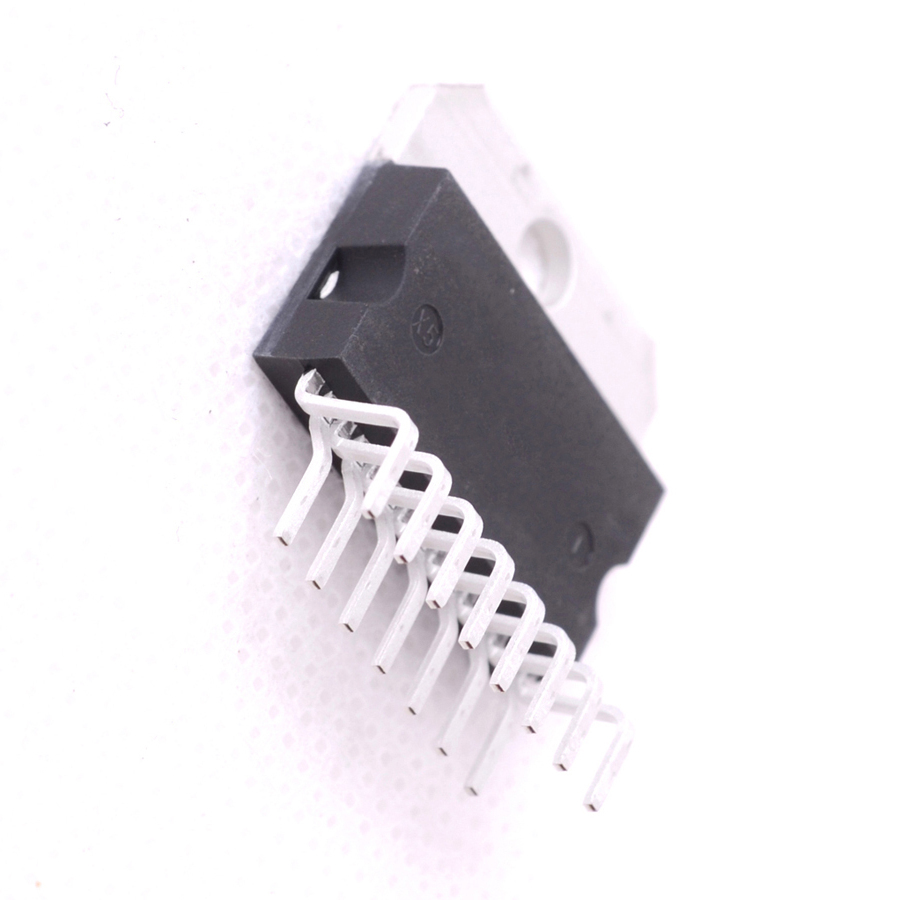

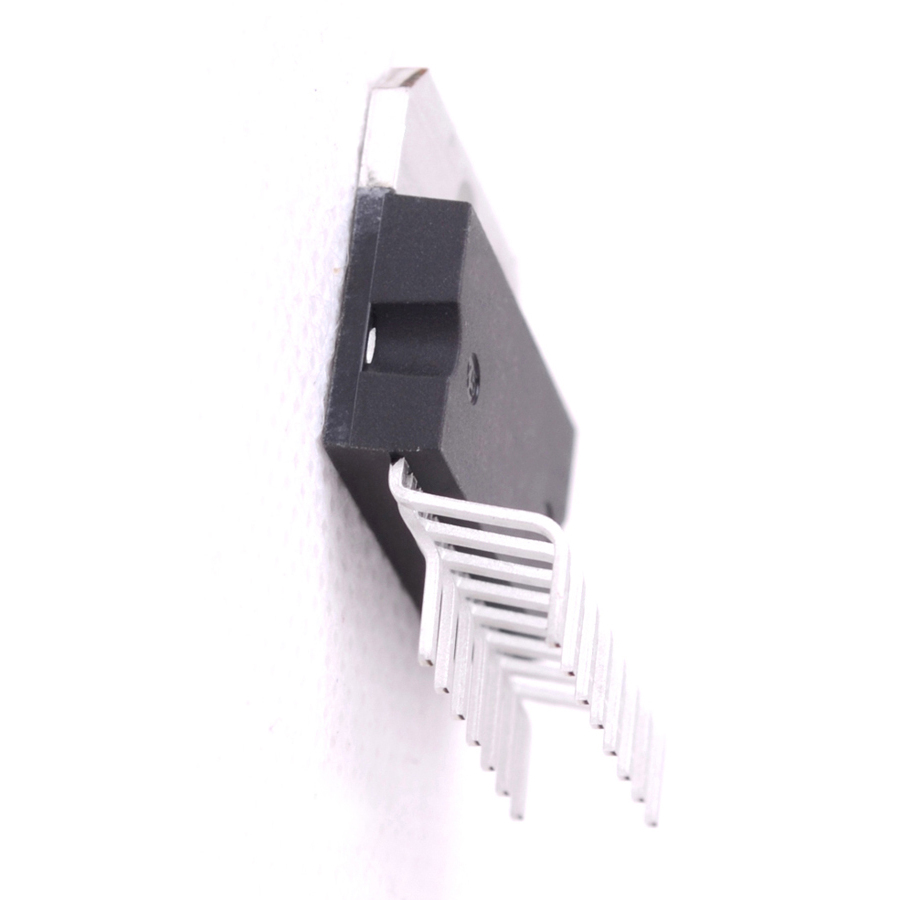

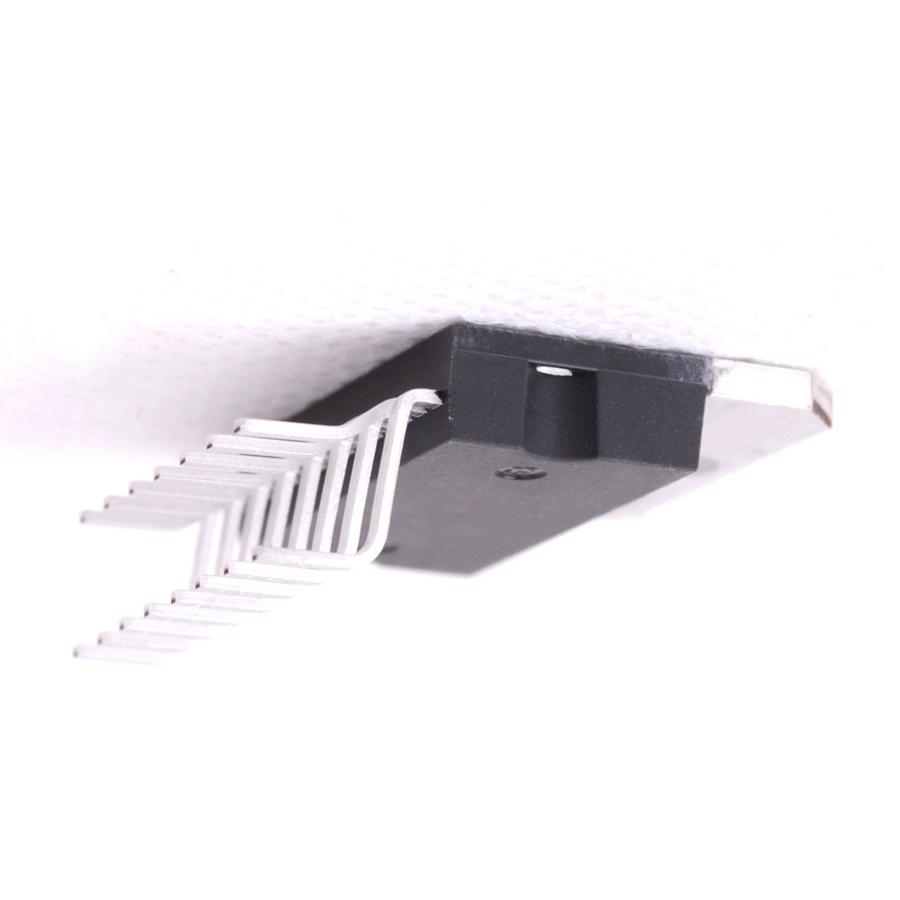

View detailed images (13)

SMA4036

SKU: SMA4036

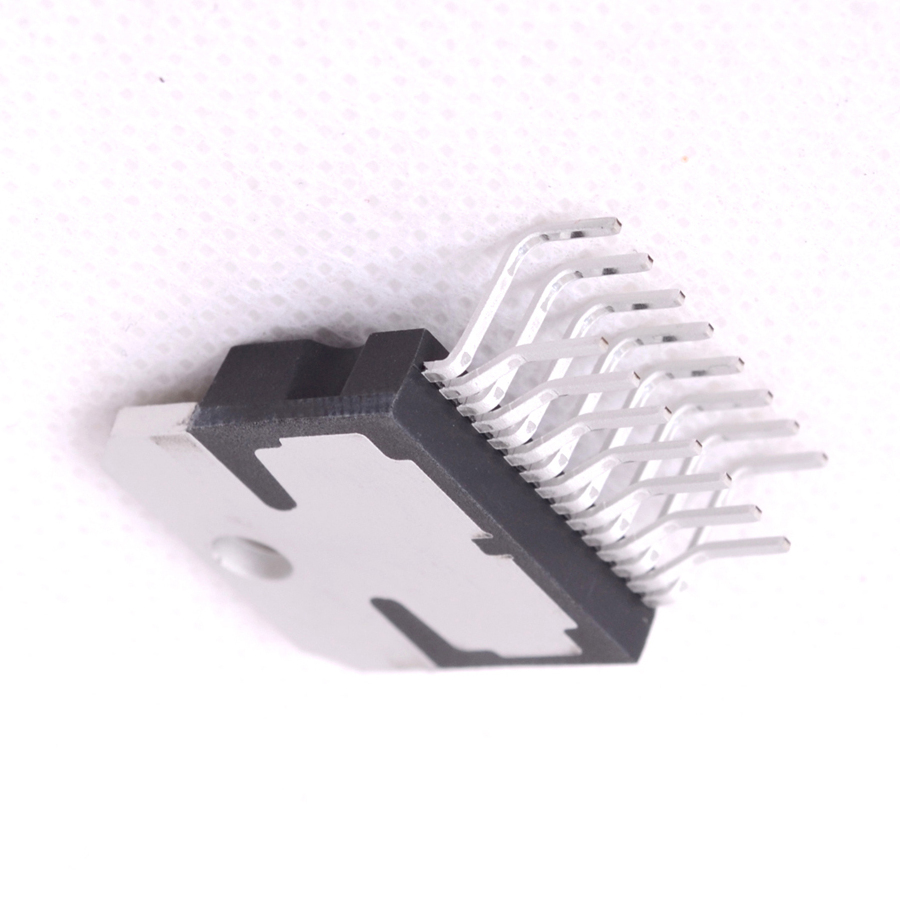

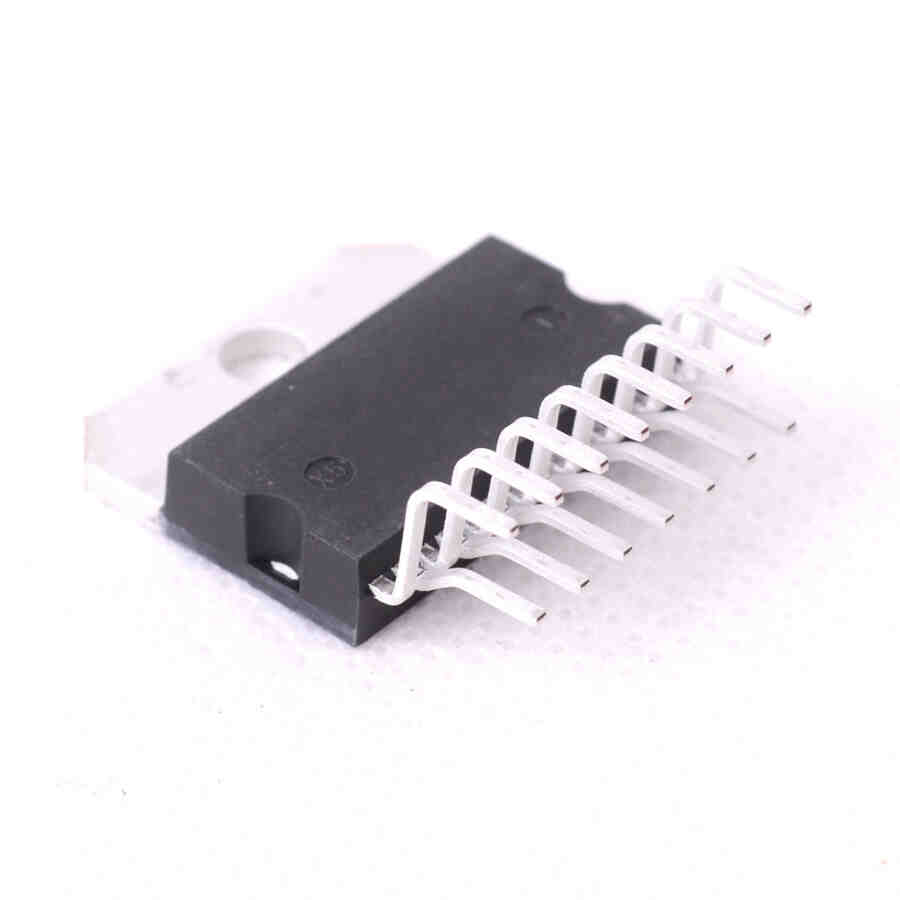

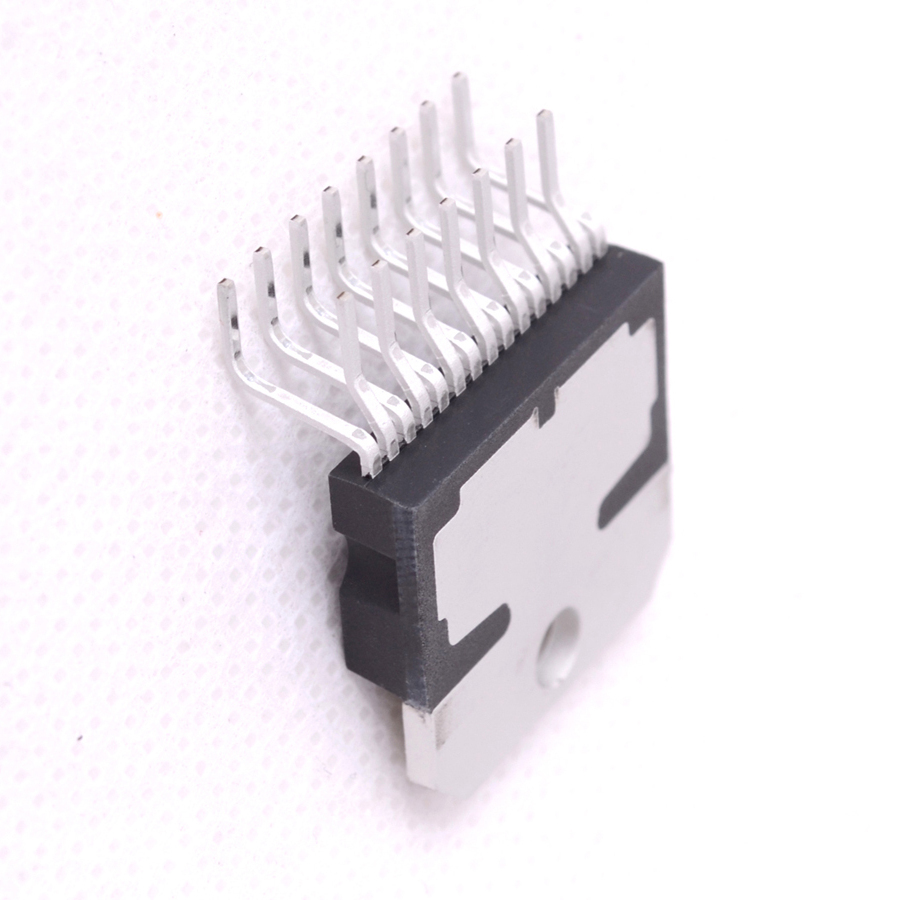

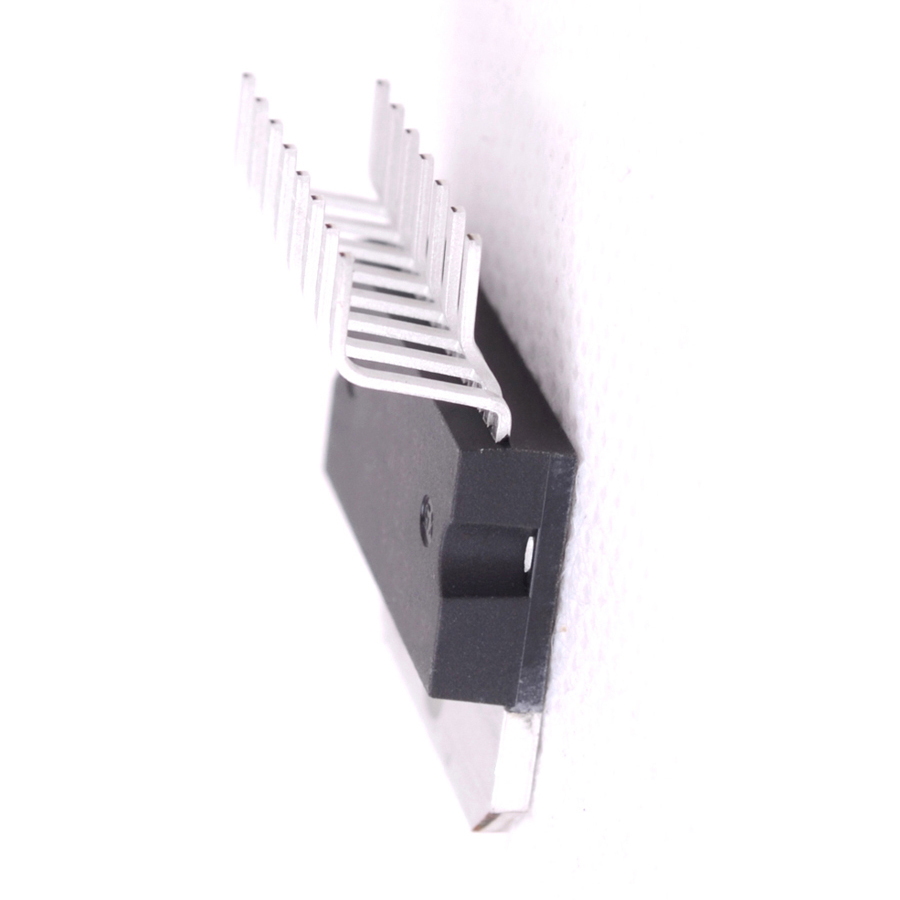

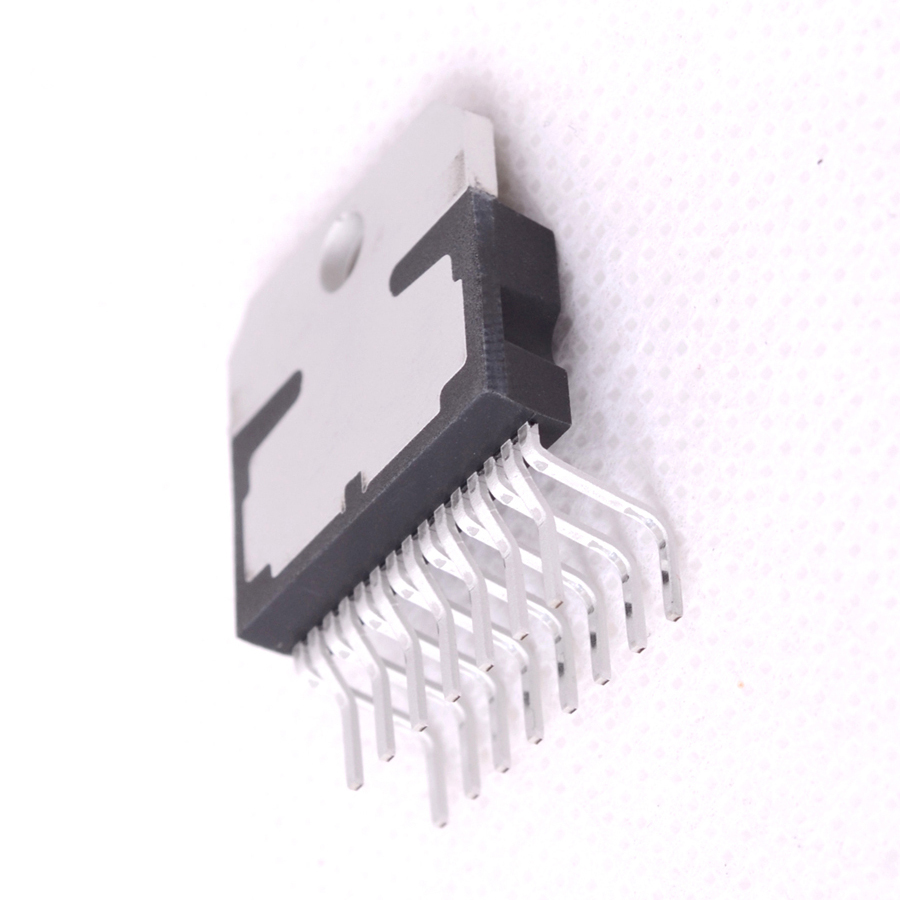

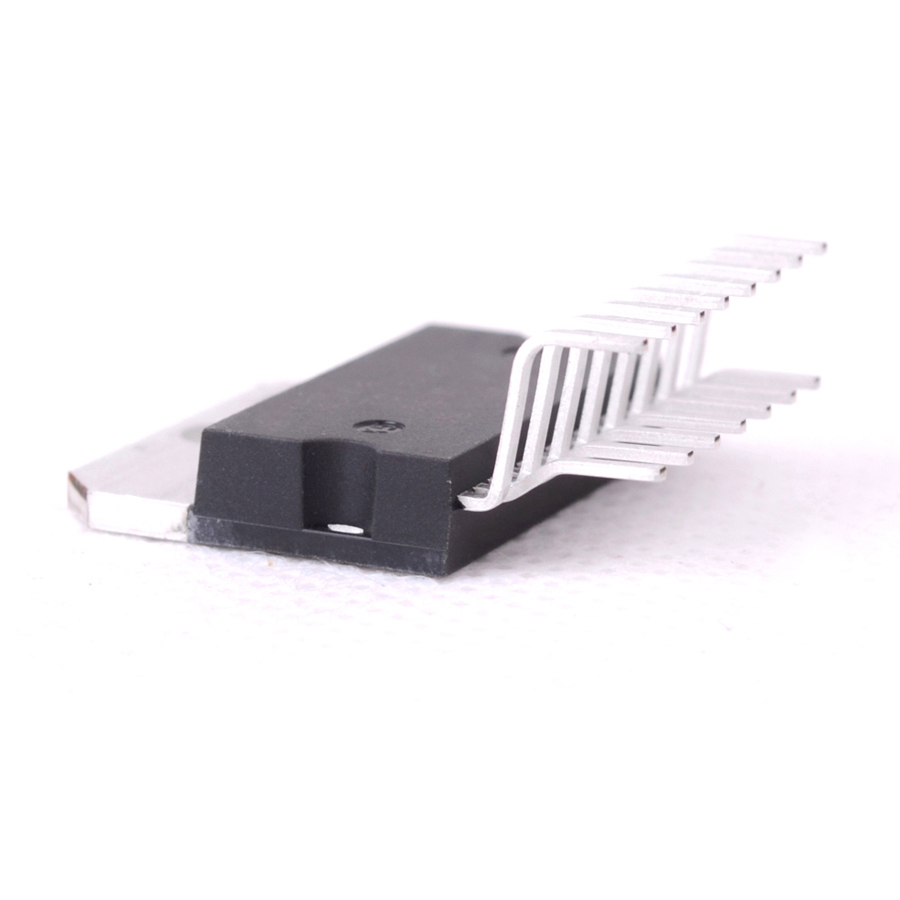

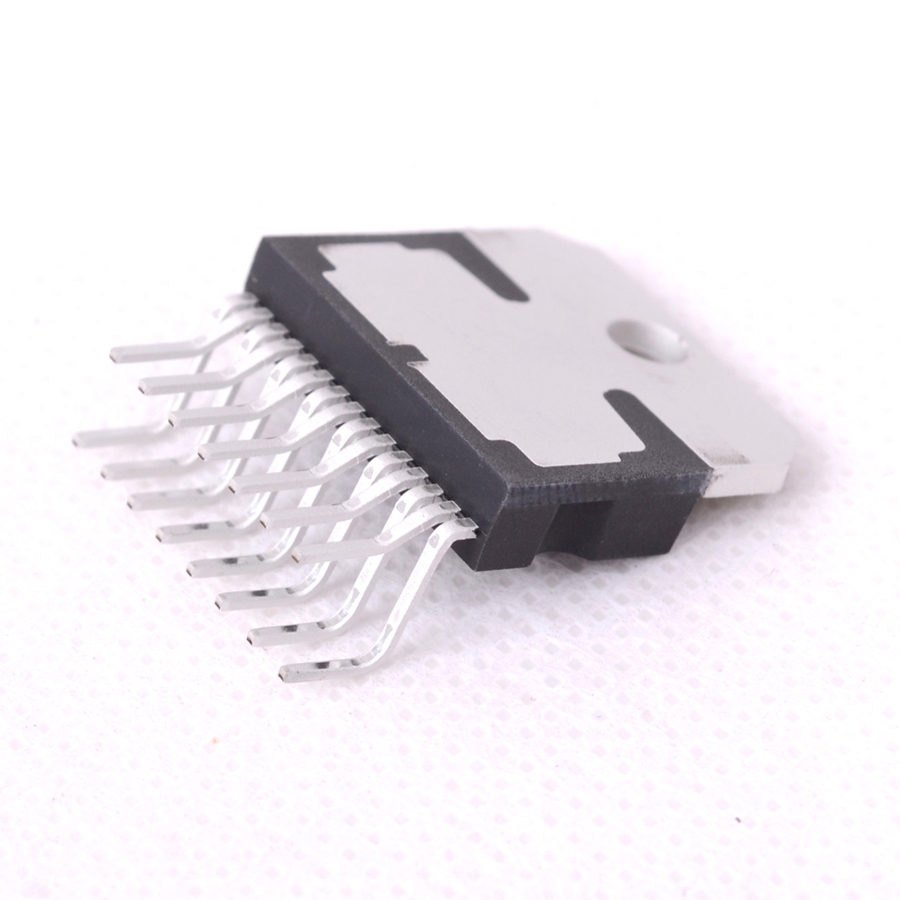

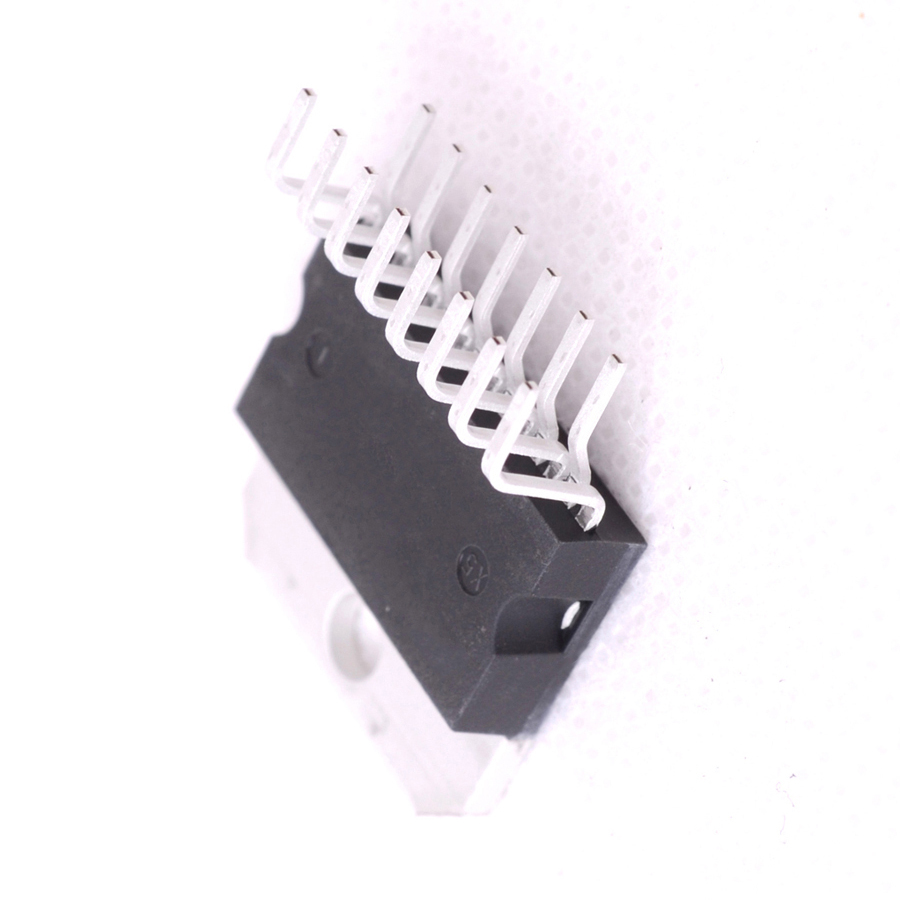

SMA4036 Transistor Silicon NPN CASE: SIP15 MAKE: Generic
Datasheet
SMA4036 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SIP15
Manufacturer Generic
Polarity NPN
Maximum Collector Power Dissipation (Pc) 20 W
Maximum Collector-Base Voltage |Vcb| 120 V
Maximum Collector-Emitter Voltage |Vce| 120 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 2 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 20 pF
Transition Frequency (ft): 50 MHz
Forward Current Transfer Ratio (hFE), MIN 2000
SKU 296819
