SMA6080

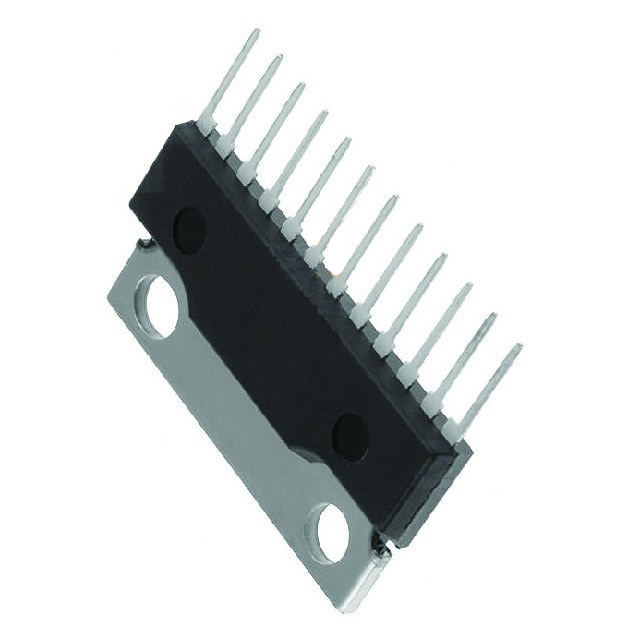

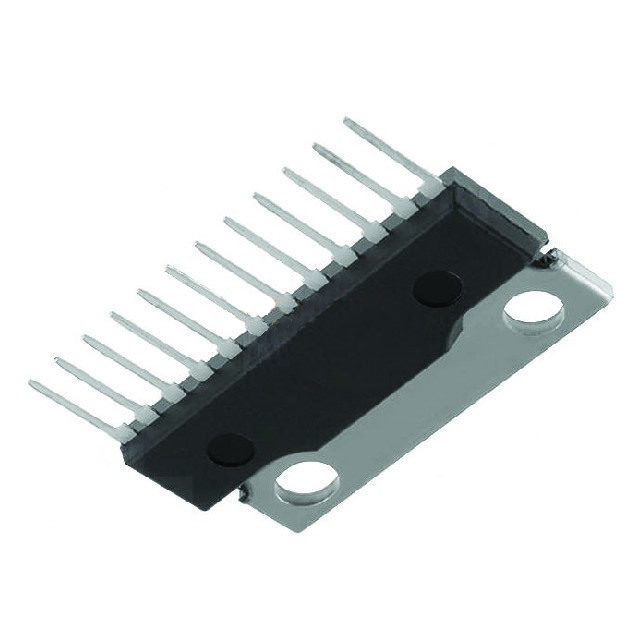

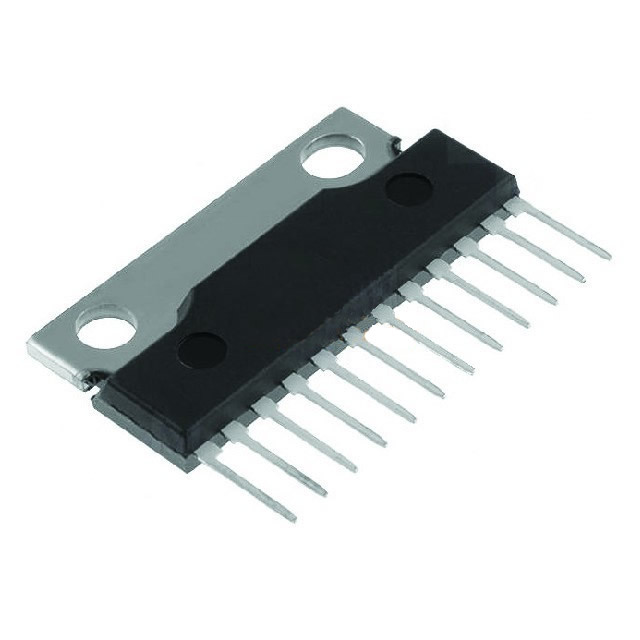

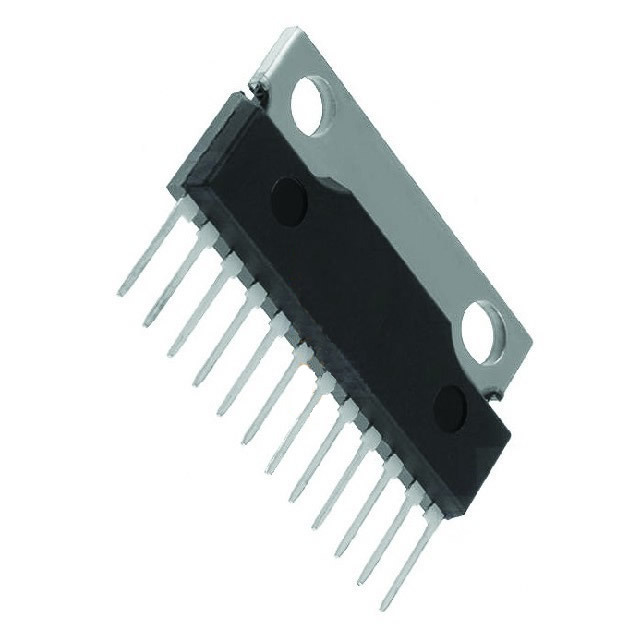

View detailed images (4)

SMA6080

SKU: SMA6080
SMA6080 Transistor Silicon NPN - PNP CASE: SIP12 MAKE: Amphenol
Product specifications
Type Transistor Silicon NPN - PNP
Case SIP12
Manufacturer Amphenol
Polarity NPN*PNP
Maximum Collector Power Dissipation (Pc) 20 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 60 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 2 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 20 pF
Transition Frequency (ft): 50 MHz
Forward Current Transfer Ratio (hFE), MIN 2000
SKU 296838
