SMH105
View detailed images (8)

SMH105

SKU: SMH105

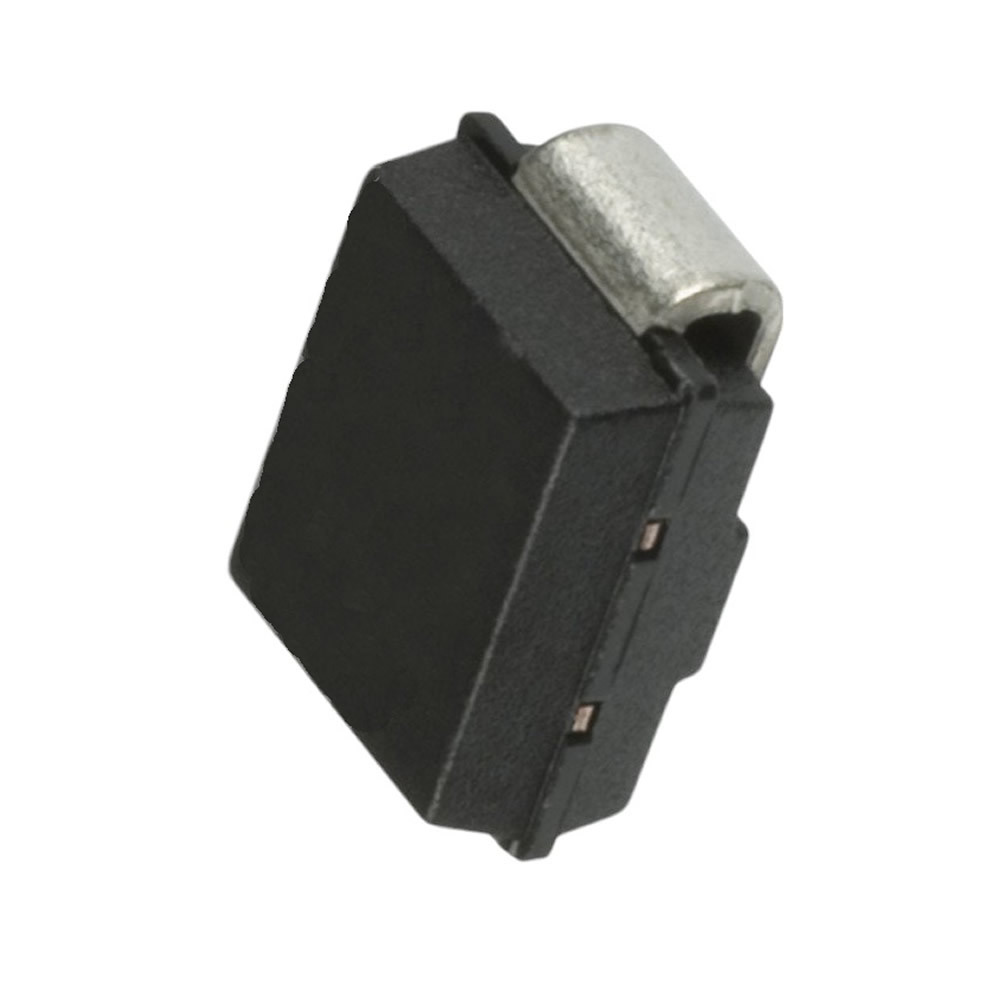

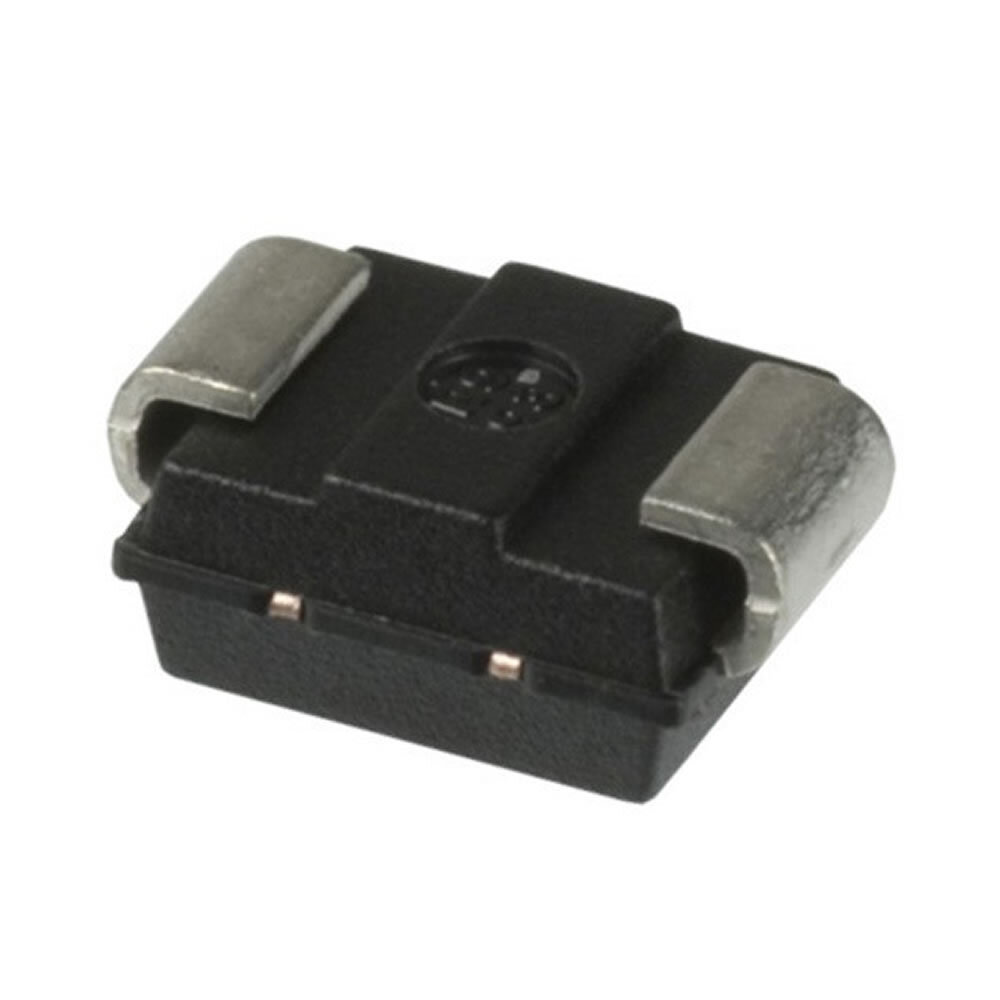

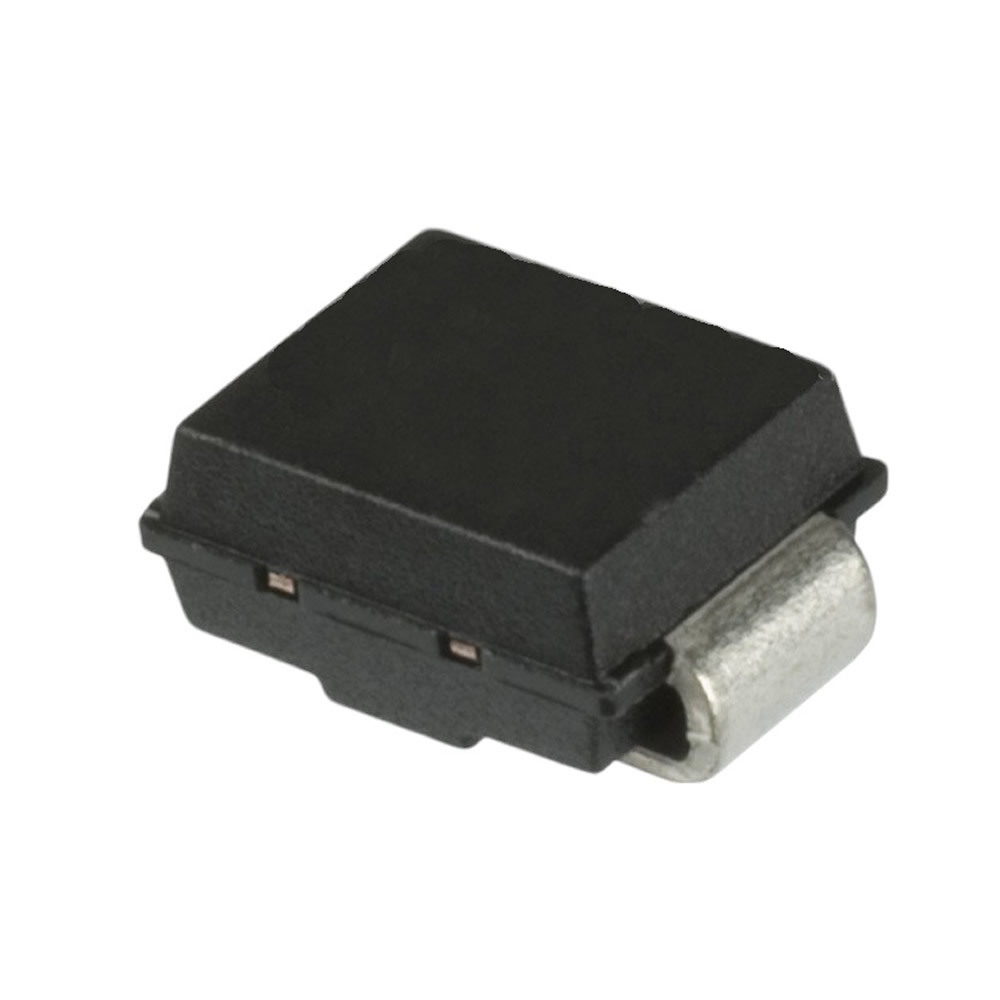

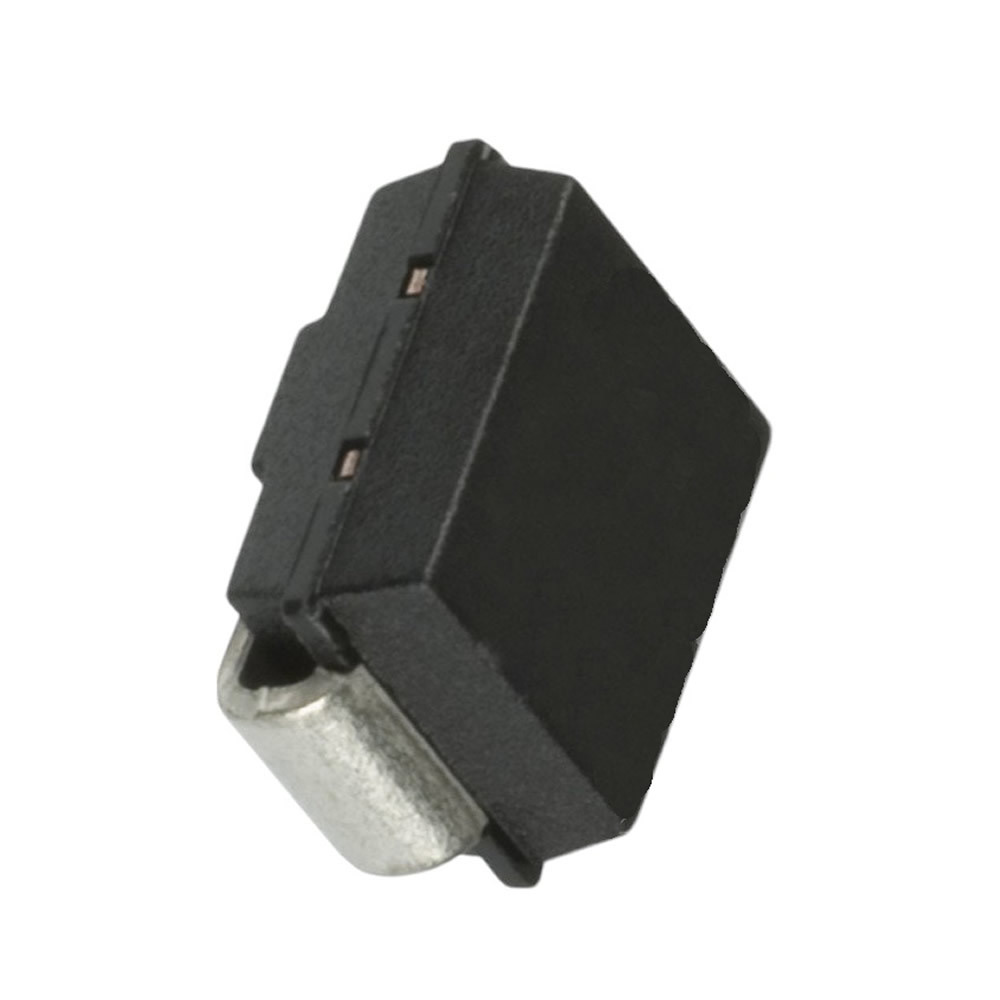

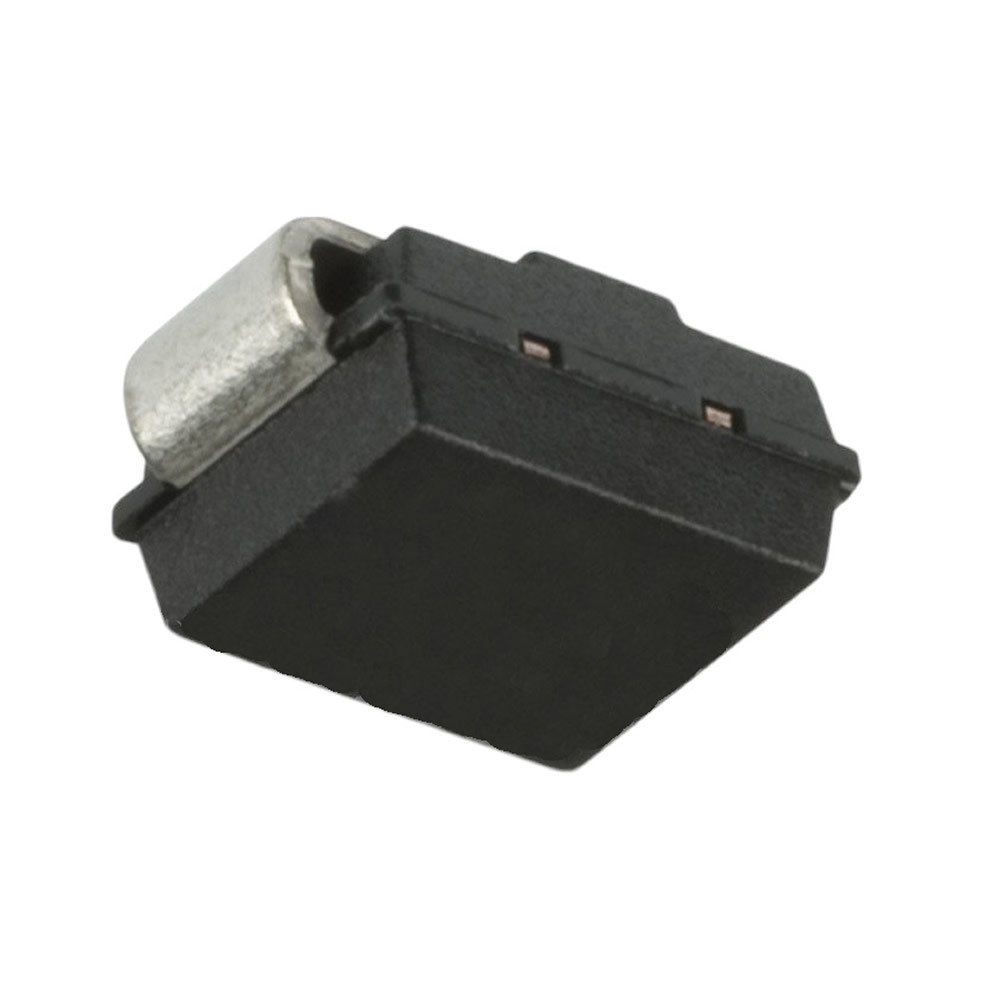

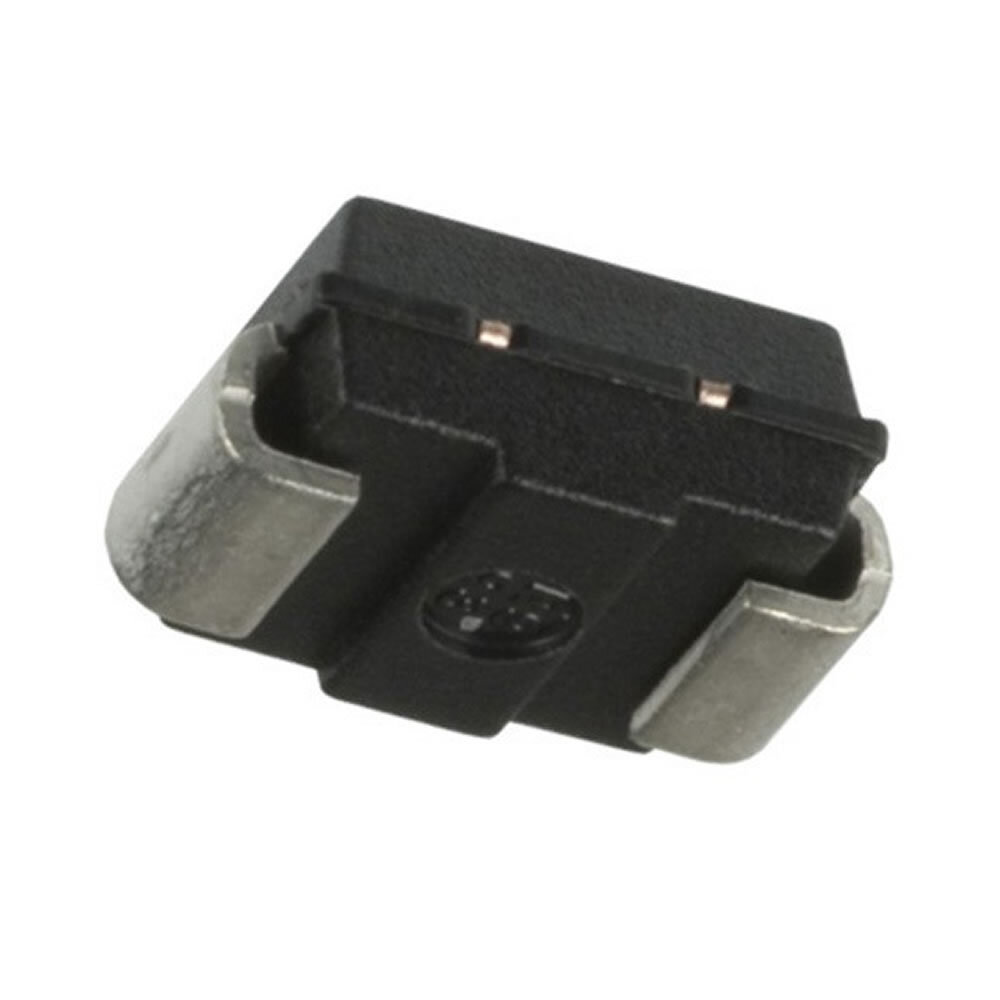

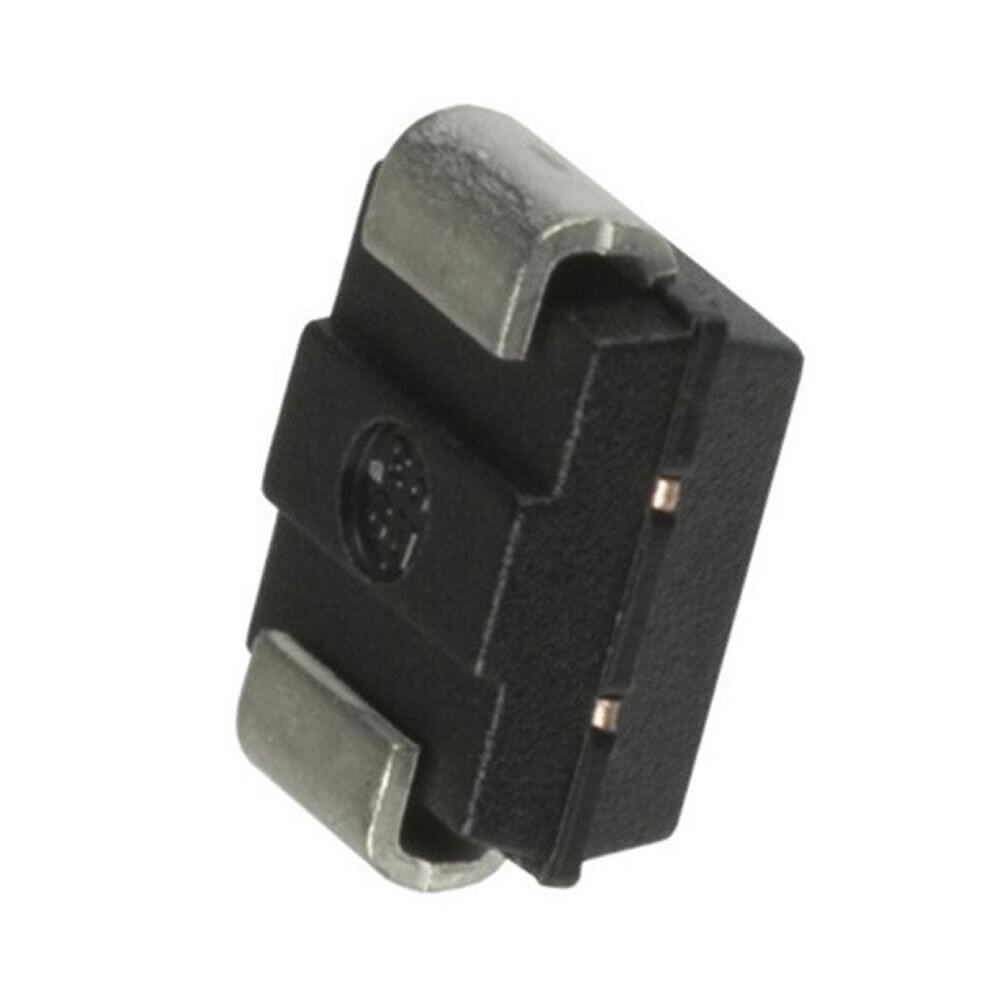

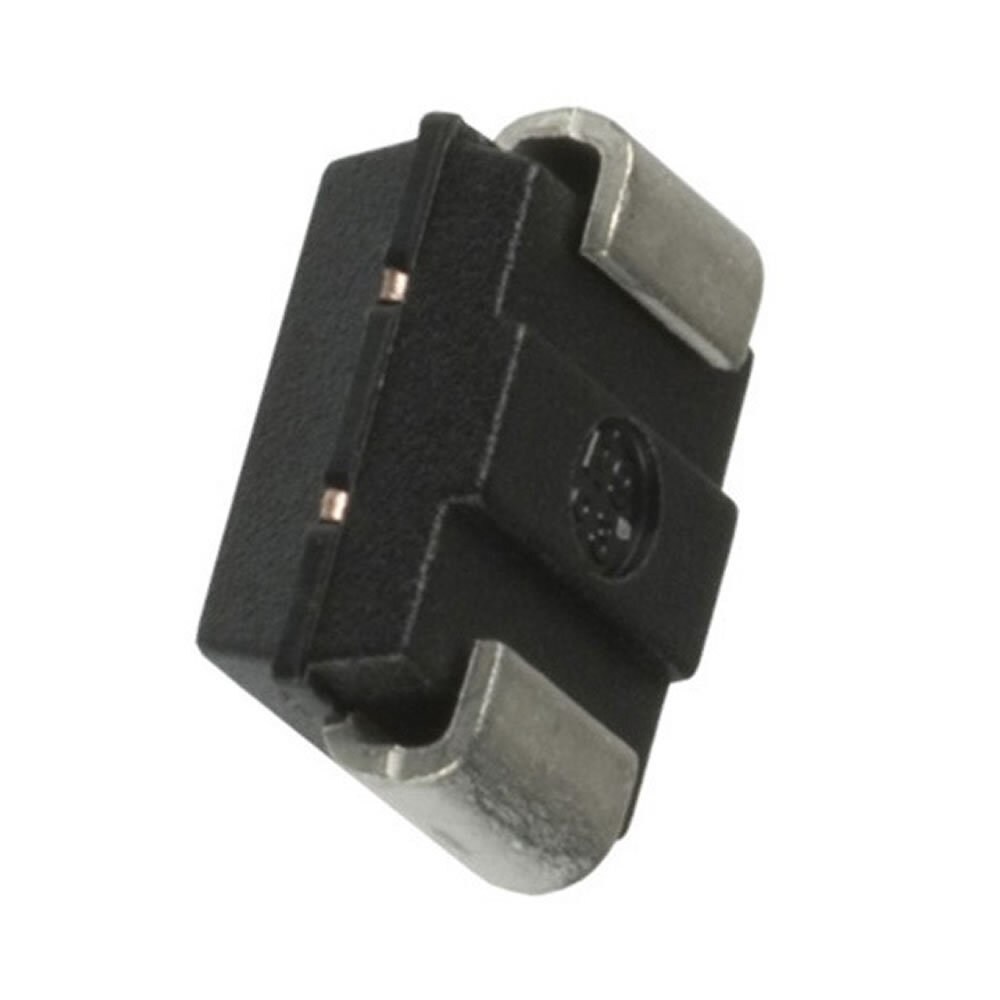

SMH105 Semiconductor CASE: DO214 MAKE: SINT
Product specifications
Type Semiconductor
Case DO214
Manufacturer SINT
@Temp. (test) (°C) 75
Ir @ Diff. Temp (A) 50u
VRRM 300
1-Cycle Surge Current (A) 30
@Temp (test) (°C) 125
@Temp. (test) for Vf) 25
Vf Max. 1.25
Ir @25°C 5.0u
I(out) (If AVG) Max. 1.0
@Volts (test) (V) 300
@If (test) 1.0
Oper. Temp (°C) Max. 175
Surface Mounted Yes/No YES
SKU 860235
