SN54ABT16470WD

SN54ABT16470WD

SKU: SN54ABT16470WD

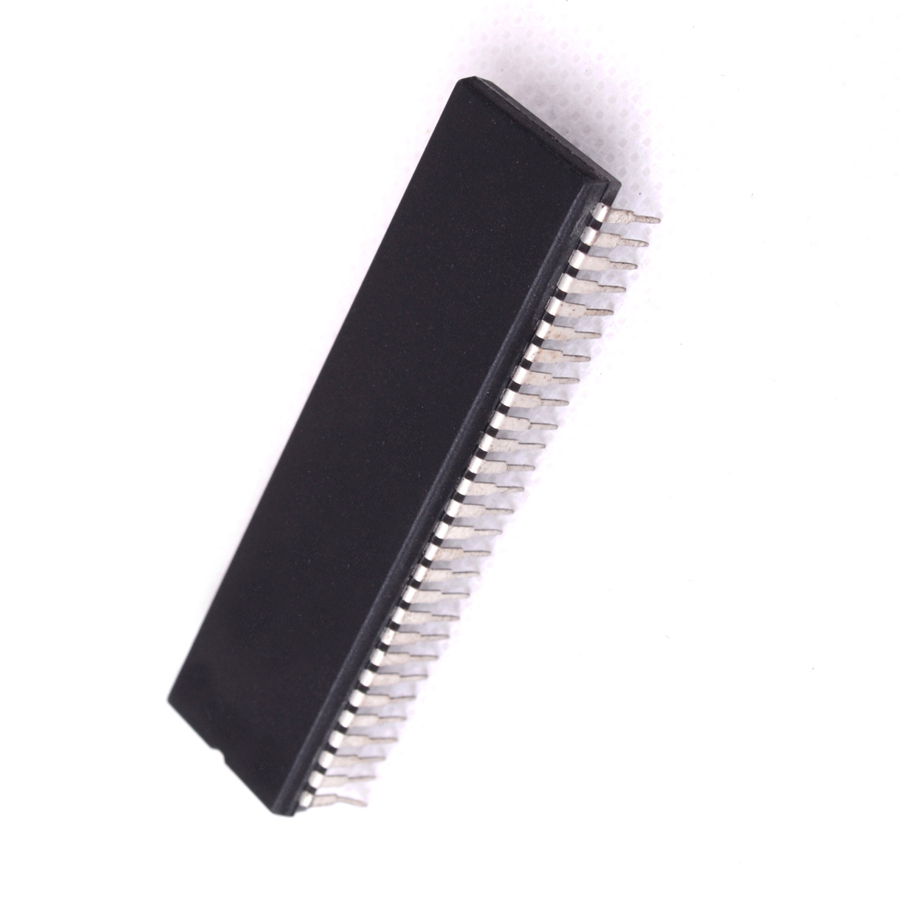

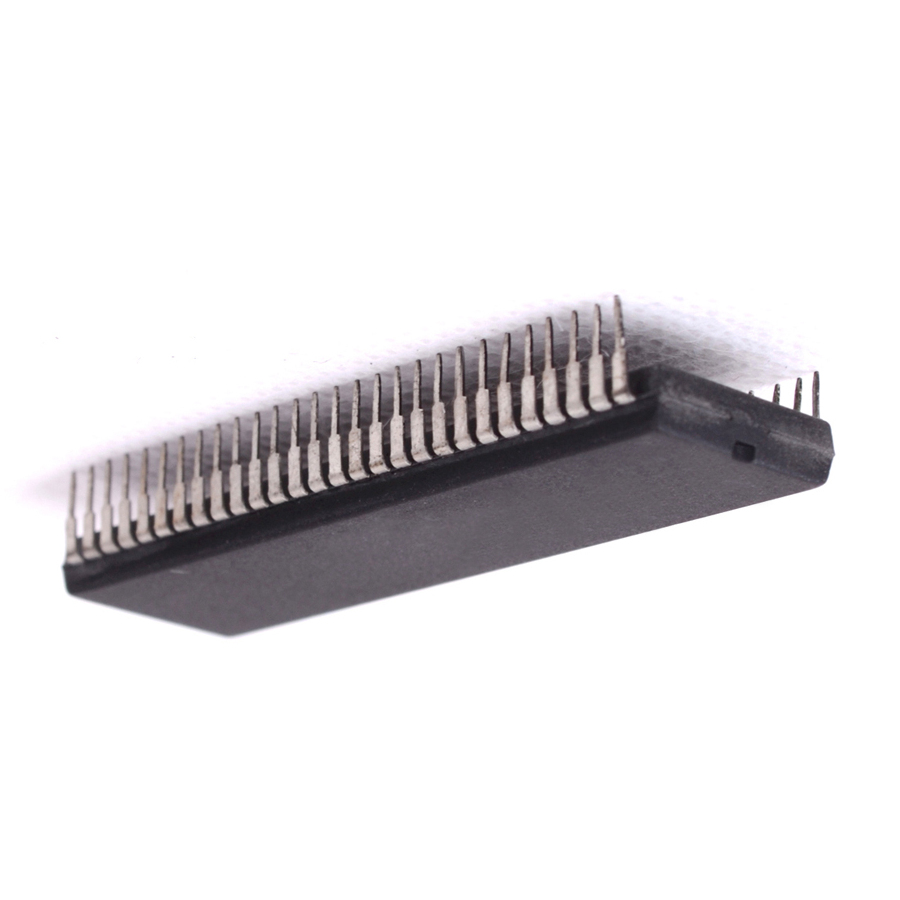

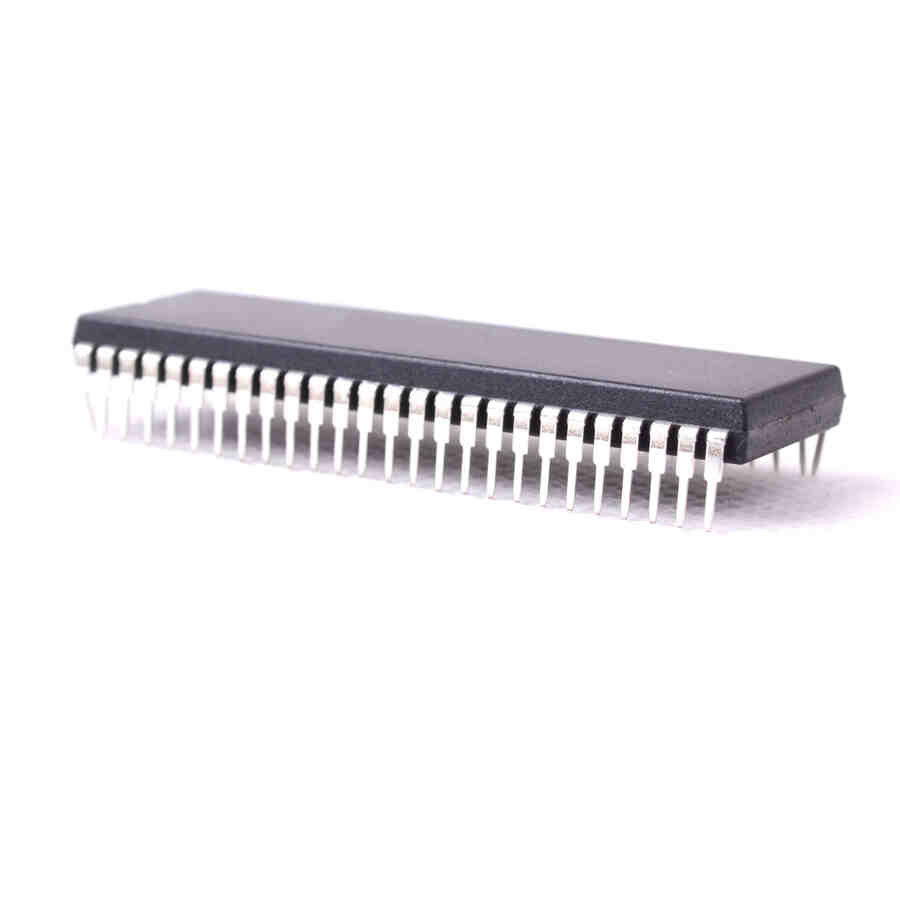

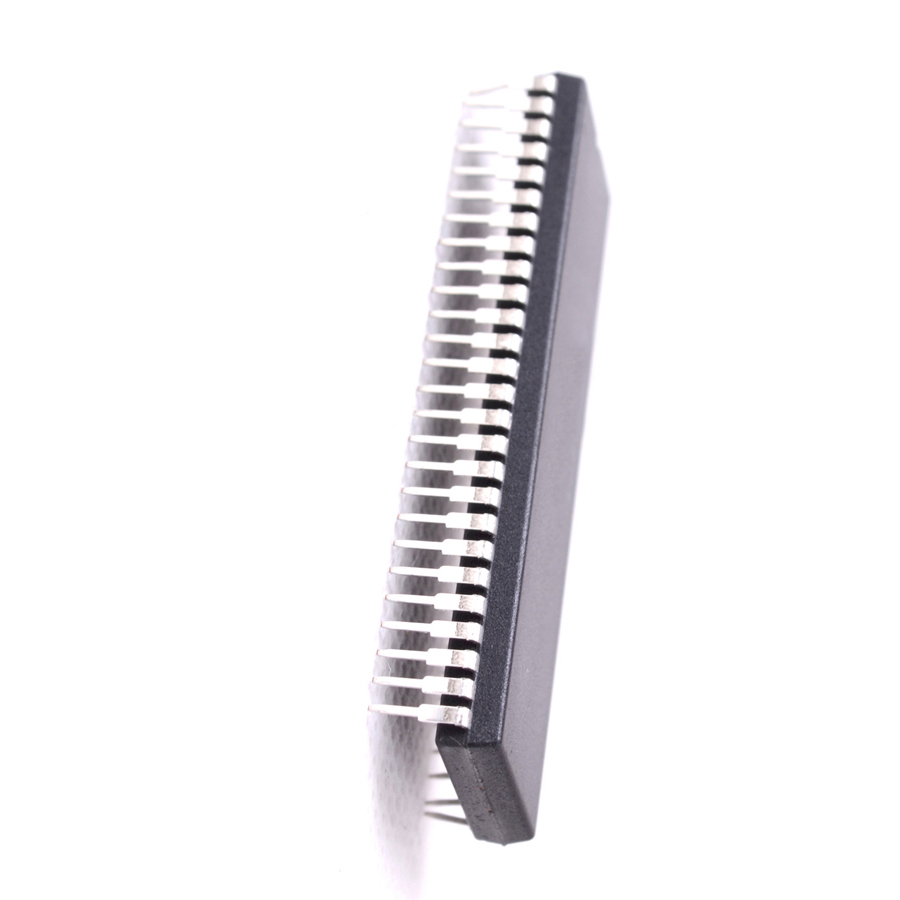

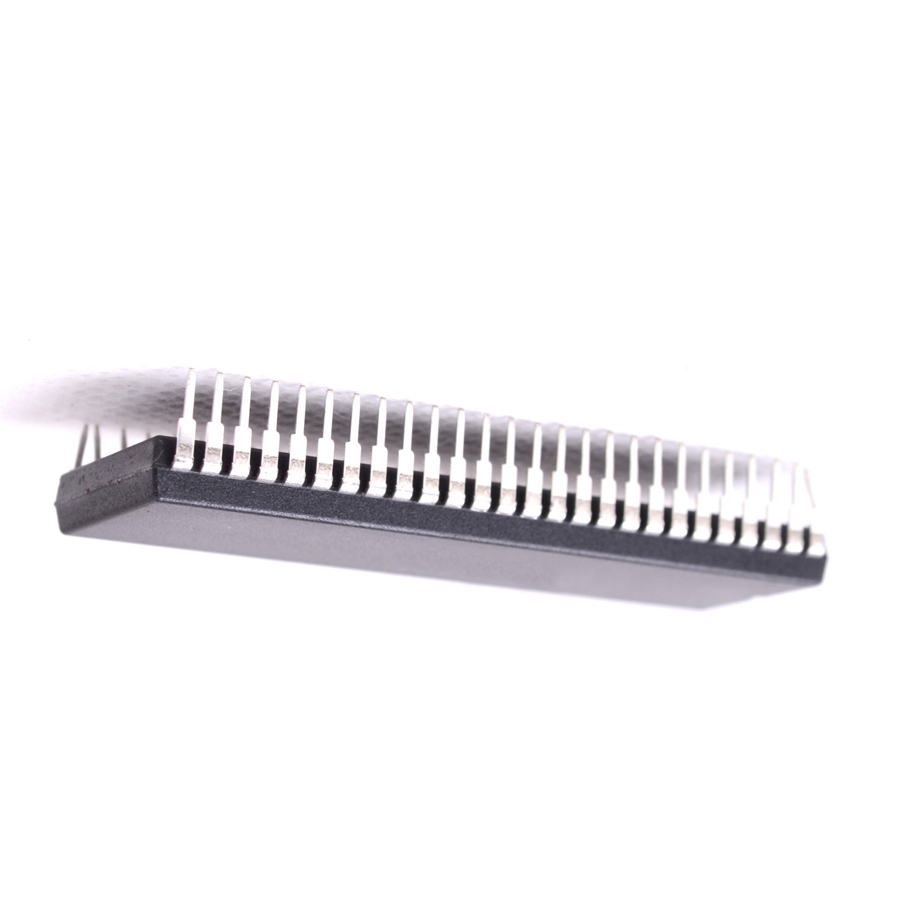

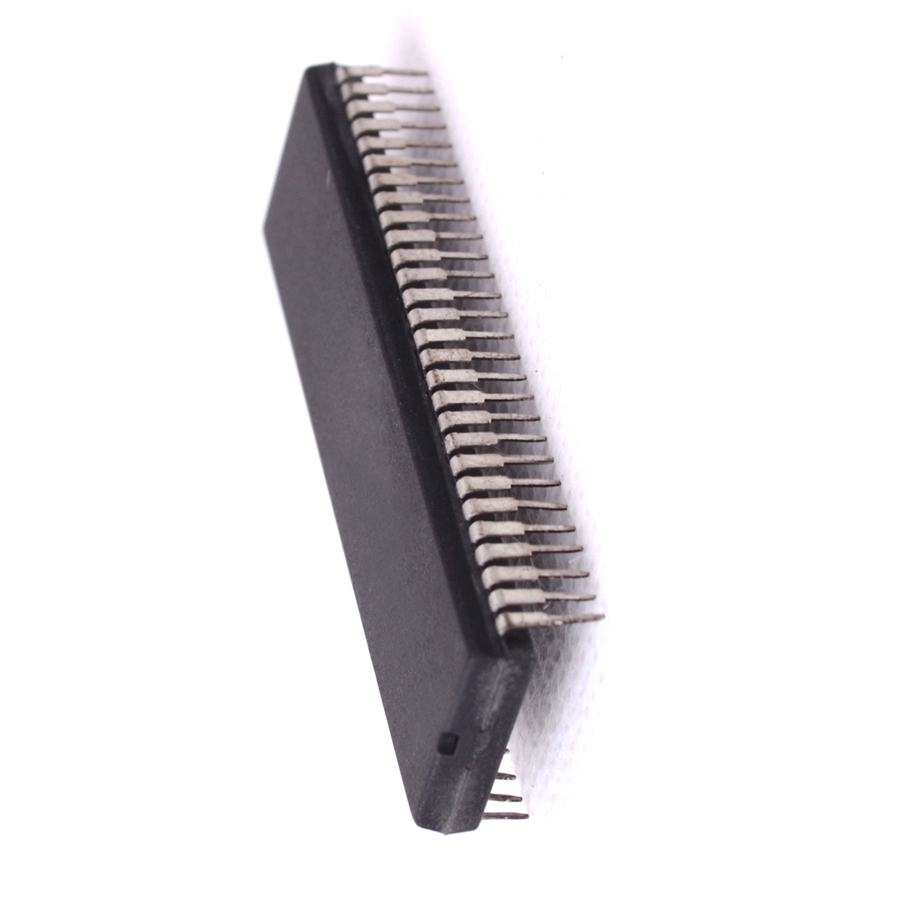

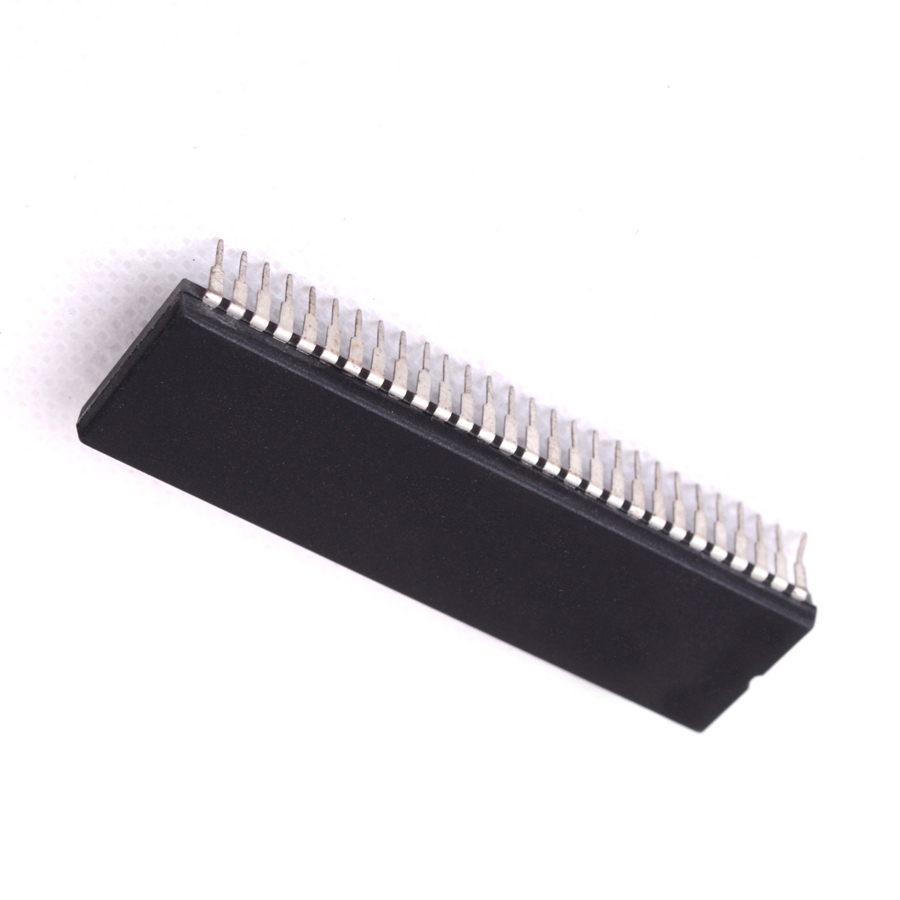

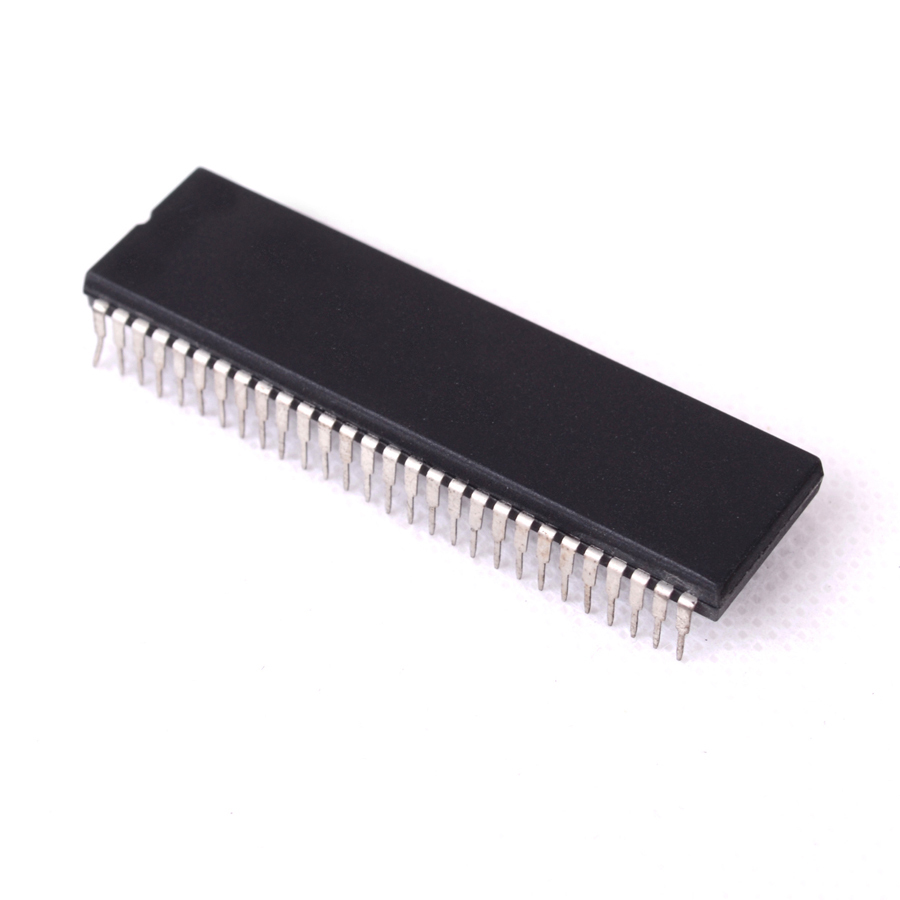

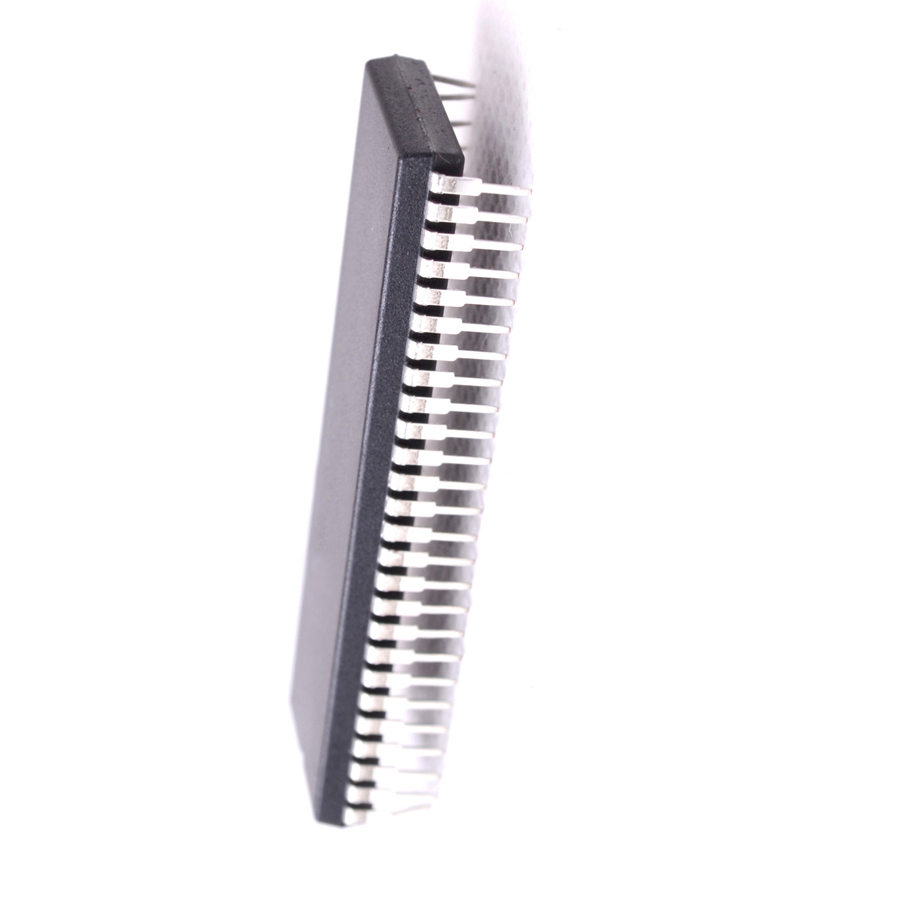

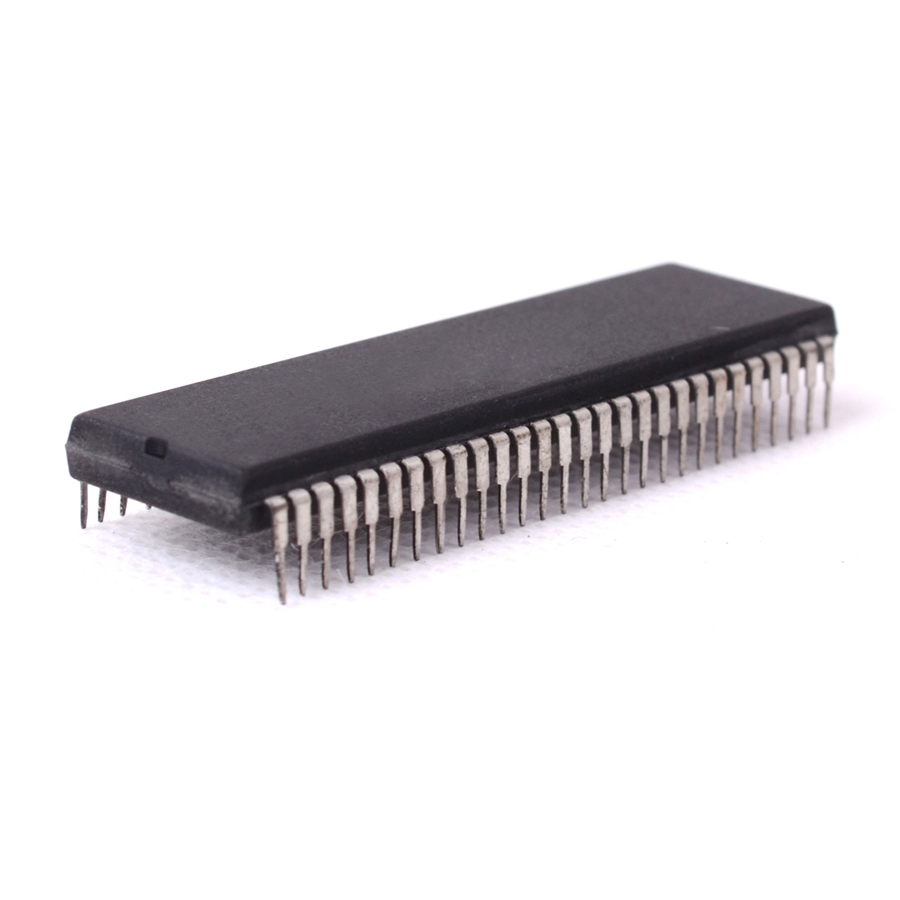

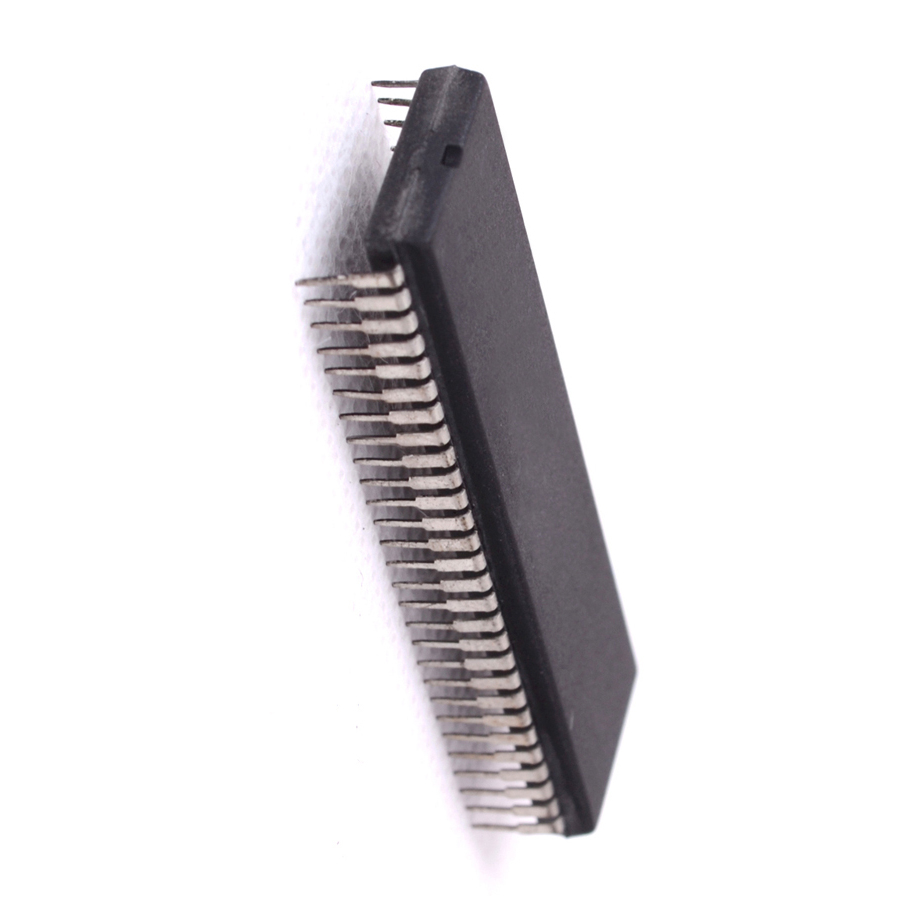

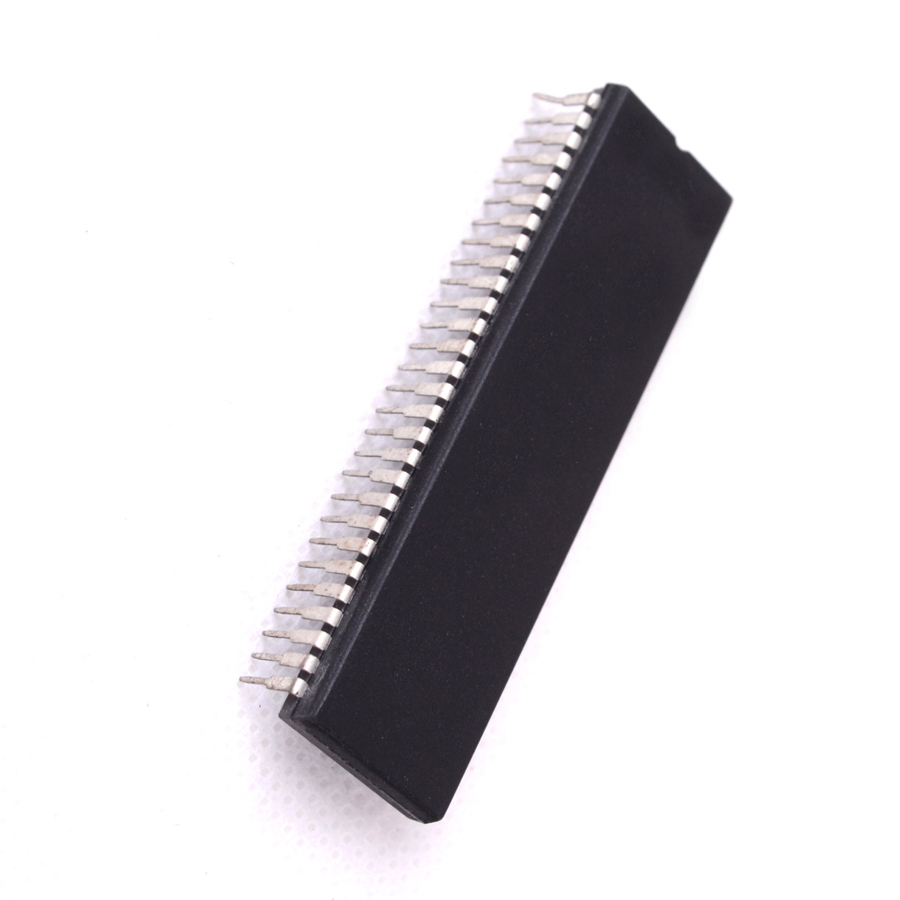

SN54ABT16470WD Integrated Circuit CASE: DIP56 MAKE: Texas Instruments
Product specifications
Type Integrated Circuit
Case DIP56
Manufacturer Texas Instruments
Inp Thrshld Hi (V) 5.5
Inp Thrshld Lo (V) 0
Mode I/O D or S Single-End
Nom. Pos. Supp 5.0
Tech. Bioplar CMOS Integrated Circuit
Oper. Temp (°C) Min -55
Oper. Temp (°C) Max. 125
@IOL (A) 64m
VOL Max. (Drvr) 0.55
VOL Max. (Rcvr) 0.55
VOH Min (Rcvr) 2.0
Pinout Equivalence Number 56-24
No. of Pins 56
Surface Mounted Yes/No YES
SKU 981957
