SN54LS547W

SN54LS547W

SKU: SN54LS547W

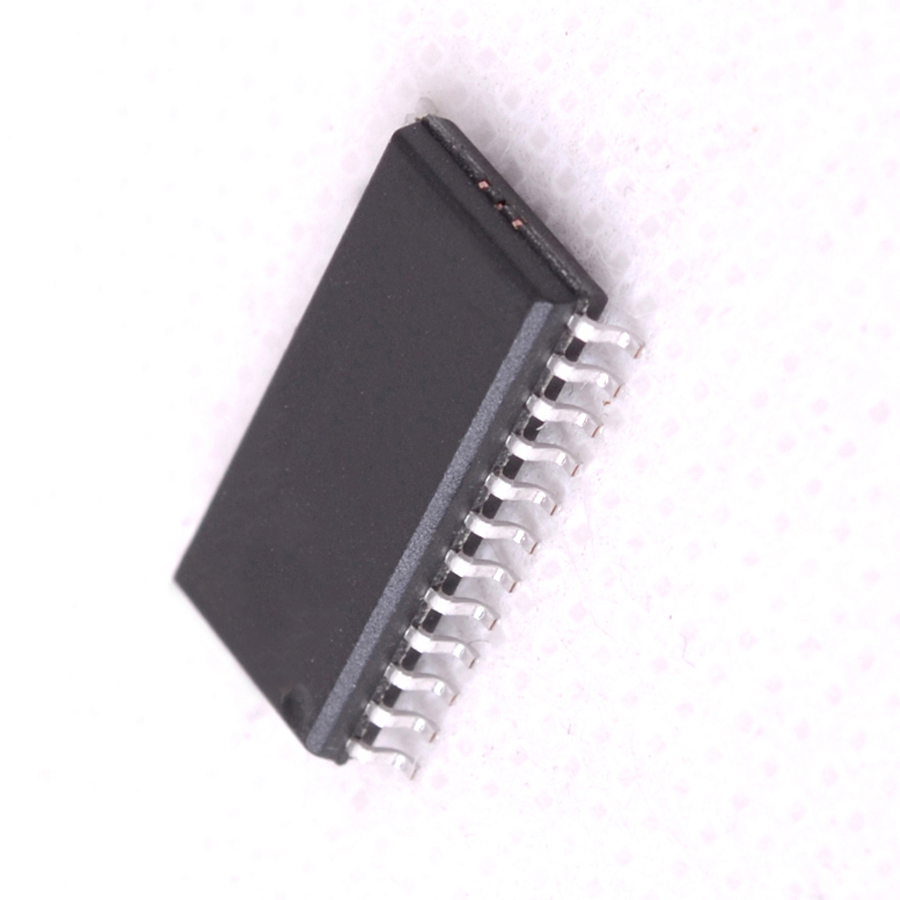

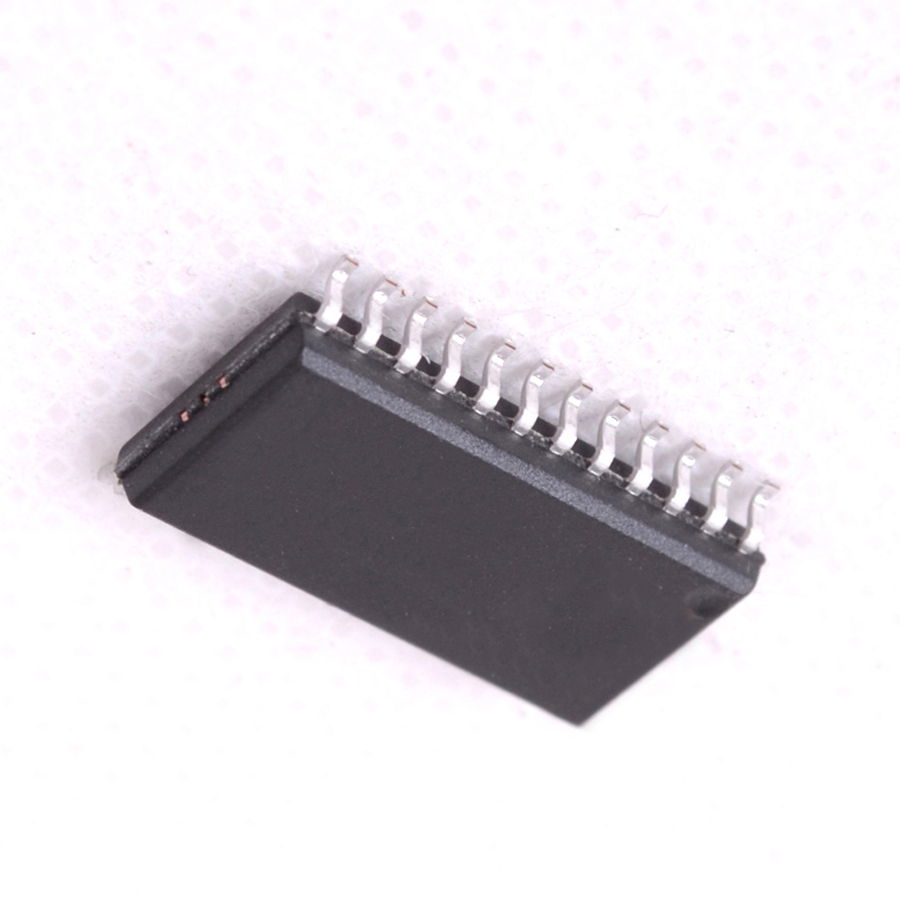

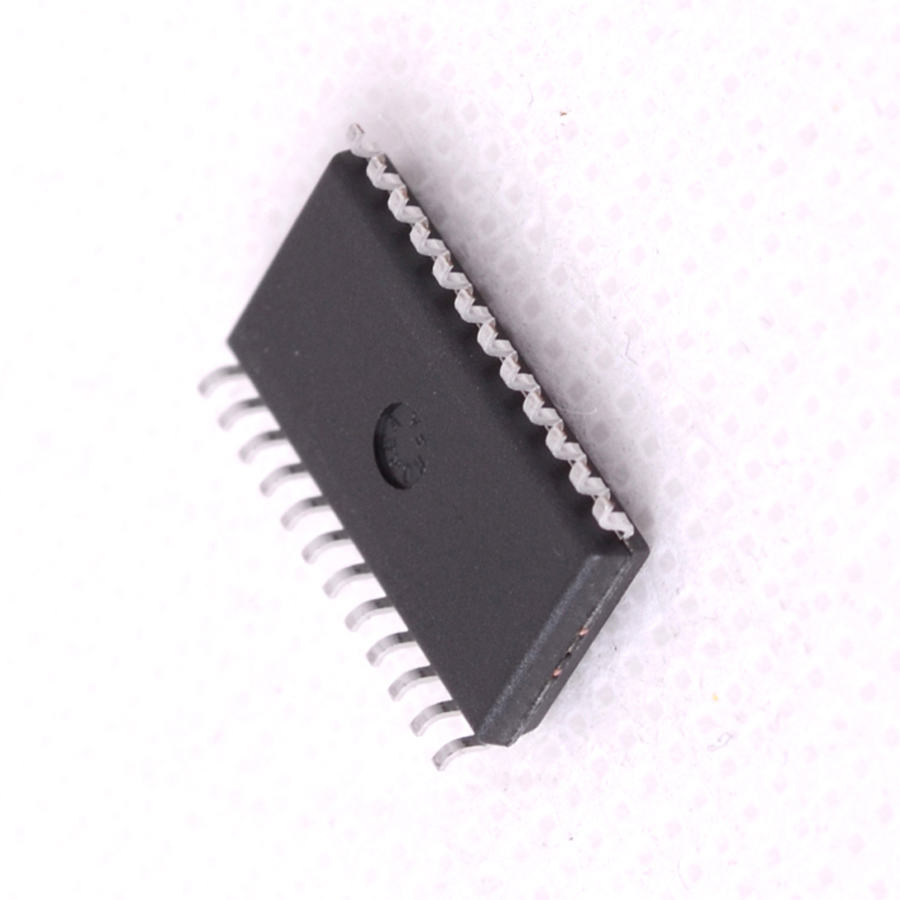

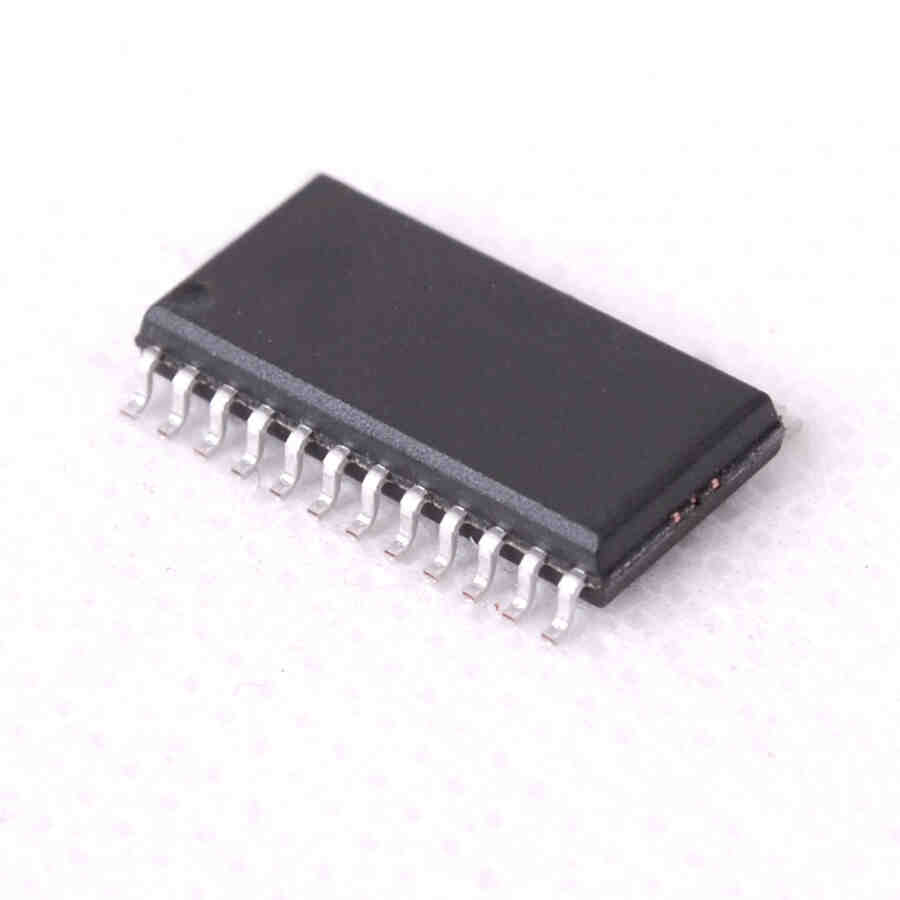

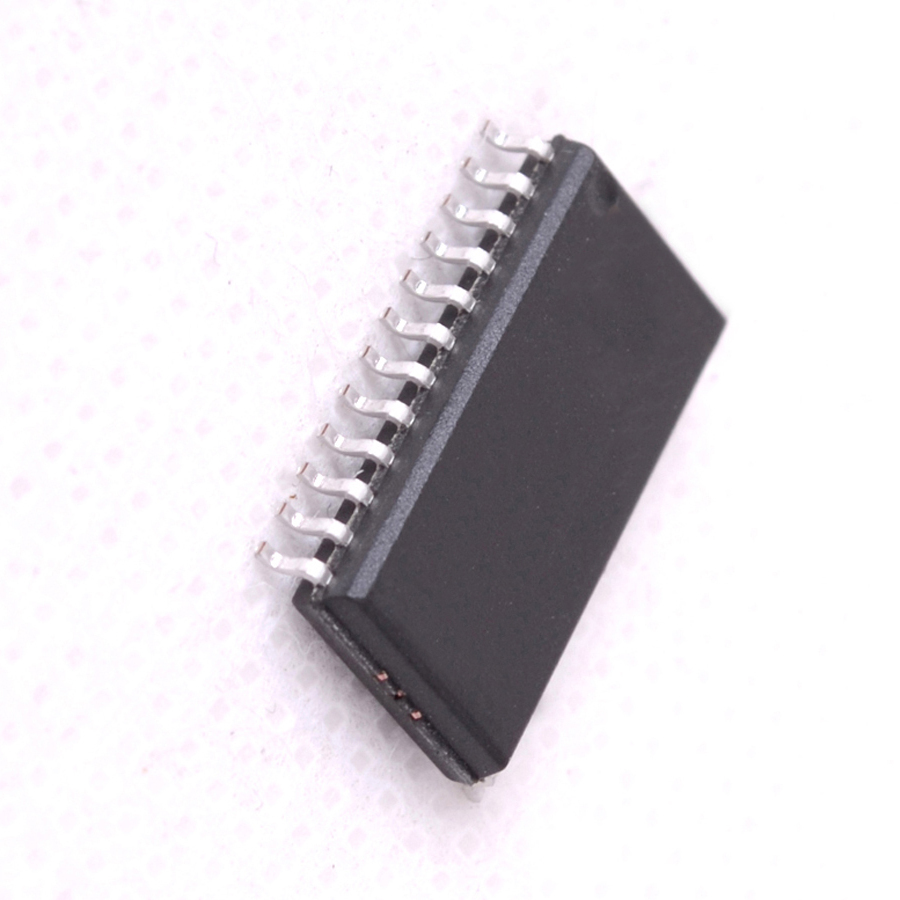

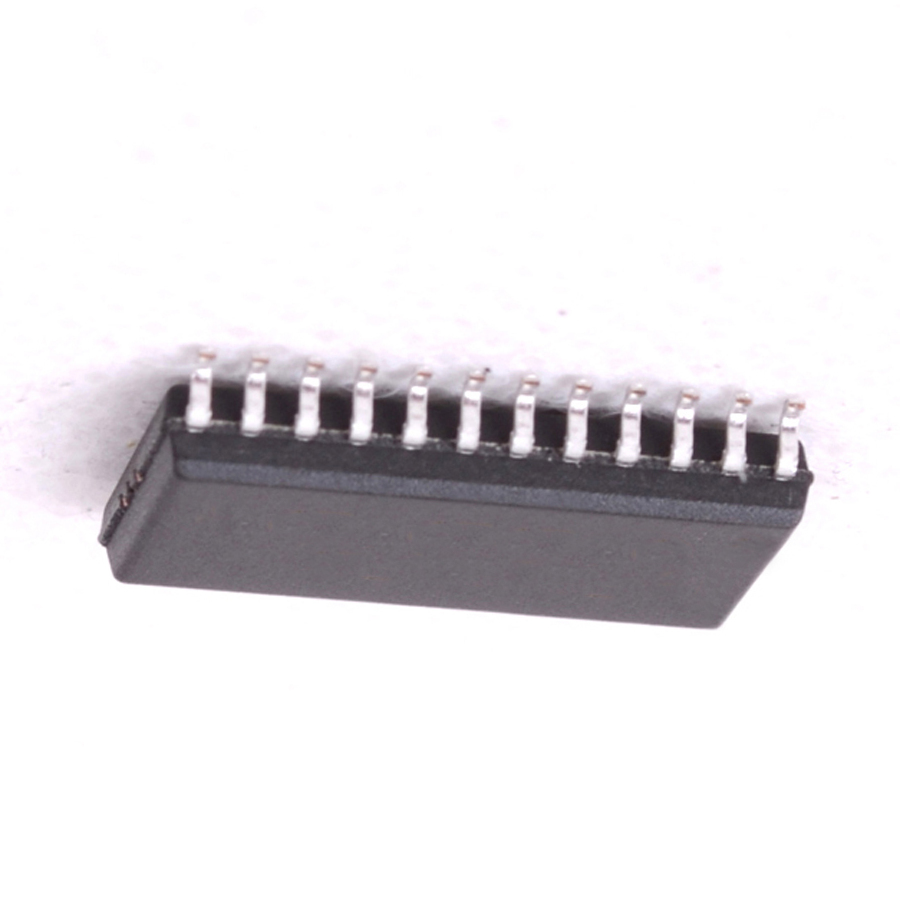

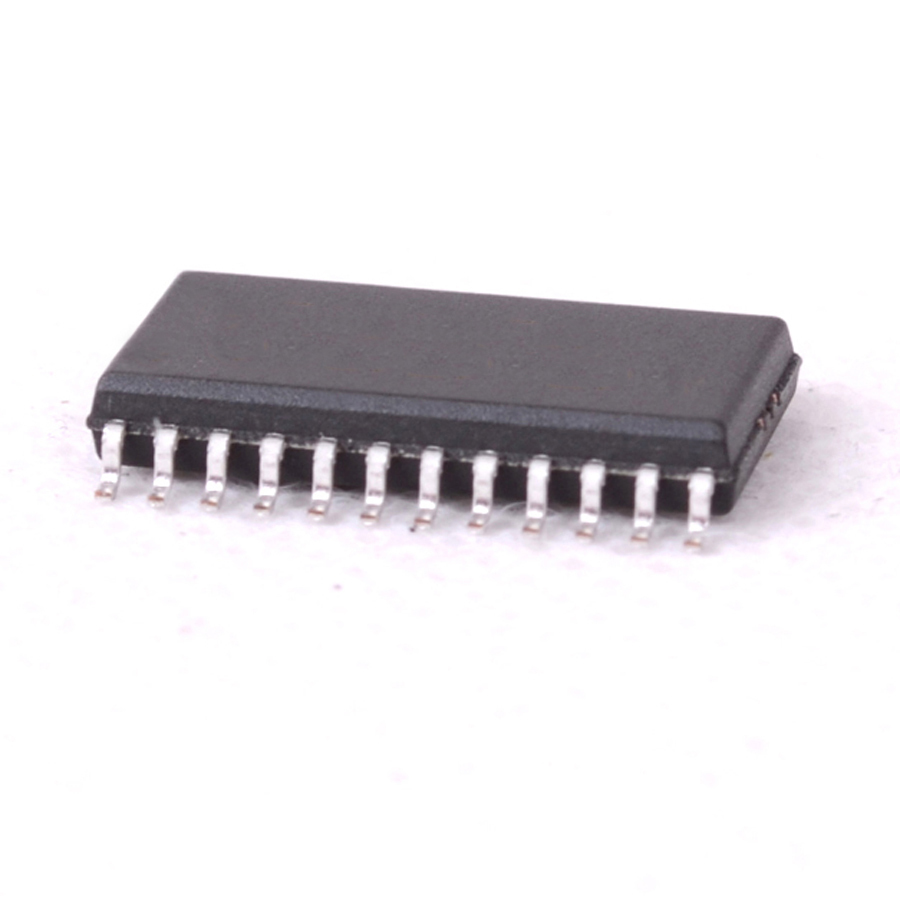

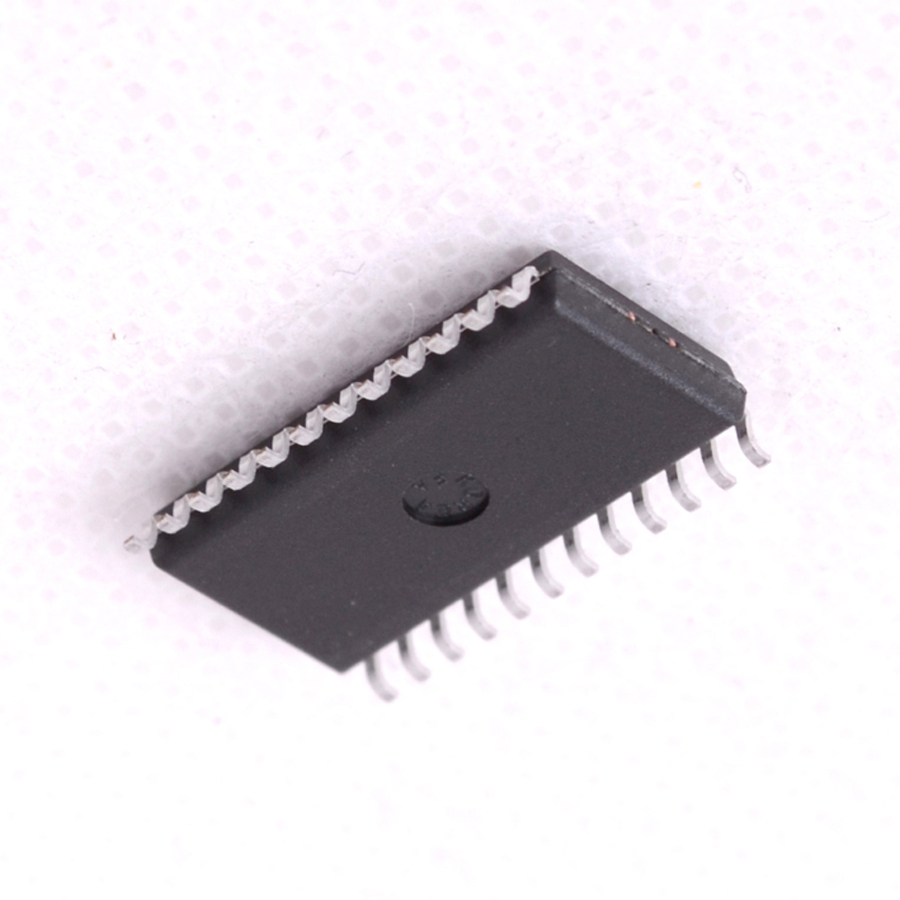

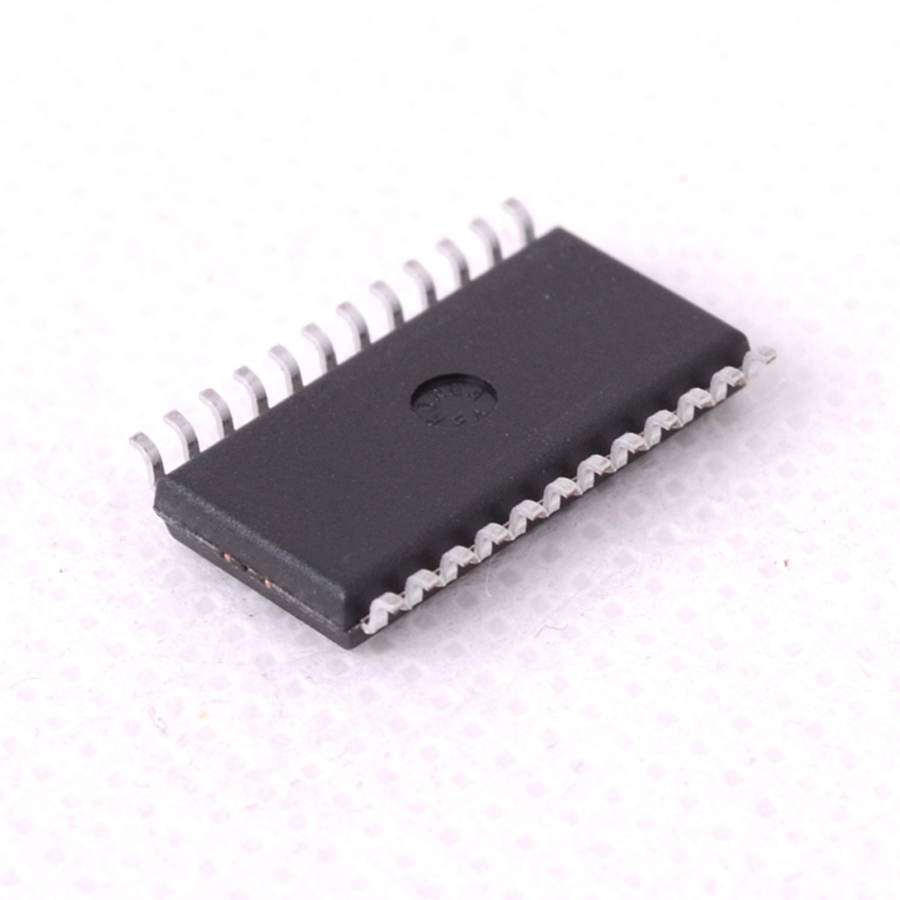

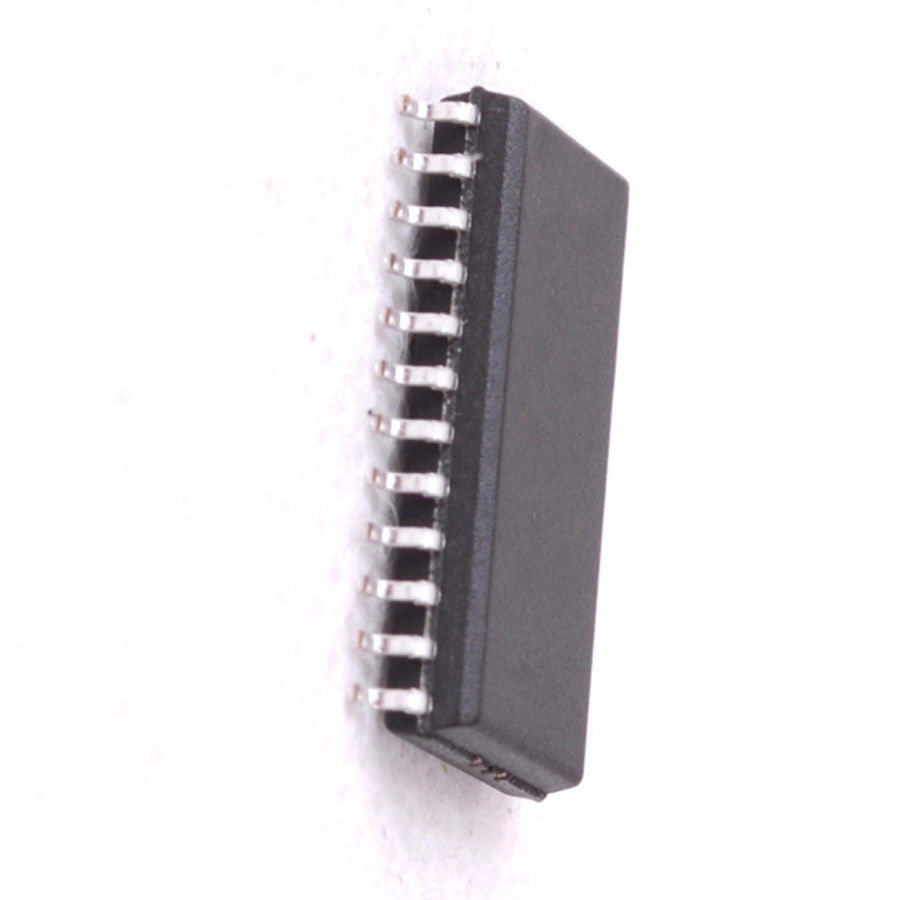

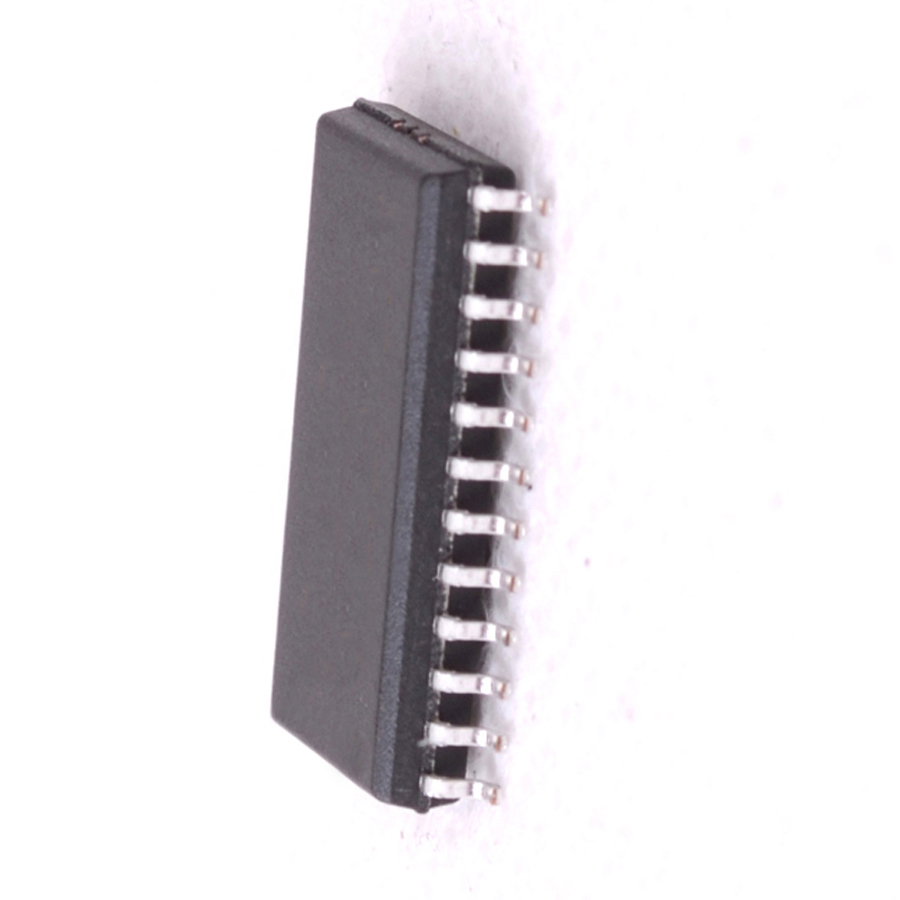

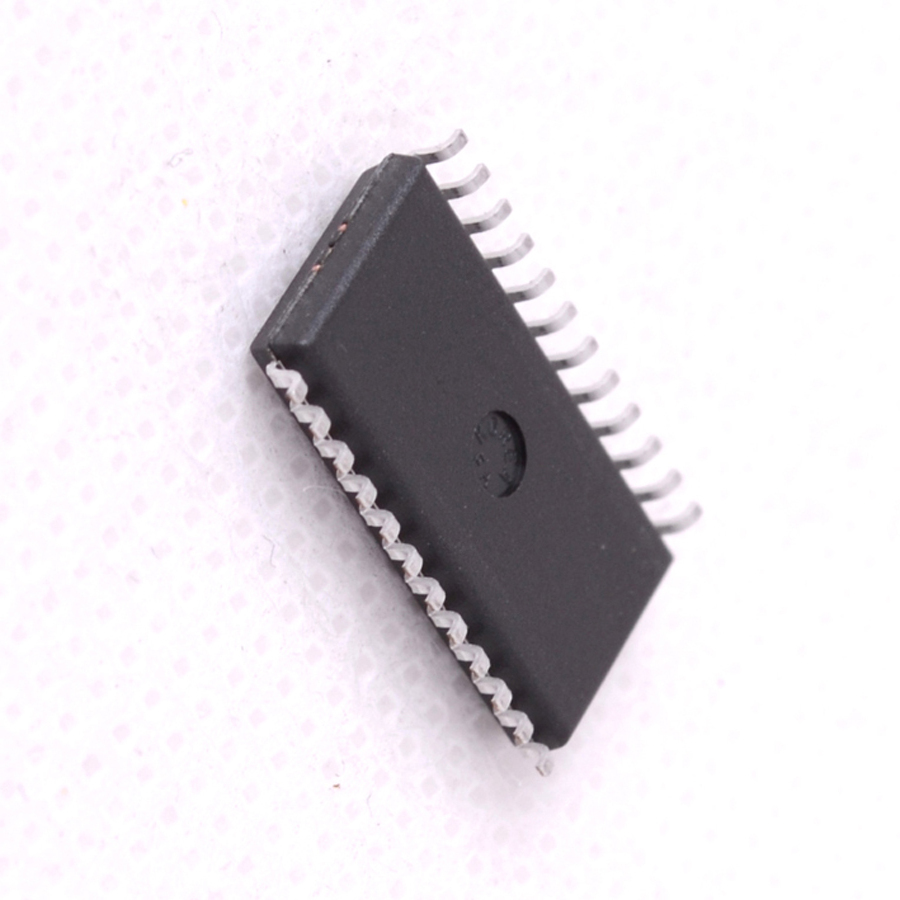

SN54LS547W Integrated Circuit CASE: SO24 MAKE: Texas Instruments
Product specifications
Type Integrated Circuit
Case SO24
Manufacturer Texas Instruments
Inp Thrshld Hi (V) 2.0
Inp Thrshld Lo (V) 0.8
Mode I/O D or S Single-End
tPD Max. (S) 23n
Nom. Neg Supp 0.0
Nom. Pos. Supp 5.0
Tech. TTL Integrated Circuit
Oper. Temp (°C) Min -55
Oper. Temp (°C) Max. 125
@IOL (A) 24m
VOL Max. (Drvr) 0.5
VOL Max. (Rcvr) 0.5
VOH Min (Rcvr) 2.4
Pinout Equivalence Number 24-416
No. of Pins 24
Surface Mounted Yes/No YES
SKU 980738
