SN54LS653JT

SN54LS653JT

SKU: SN54LS653JT

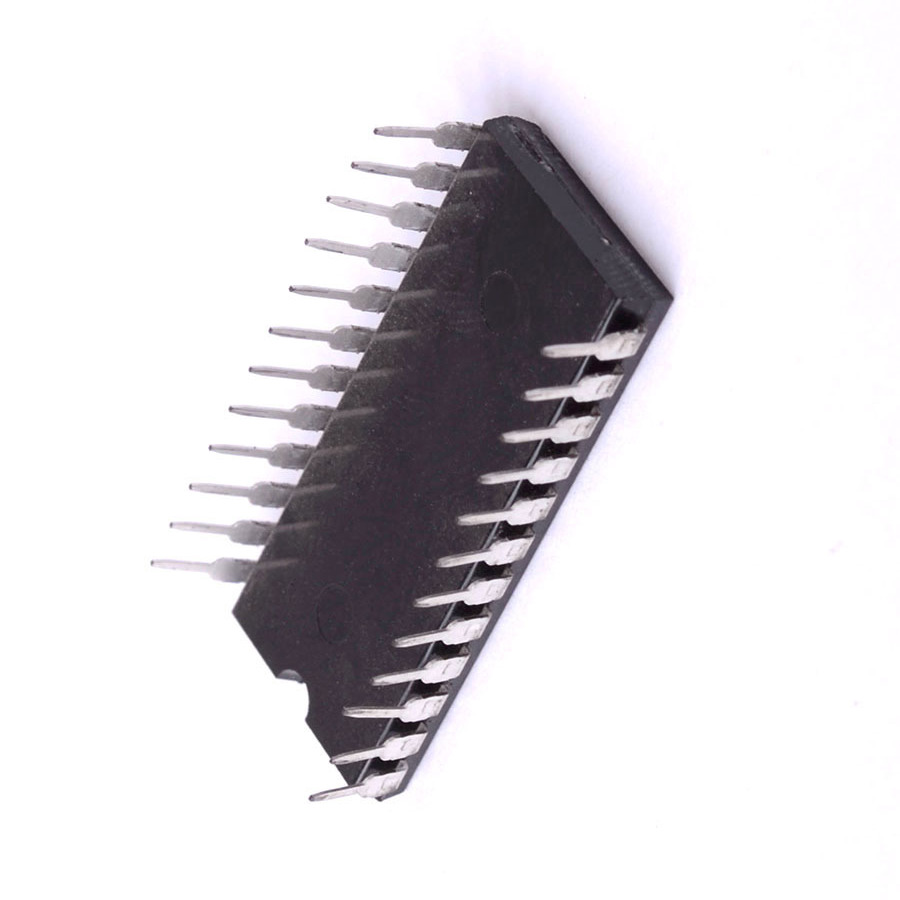

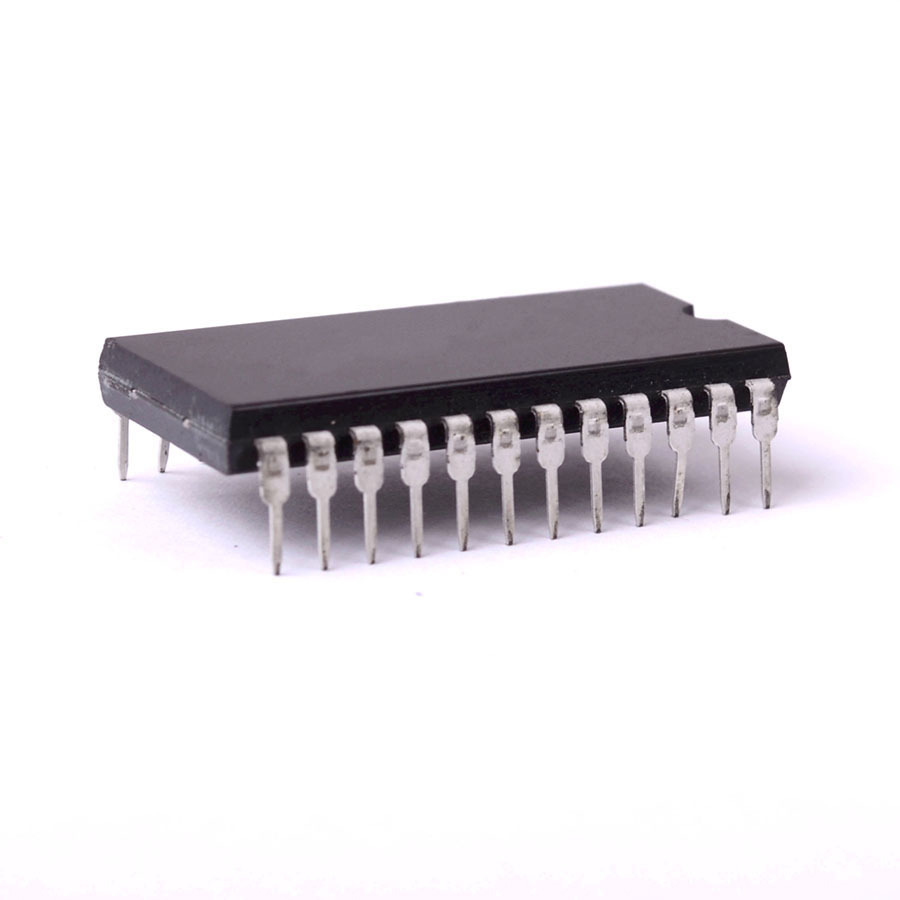

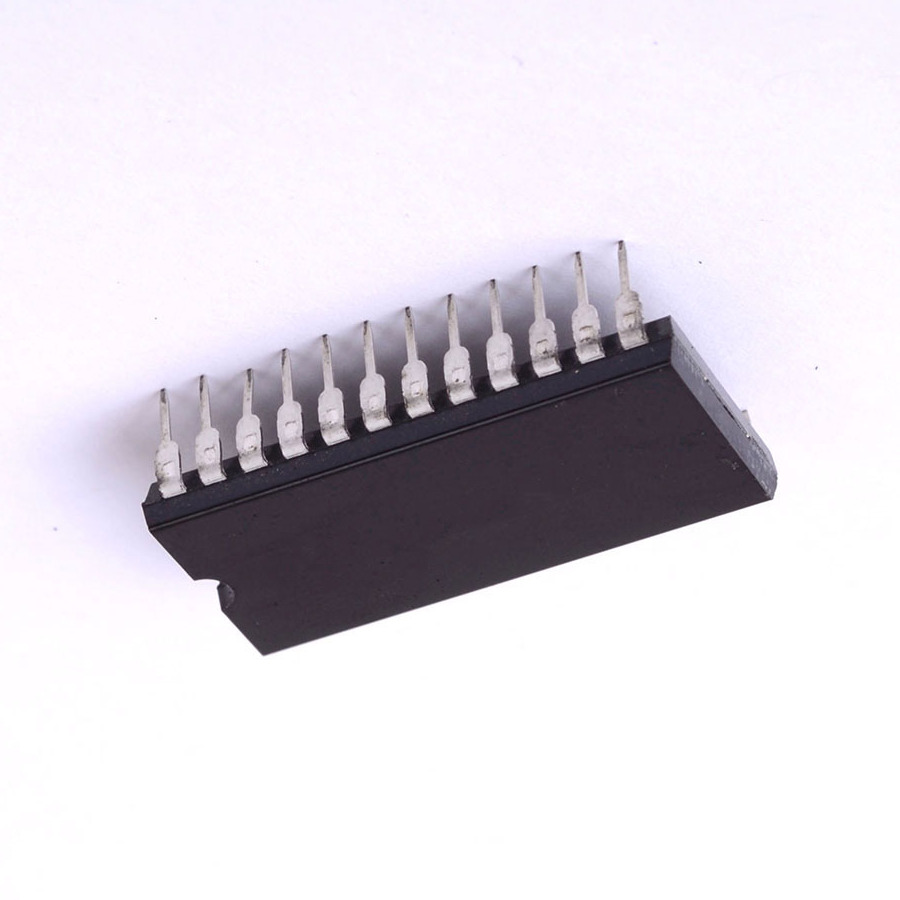

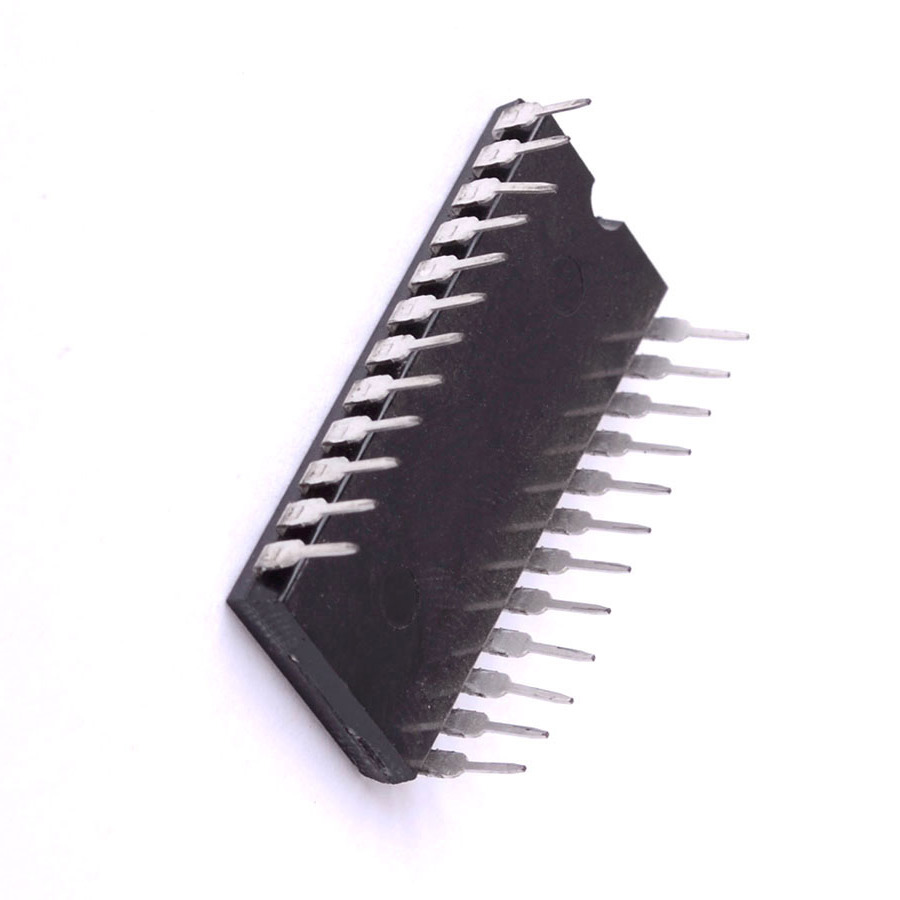

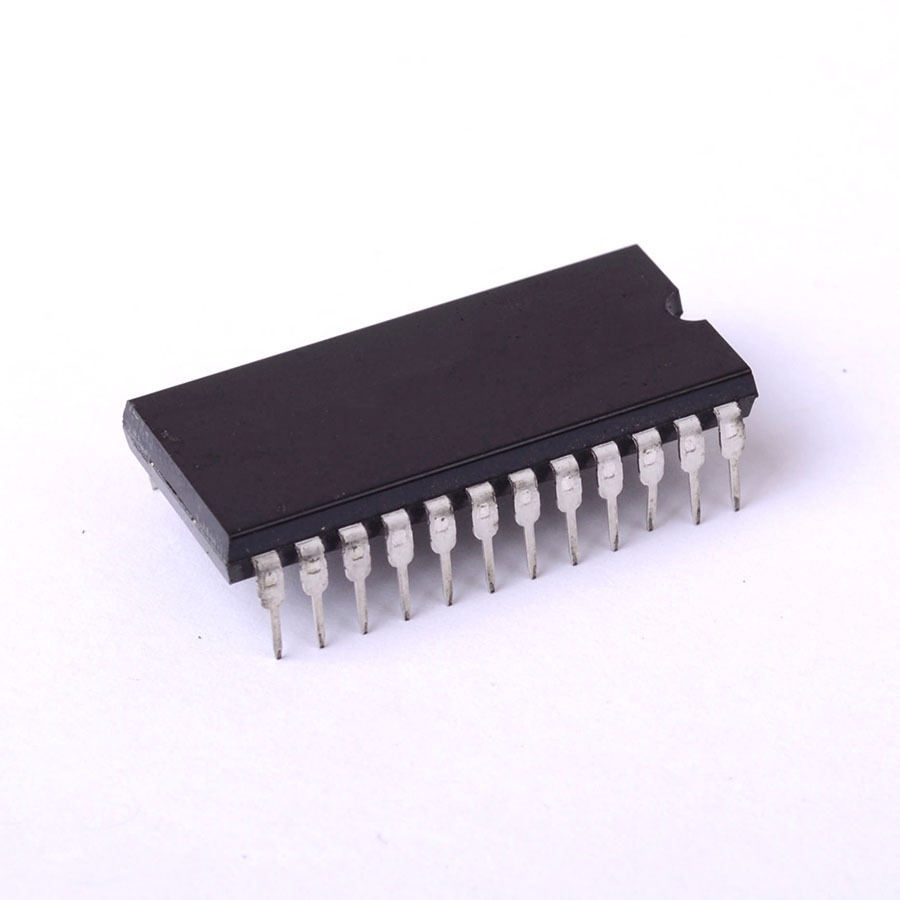

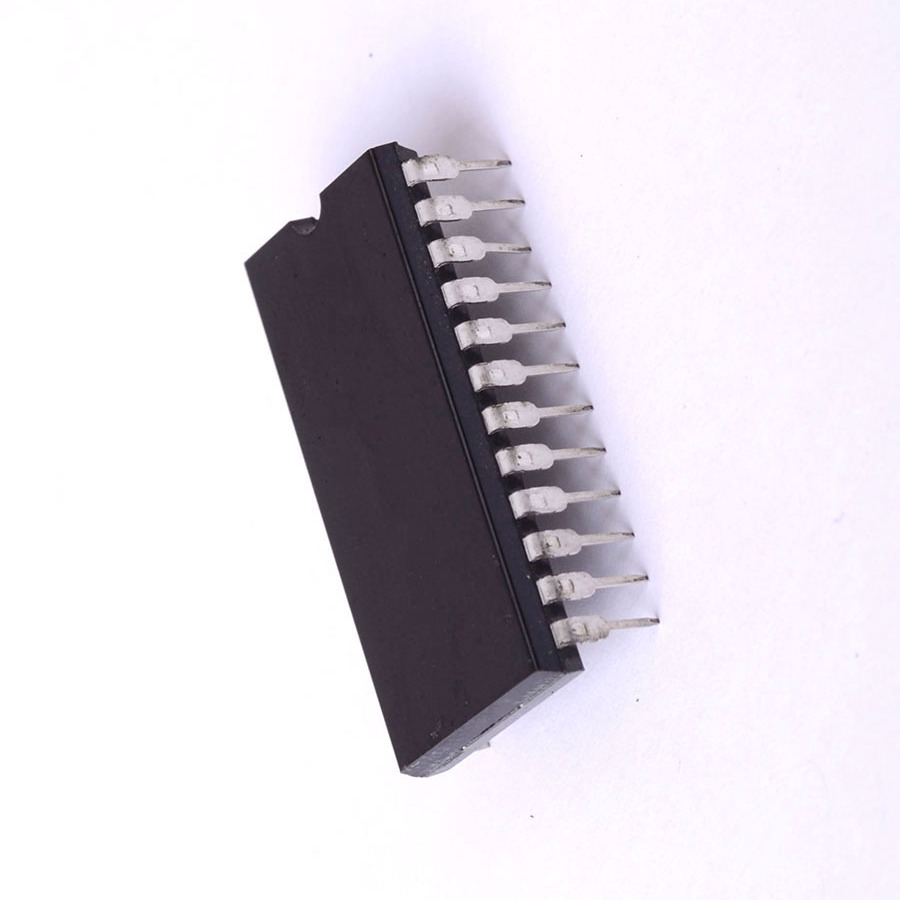

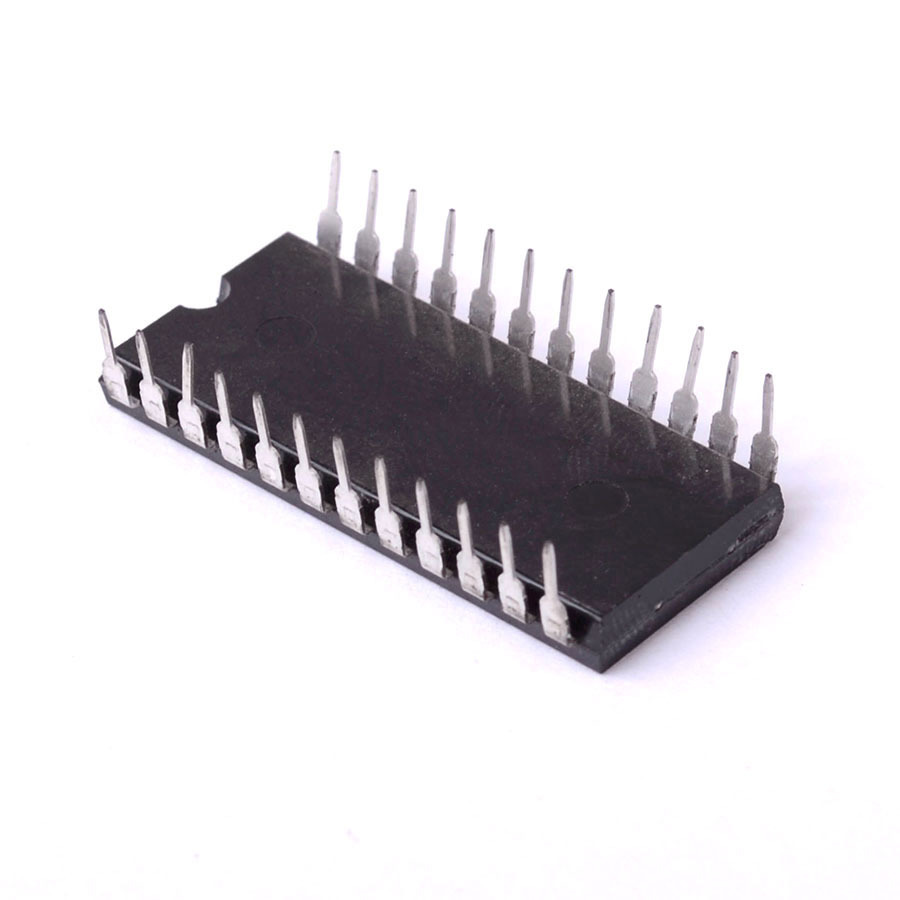

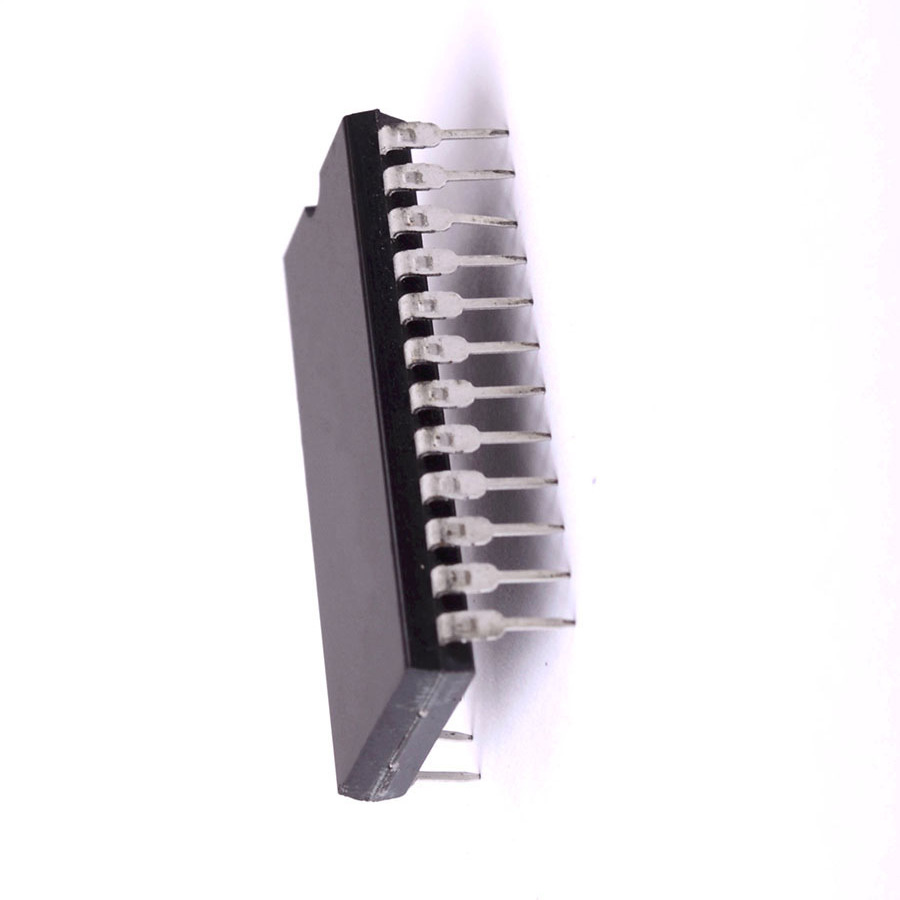

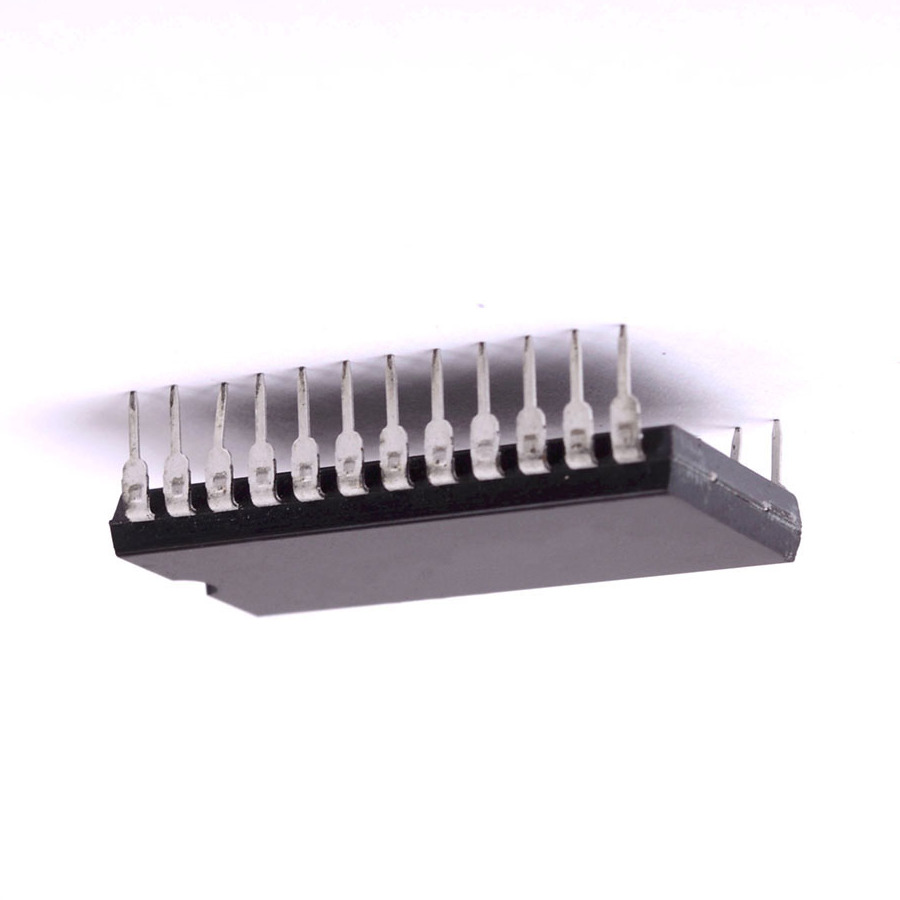

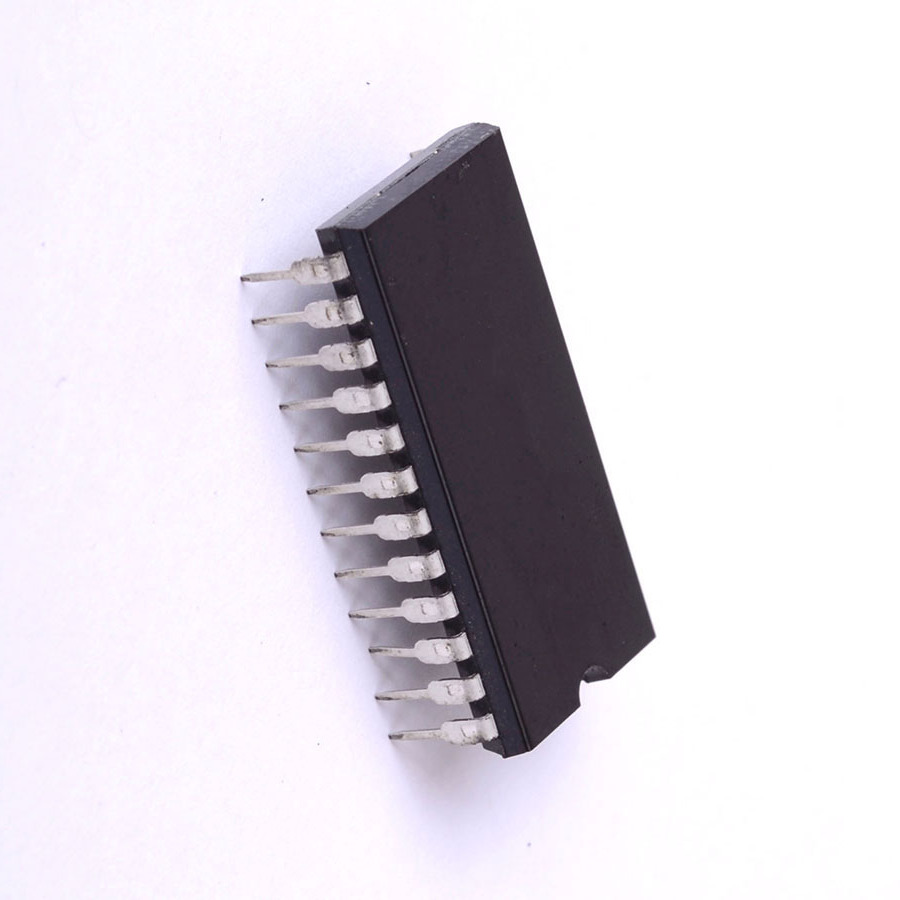

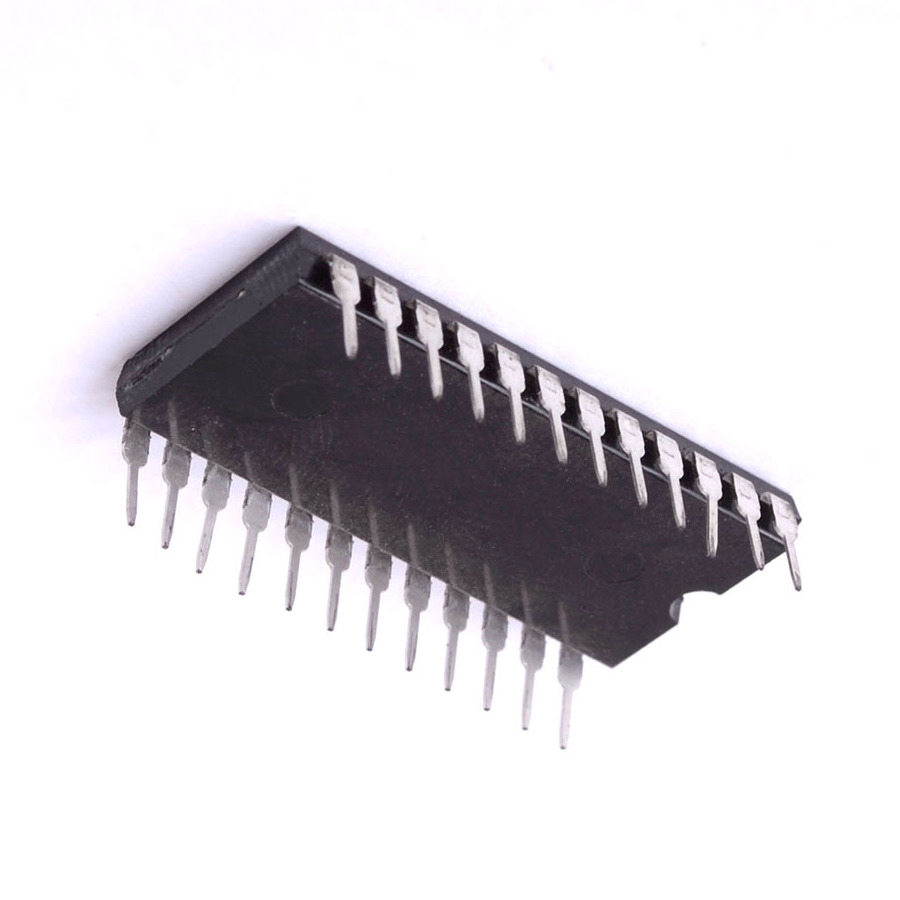

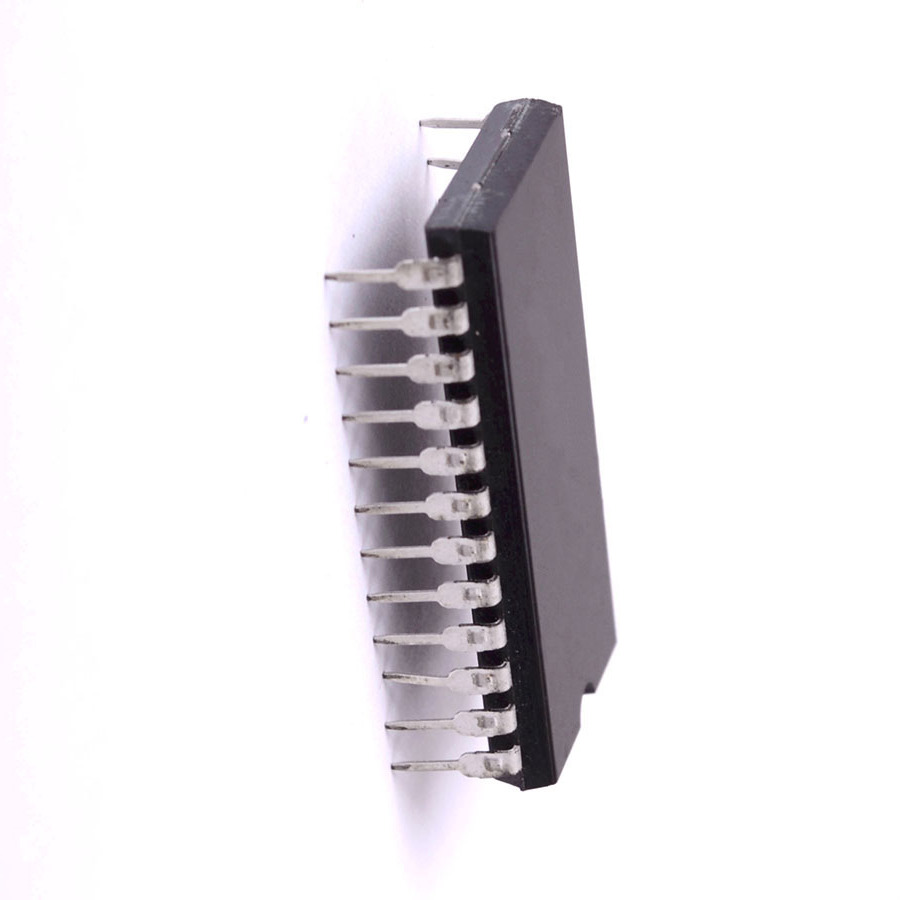

SN54LS653JT Integrated Circuit CASE: DIP24 MAKE: Texas Instruments
Product specifications
Type Integrated Circuit
Case DIP24
Manufacturer Texas Instruments
Inp Thrshld Hi (V) 2.0
Inp Thrshld Lo (V) 0.5
Mode I/O D or S Single-End
tPD Max. (S) 15n
Nom. Neg Supp 0.0
Nom. Pos. Supp 5.0
Tech. TTL Integrated Circuit
Oper. Temp (°C) Min -55
Oper. Temp (°C) Max. 125
@IOL (A) 12m
VOL Max. (Drvr) 0.4
VOL Max. (Rcvr) 0.4
VOH Min (Rcvr) 2.0
Pinout Equivalence Number 24-365
No. of Pins 24
Surface Mounted Yes/No NO
SKU 979888
