SN65ALS176D

SN65ALS176D

SKU: SN65ALS176D

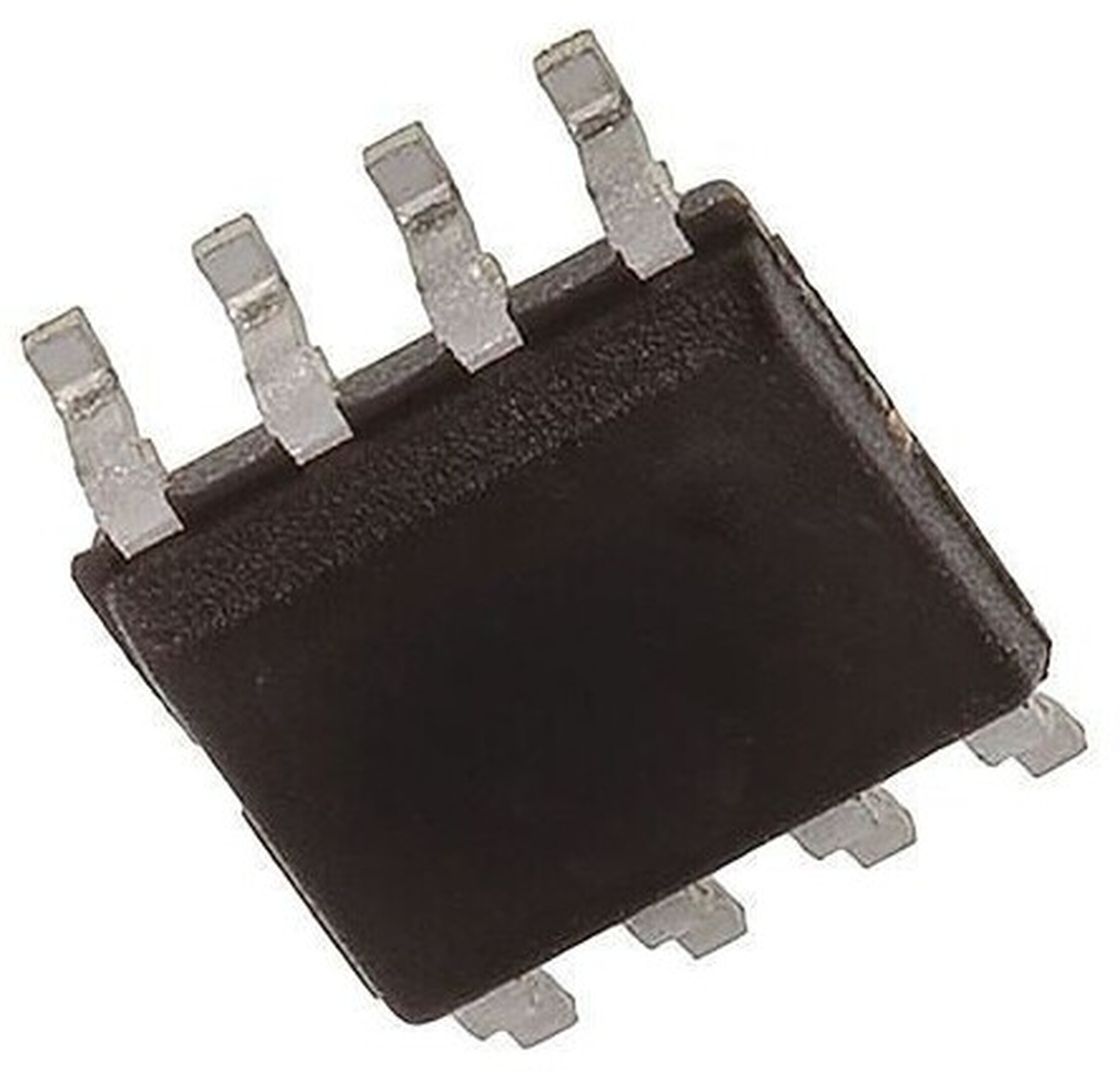

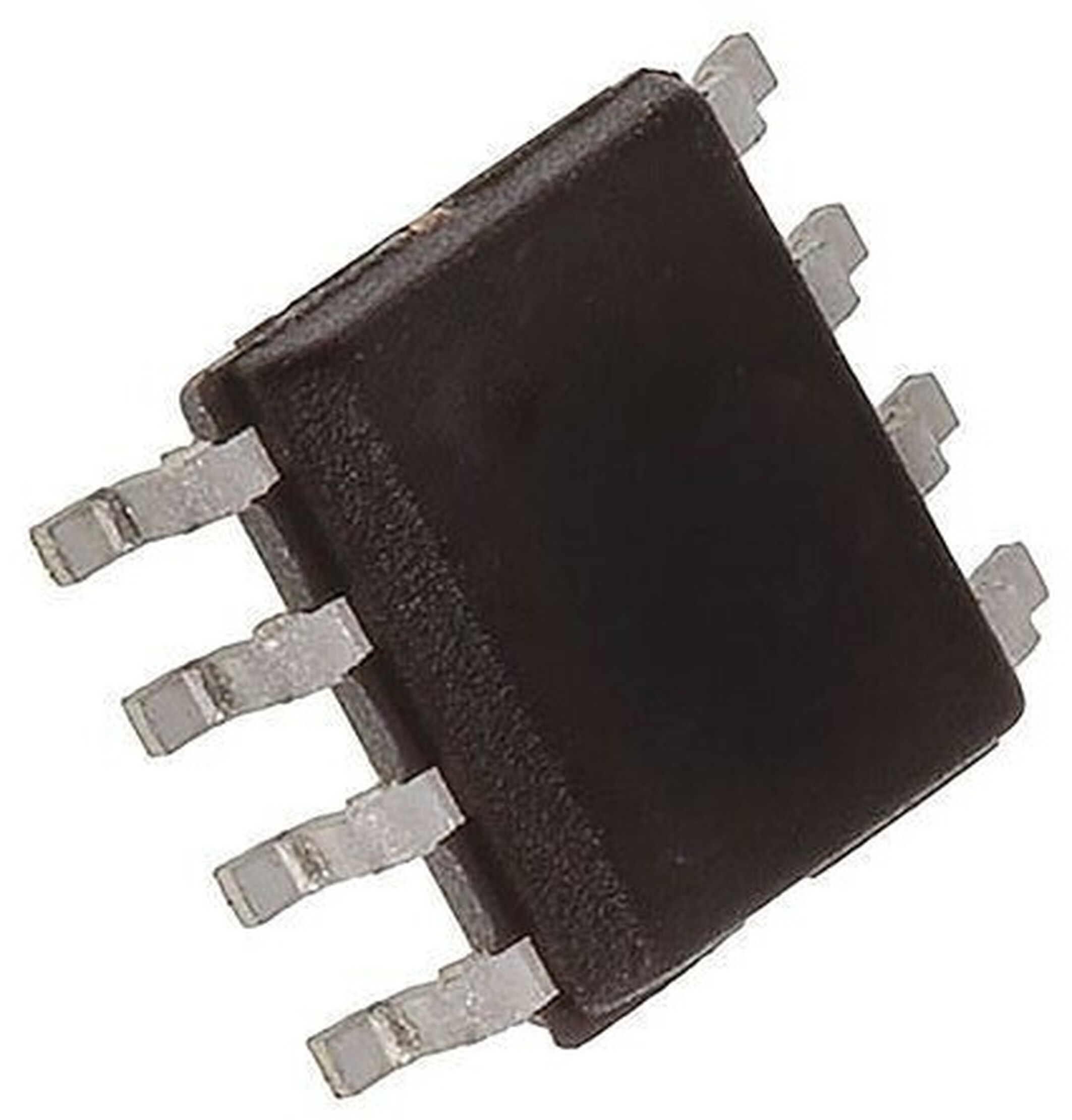

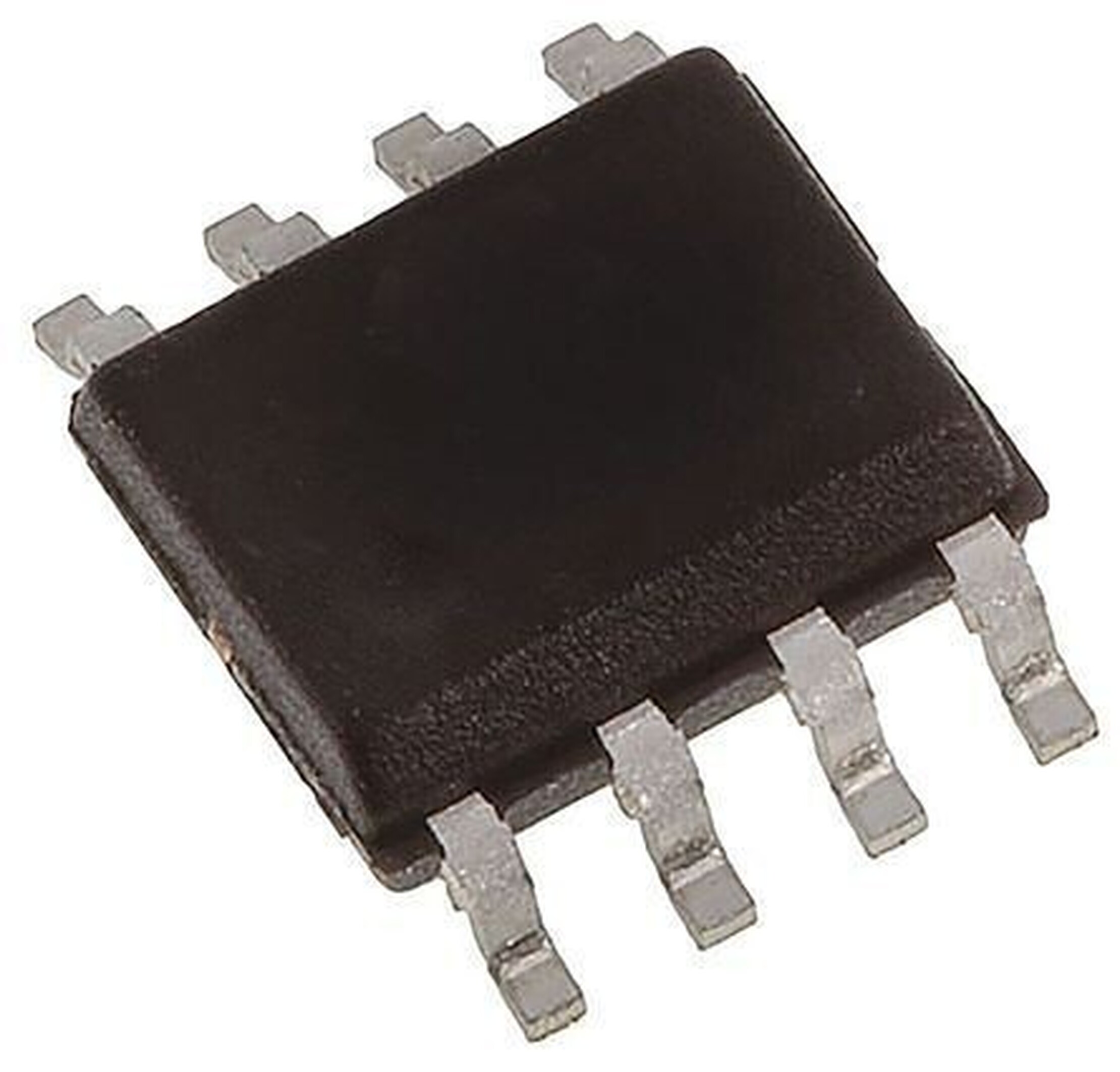

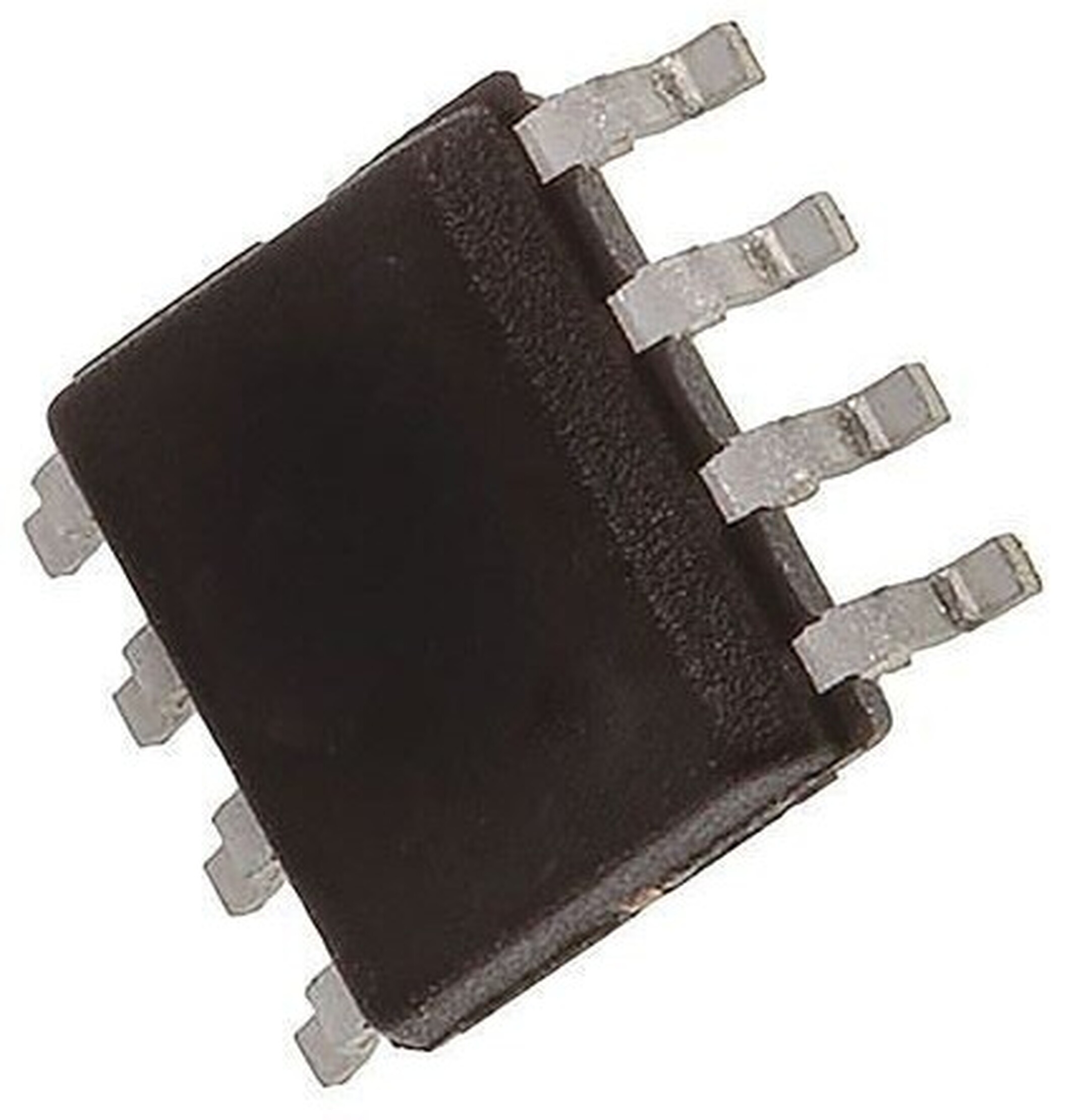

SN65ALS176D Integrated Circuit CASE: SO MAKE: Texas Instruments
Product specifications
Type Integrated Circuit
Case SO
Manufacturer Texas Instruments
Inp Thrshld Hi (V) 2.0
Inp Thrshld Lo (V) 0.8
Mode I/O D or S Differenti
tPD Max. (S) 85n
Nom. Pos. Supp 5.0
Tech. TTL Integrated Circuit
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 85
@IOL (A) 8.0m
VOL Max. (Drvr) .45
VOL Max. (Rcvr) .45
VOH Min (Rcvr) 2.7
Pinout Equivalence Number 8-143
No. of Pins 8
Surface Mounted Yes/No YES
SKU 620509
