Home / Integrated Circuit / SN74ABT16652DL
SN74ABT16652DL

SN74ABT16652DL

SKU: SN74ABT16652DL

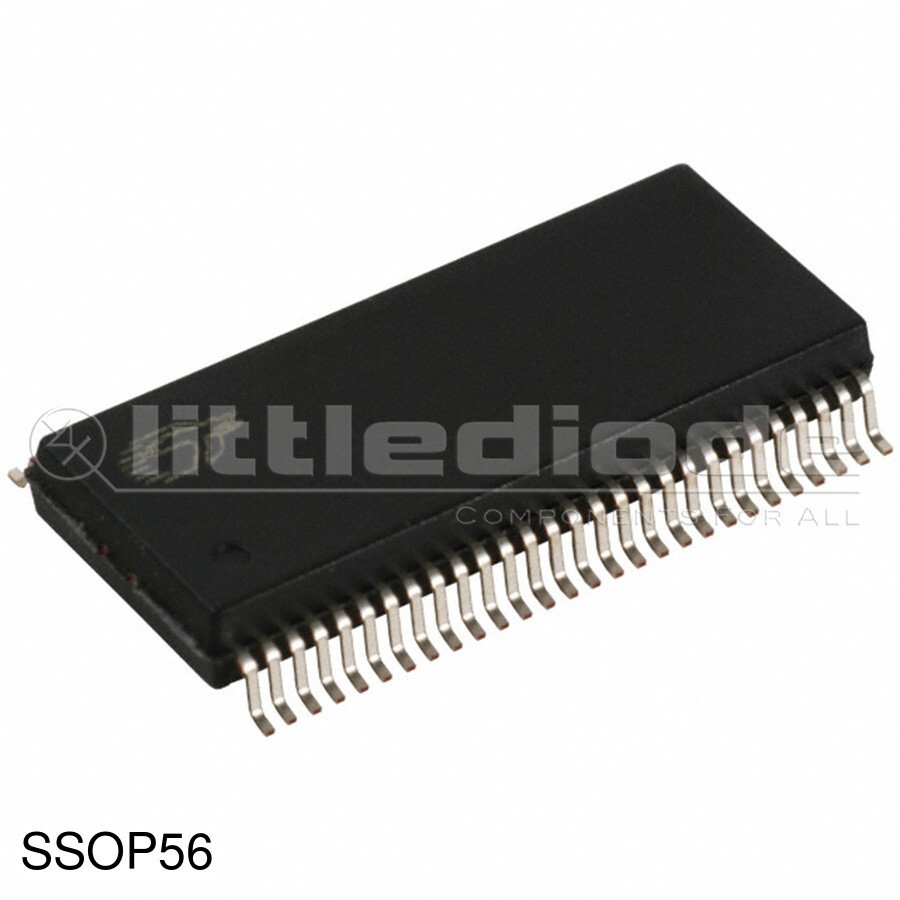

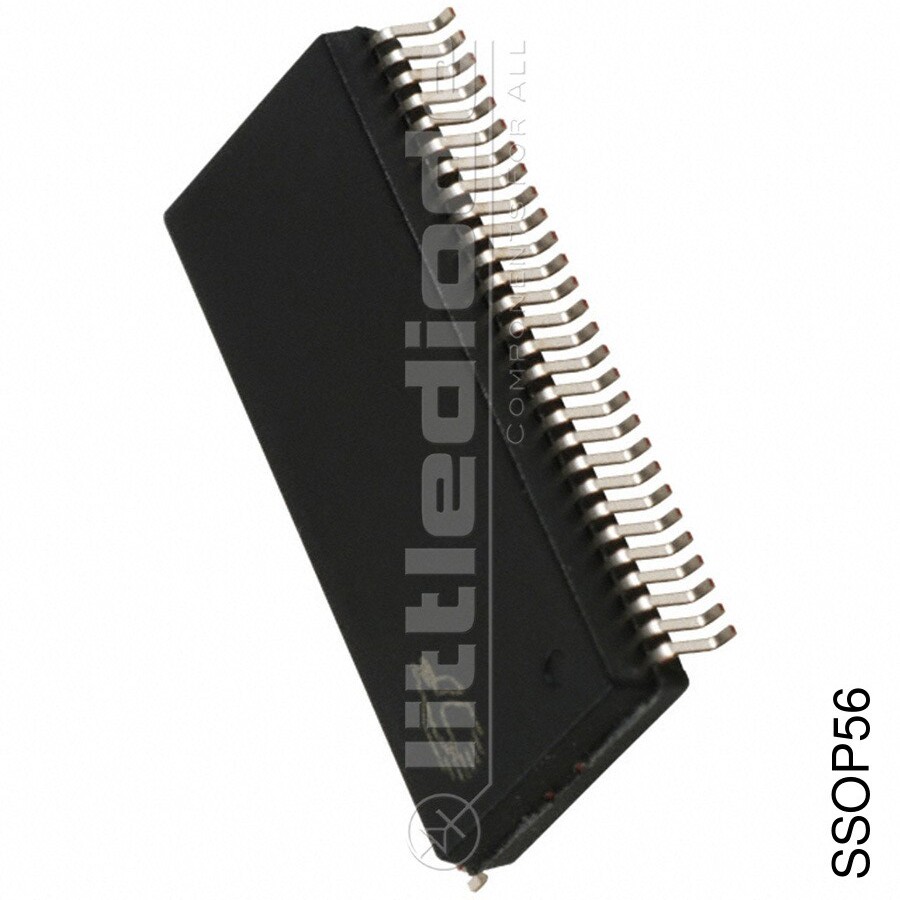

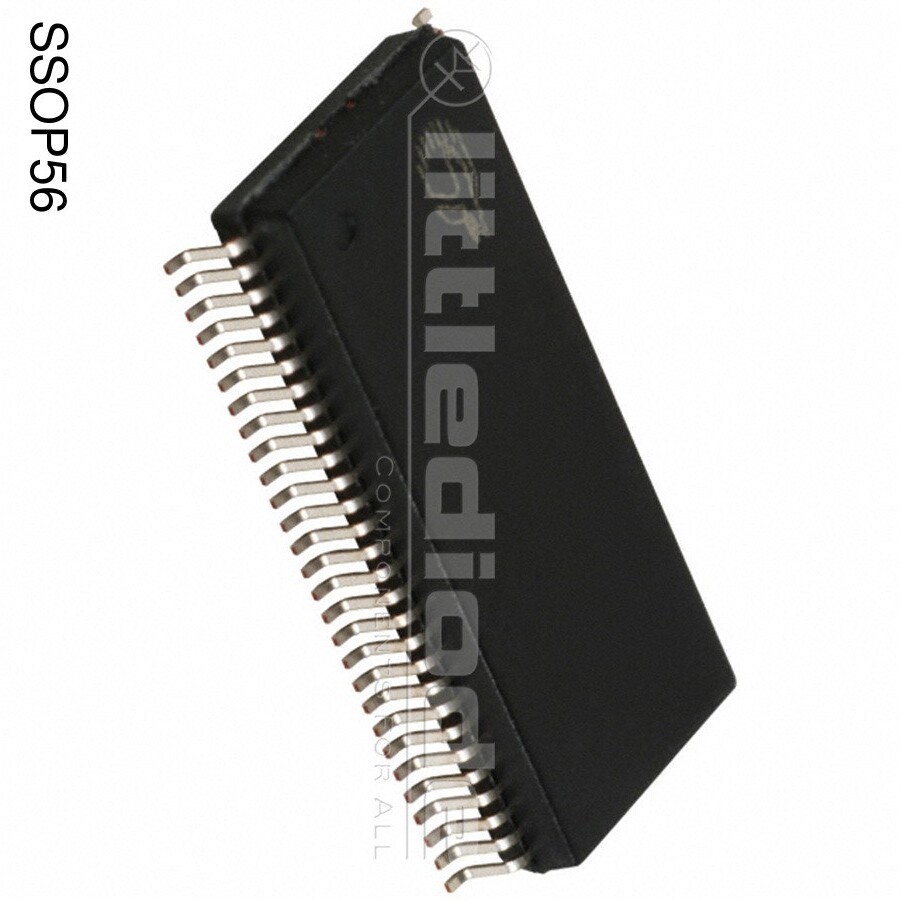

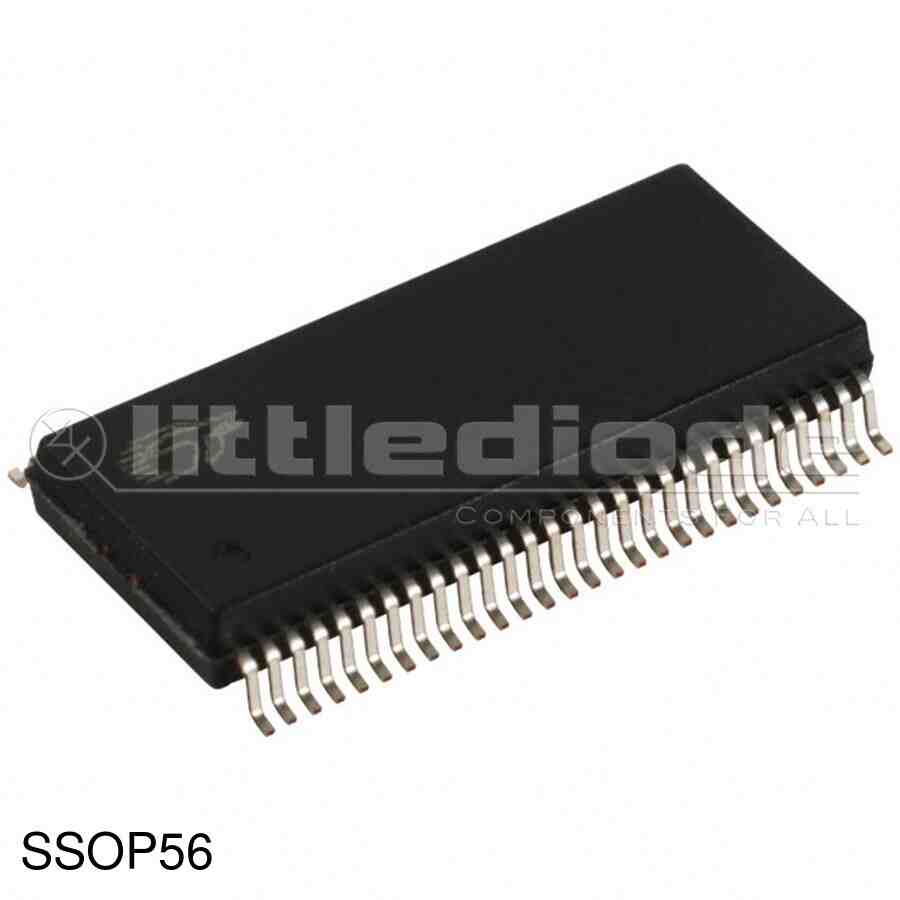

SN74ABT16652DL Logic IC CASE: SSOP56 MAKE: Texas Instruments
Product specifications
Type Logic IC
Case SSOP56
Manufacturer Texas Instruments
Inp Thrshld Hi (V) 5.5
Inp Thrshld Lo (V) -1.2
Mode I/O D or S Single-End
Nom. Pos. Supp 5.0
Tech. Bioplar CMOS Integrated Circuit
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 85
@IOL (A) 64m
VOL Max. (Drvr) 0.55
VOL Max. (Rcvr) 0.55
VOH Min (Rcvr) 2.0
Pinout Equivalence Number 56-28
No. of Pins 56
Surface Mounted Yes/No YES
SKU 522562
