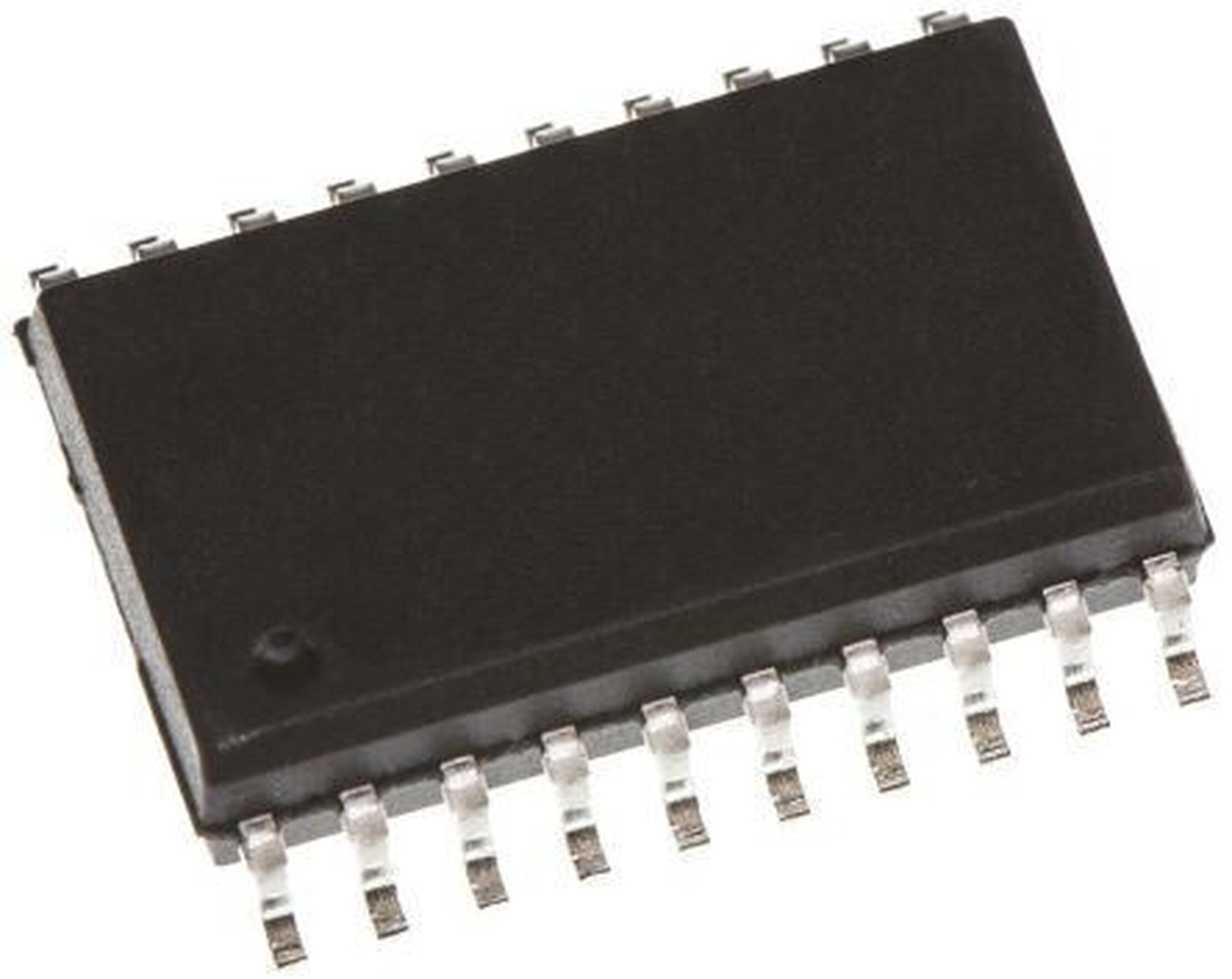

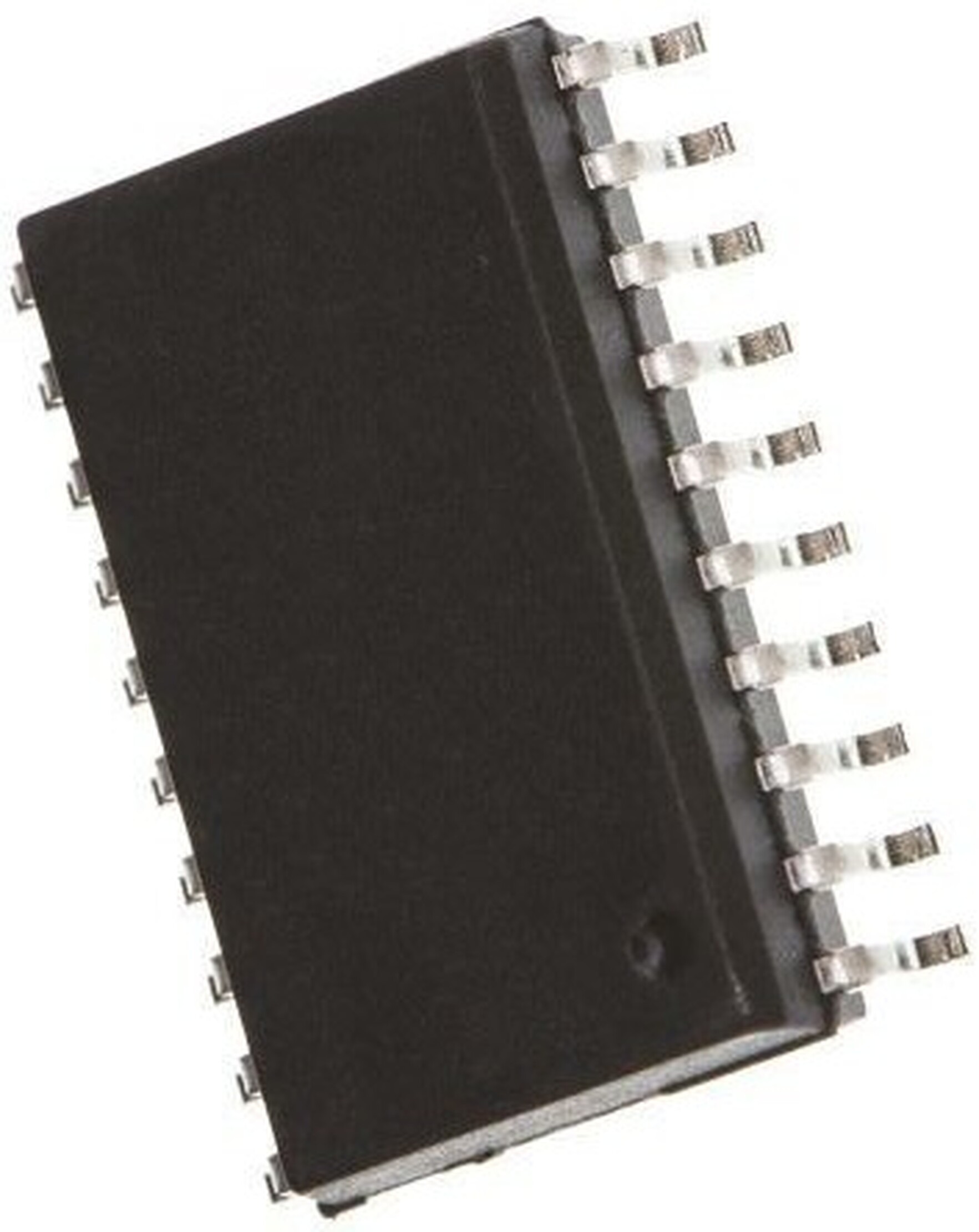

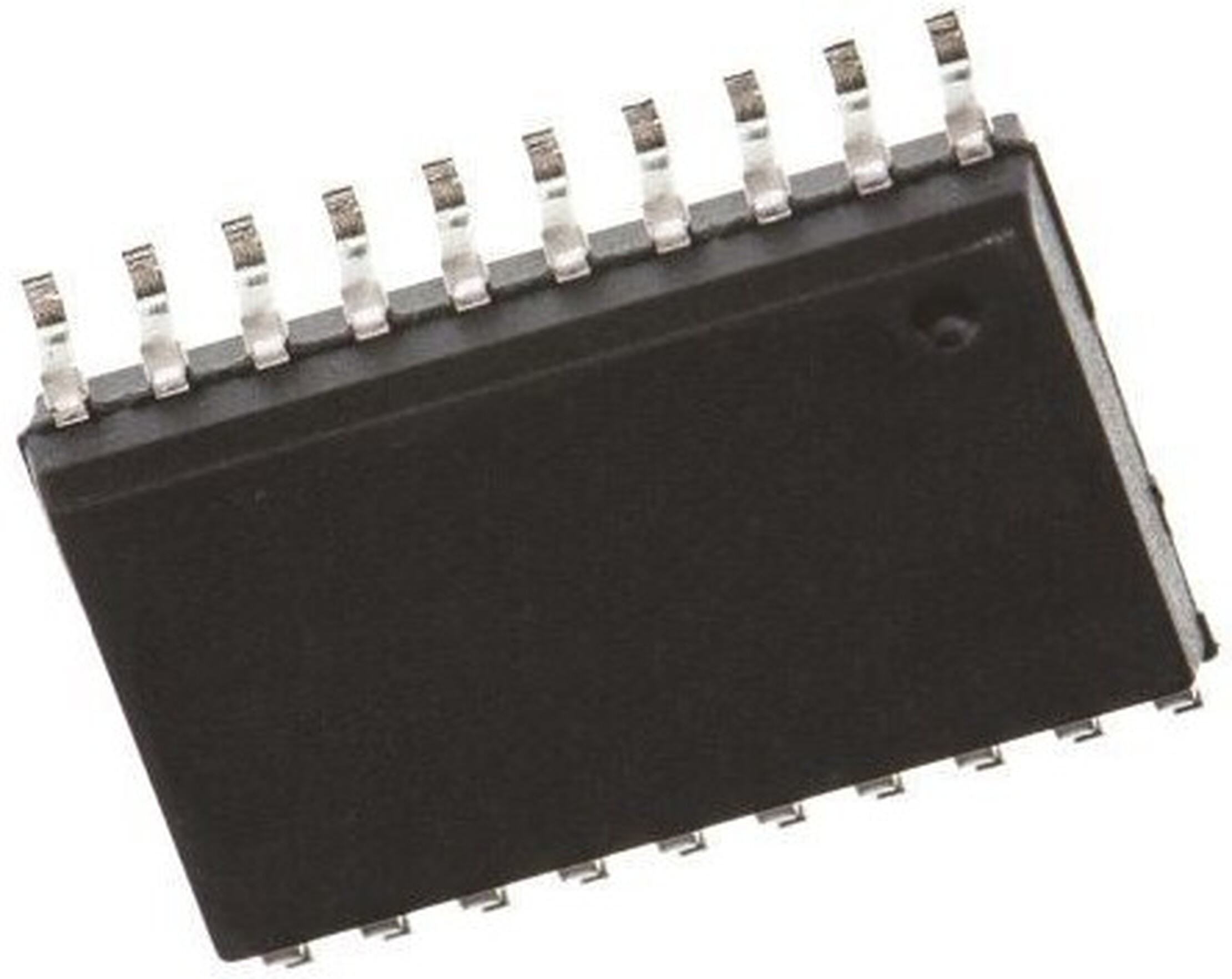

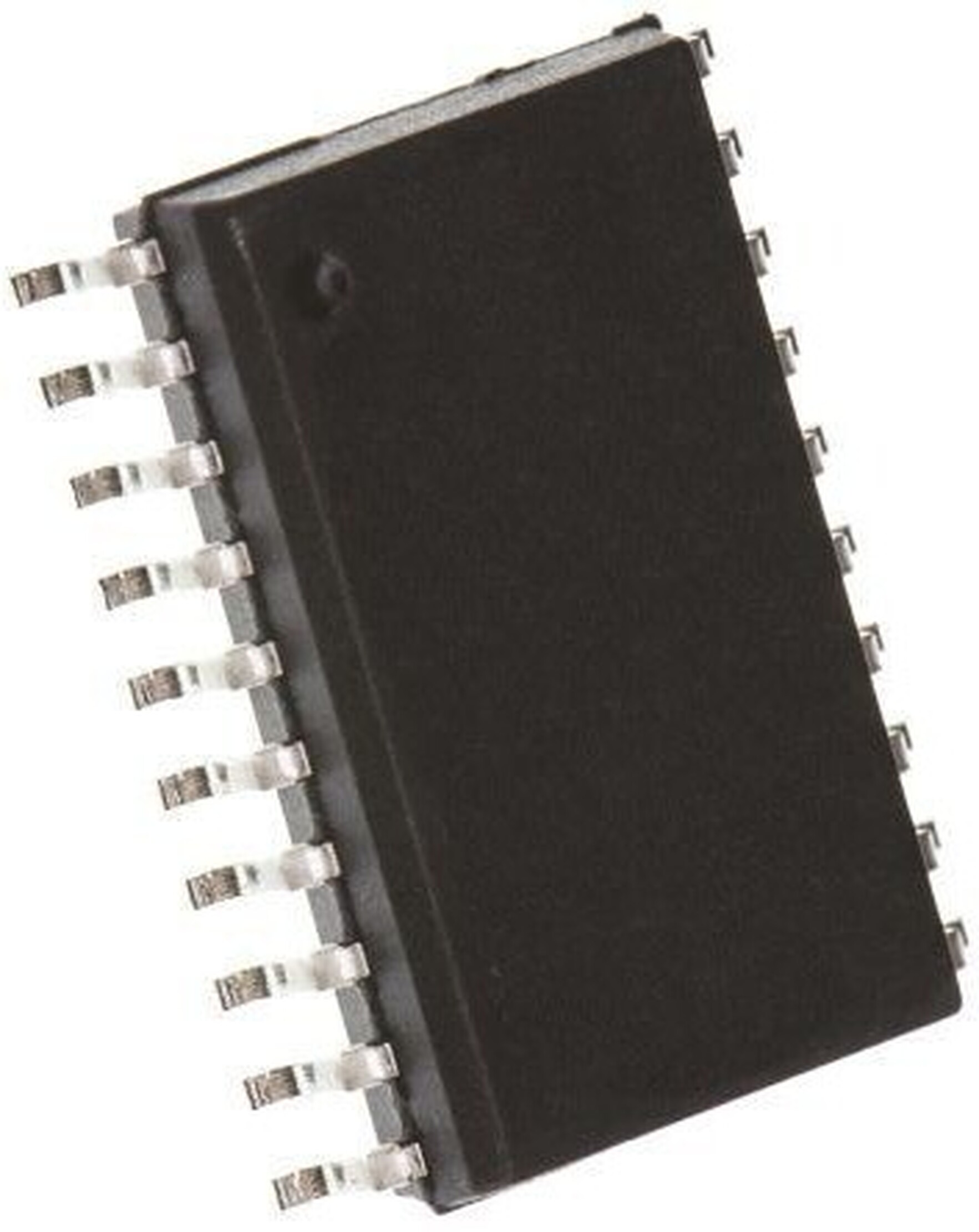

SN74ALS541DW

SN74ALS541DW

SKU: SN74ALS541DW
SN74ALS541DW Logic IC CASE: SO MAKE: Texas Instruments
Product specifications
Type Logic IC
Case SO
Manufacturer Texas Instruments
Ckts Per Dev. 8
Vih Min (V) 2.0
Vil Max. (V) 0.8
Inp Per Ckt 1
Output Config 3-State
VOL Max. 0.5
tPD Max. (S) 14n
Nom. Supp (V) 5.0
Tech. TTL Integrated Circuit
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
@Iol (A) 24m
Pinout Equivalence Number 20-135
No. of Pins 20
Surface Mounted Yes/No YES
SKU 992351
