SN74AS756DW

SN74AS756DW

SKU: SN74AS756DW

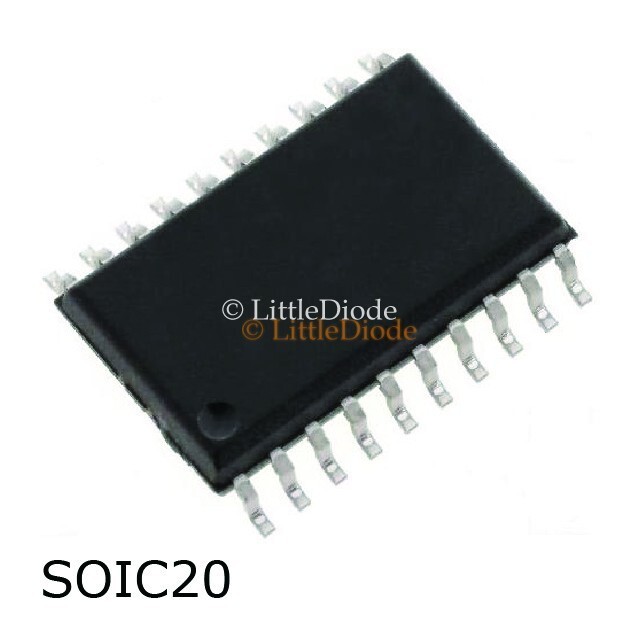

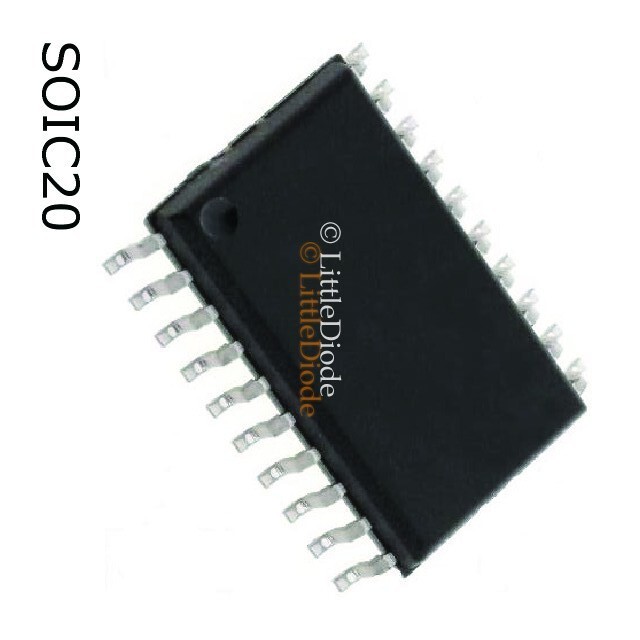

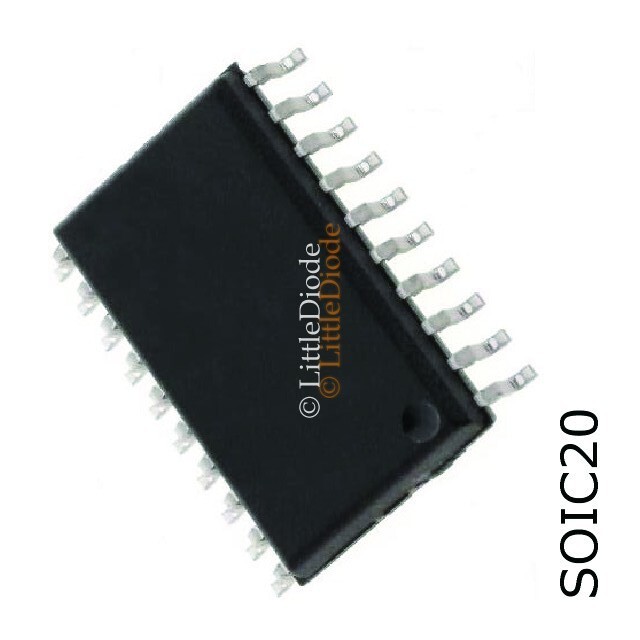

SN74AS756DW Logic IC CASE: SOIC20 MAKE: Texas Instruments
Product specifications
Type Logic IC
Case SOIC20
Manufacturer Texas Instruments
Ckts Per Dev. 8
Vih Min (V) 2.0
Vil Max. (V) 0.8
Output Config Open-Coll.
VOL Max. 0.55
tPD Max. (S) 19n
Nom. Supp (V) 5.0
Tech. TTL Integrated Circuit
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
@Iol (A) 64m
Pinout Equivalence Number 20-630
No. of Pins 20
Surface Mounted Yes/No YES
SKU 985725
