SN74F241DW

SN74F241DW

SKU: SN74F241DW

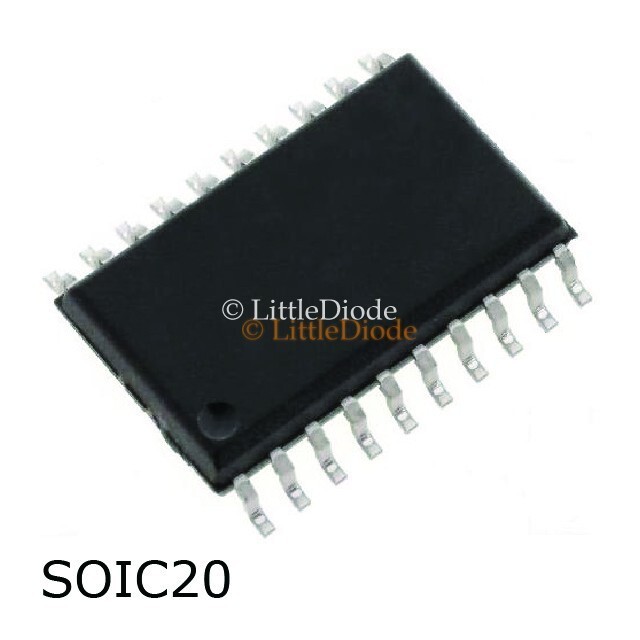

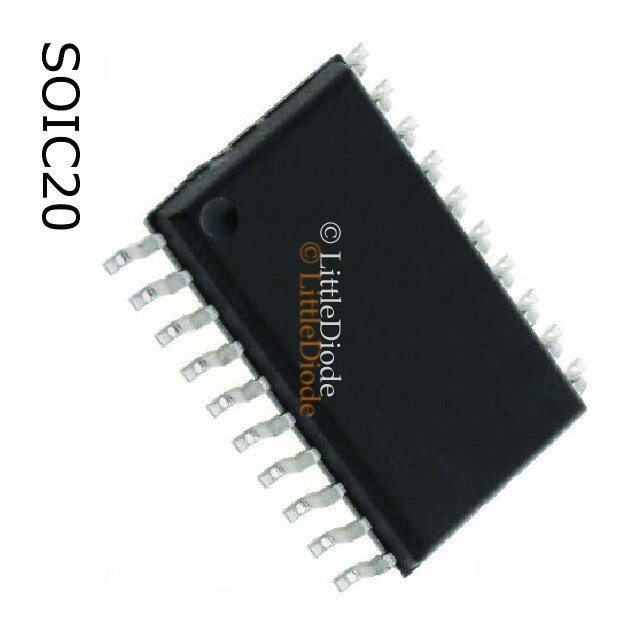

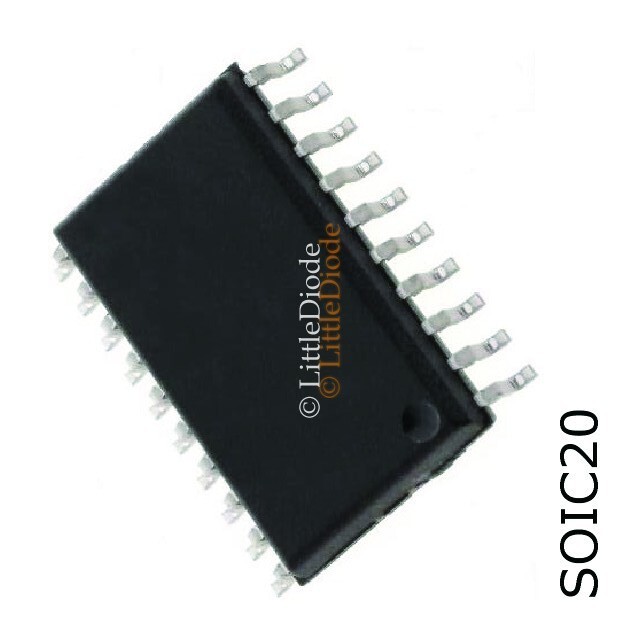

SN74F241DW Logic IC CASE: SOIC20 MAKE: Texas Instruments
Product specifications
Type Logic IC
Case SOIC20
Manufacturer Texas Instruments
Ckts Per Dev. 8
Vih Min (V) 2.0
Vil Max. (V) 0.8
Inp Per Ckt 1
Output Config 3-State
VOL Max. .55
tPD Max. (S) 6.2n
Tech. TTL Integrated Circuit
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
@Iol (A) 64m
Pinout Equivalence Number 20-128
No. of Pins 20
Surface Mounted Yes/No YES
SKU 992156
