SN74F242N
View detailed images (12)

SN74F242N

SKU: SN74F242N

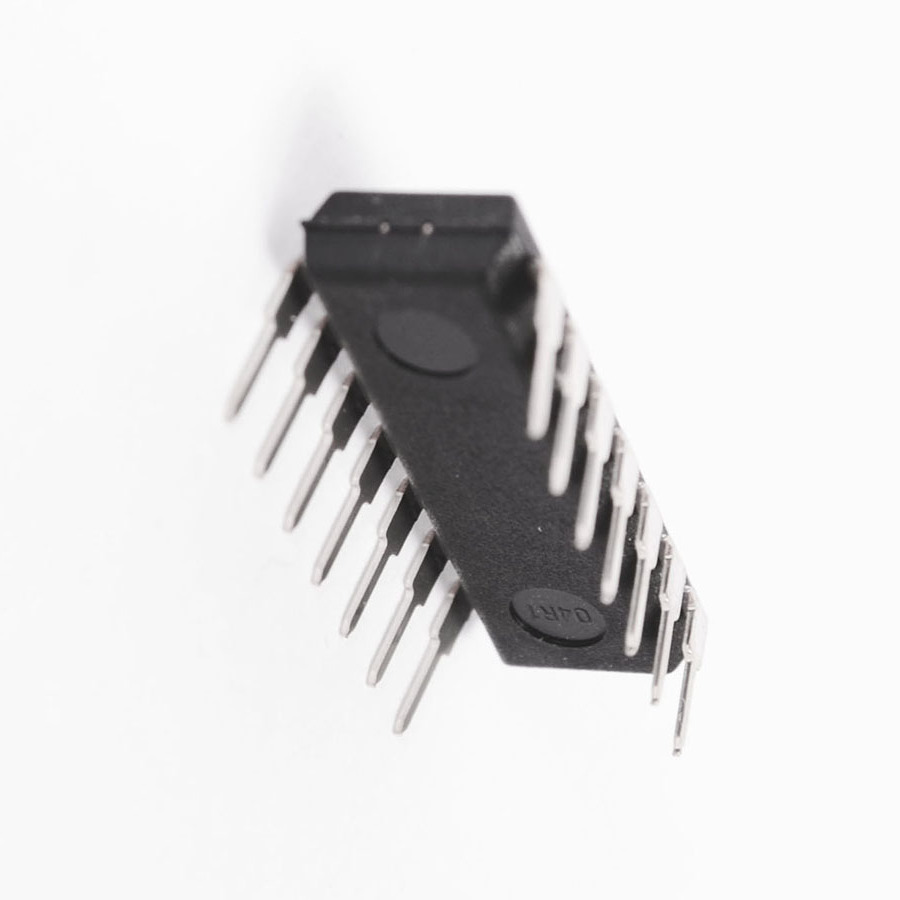

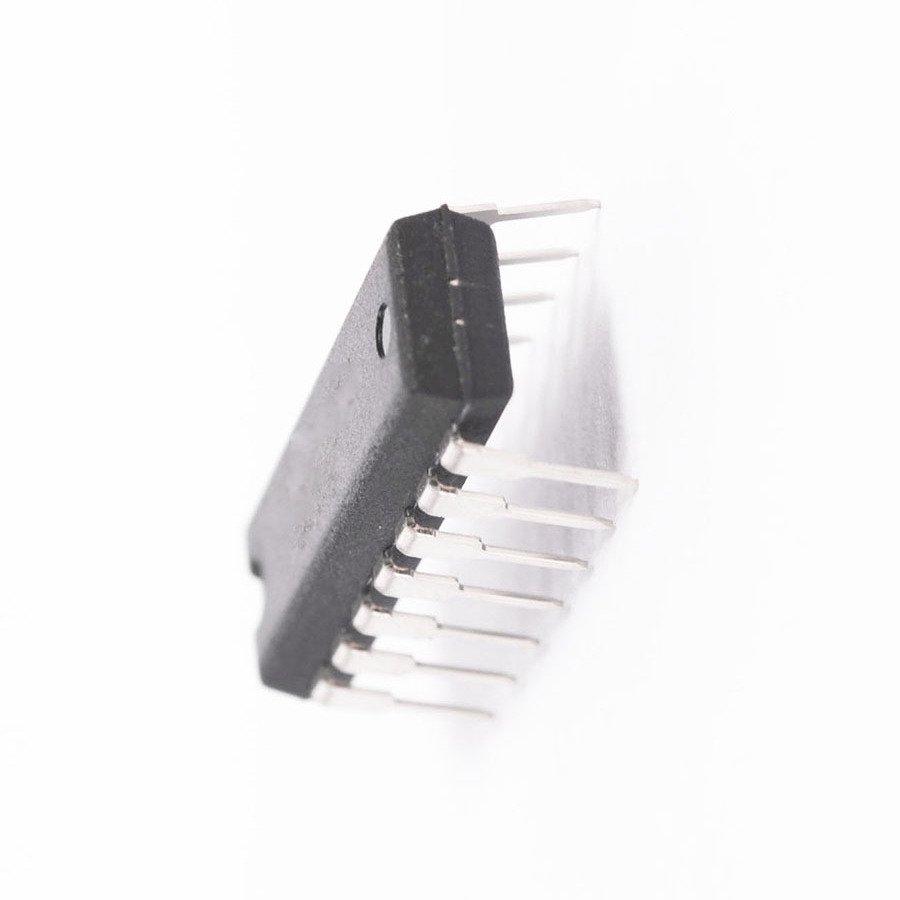

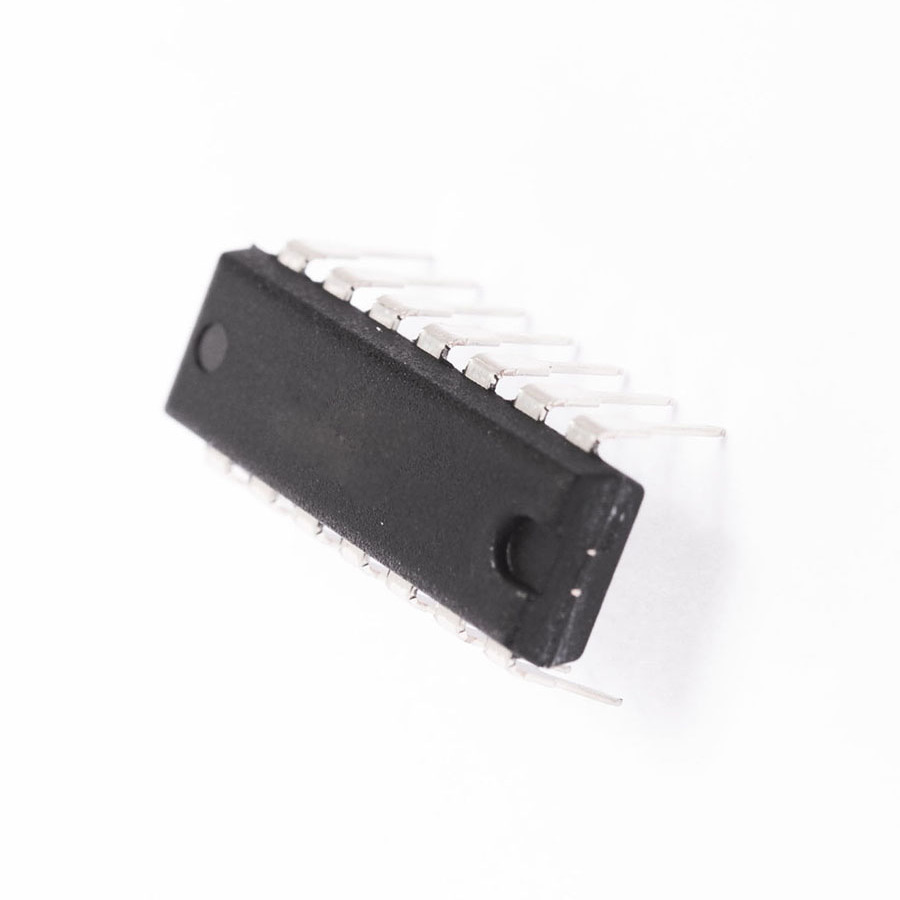

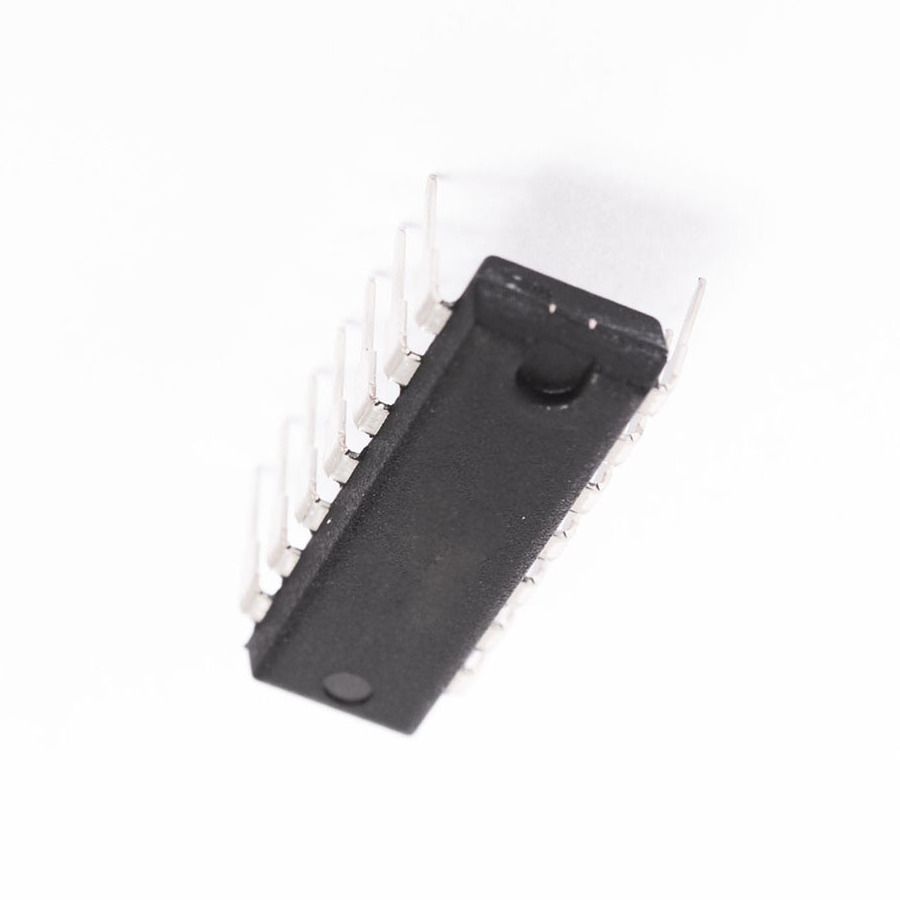

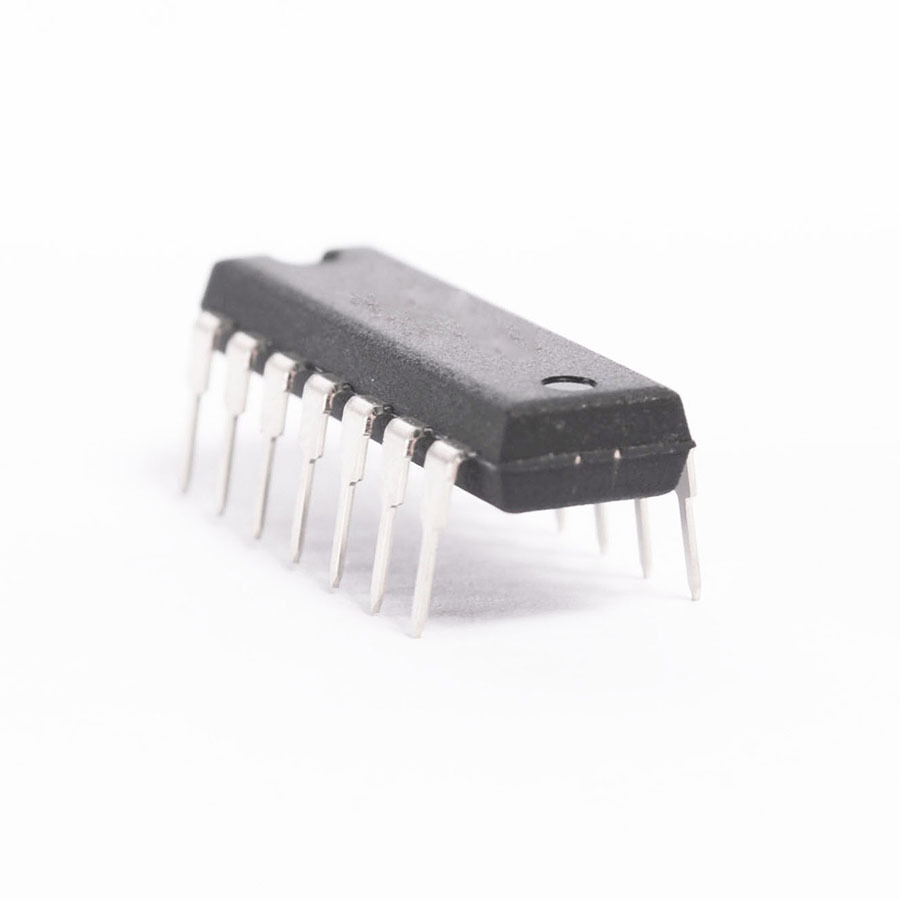

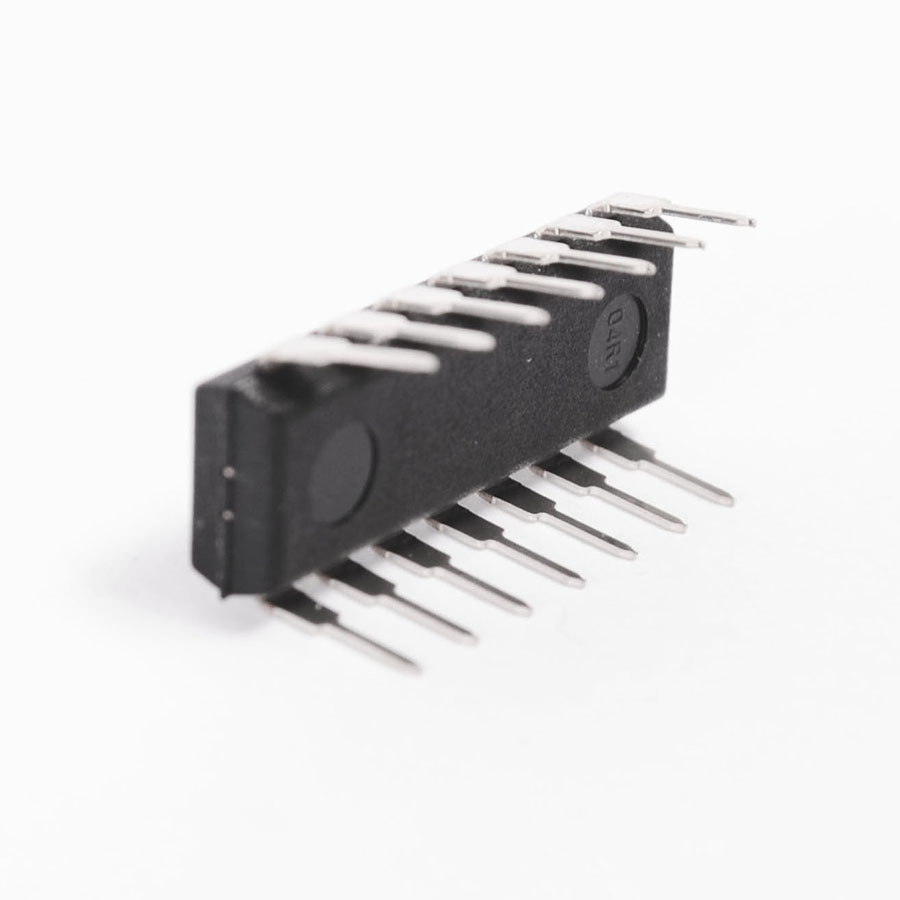

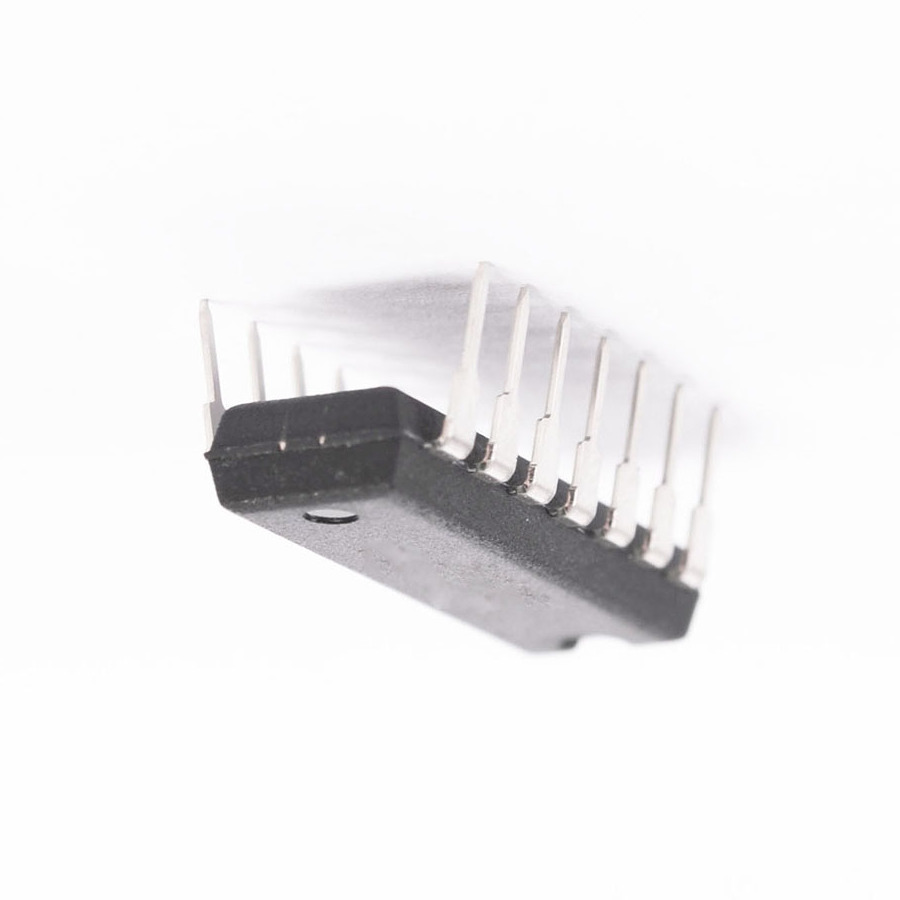

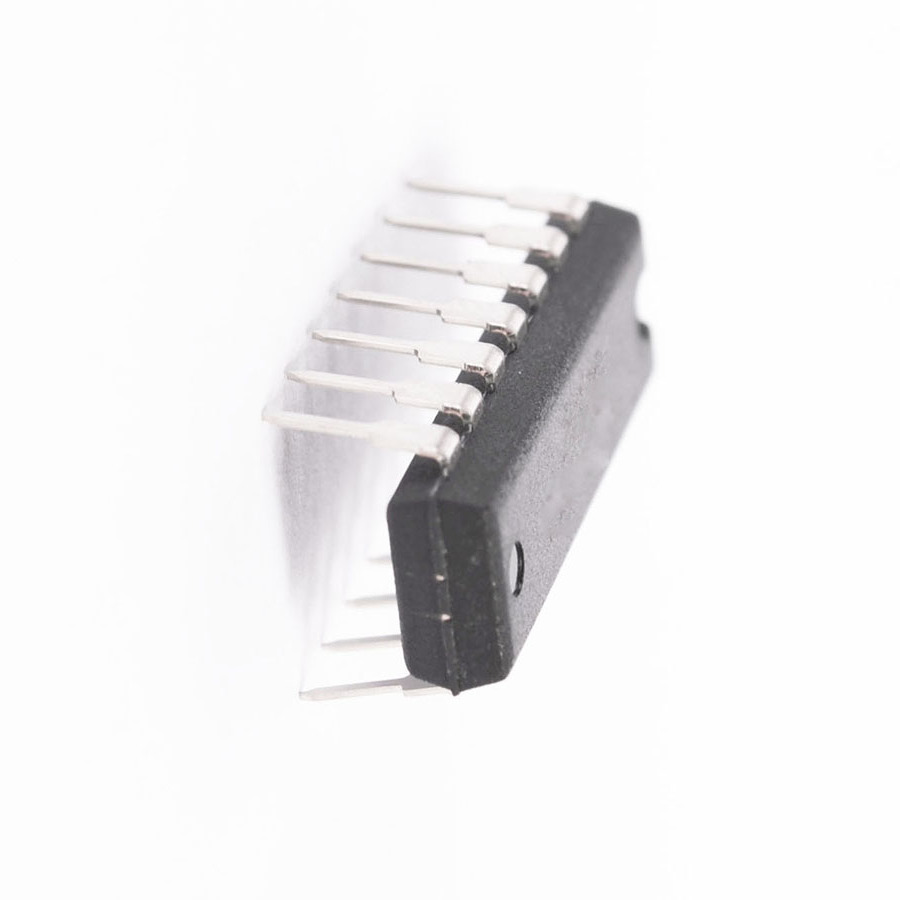

SN74F242N Logic IC CASE: DIP14 MAKE: Texas Instruments
+ VAT 20% for UK purchases
Product specifications
Type Logic IC
Case DIP14
Manufacturer Texas Instruments
Inp Thrshld Hi (V) 2.0
Inp Thrshld Lo (V) 0.8
Mode I/O D or S Single-End
tPD Max. (S) 7.5n
Nom. Neg Supp 0
Nom. Pos. Supp 5.0
Tech. TTL Integrated Circuit
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
@IOL (A) 64m
VOL Max. (Drvr) 0.55
VOL Max. (Rcvr) .55
VOH Min (Rcvr) 2.4
Pinout Equivalence Number 14-150
Surface Mounted Yes/No NO
SKU 445227
