Home / Integrated Circuit / SN74HC153D
SN74HC153D

SN74HC153D

SKU: SN74HC153D

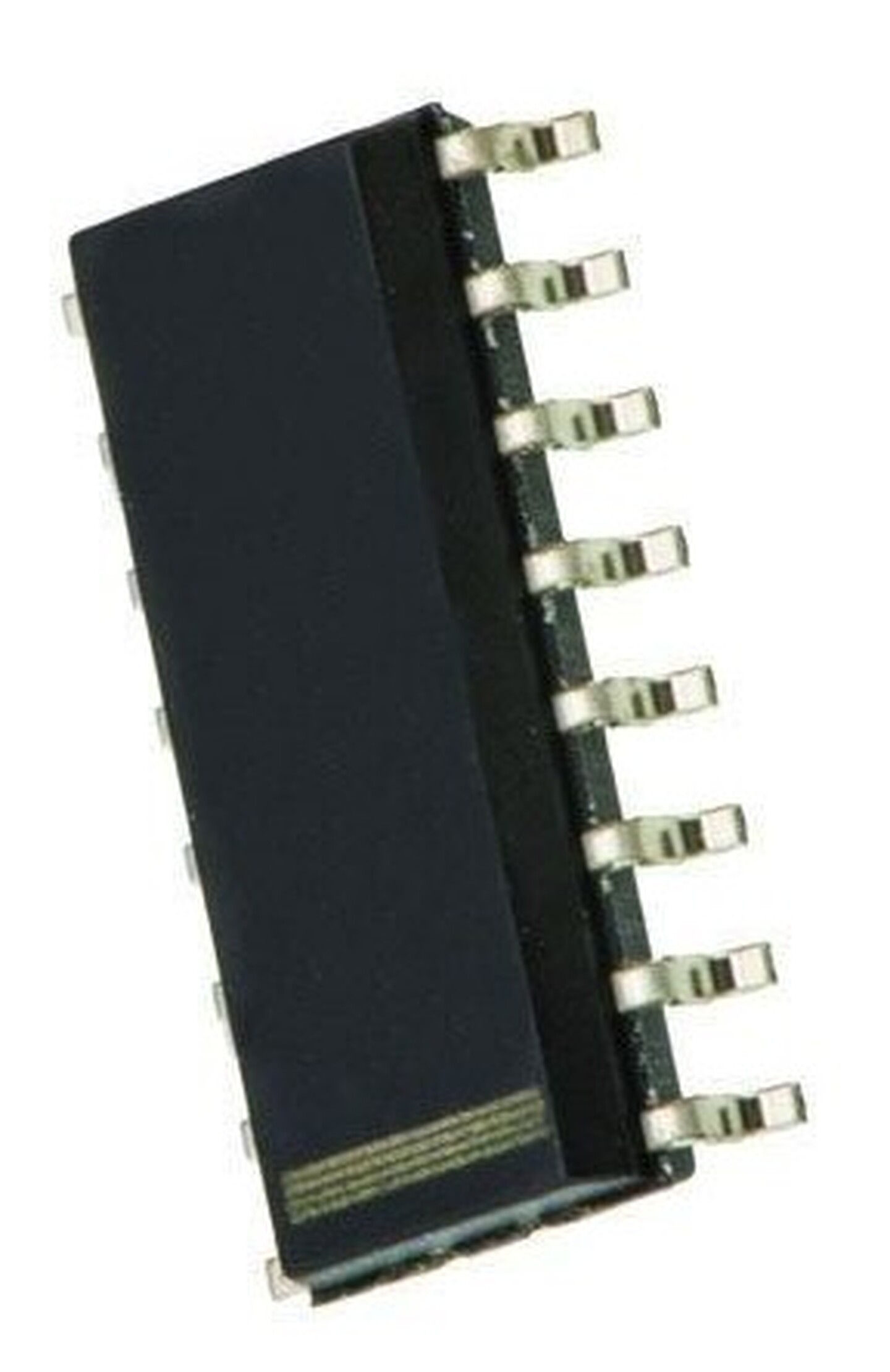

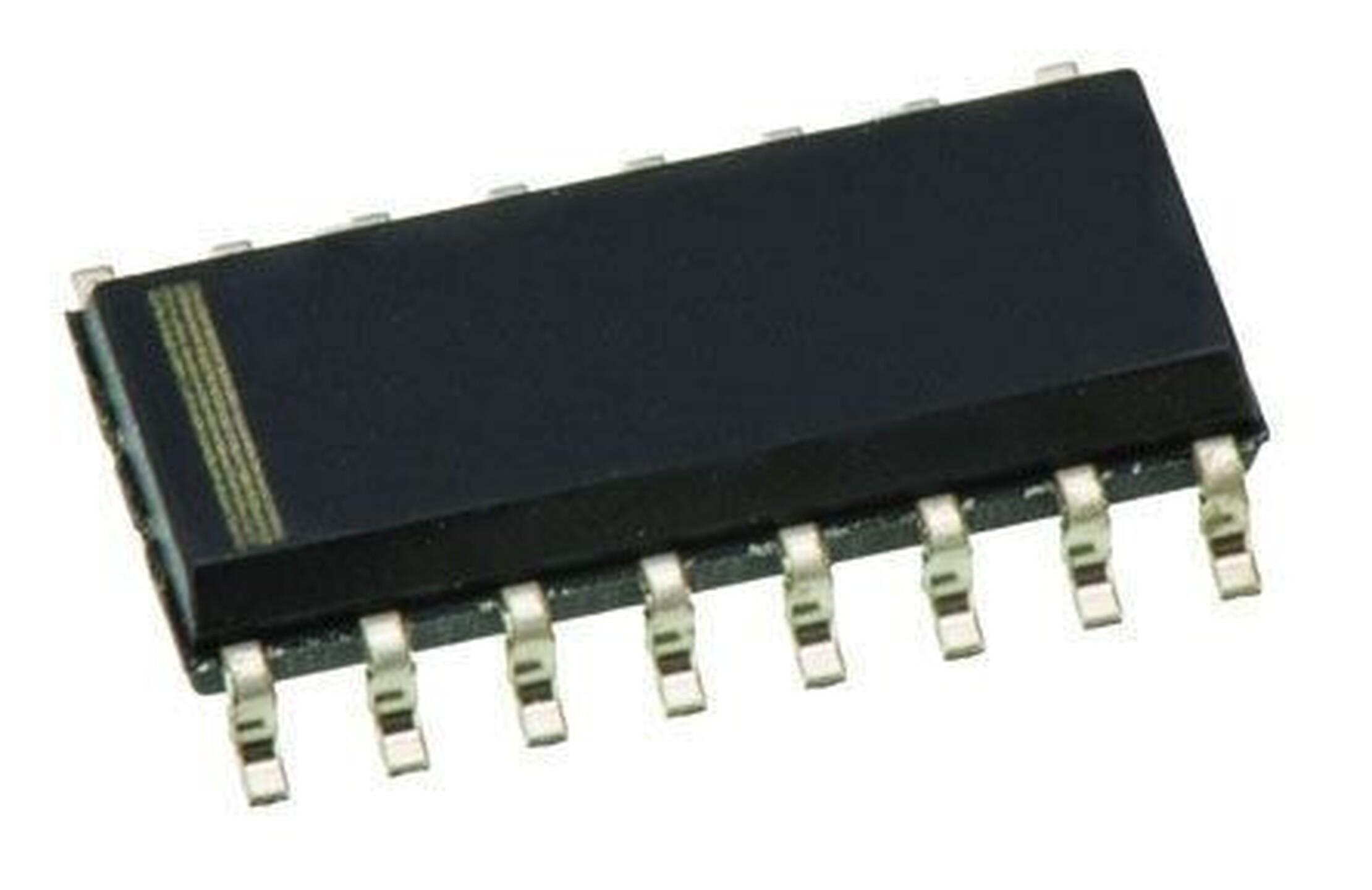

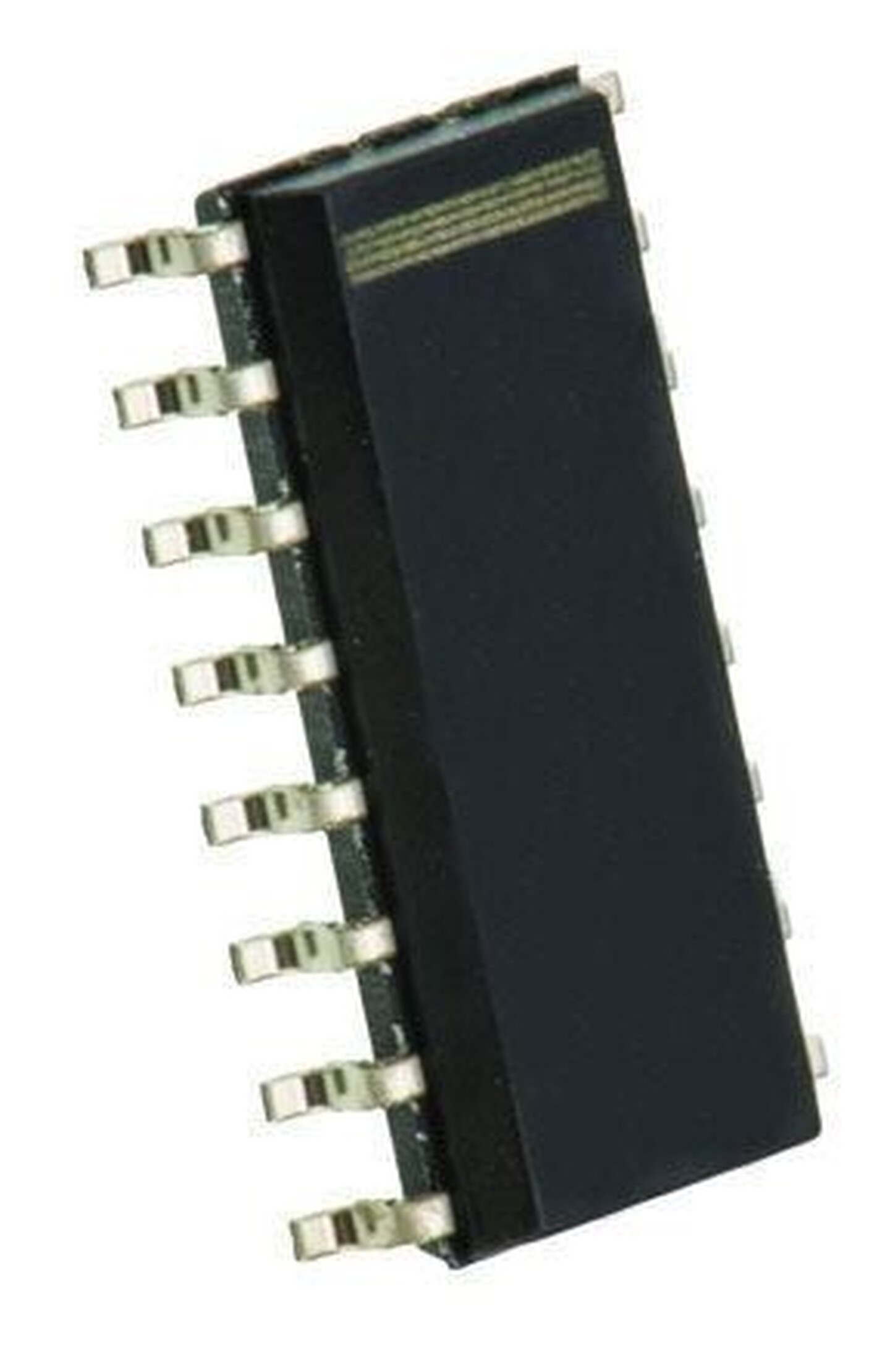

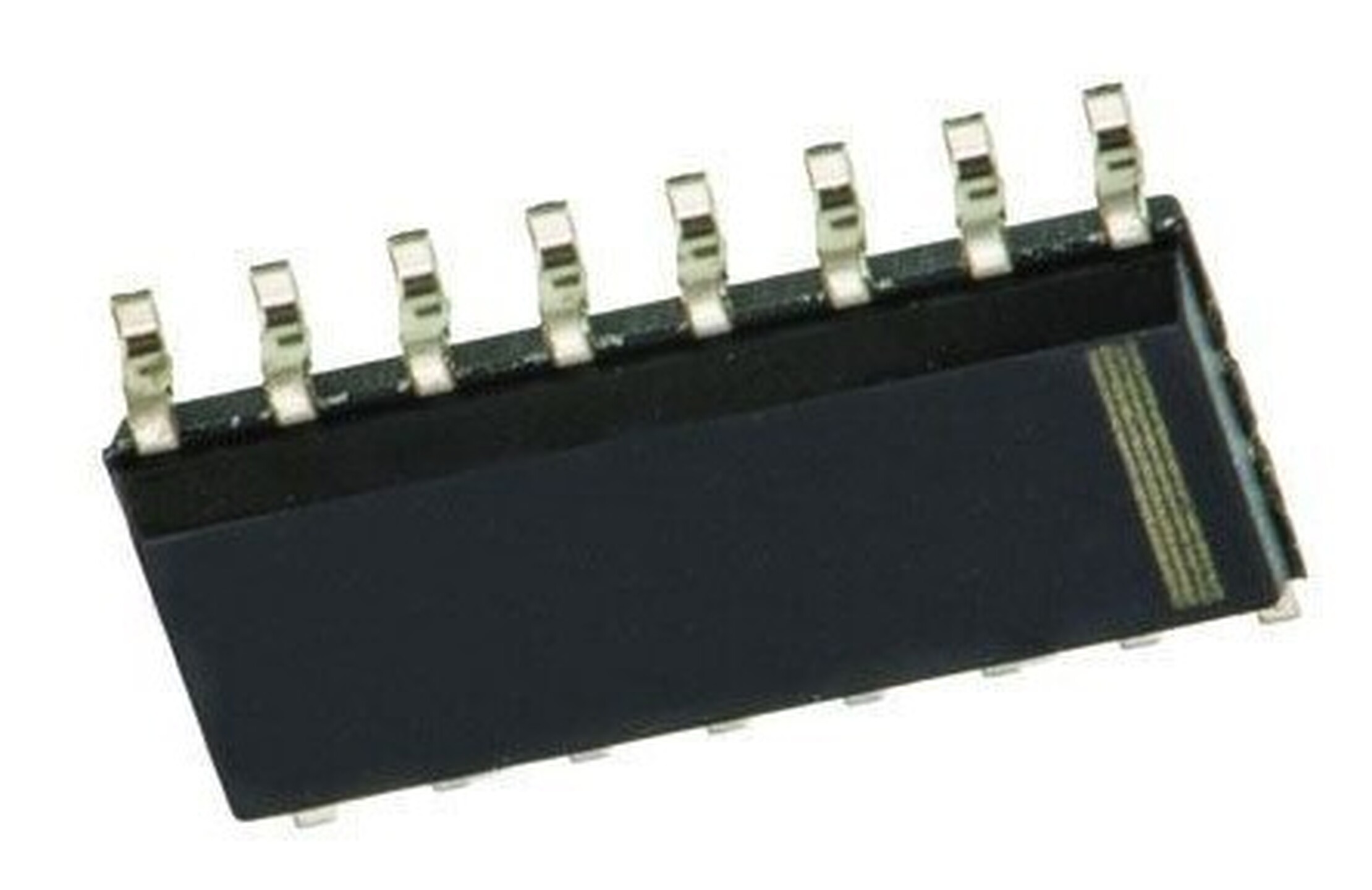

SN74HC153D Logic IC CASE: SOIC MAKE: Texas Instruments
Product specifications
Type Logic IC
Case SOIC
Manufacturer Texas Instruments
Ckts Per Dev. 2
Vih Min (V) 3.15
Vil Max. (V) 0.9
No. of Addr. Lines 2
Input Chan./ Ckt 4
VOL Max. 0.33
tPD Max. (S) 55n
Tech. CMOS Integrated Circuit
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 85
@Iol (A) 4m
Pinout Equivalence Number 16-182
Descript Non-Inverting
Surface Mounted Yes/No YES
SKU 522409
