SN74HC253D

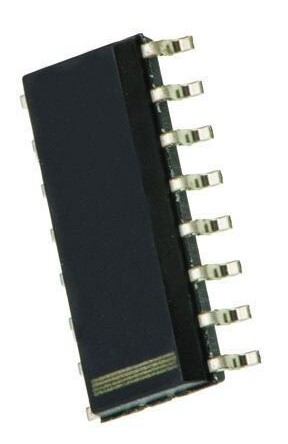

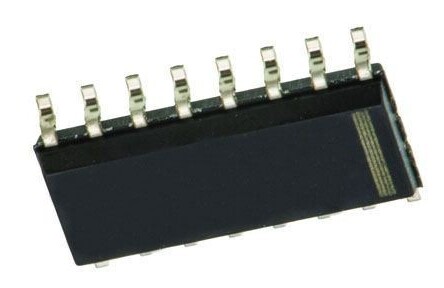

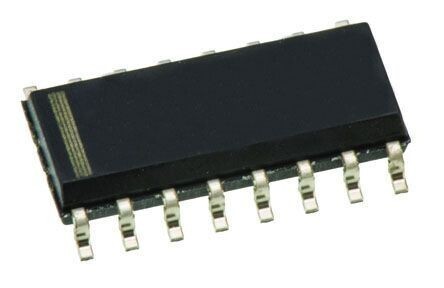

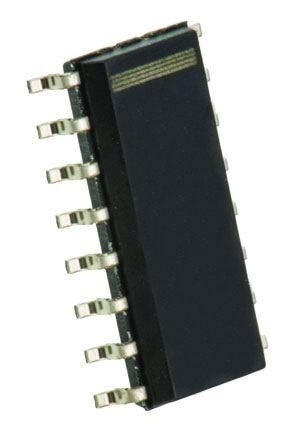

View detailed images (4)

SN74HC253D

SKU: SN74HC253D
SN74HC253D Logic IC CASE: SO MAKE: Texas Instruments
+ VAT 20% for UK purchases
Product specifications
Type Logic IC
Case SO
Manufacturer Texas Instruments
Ckts Per Dev. 2
Vih Min (V) 3.15
Vil Max. (V) 0.9
No. of Addr. Lines 2
Input Chan./ Ckt 4
VOL Max. 0.33
tPD Max. (S) 55n
Tech. CMOS Integrated Circuit
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 85
@Iol (A) 4.0m
Pinout Equivalence Number 16-327
Descript Non-Inverting
Surface Mounted Yes/No YES
SKU 522394
