SN74LS156

SN74LS156

SKU: SN74LS156

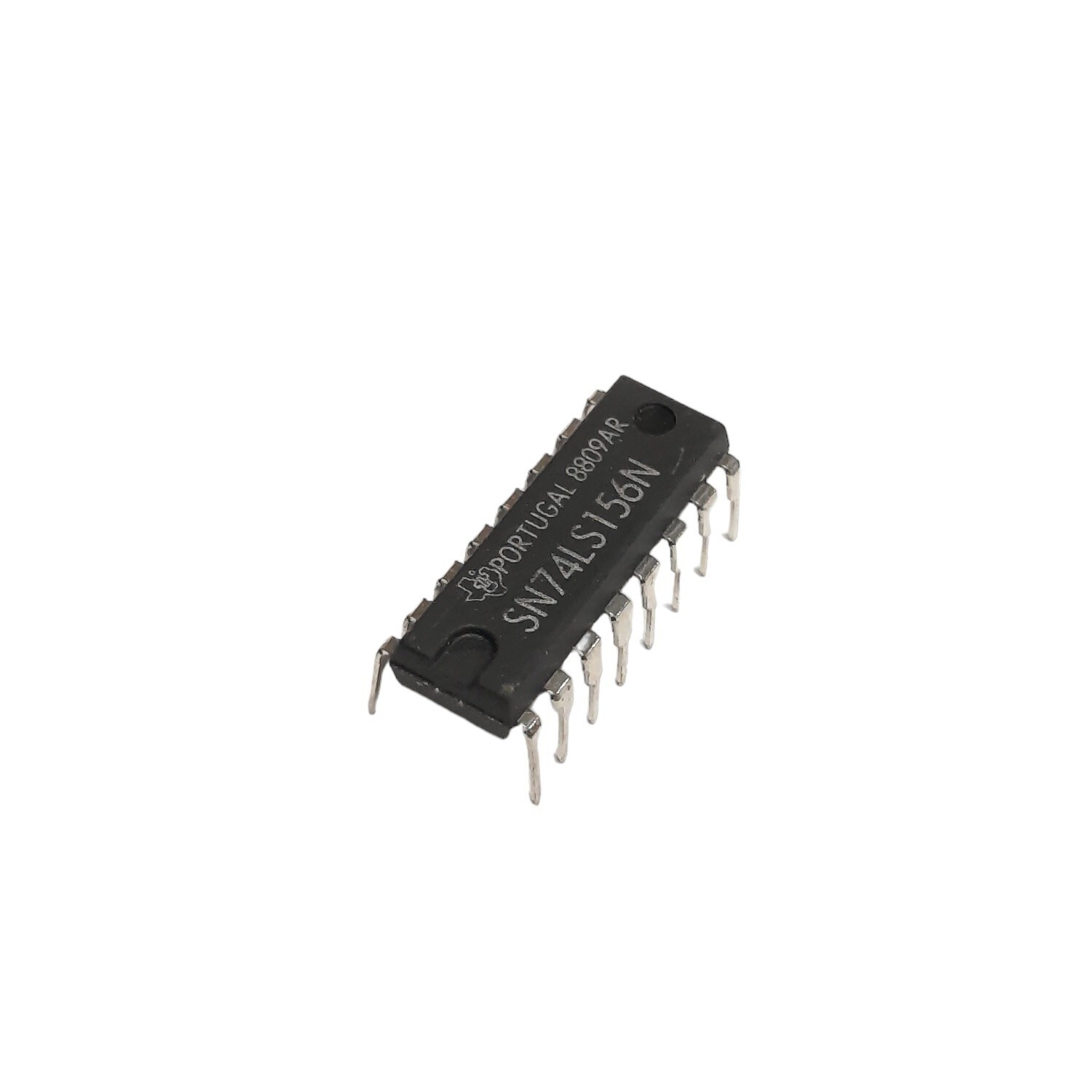

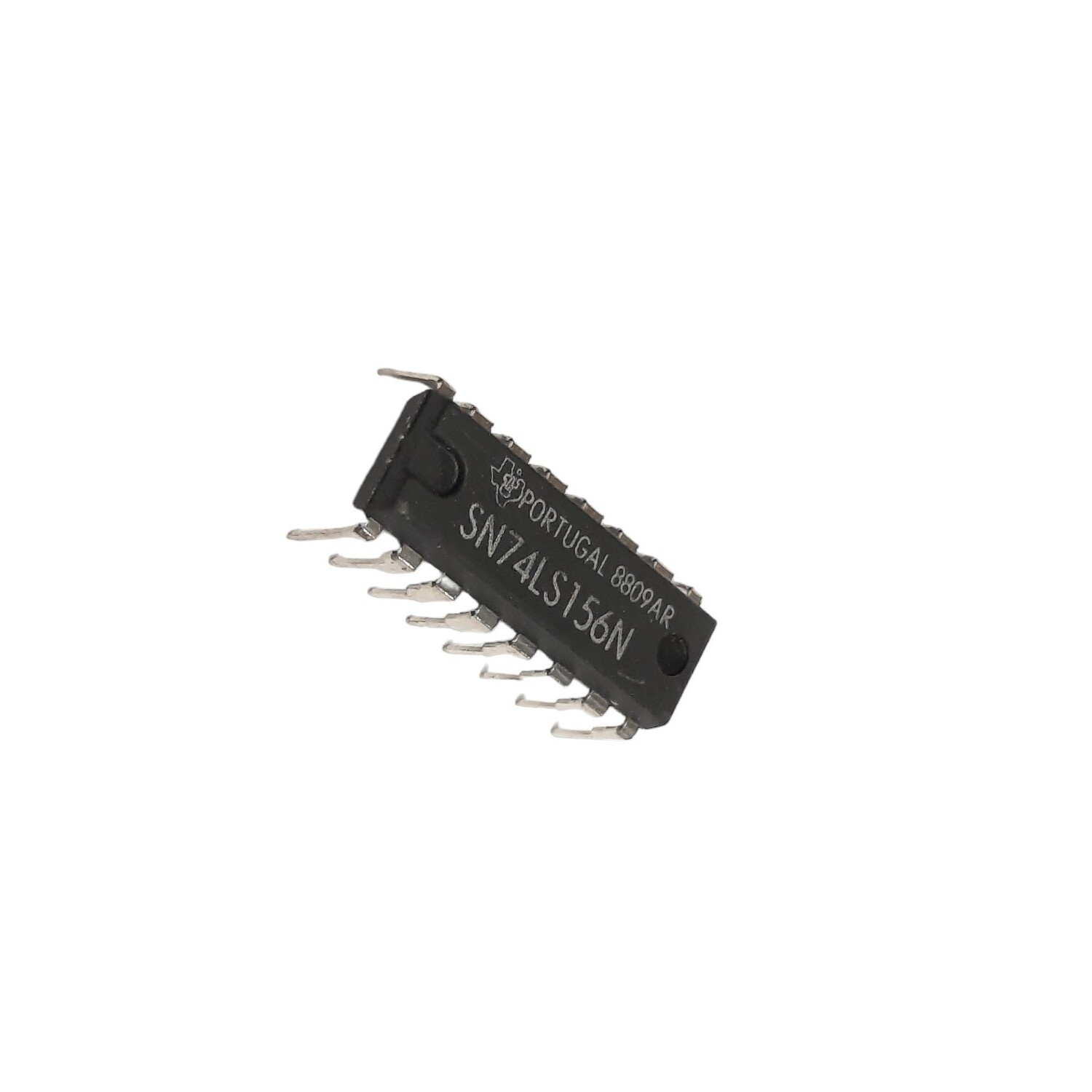

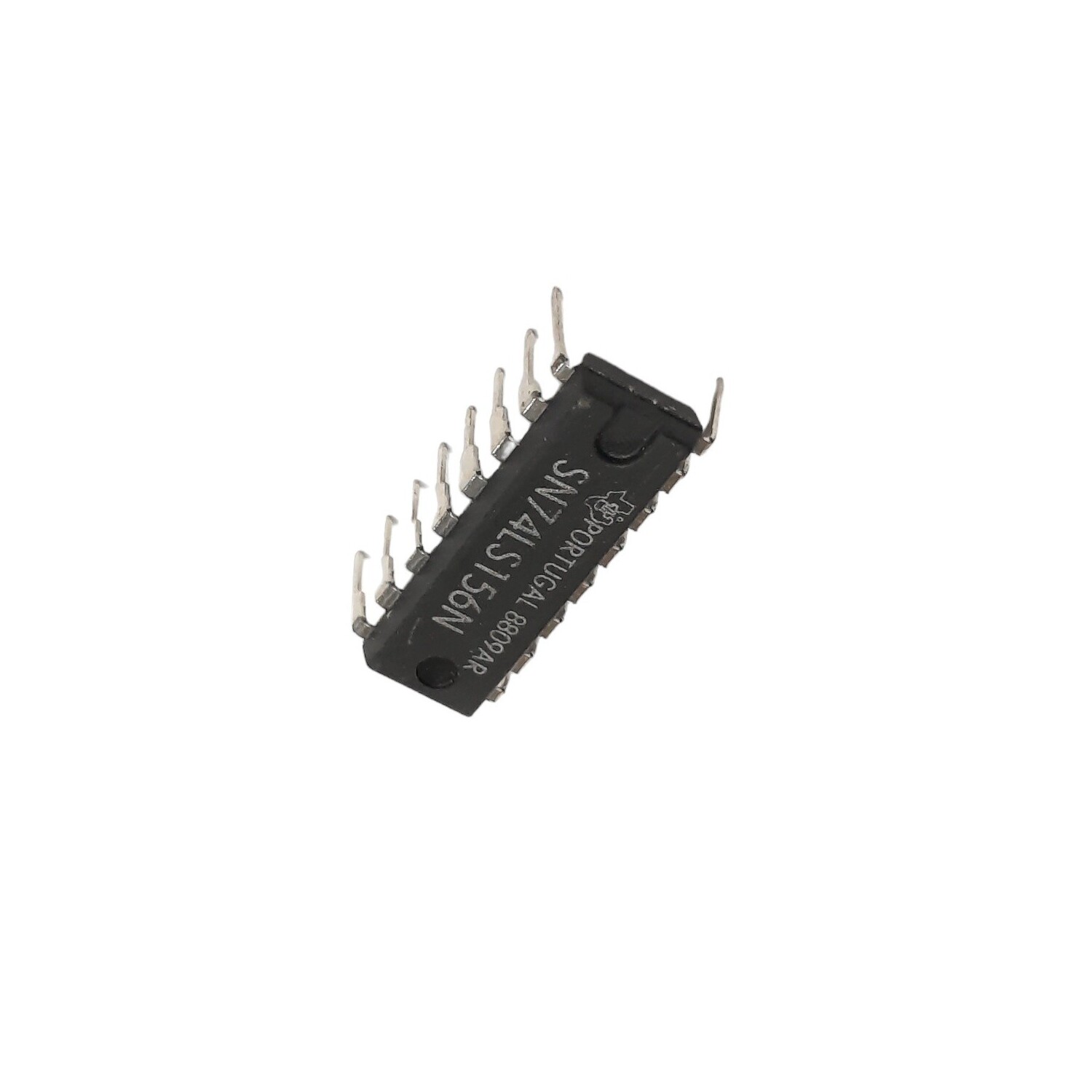

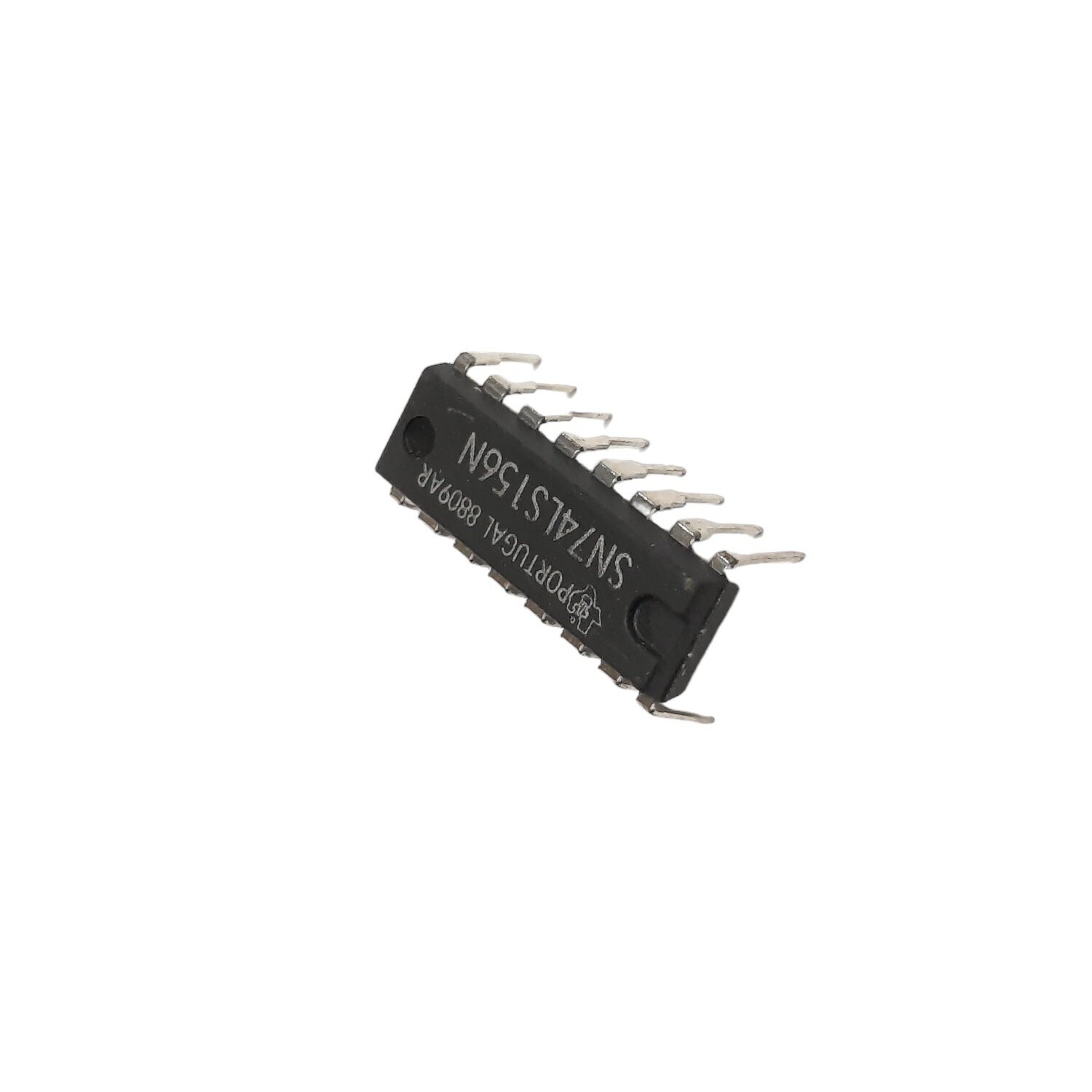

SN74LS156 Logic IC CASE: DIP16 MAKE: Texas Instruments
Price:
£9.59 Inc. VAT (£7.99 Ex. VAT)
£9.59 Inc. VAT (£7.99 Ex. VAT)
Qty
  • 1 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Equivalent SN74LS156N
Type Logic IC
Case DIP16
Manufacturer Texas Instruments
Ckts Per Dev. 2
Decode From 2
Vih Min (V) 2.0
Vil Max. (V) 0.8
VOL Max. 0.5
tPD Max. (S) 51n
Nom. Supp (V) 5.0
Tech. TTL Integrated Circuit
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
@Iol (A) 8.0m
Pinout Equivalence Number 16-383
Surface Mounted Yes/No NO
SKU 299136
