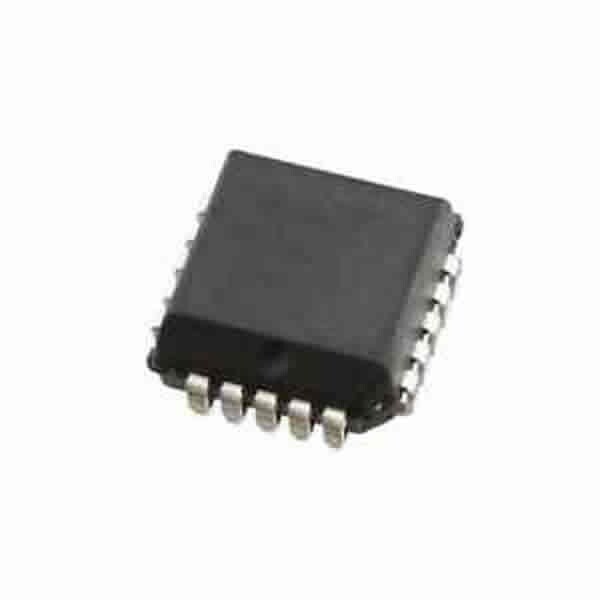

SN74LS245FN

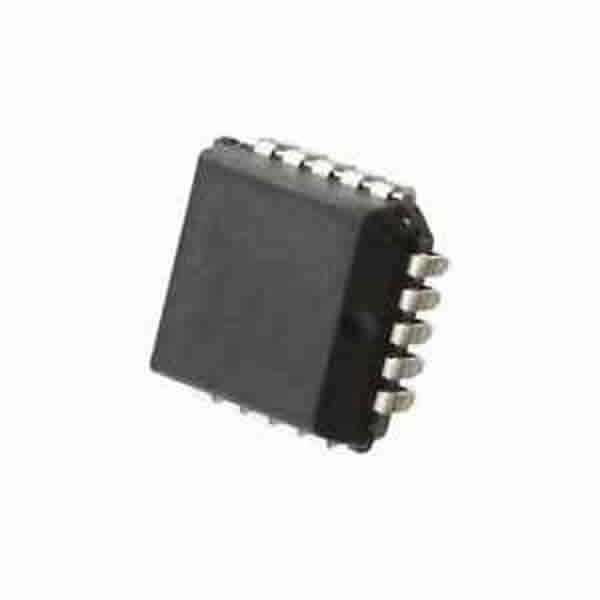

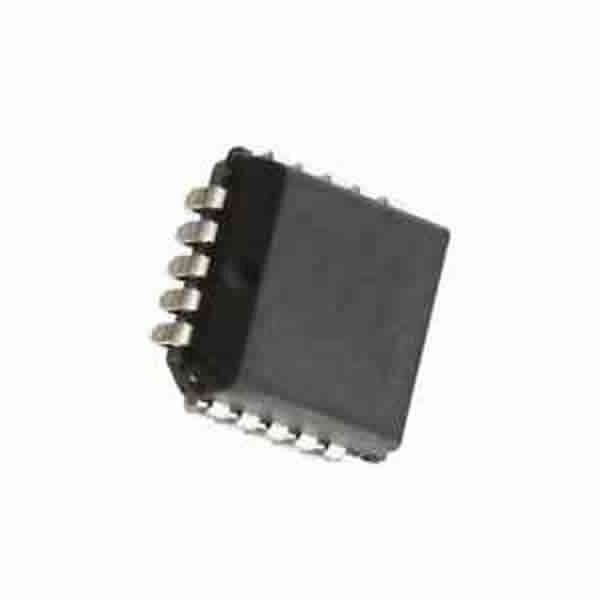

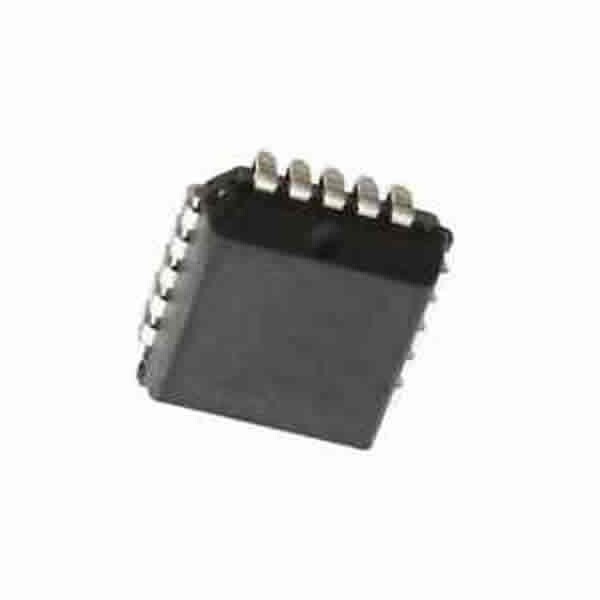

View detailed images (4)

SN74LS245FN

SKU: SN74LS245FN
SN74LS245FN Logic IC CASE: PLCC20 MAKE: Texas Instruments
+ VAT 20% for UK purchases
Product specifications
Type Logic IC
Case PLCC20
Manufacturer Texas Instruments
Inp Thrshld Hi (V) 2.0
Inp Thrshld Lo (V) 0.8
Mode I/O D or S Single-End
tPD Max. (S) 12n
Nom. Neg Supp 0.0
Nom. Pos. Supp 5.0
Tech. TTL Integrated Circuit
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
@IOL (A) 24m
VOL Max. (Drvr) 0.5
VOL Max. (Rcvr) 0.5
VOH Min (Rcvr) 2.4
Pinout Equivalence Number 20-133
No. of Pins 20
Surface Mounted Yes/No YES
SKU 445593
