SN74LS33D

SN74LS33D

SKU: SN74LS33D

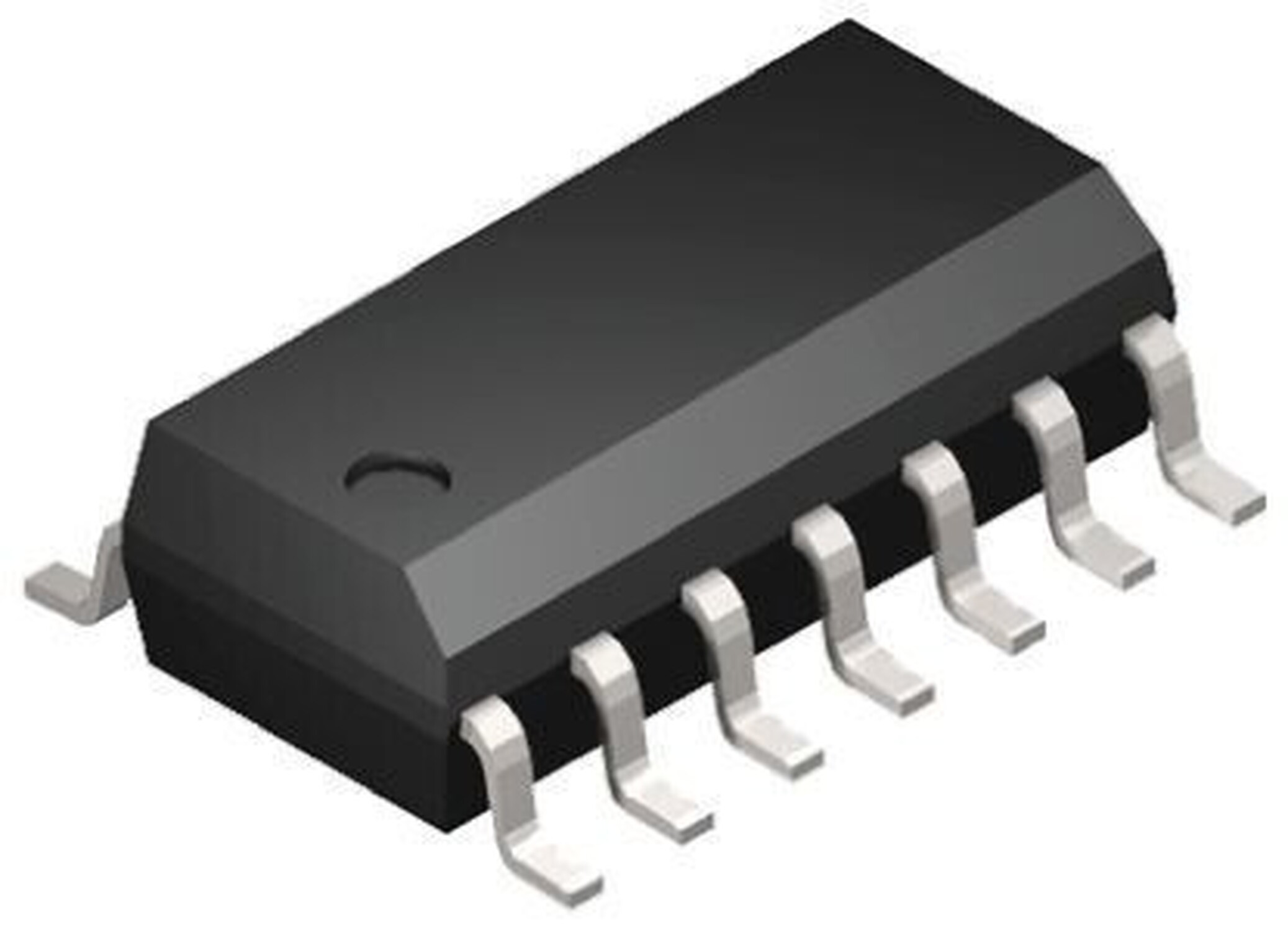

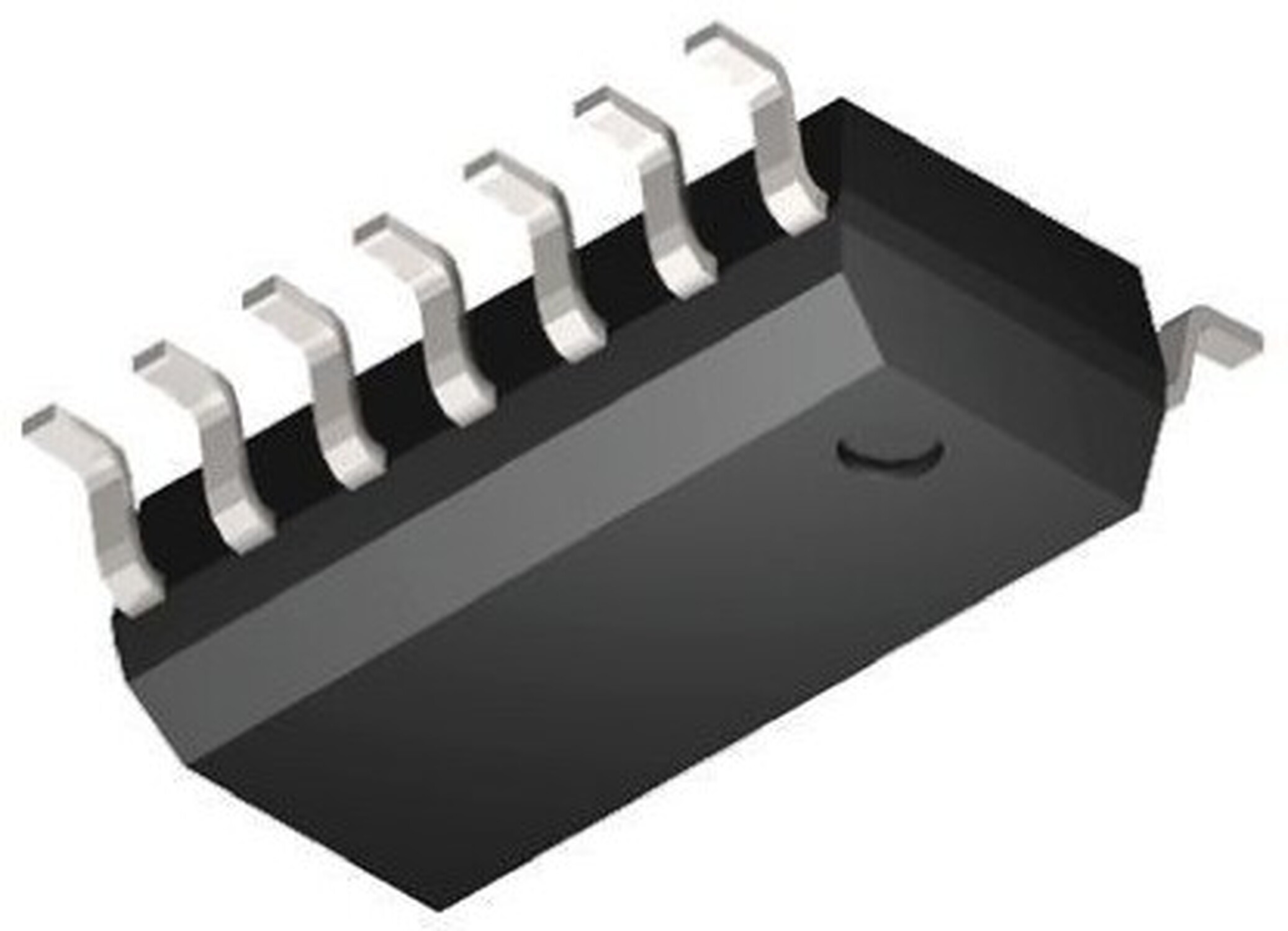

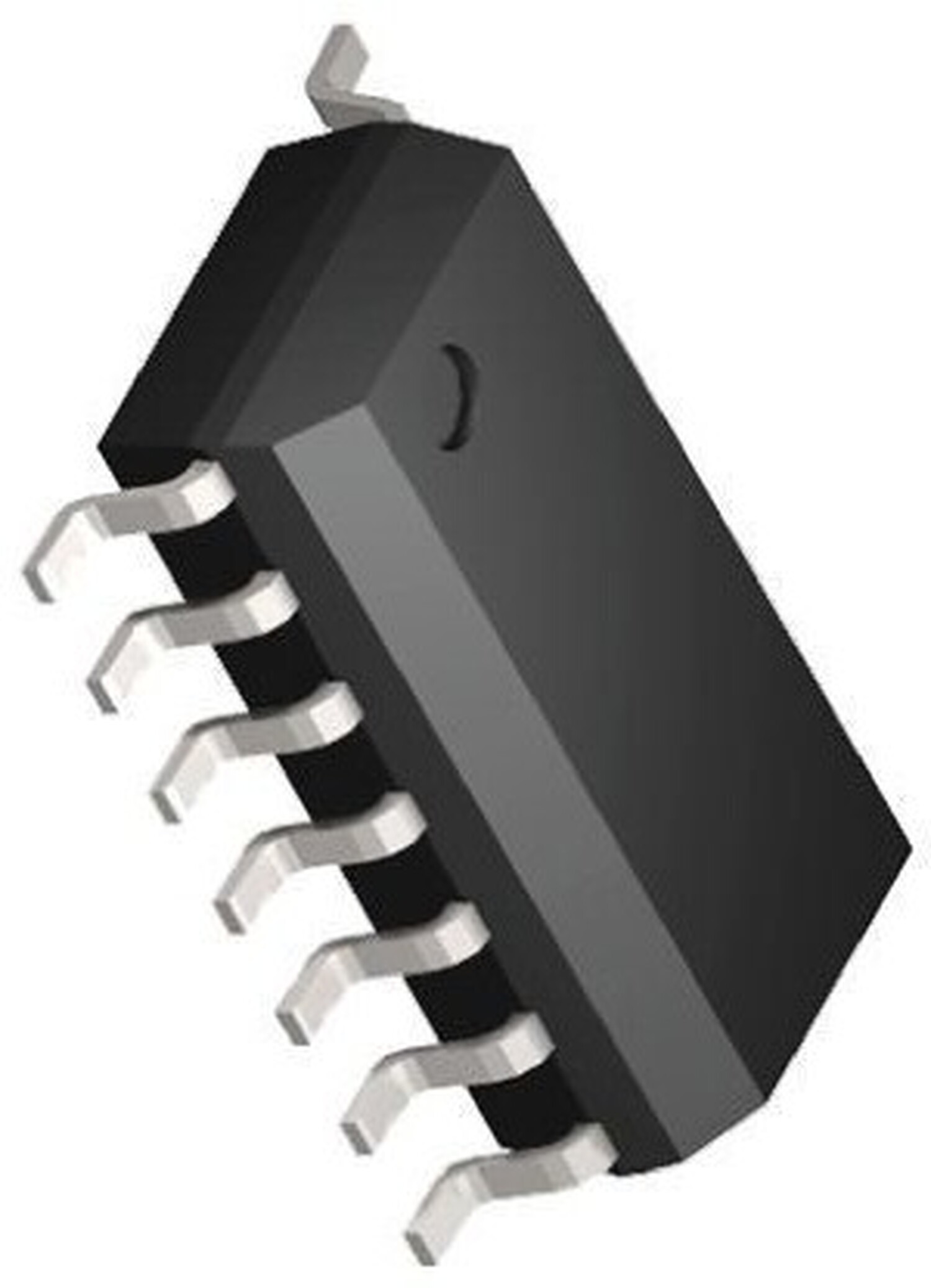

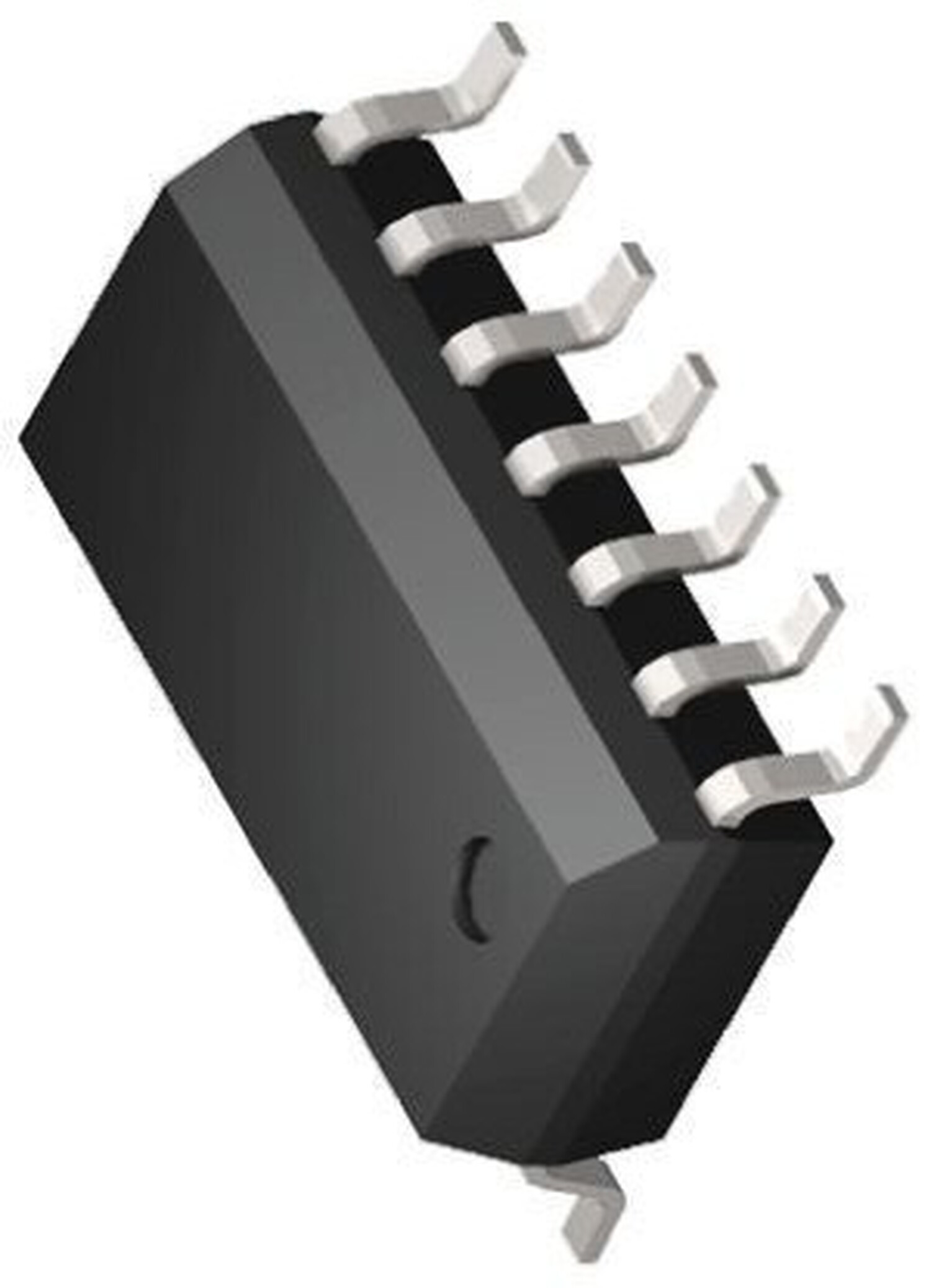

SN74LS33D Logic IC CASE: SO14 MAKE: Texas Instruments
Product specifications
Type Logic IC
Case SO14
Manufacturer Texas Instruments
Ckts Per Dev. 4
Vih Min (V) 2.0
Vil Max. (V) 0.8
Inp Per Ckt 2
Output Config Open-Coll.
VOL Max. 0.5
tPD Max. (S) 28n
Nom. Supp (V) 5.0
Tech. TTL Integrated Circuit
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
@Iol (A) 24m
Pinout Equivalence Number 14-82
Surface Mounted Yes/No YES
SKU 993012
