SN74LS47D

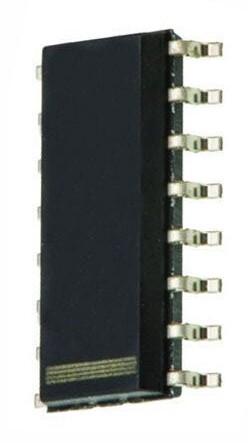

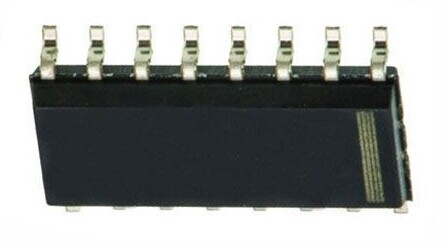

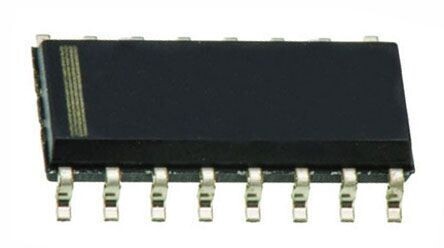

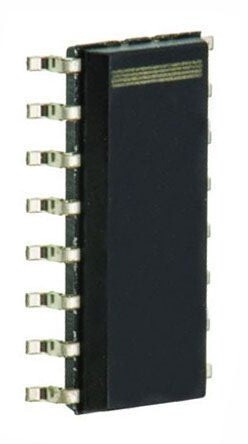

View detailed images (4)

SN74LS47D

SKU: SN74LS47D
SN74LS47D Logic IC CASE: SOIC MAKE: Texas Instruments
+ VAT 20% for UK purchases
Product specifications
Type Logic IC
Case SOIC
Manufacturer Texas Instruments
Vih Min (V) 2.0
Vil Max. (V) 0.8
Output Display Lines 7
Output Config Open-Coll.
PD Max. (W) 65m
Nom. Neg Supp 0
Nom. Pos. Supp 5.0
Type of Display LED
Tech. TTL Integrated Circuit
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
VOH Max. 30
@Iol (A) 8.0m
Pinout Equivalence Number 16-380
Surface Mounted Yes/No YES
SKU 522341
