SN74LS643N
View detailed images (12)

SN74LS643N

SKU: SN74LS643N

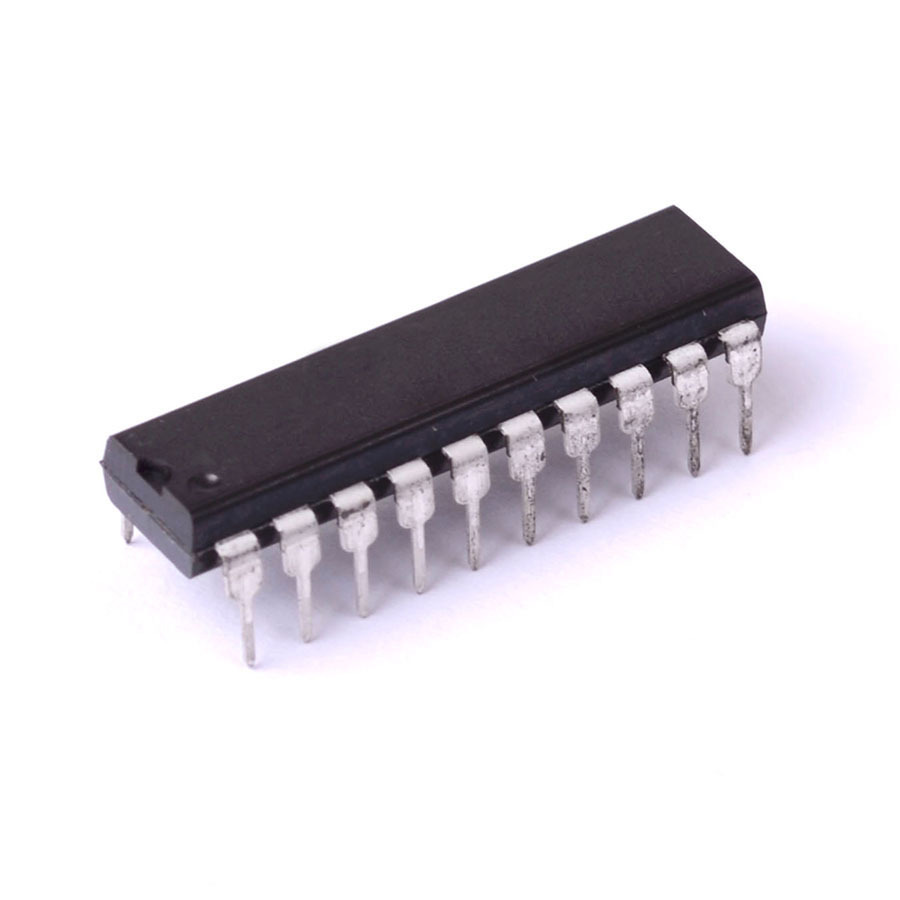

SN74LS643N Integrated Circuit - Case: DIP20 Make: Texas Instruments
+ VAT 20% for UK purchases
Product specifications
Type Logic IC
Case DIP20
Manufacturer Texas Instruments
Inp Thrshld Hi (V) 2.0
Inp Thrshld Lo (V) .60
Mode I/O D or S Single-End
tPD Max. (S) 15n
Nom. Neg Supp 0.0
Nom. Pos. Supp 5.0
Tech. TTL Integrated Circuit
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
@IOL (A) 24m
VOL Max. (Drvr) 0.5
VOL Max. (Rcvr) 0.5
VOH Min (Rcvr) 2.0
Pinout Equivalence Number 20-137
No. of Pins 20
Surface Mounted Yes/No NO
SKU 299400
