SN74LS649NS
View detailed images (12)

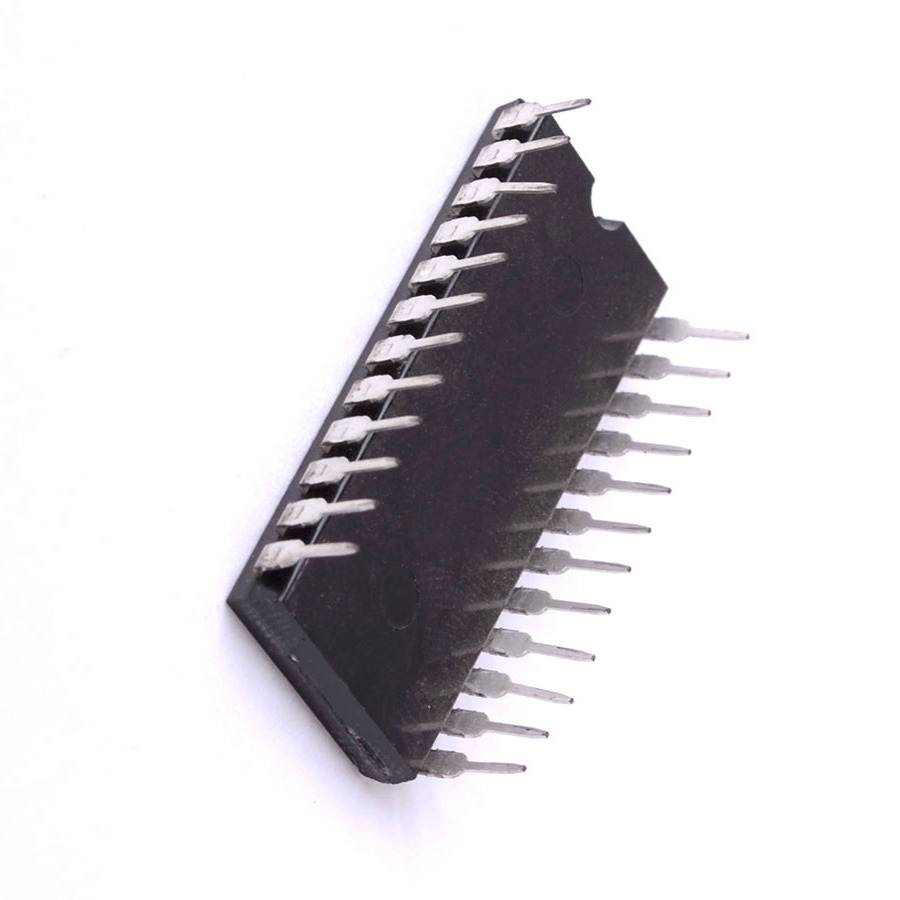

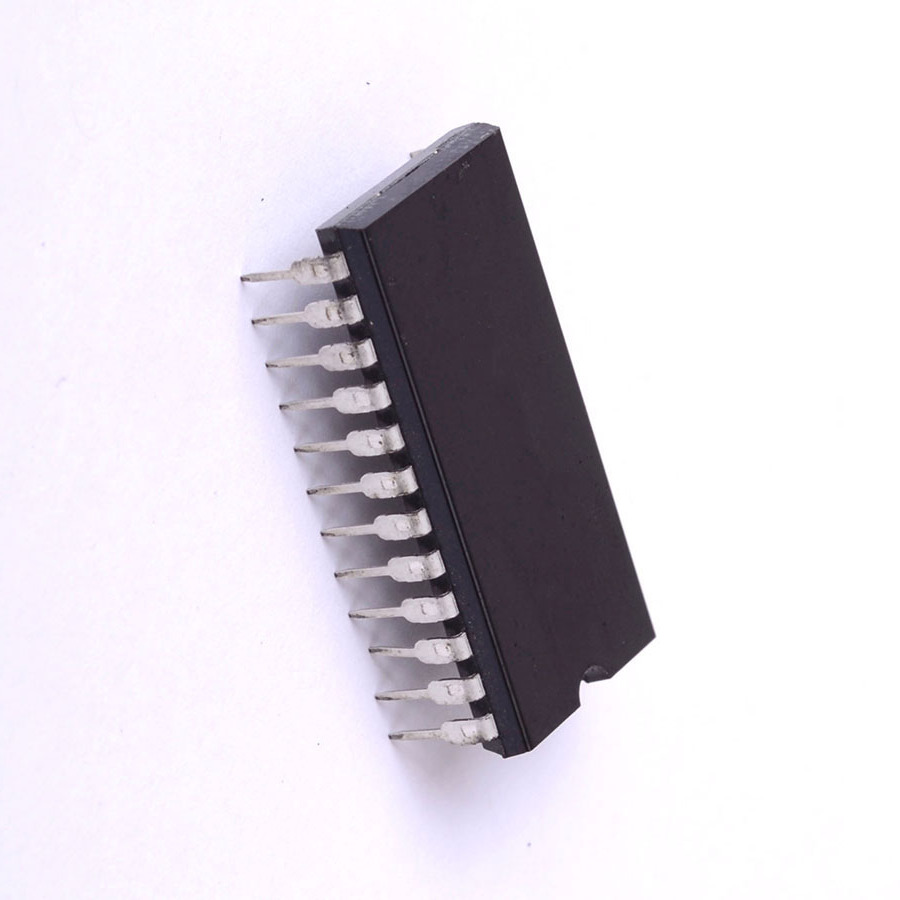

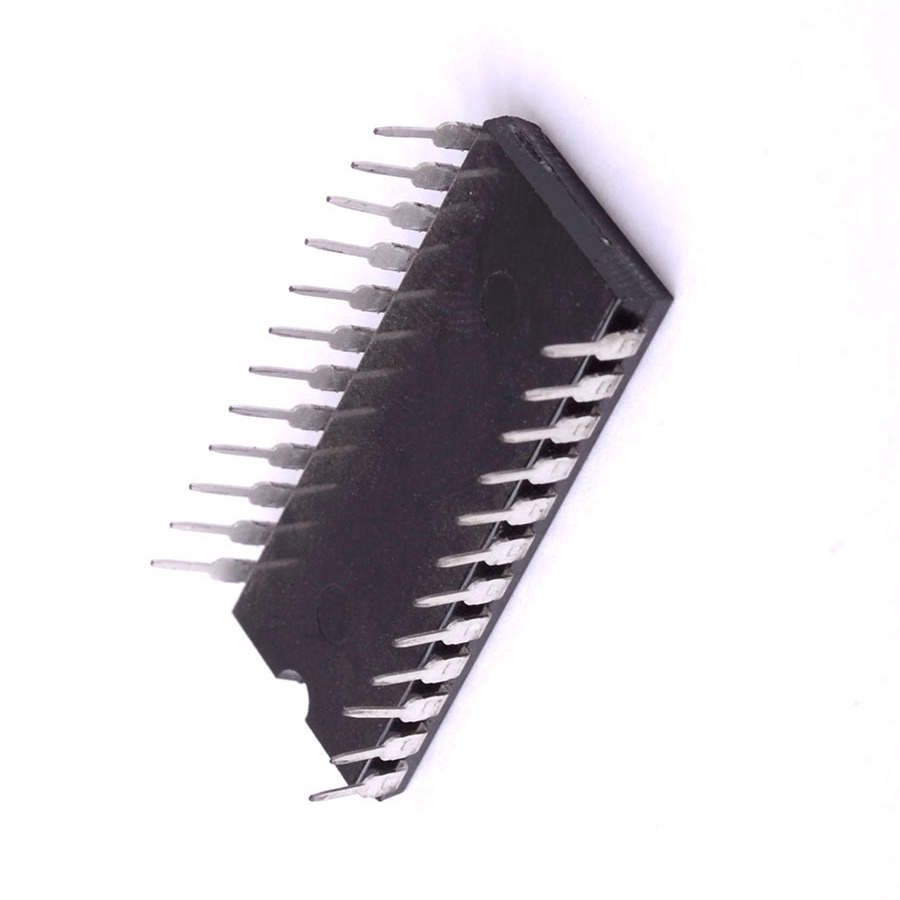

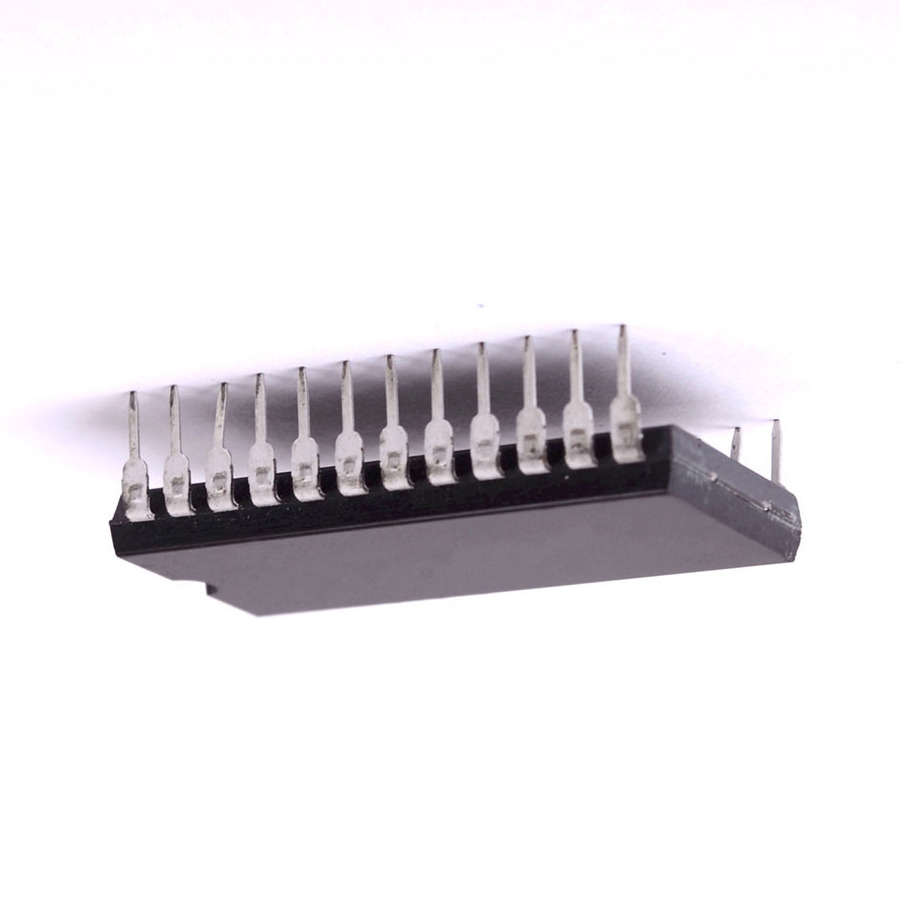

SN74LS649NS

SKU: SN74LS649NS

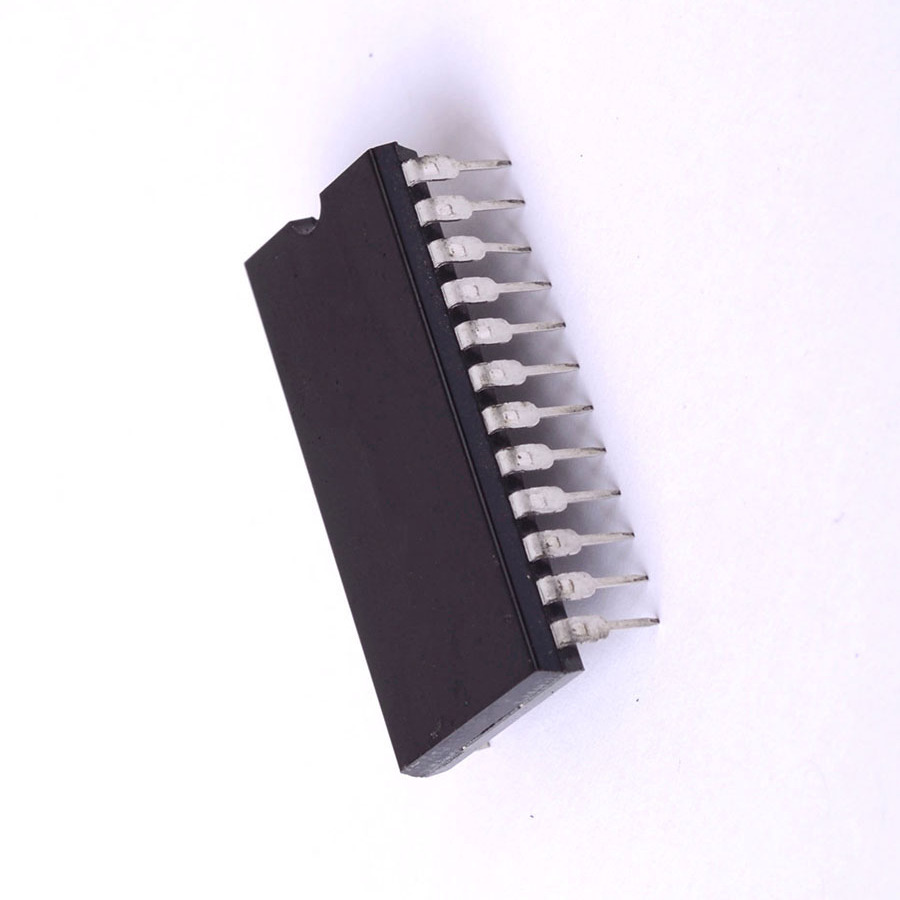

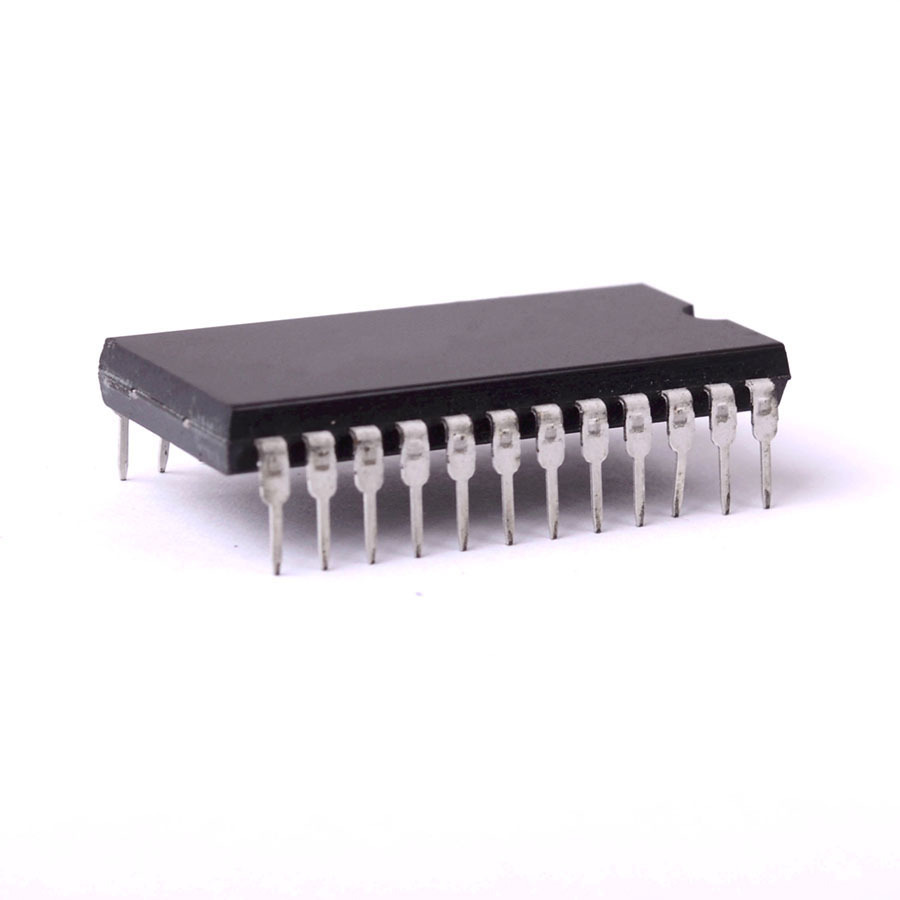

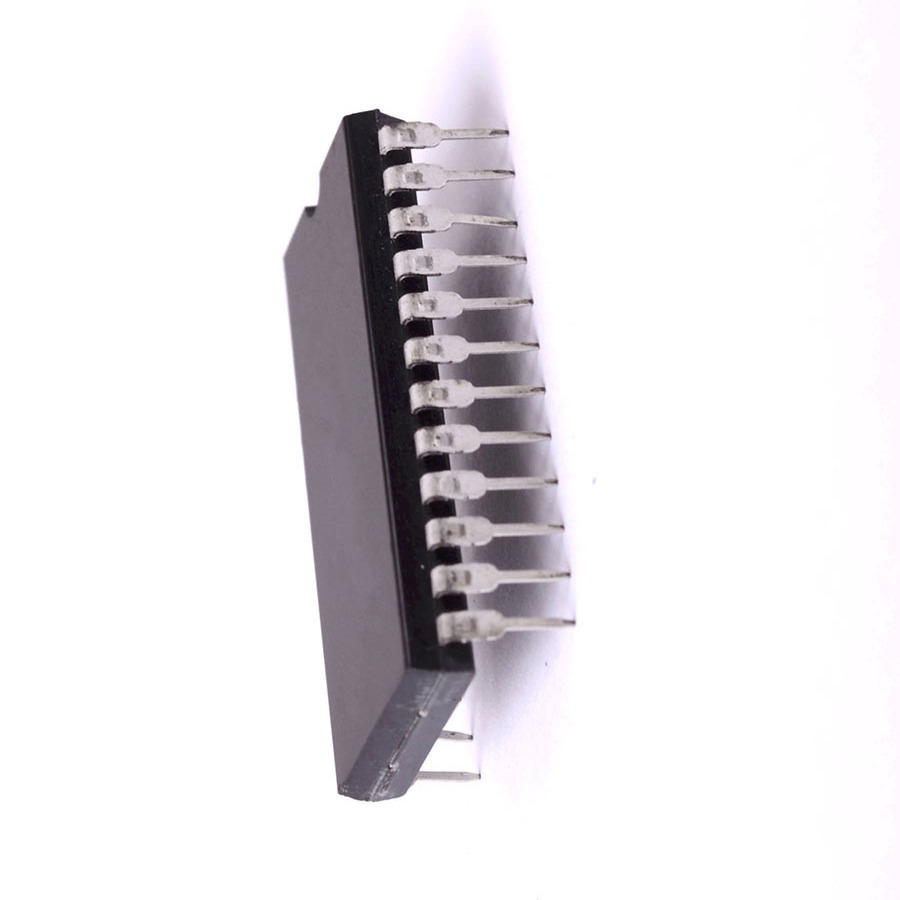

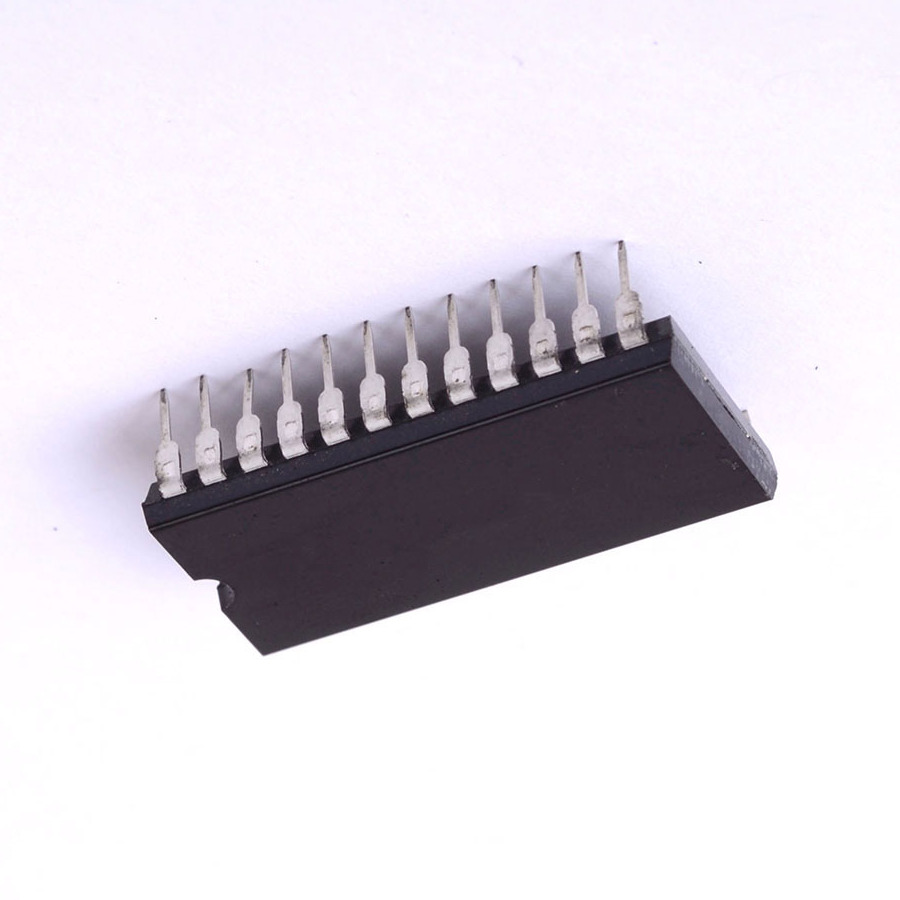

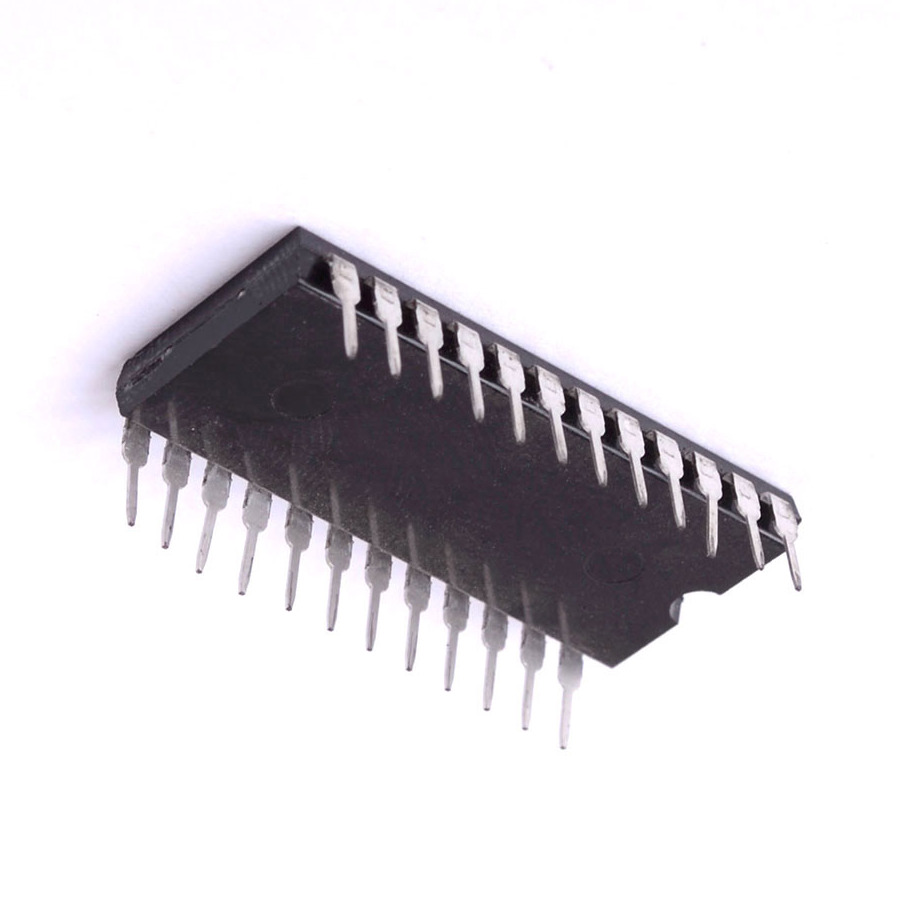

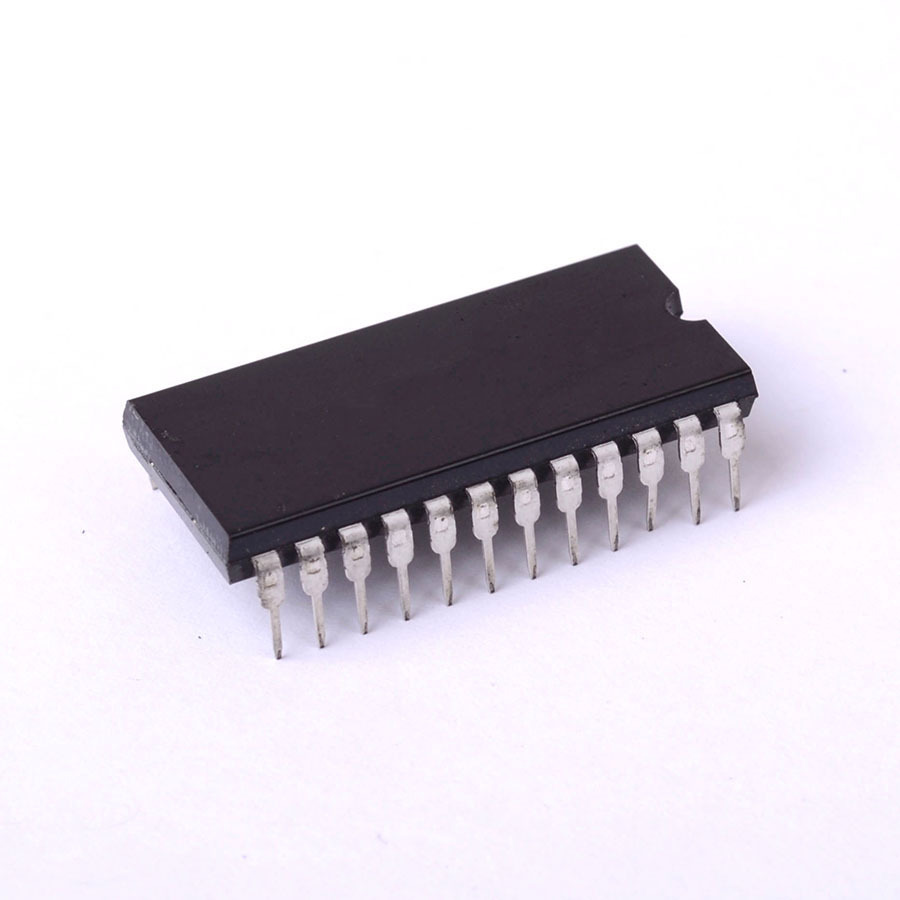

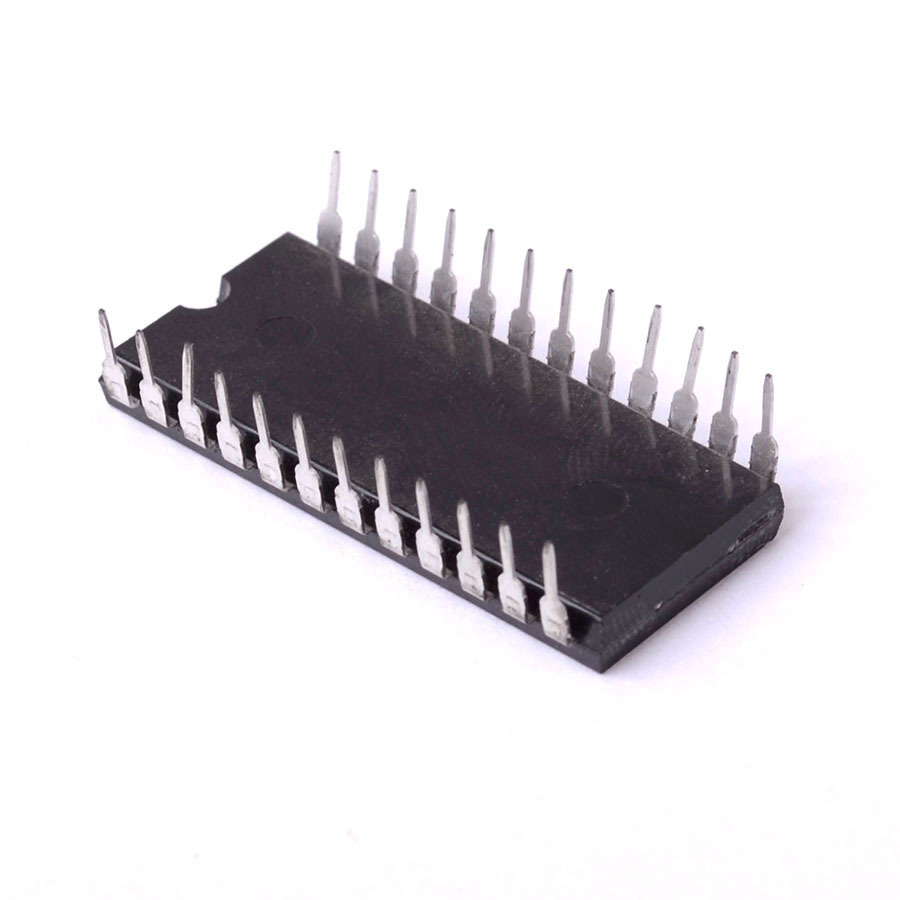

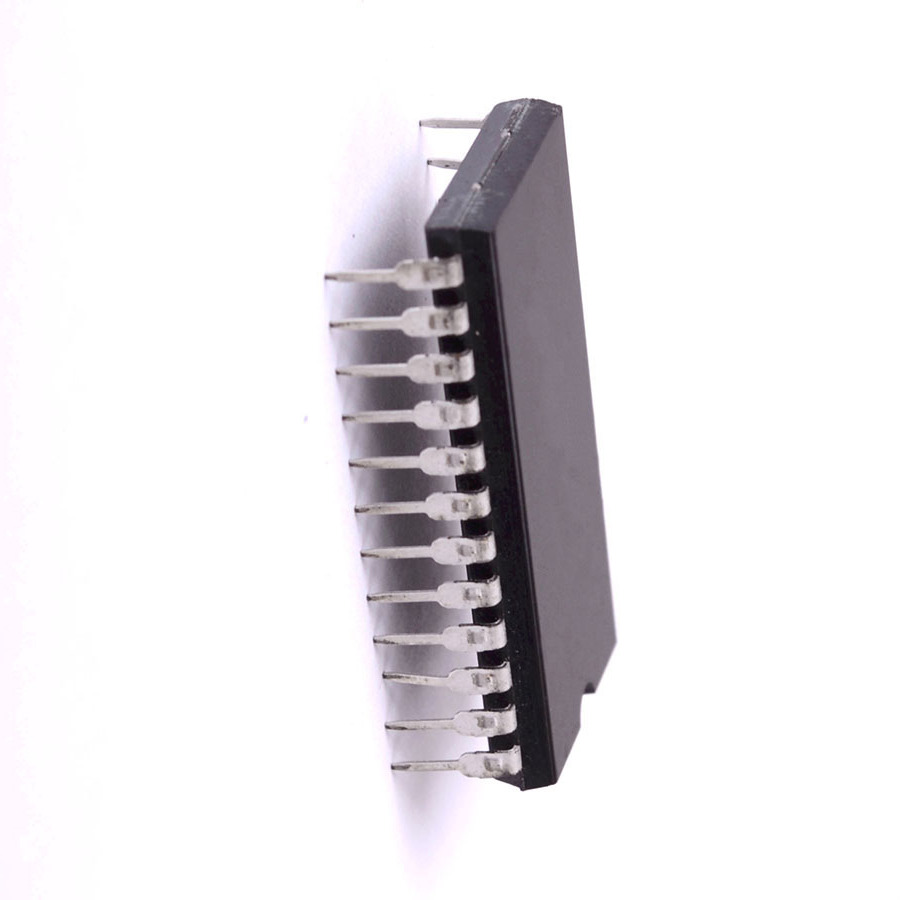

SN74LS649NS Logic IC CASE: DIP24 MAKE: Texas Instruments
+ VAT 20% for UK purchases
Product specifications
Type Logic IC
Case DIP24
Manufacturer Texas Instruments
Inp Thrshld Hi (V) 2.0
Inp Thrshld Lo (V) 0.8
Mode I/O D or S Single-End
tPD Max. (S) 55n
Nom. Neg Supp 0.0
Nom. Pos. Supp 5.0
Tech. TTL Integrated Circuit
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
@IOL (A) 12m
VOL Max. (Drvr) 0.4
VOL Max. (Rcvr) 0.5
VOH Min (Rcvr) 2.0
Pinout Equivalence Number 24-408
No. of Pins 24
Surface Mounted Yes/No NO
SKU 592615
