SN74S04D

SN74S04D

SKU: SN74S04D

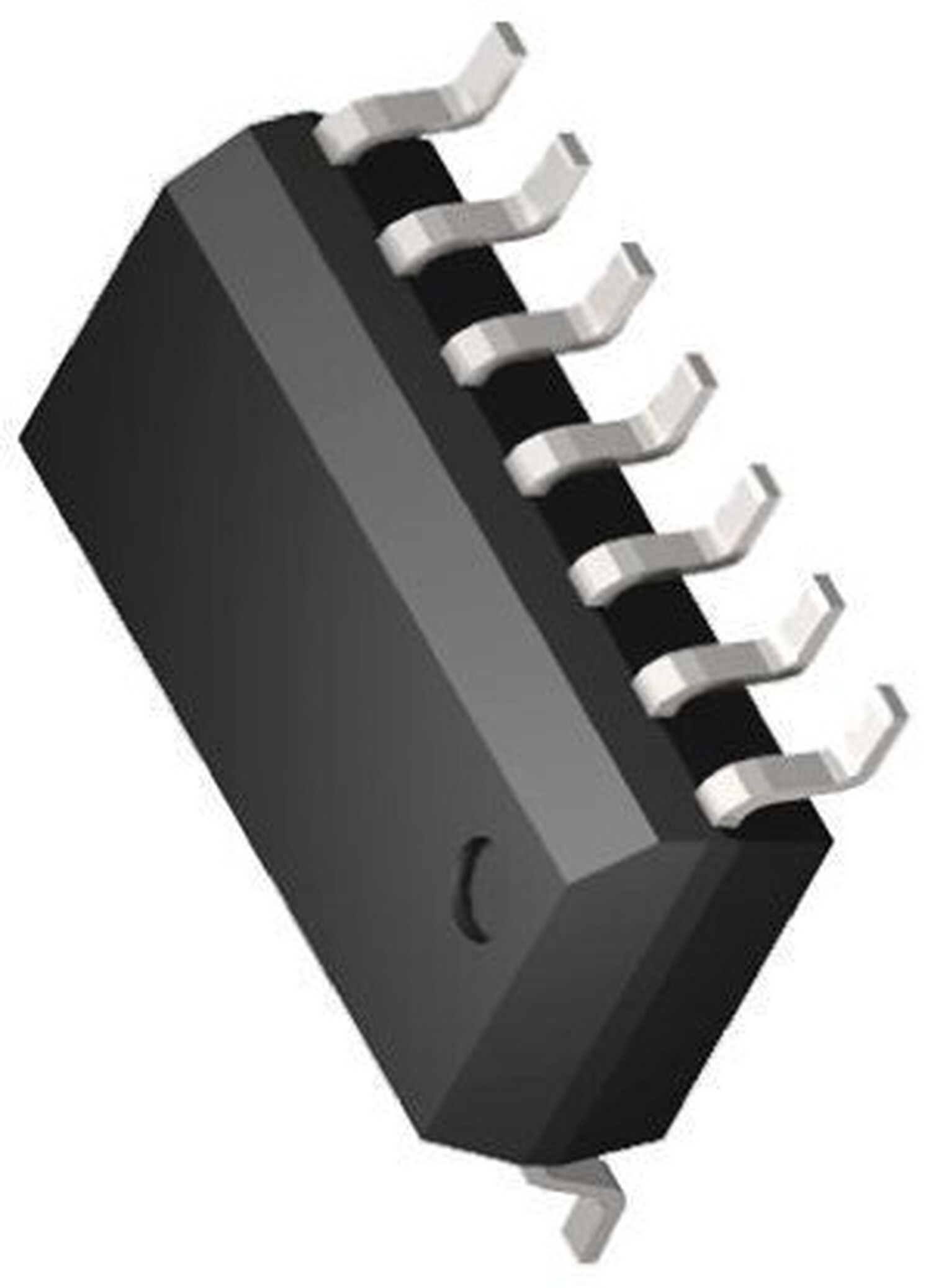

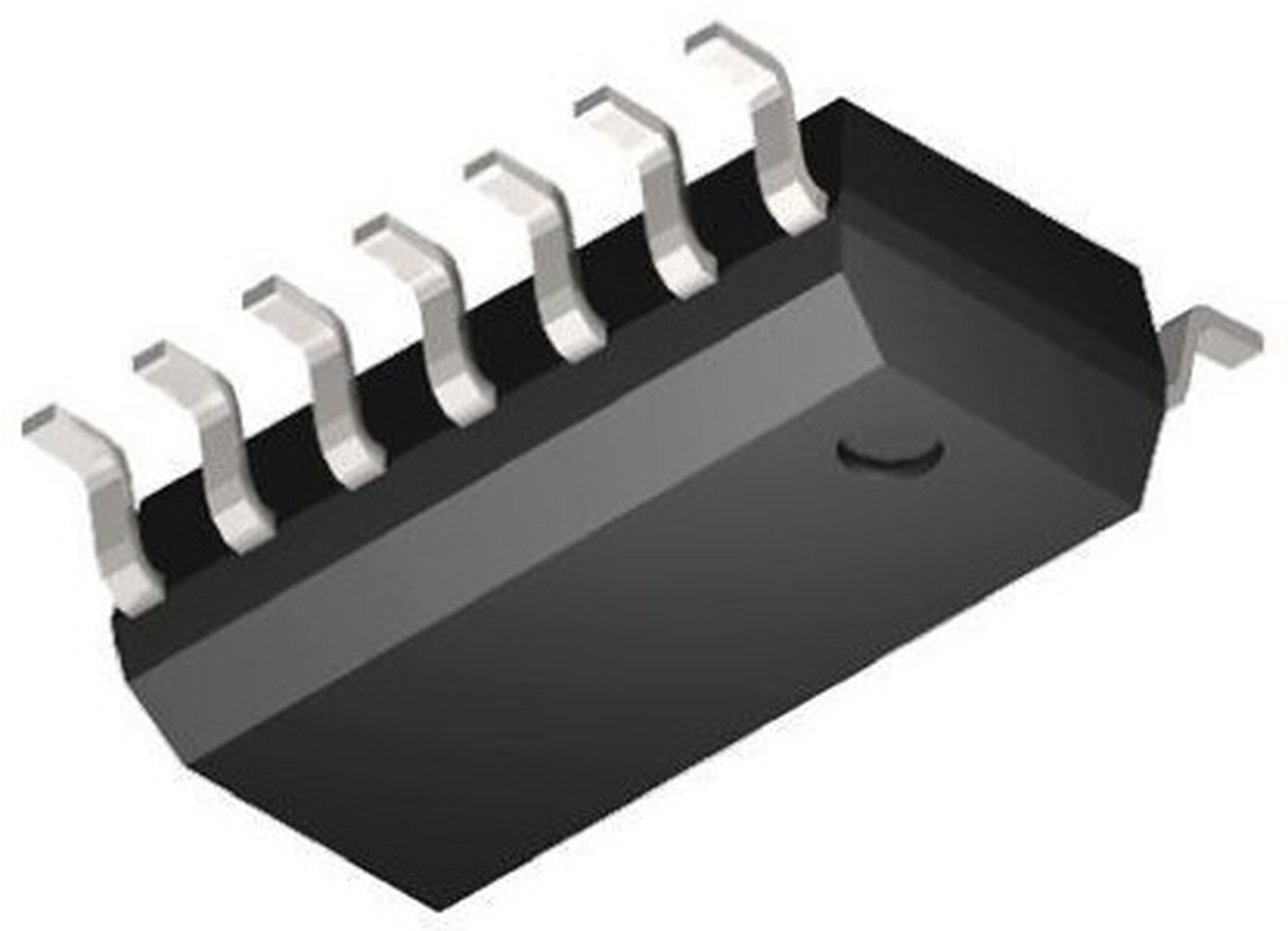

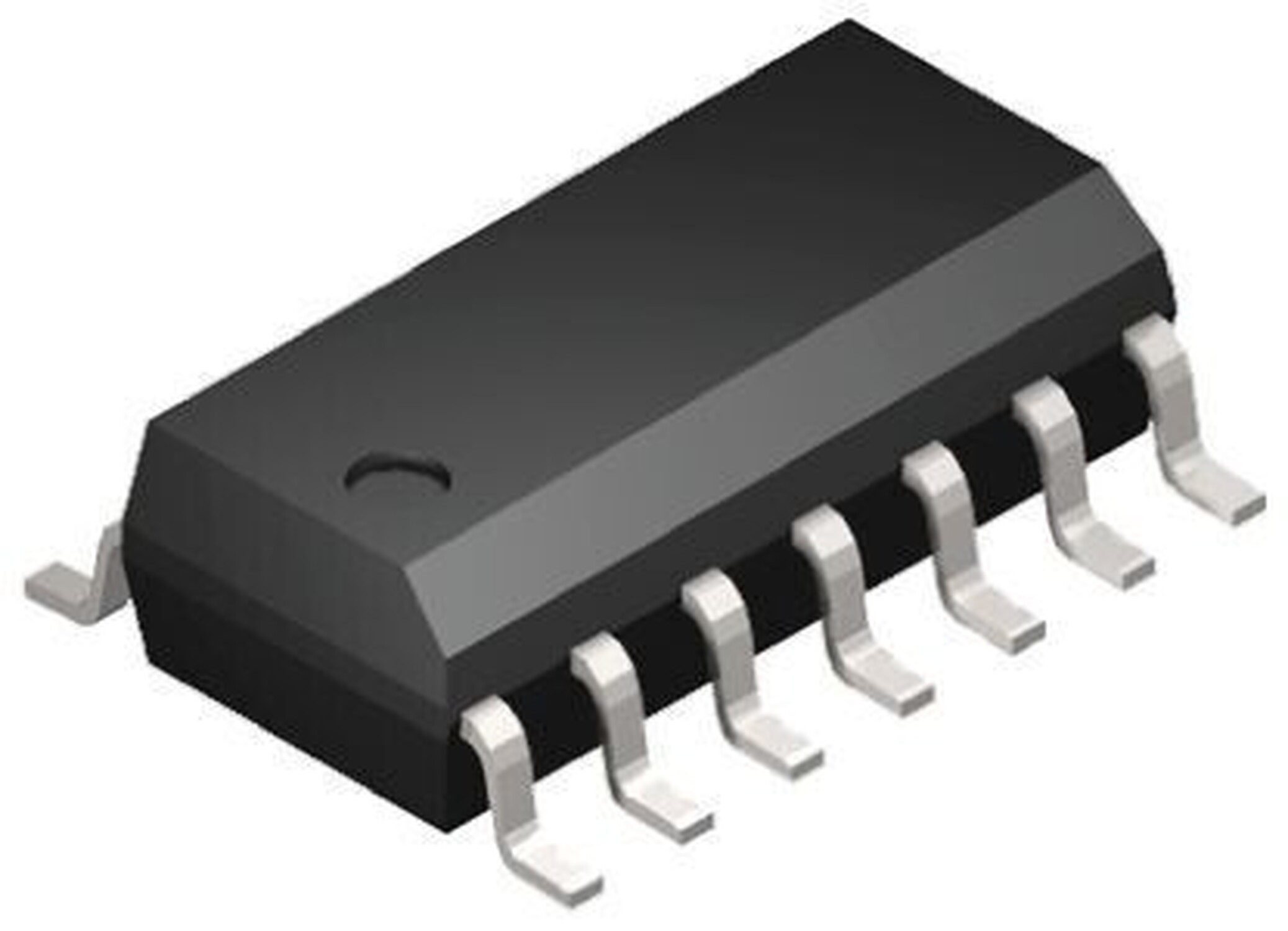

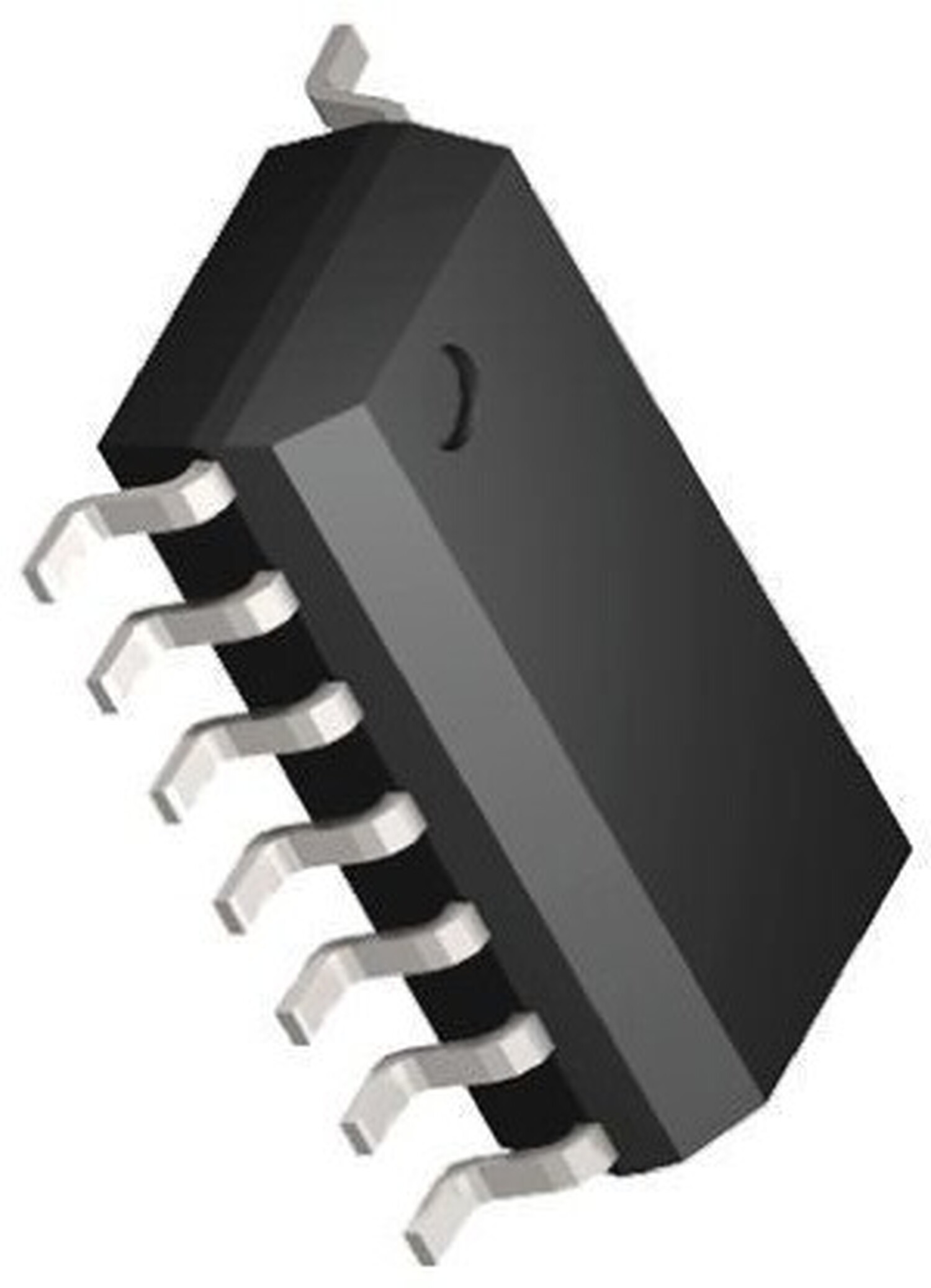

SN74S04D Logic IC CASE: SO MAKE: Texas Instruments
Product specifications
Type Logic IC
Case SO
Manufacturer Texas Instruments
Ckts Per Dev. 6
Vih Min (V) 2.0
Vil Max. (V) 0.8
Inp Per Ckt 1
Output Config 3-State
VOL Max. 0.4
tPD Max. (S) 5.0n
Nom. Supp (V) 5.0
Tech. TTL Integrated Circuit
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
@Iol (A) 270m
Pinout Equivalence Number 14-307
Surface Mounted Yes/No YES
SKU 984303
