SN74S140D

SN74S140D

SKU: SN74S140D

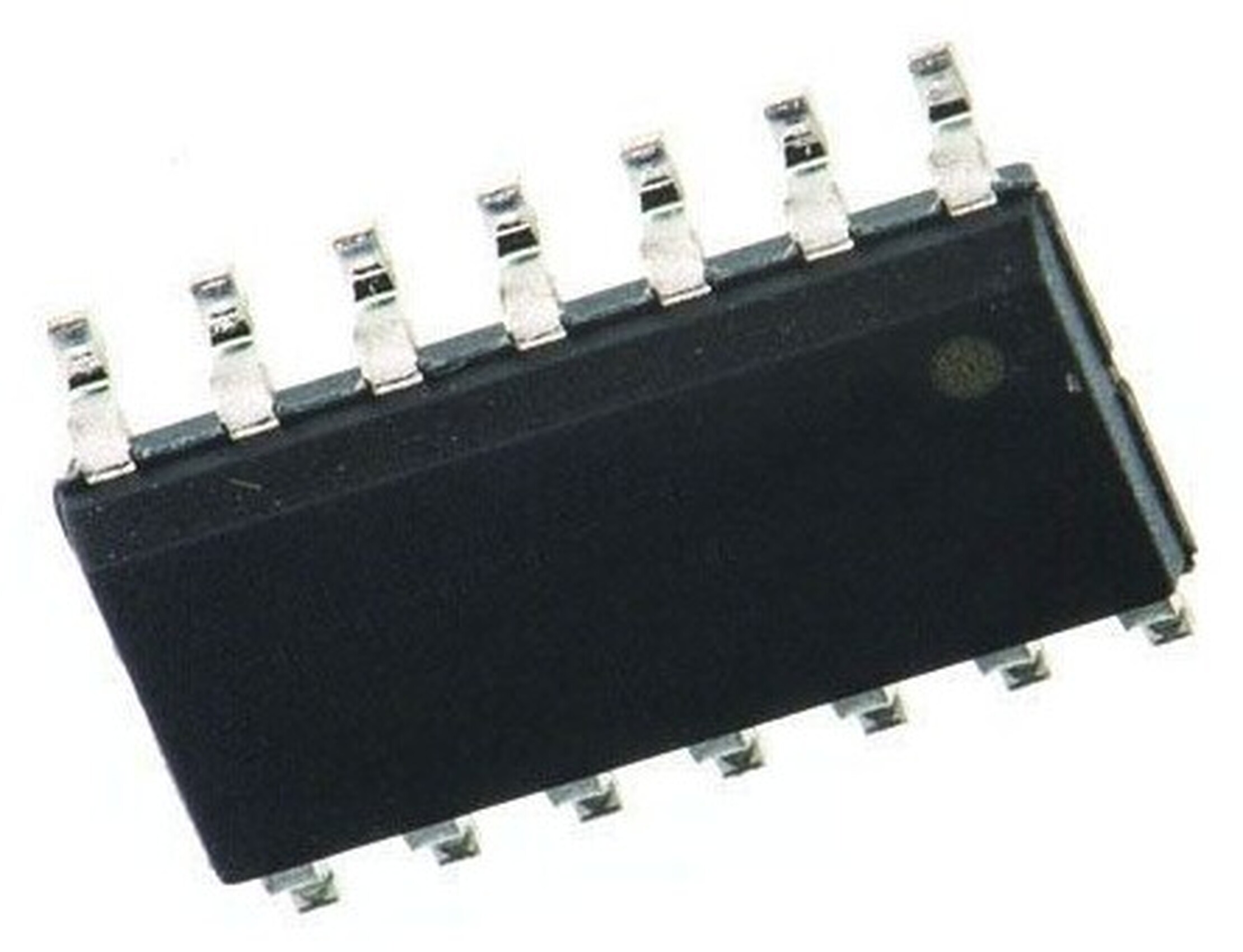

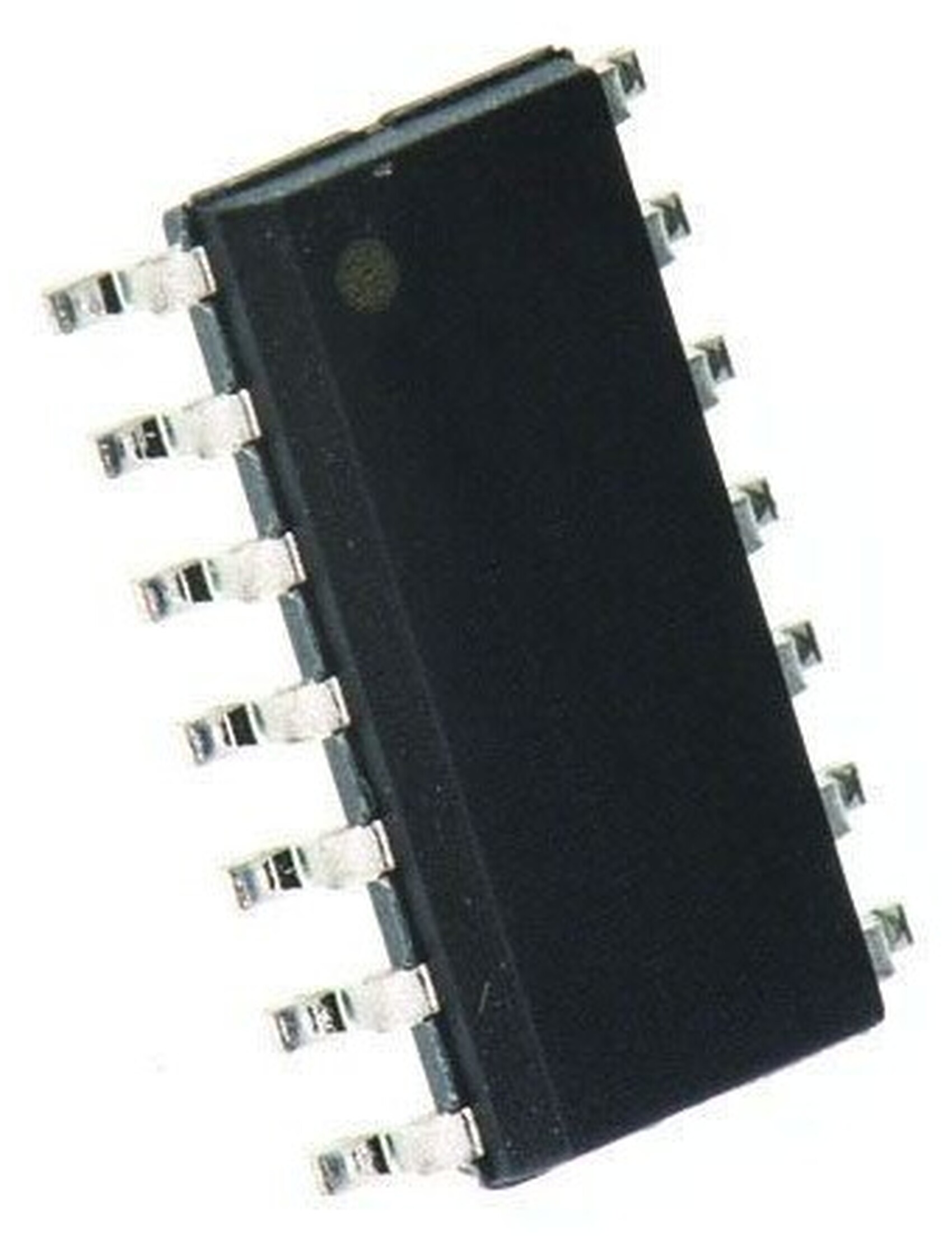

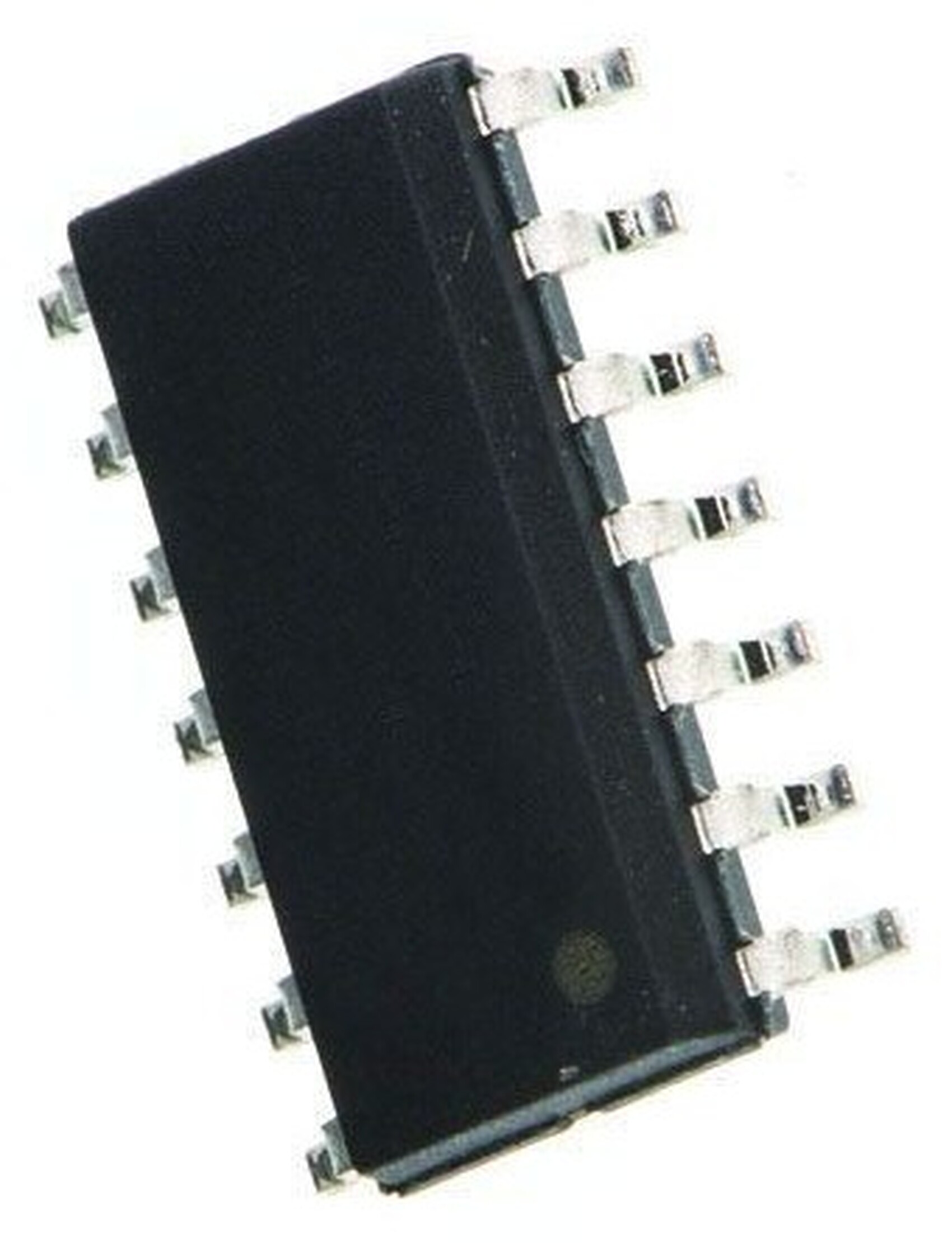

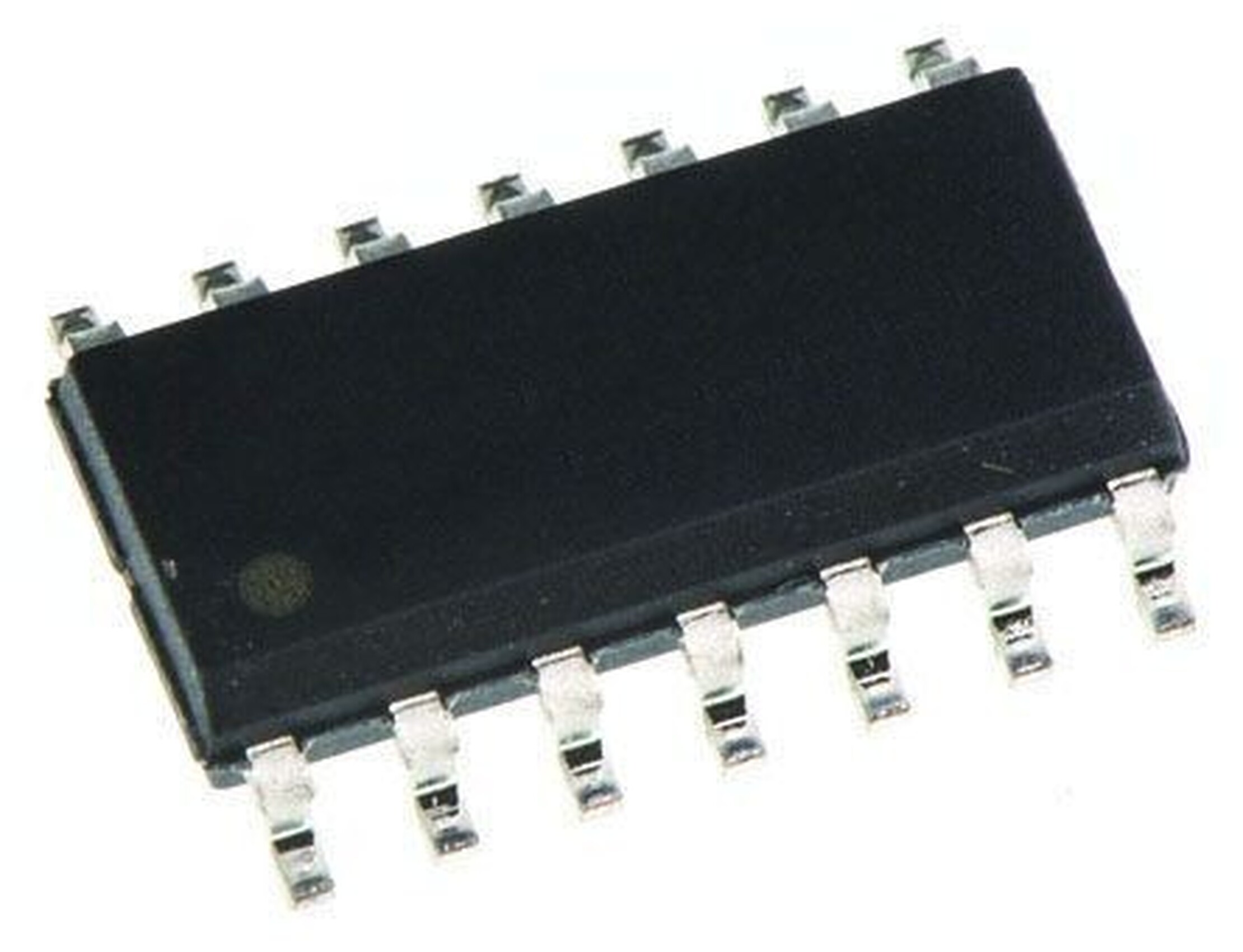

SN74S140D Logic IC CASE: SO MAKE: Texas Instruments
Product specifications
Type Logic IC
Case SO
Manufacturer Texas Instruments
Ckts Per Dev. 2
Outp Volt Hi Typ. 3.4
Outp Volt Lo Typ. 0.5
tPD Max. (S) 6.5n
Nom. Neg Supp 0.0
Nom. Pos. Supp 5.0
Tech. TTL Integrated Circuit
Logic Funct. NAND
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Pinout Equivalence Number 14-595
Surface Mounted Yes/No YES
SKU 994598
